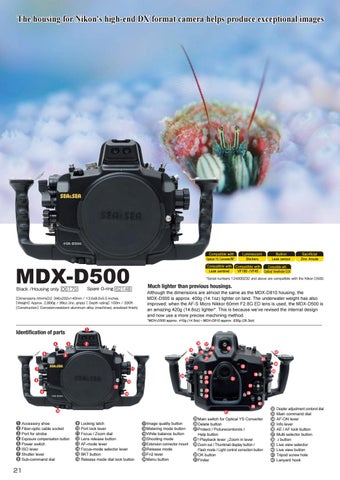

The housing for Nikon's high-end DX format camera helps produce exceptional images
Compatible with Optical YS Converter/N*
MDX-D500 Black /Housing only 06179
Spare O-ring 62148
［Dimensions (WxHxD)］346x202x140mm / 13.6x8.0x5.5 inches ［Weight］Approx. 2,800g / 99oz (inc. grips)［ Depth rating］100m / 330ft ［Construction］Corrosion-resistant aluminum alloy (machined, anodized finish)
Luminescent Stickers
Compatible with Compatible with Leak sentinel VF180 /VF45
Built-in Leak sensor
Sacrificial Zinc Anode
Compatible with Optical Viewfinder 0.5X
*Serial numbers 124000232 and above are compatible with the Nikon D500.
Much lighter than previous housings. Although the dimensions are almost the same as the MDX-D810 housing, the MDX-D500 is approx. 400g (14.1oz) lighter on land. The underwater weight has also improved; when the AF-S Micro Nikkor 60mm F2.8G ED lens is used, the MDX-D500 is an amazing 420g (14.8oz) lighter*. This is because we’ve revised the internal design and now use a more precise machining method. *MDX-D500 approx. 410g (14.5oz) - MDX-D810 approx. 830g (29.3oz)
Identification of parts
篝
篆
笊 Accessory shoe 笆 Fiber-optic cable socket 笳 Port for strobe 笘 Exposure compensation button 笙 Power switch 笞 ISO lever 笵 Shutter lever 笨 Sub-command dial
21
笶 Locking latch 筐 Port lock lever 筺 Focus / Zoom dial 笄 Lens release button 筍 AF-mode lever 笋 Focus-mode selector lever 筌 BKT button 筅 Release mode dial lock button
筵 Image quality button 筥 Metering mode button 筴 White balance button 筧 Shooting mode 筰 Extension connector mount 筱 Release mode 筬 Fn2 lever 筮 Menu button
箝 Main switch for Optical YS Converter 箘 Delete button 箟 Protect / Picturecontorols / Help button
箍 ↑Playback lever ↓Zoom in lever 箜 Zoom out / Thumbnail display button /
Flash mode / Light control correction button
箚 OK button 箋 Finder
箒 箏 筝 箙 篋 篁 篌 篏 箴 篆 篝
Diopter adjustment contorol dial Main command dial AF-ON lever Info lever AE / AF lock button Multi selector button i button Live view selector Live view button Tripod screw hole Lanyard hook
