Ribbon Cable Socket and Shrouded Boardmount Header
Drawing Number
1581xx-1x00
Ribbon Cable Socket 2mm x 2mm, adhesive cover (best)
78-5100-2358-9
1582xx-0x20xx
Ribbon Cable Socket 2mm x 2mm, pre-assembled cover, (better)
78-5100-2358-9
1583xx-211015
Ribbon Cable Socket 2mm x 2mm, separate cover, (value)
78-5100-2358-9
1591xx-xxxx
Shrouded Boardmount Header 2mm x 2mm, 076μm Au (best)
78-5100-2359-7
1592xx-xxxx
Shrouded Boardmount Header 2mm x 2mm, 038μm Au (better)
78-5100-2359-7
3M

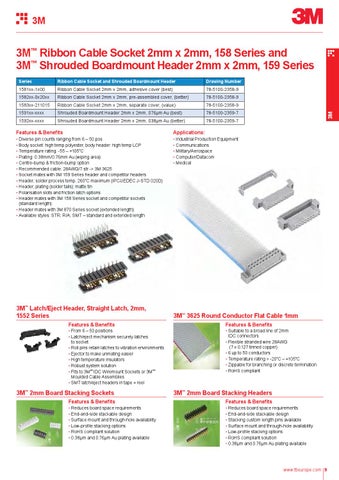

3M™ Ribbon Cable Socket 2mm x 2mm, 158 Series and 3M™ Shrouded Boardmount Header 2mm x 2mm, 159 Series
Features & Benefits
Applications:
3M™ Latch/Eject Header, Straight Latch, 2mm, 1552 Series
3M™ 3625 Round Conductor Flat Cable 1mm
• Diverse pin counts ranging from 6 – 50 pos • Body socket: high temp polyester, body header: high temp LCP • Temperature rating: -55 – +105˚C • Plating: 0.38mm/0.76mm Au (wiping area) • Centre-bump & friction-bump option • Recommended cable: 28AWG/7 str -> 3M 3625 • Socket mates with 3M 159 Series header and competitor headers • Header, solder process temp. 260˚C maximum (IPC/JEDEC J-STD 020D) • Header, plating (solder tails): matte tin • Polarisation slots and friction latch options • Header mates with 3M 158 Series socket and competitor sockets (standard length) • Header mates with 3M 870 Series socket (extended length) • Available styles: STR; R/A; SMT – standard and extended length
• Industrial Production Equipment • Communications • Military/Aerospace • Computer/Datacom • Medical
Features & Benefits
Features & Benefits
3M™ 2mm Board Stacking Sockets
3M™ 2mm Board Stacking Headers
Features & Benefits
Features & Benefits
• From 6 – 50 positions • Latch/eject mechanism securely latches to socket • Roll pins retain latches to vibration environments • Ejector to make unmating easier • High temperature insulators • Robust system solution • Fits to 3M™ IDC Wiremount Sockets or 3M™ Moulded Cable Assemblies • SMT latch/eject headers in tape + reel
• Reduces board space requirements • End-and-side stackable design • Surface mount and through-hole availability • Low-profile stacking options • RoHS compliant solution • 0.38μm and 0.76μm Au plating available
• Suitable to a broad line of 2mm IDC connectors • Flexible stranded wire 28AWG (7 x 0.127 tinned copper) • 6 up to 50 conductors • Temperature rating > -20˚C – +105˚C • Zippable for branching or discrete termination • RoHS compliant
• Reduces board space requirements • End-and-side stackable design • Stacking custom length pins available • Surface mount and through-hole availability • Low-profile stacking options • RoHS compliant solution • 0.38μm and 0.76μm Au plating available
