Ball Valves

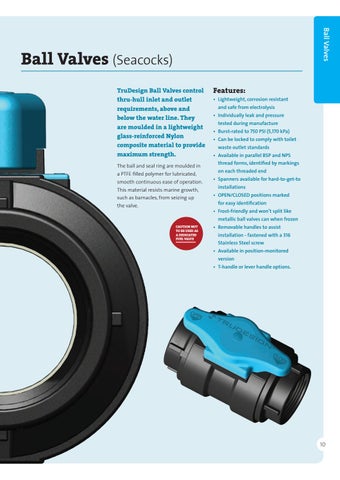

Ball Valves (Seacocks) TruDesign Ball Valves control thru-hull inlet and outlet requirements, above and below the water line. They are moulded in a lightweight glass-reinforced Nylon composite material to provide maximum strength. The ball and seal ring are moulded in a PTFE filled polymer for lubricated,
smooth continuous ease of operation. This material resists marine growth, such as barnacles, from seizing up the valve.
Features:
• Lightweight, corrosion resistant and safe from electrolysis
• Individually leak and pressure tested during manufacture
• Burst-rated to 750 PSI (5,170 kPa)
• Can be locked to comply with toilet waste outlet standards
• Available in parallel BSP and NPS
thread forms, identified by markings on each threaded end
• Spanners available for hard-to-get-to installations
• OPEN/CLOSED positions marked for easy identification
• Frost-friendly and won’t split like
metallic ball valves can when frozen
CAUTION NOT TO BE USED AS A DEDICATED FUEL VALVE
• Removable handles to assist
installation - fastened with a 316 Stainless Steel screw
• Available in position-monitored version
• T-handle or lever handle options.
10
