Tekform Slimline+ Drawer
Assembly instructions
Tool needed for assembly
Recommended screws (not included)
x 13mm
x 15mm
NL=270 mm
NL=300 mm
NL=350 mm
NL=400 mm
NL=450 mm
NL=270 mm
NL=300 mm
NL=350 mm
NL=400 mm
NL=450 mm
NL=500 mm
NL=550 mm
NL=500 mm
NL=550 mm
DW70
DW100
ICW - 87+/- 0.5
DW145 DW182 K=68 K=100 K=151 K=183
ICW - 75+/- 0.5
* For drawers with steel back panel L = NL - 20

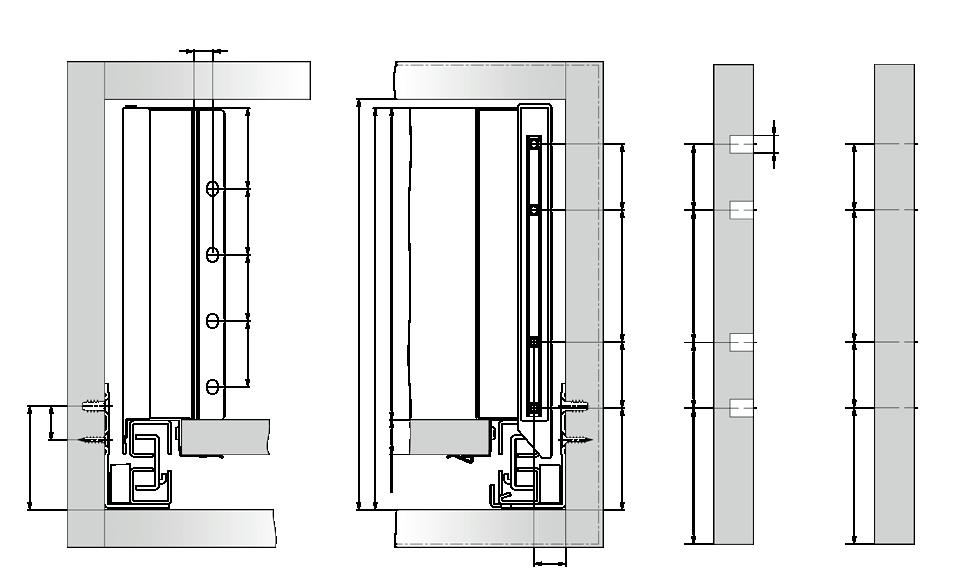

Front Panel Dimensions and Drilling
DW145
DW182

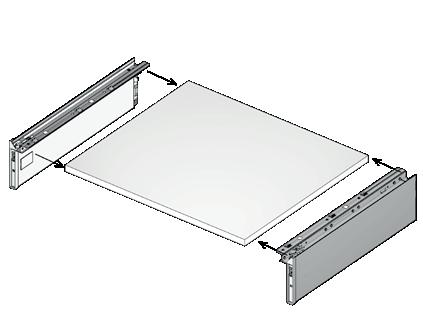

Assembly wooden back panel
Assembly steel back panel
Ø3.5 x 15 mm
Ø3.5 x 15 mm
Ø3.5 x 15 mm
Ø3.5 x 15 mm
Front Panel Mounting
Drawer Insertion
Drawer removal
Front panel removal
