ENLACE 2

ENLACE

ENLACE | 1

03 40 |

THE PROPOSAL Design Development Spatial Experience Environmental Integration

ENLACE | 41

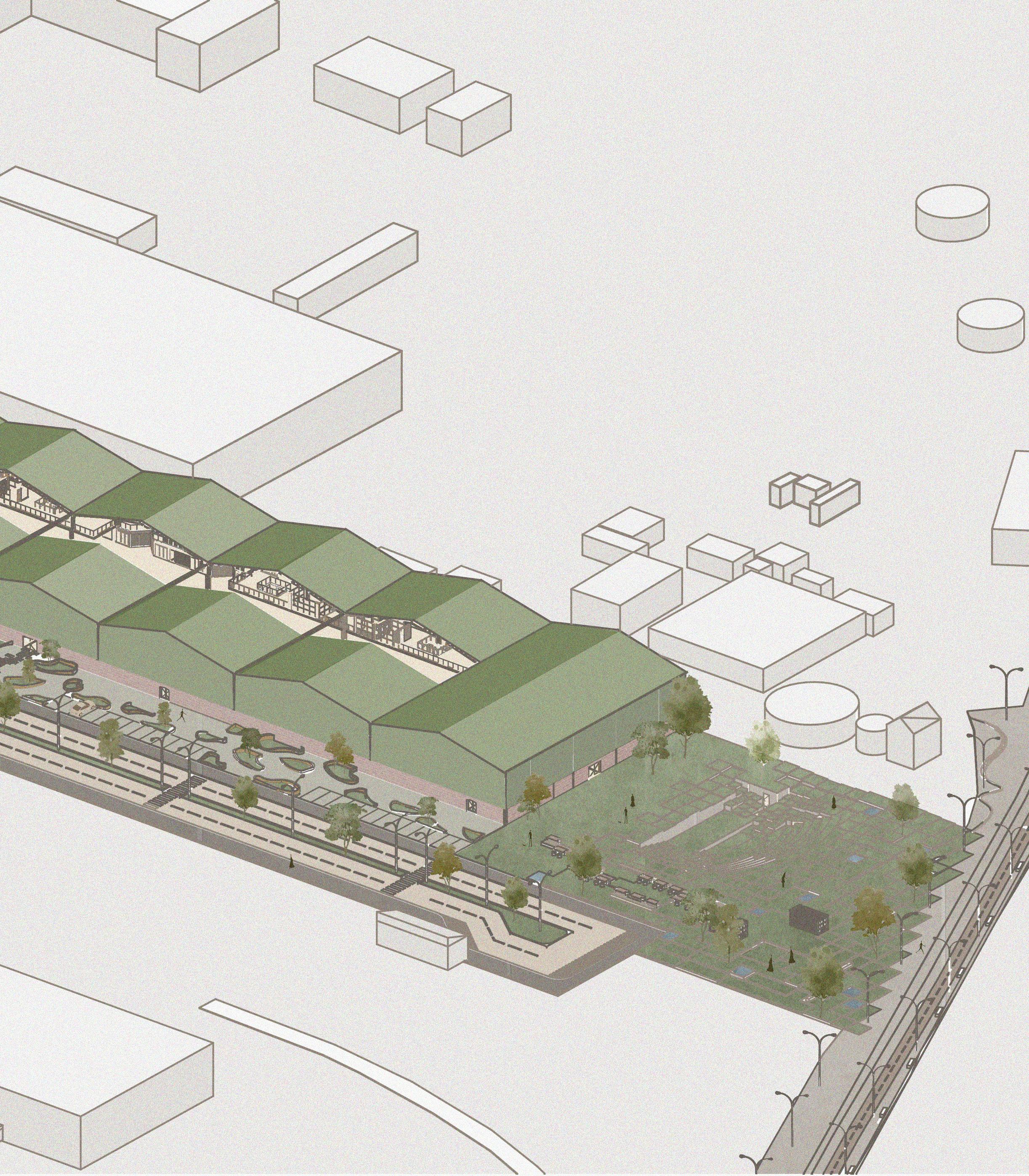

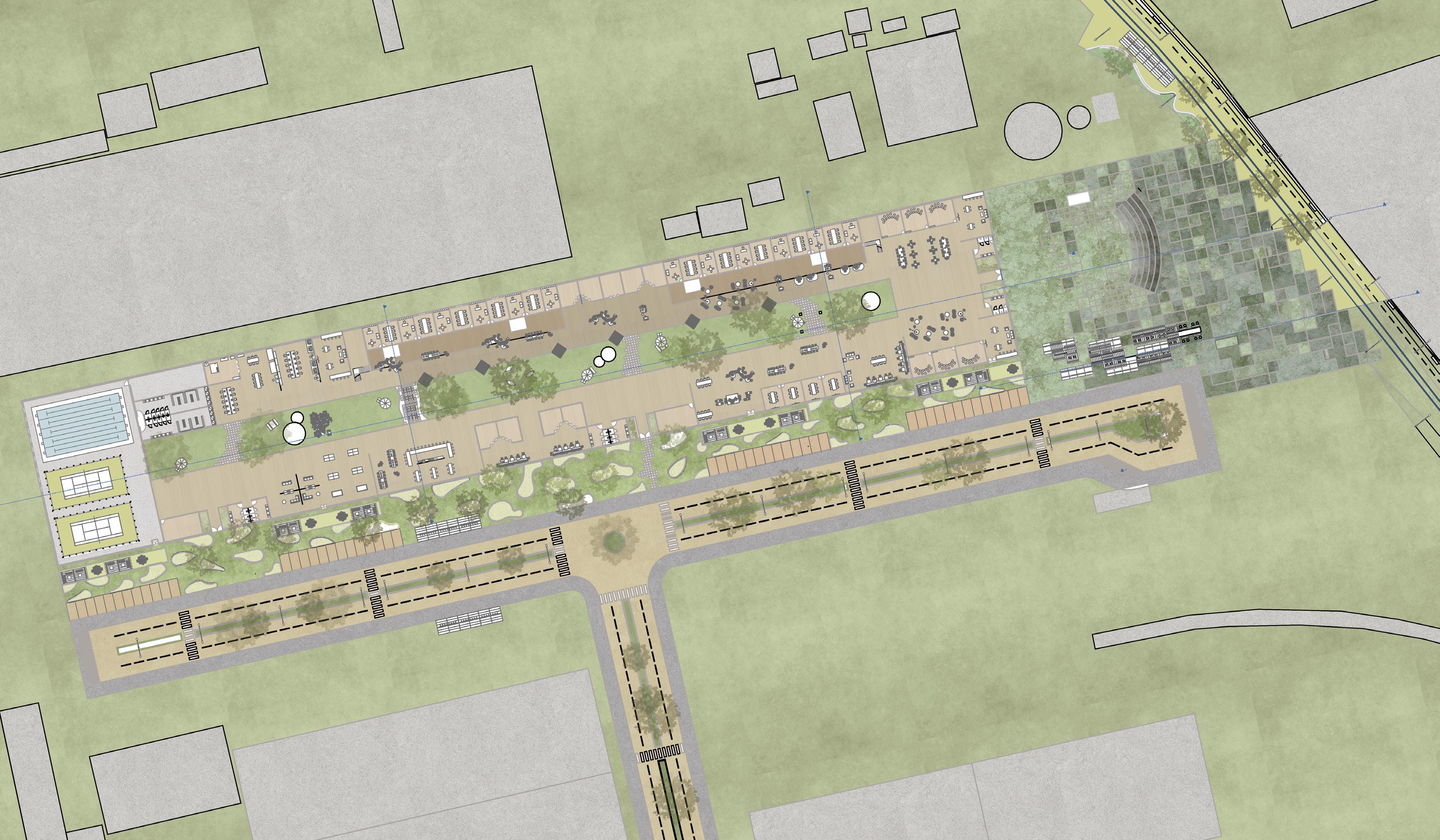

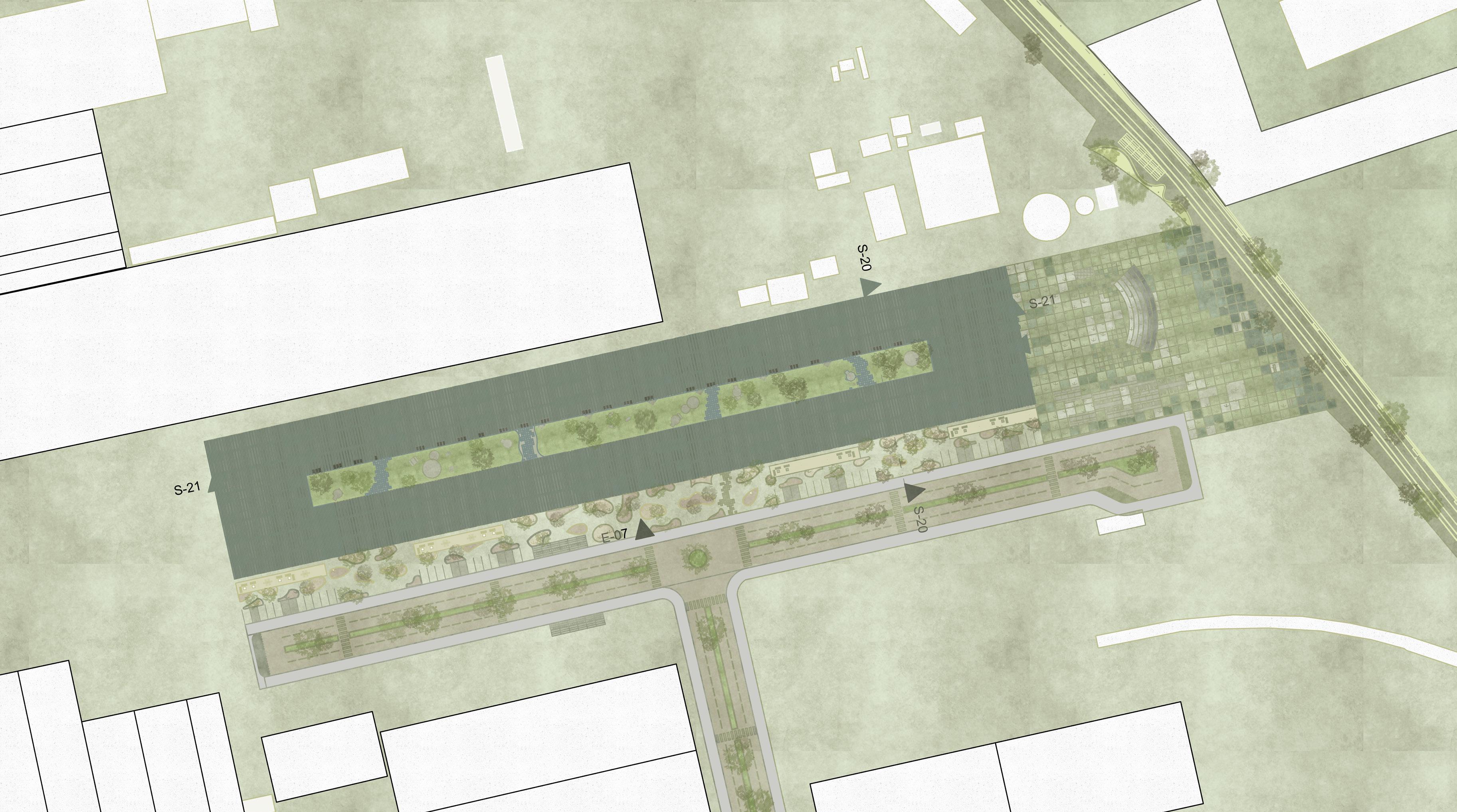

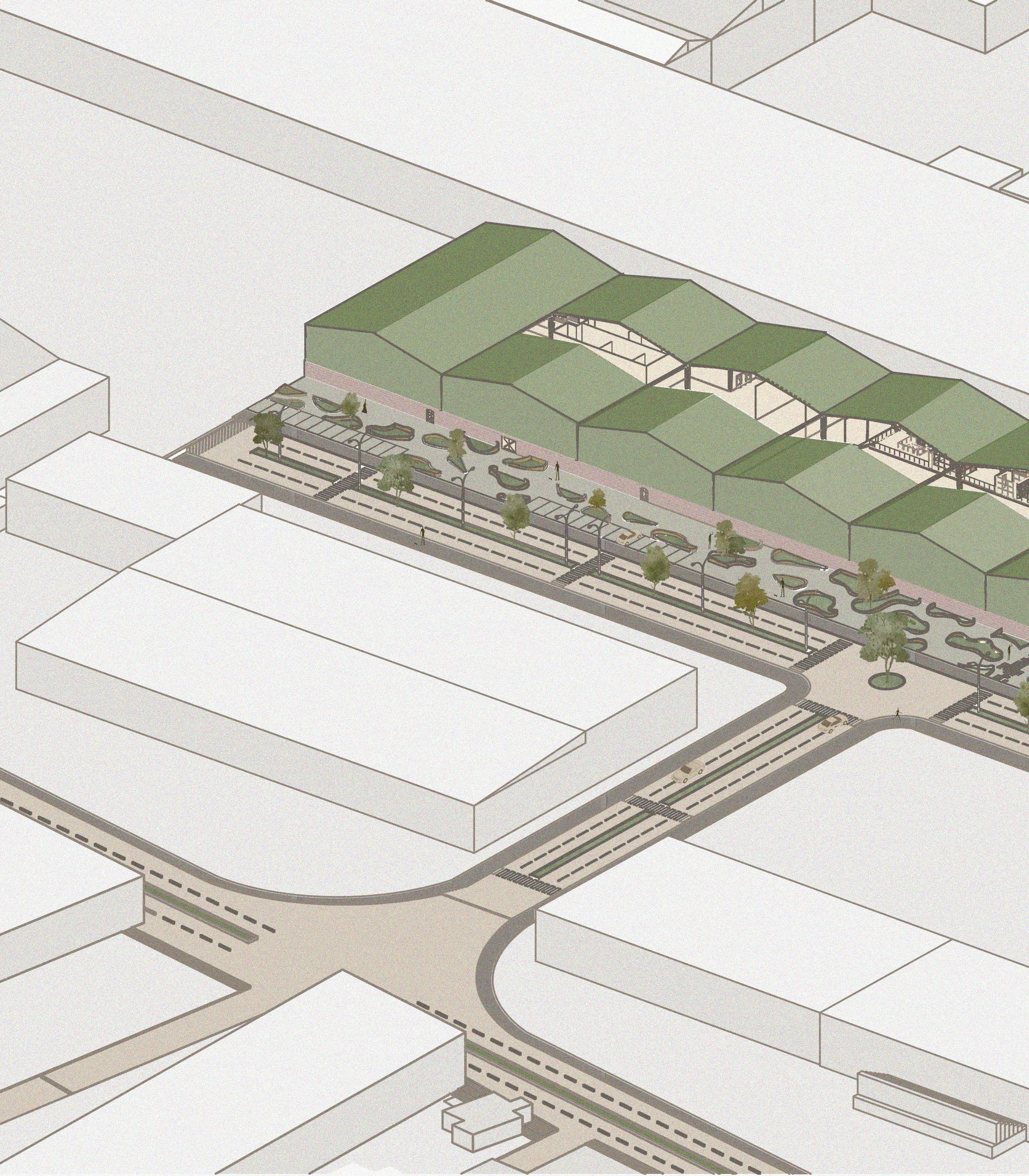

DESIGN DEVELOPMENT Master plan

42 |

ENLACE | 43

Roof plan

44 |

ENLACE | 45

Ground Floor

46 |

ENLACE | 47

48 |

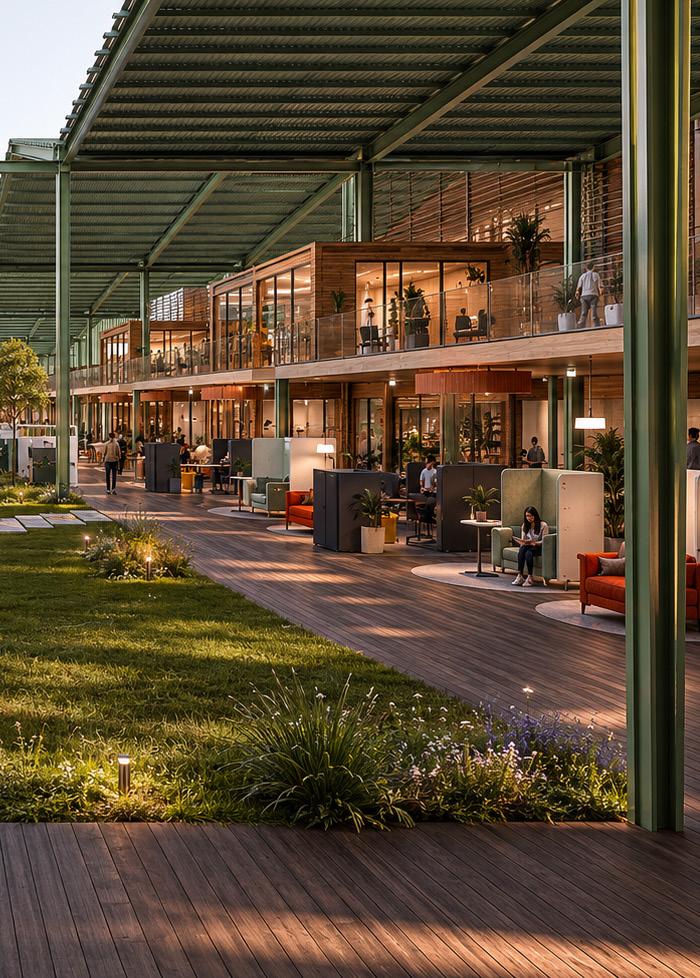

NOT JUST A SPACE, A LAUNCHPAD

ENLACE | 49

Section 1

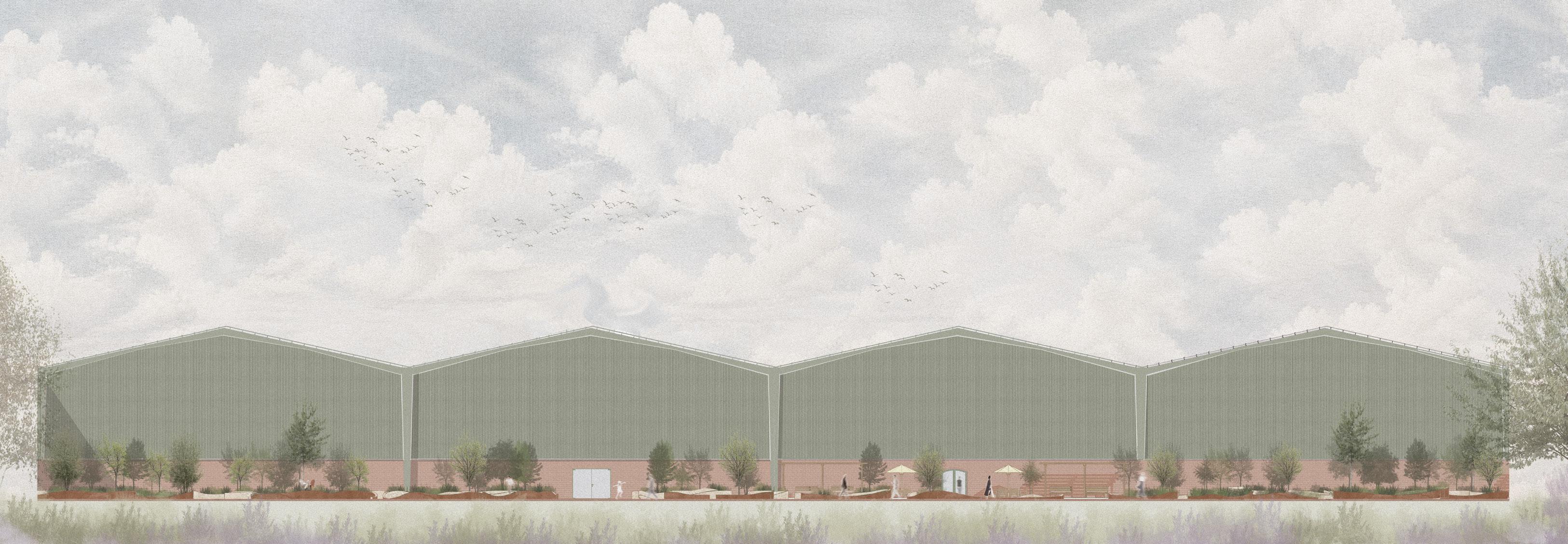

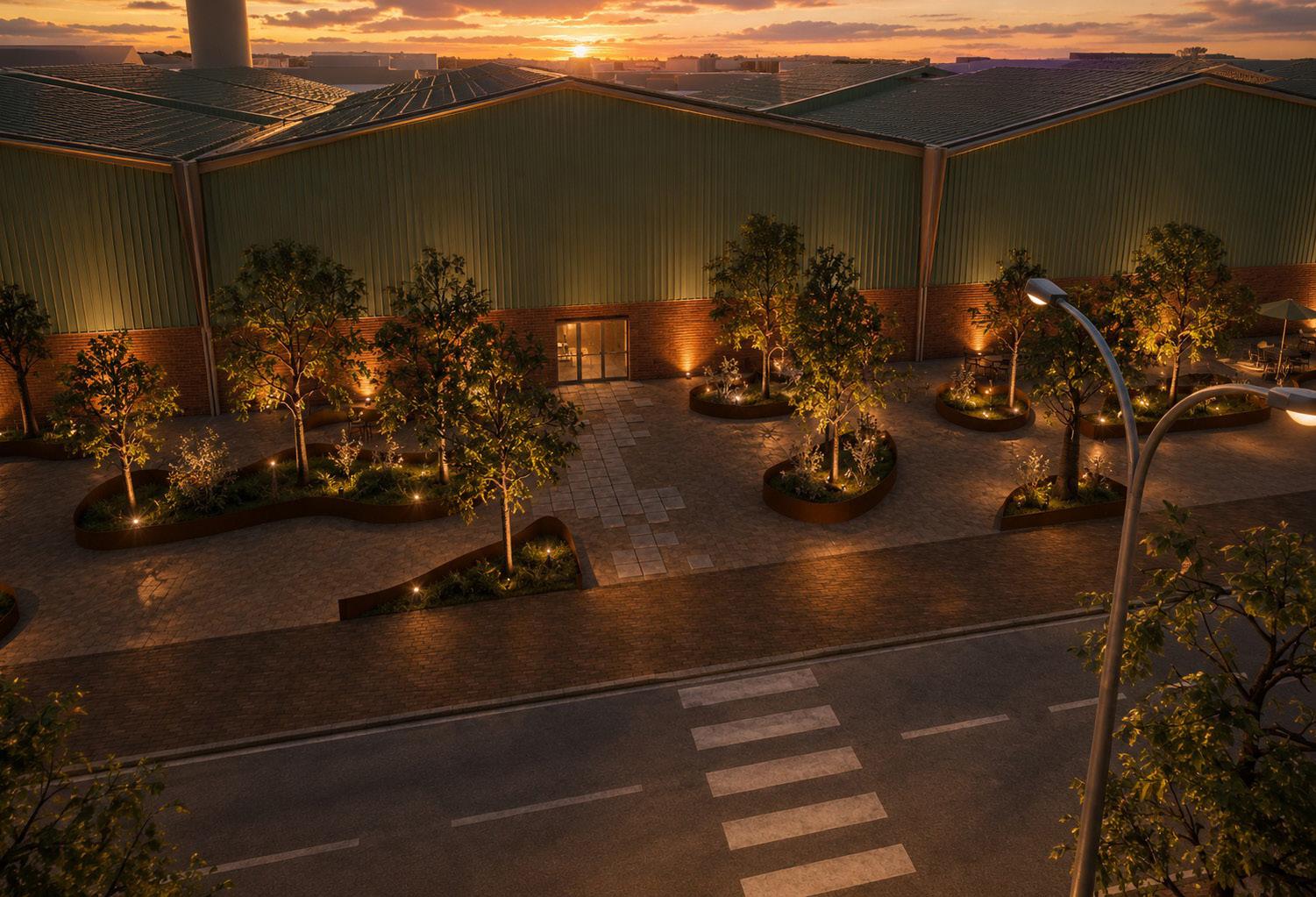

Facade 1 50 |

ENLACE | 51

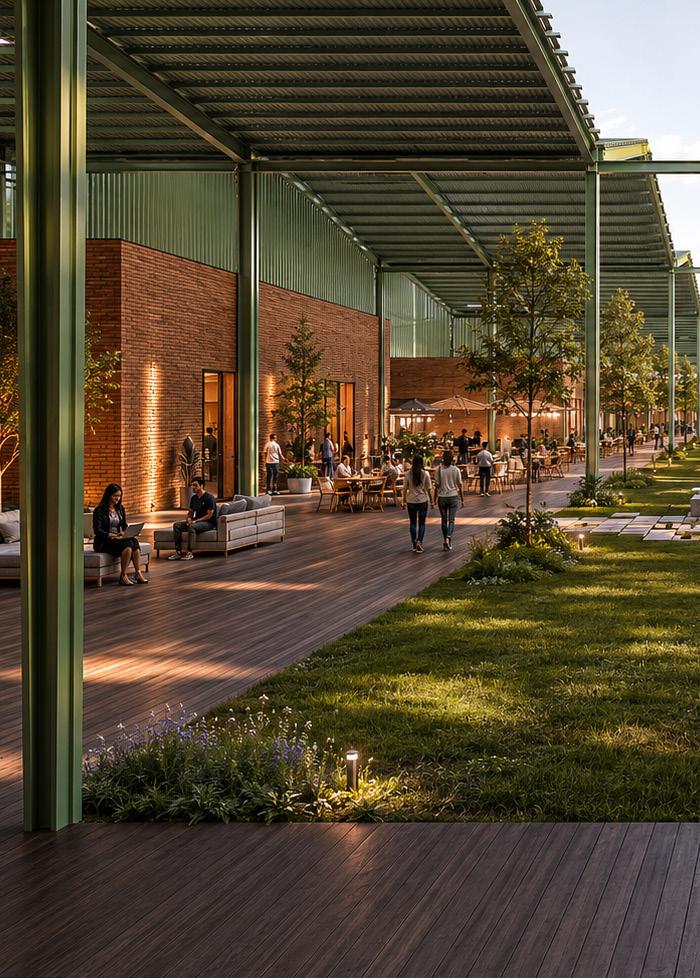

WHERE INNOVATION TAKES SHAPE

52 |

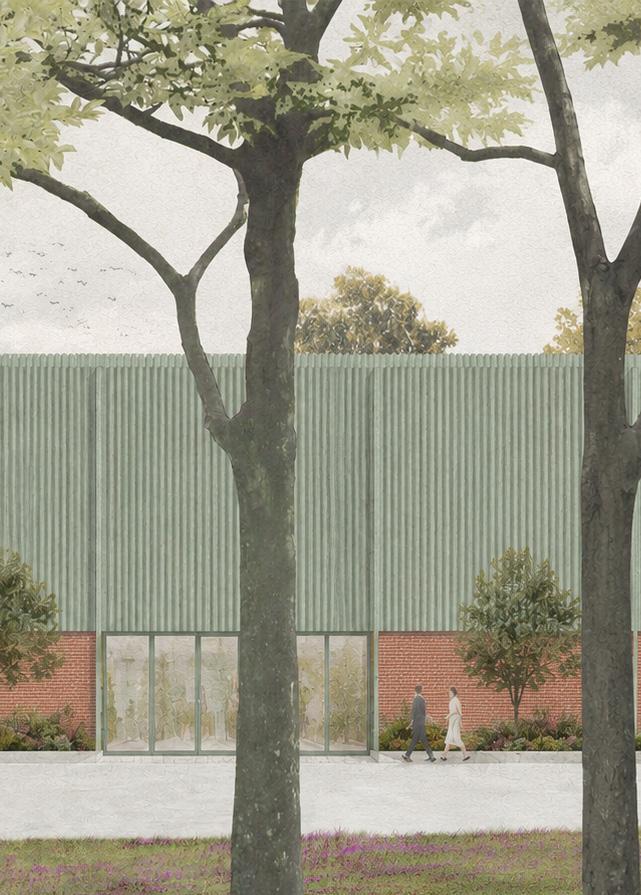

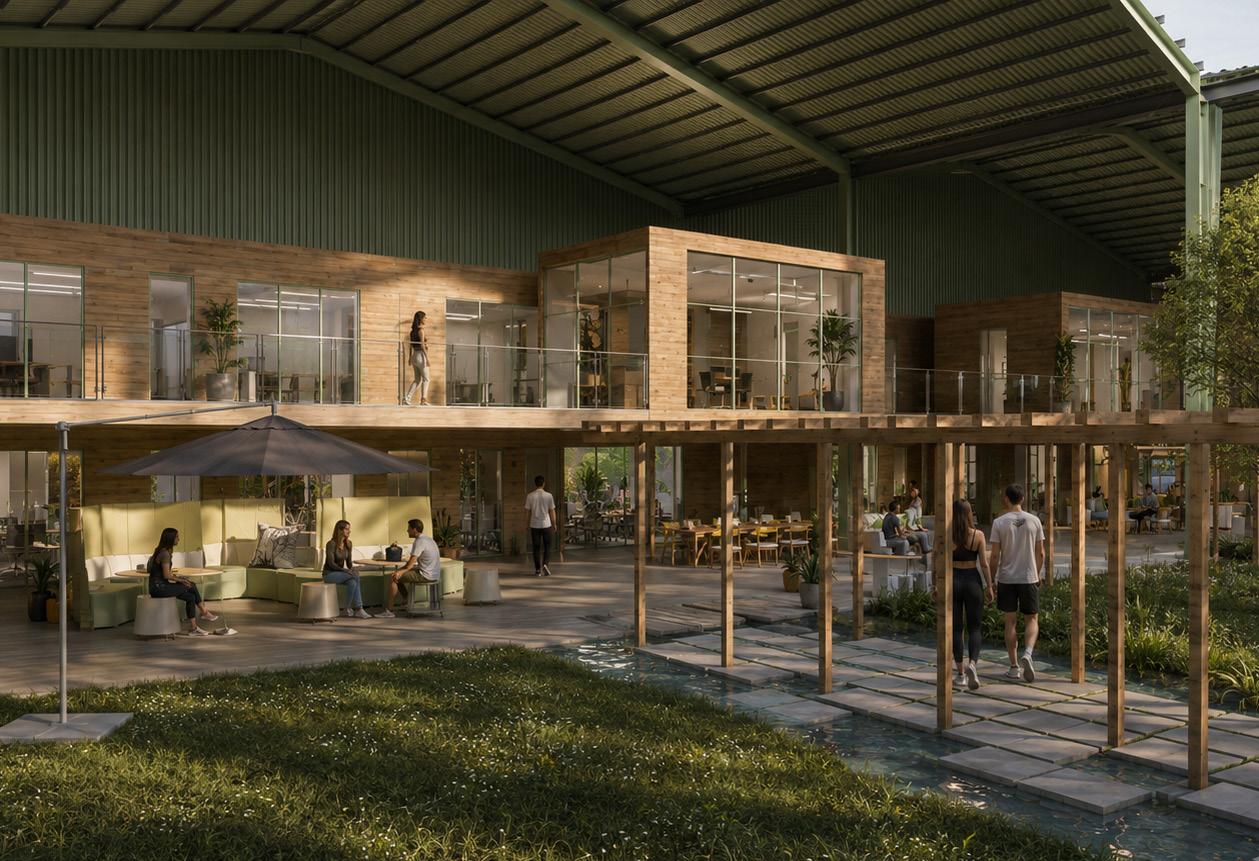

Facade 2

ENLACE | 53

54 |

ENLACE | 55

04 56 |

THE RESOLUTION Building system Environmental strategies

ENLACE | 57

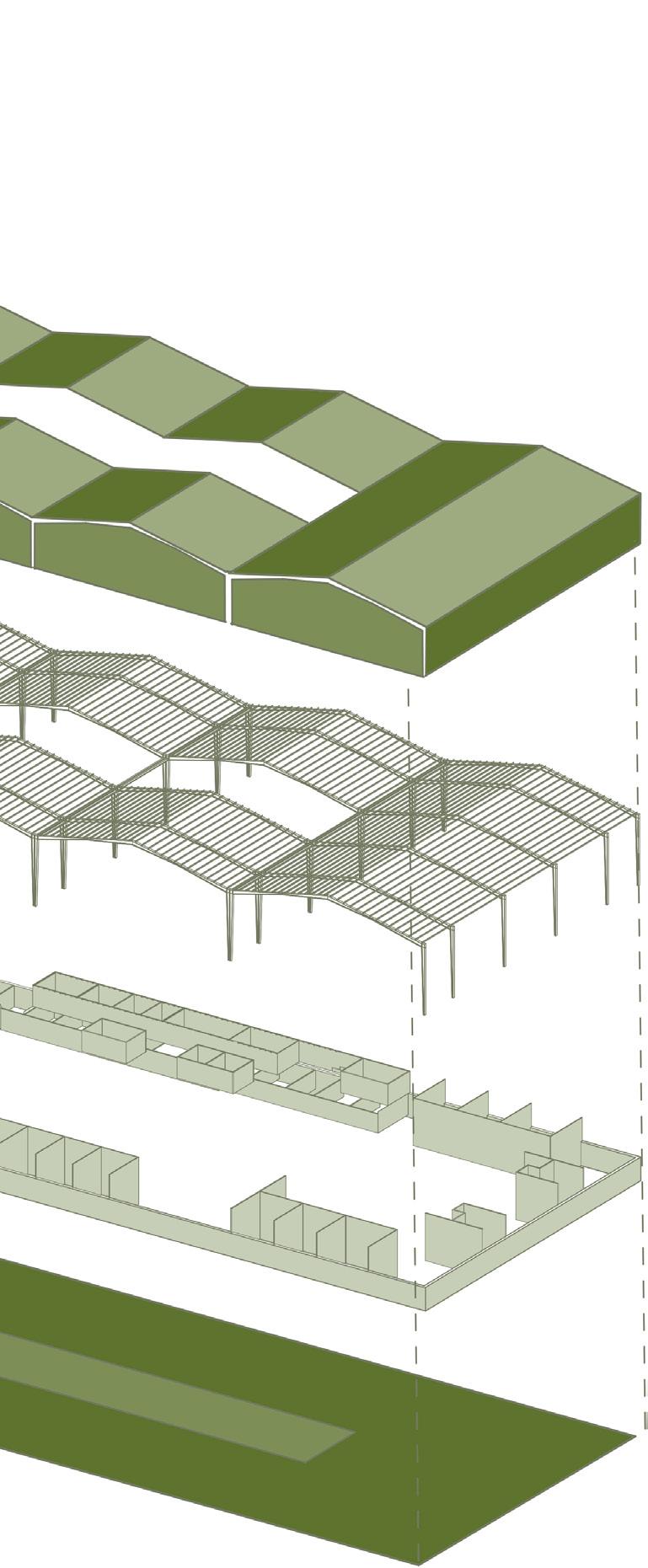

BUILDING SYSTEM Construction

58 |

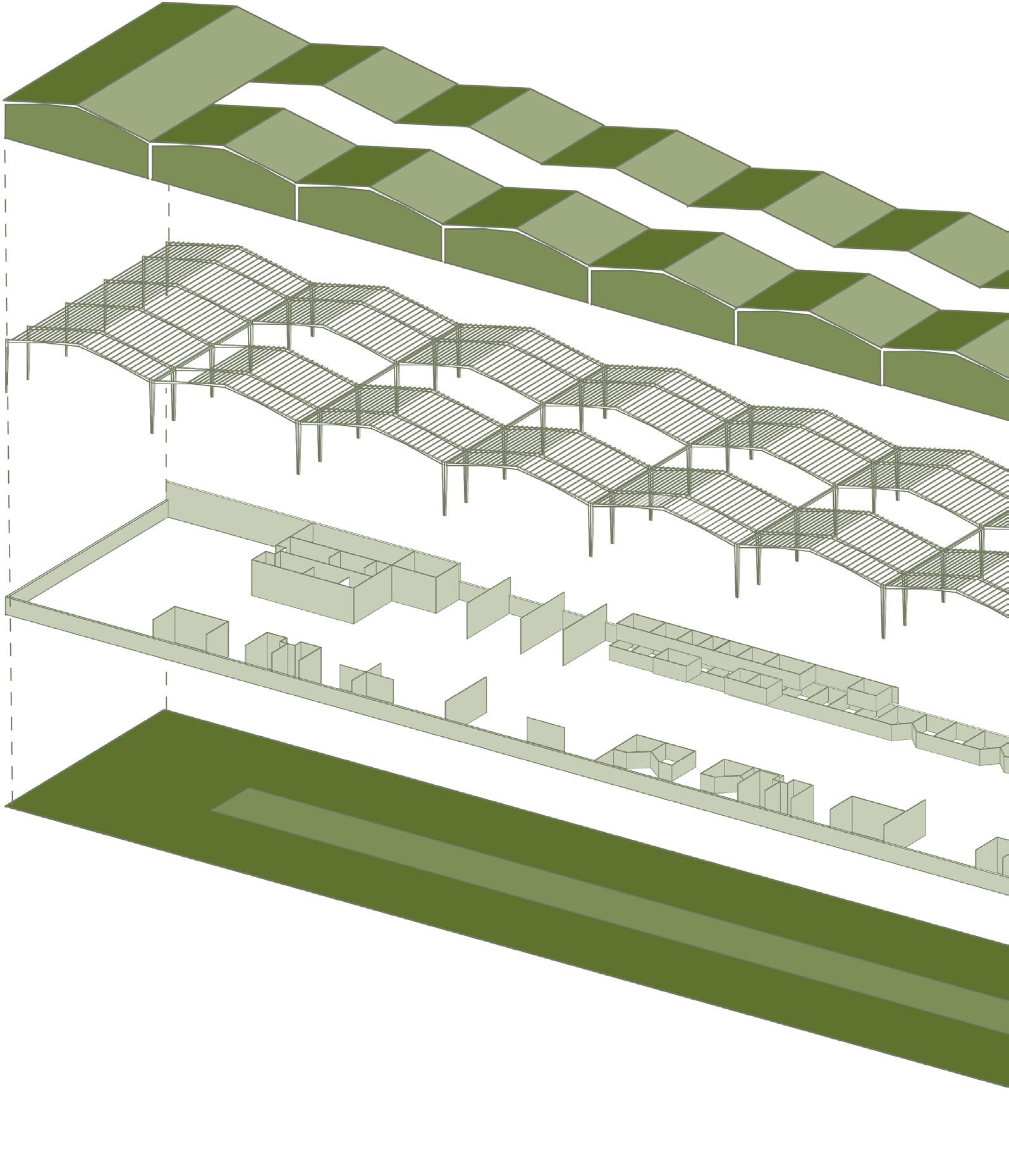

The project is organized through a layered assembly system that preserves the existing industrial structure while introducing new architectural interventions. The original steel frame and roof remain as the primary structural elements, supporting a series of flexible programmatic volumes positioned beneath the existing envelope. This strategy minimizes demolition, optimizes material reuse, and allows new spaces to coexist with the industrial character of the site.

ENLACE | 59

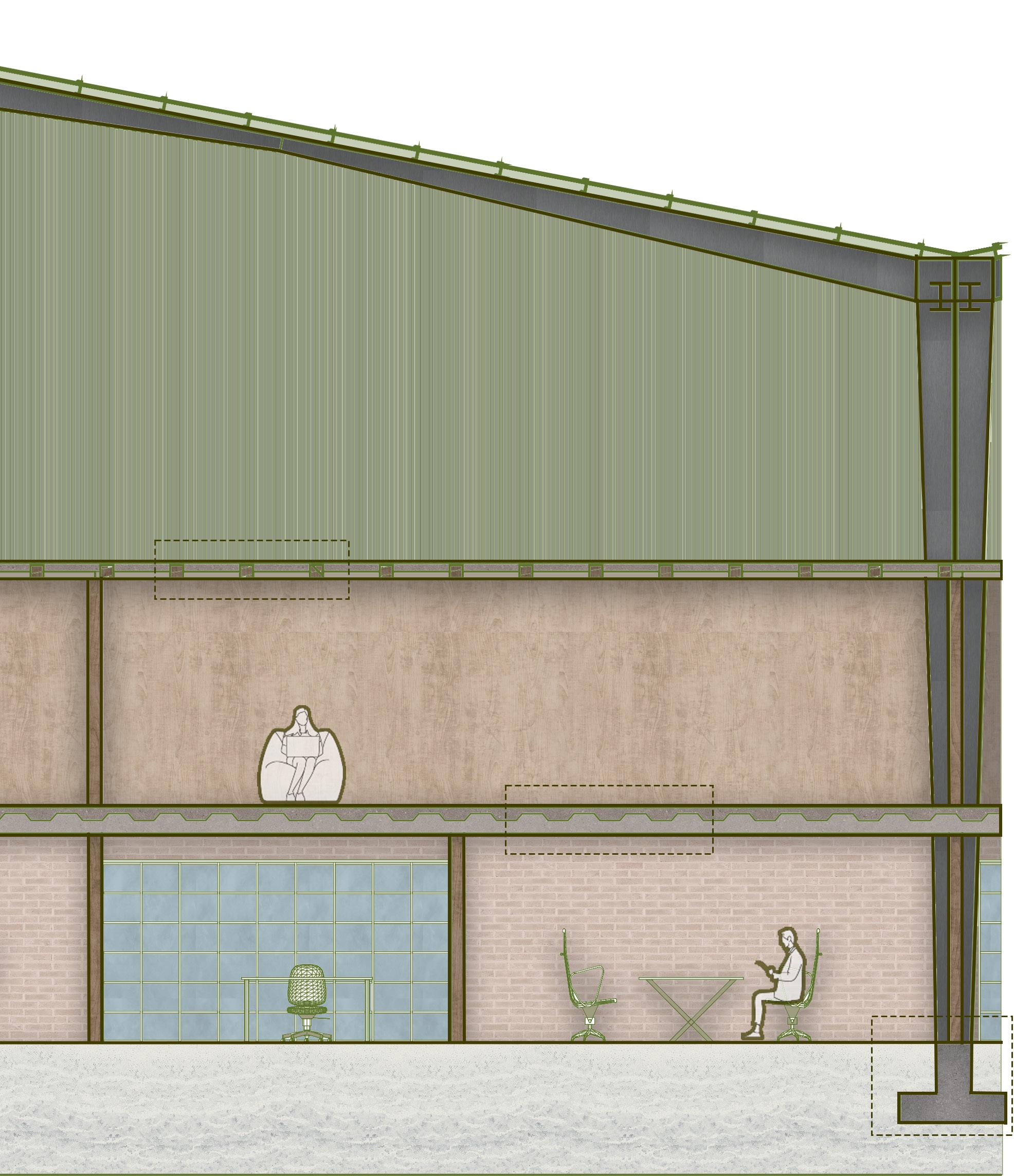

Section: offices

60 |

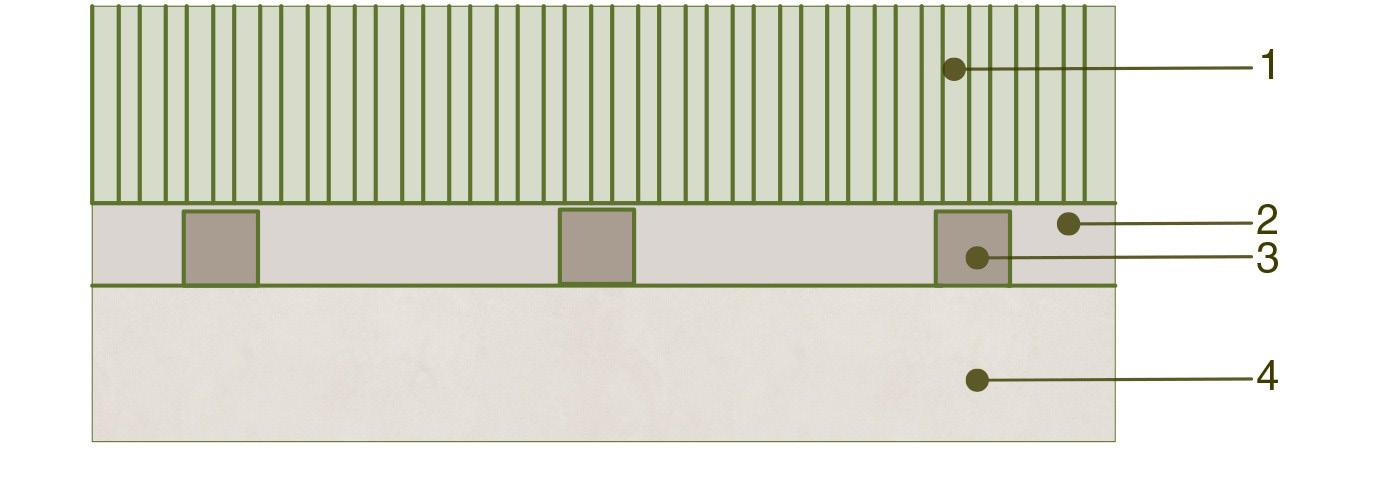

Detail #1 Roof assembly

1 Pre-painted Galvanized Metal Cladding 24 ga corrugated steel sheet, green finish 2 Steel Secondary Frame Galvanized cold-formed steel support profile 3 Reinforced Concrete Wall 200 mm cast-in-place reinforced concrete wall 4 Concrete Foundation Base Reinforced concrete footing / base support

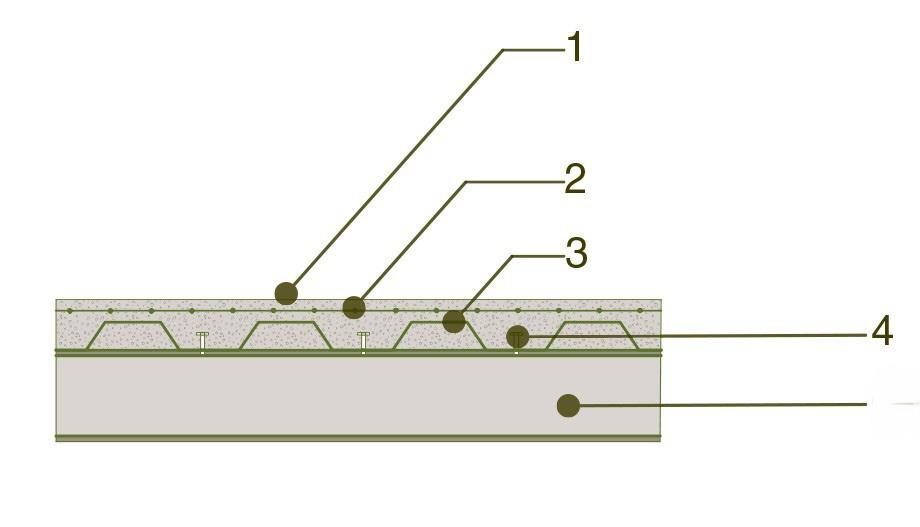

Detail #2 Steel deck

1 Engineered Wood Flooring 20 mm natural oak engineered wood floor finish 2 Concrete Compression Layer 100 mm reinforced concrete topping 3 Welded Wire Mesh 6 × 6 welded wire reinforcement mesh 4 Composite Steel Deck 22 ga galvanized steel deck sheet 5 Structural Steel Beam W 18 × 35 structural steel beam ENLACE | 61

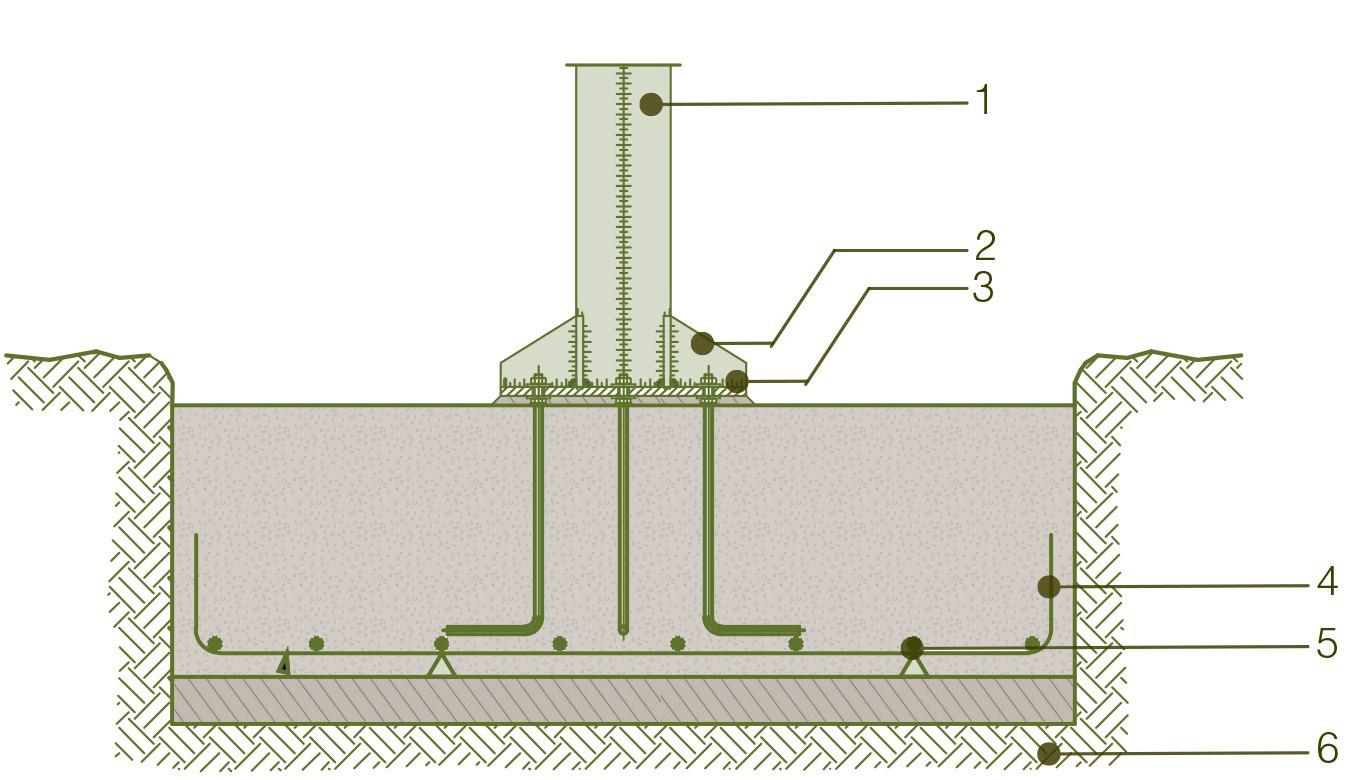

Detail #3 Isolated footing

1 HSS Steel Column 200 × 200 × 8 mm structural steel tube 2 Steel Stiffener Plate 10 mm welded steel plate 3 Steel Base Plate 300 × 300 × 20 mm steel plate 4 Reinforced Concrete Footing f’c = 250 kg/cm² cast-in-place concrete 5 Reinforcement Steel Bars #4 rebar @ 200 mm O.C. each way 6 Compacted Subgrade 95% Standard Proctor compacted soil

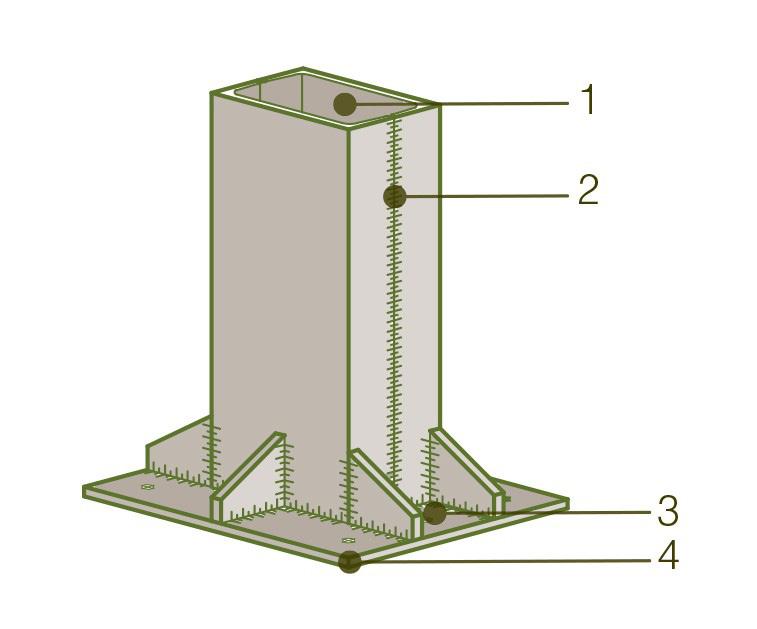

Detail #4 Column base connection

1 HSS Steel Column 200 × 200 × 8 mm structural steel tube 2 Continuous Fillet Weld 6 mm continuous structural weld 3 Steel Stiffener Plate 10 mm welded steel stiffener plate 4 Steel Base Plate 300 × 300 × 20 mm steel base plate 62 |

ENLACE | 63

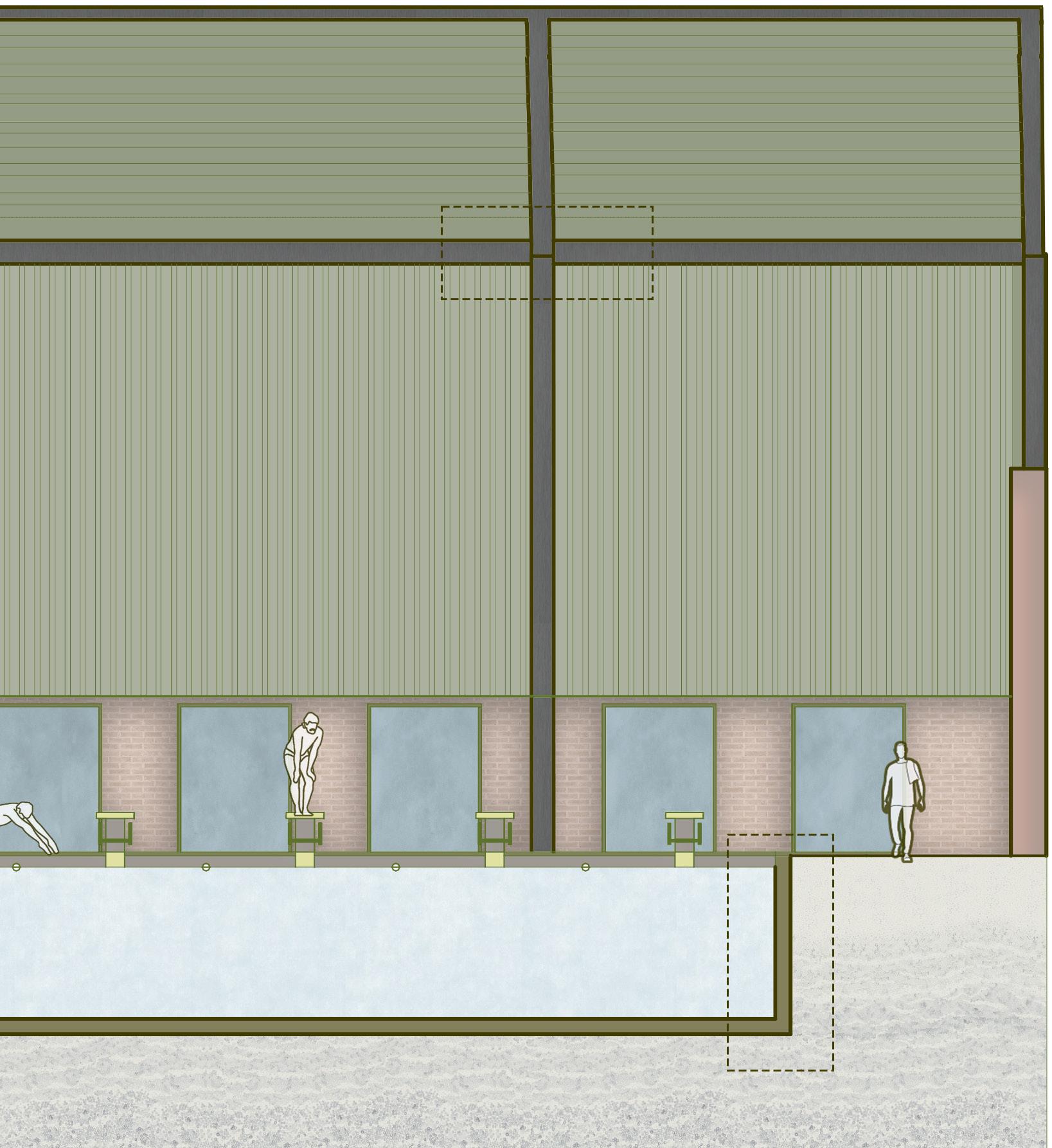

Section: pool

64 |

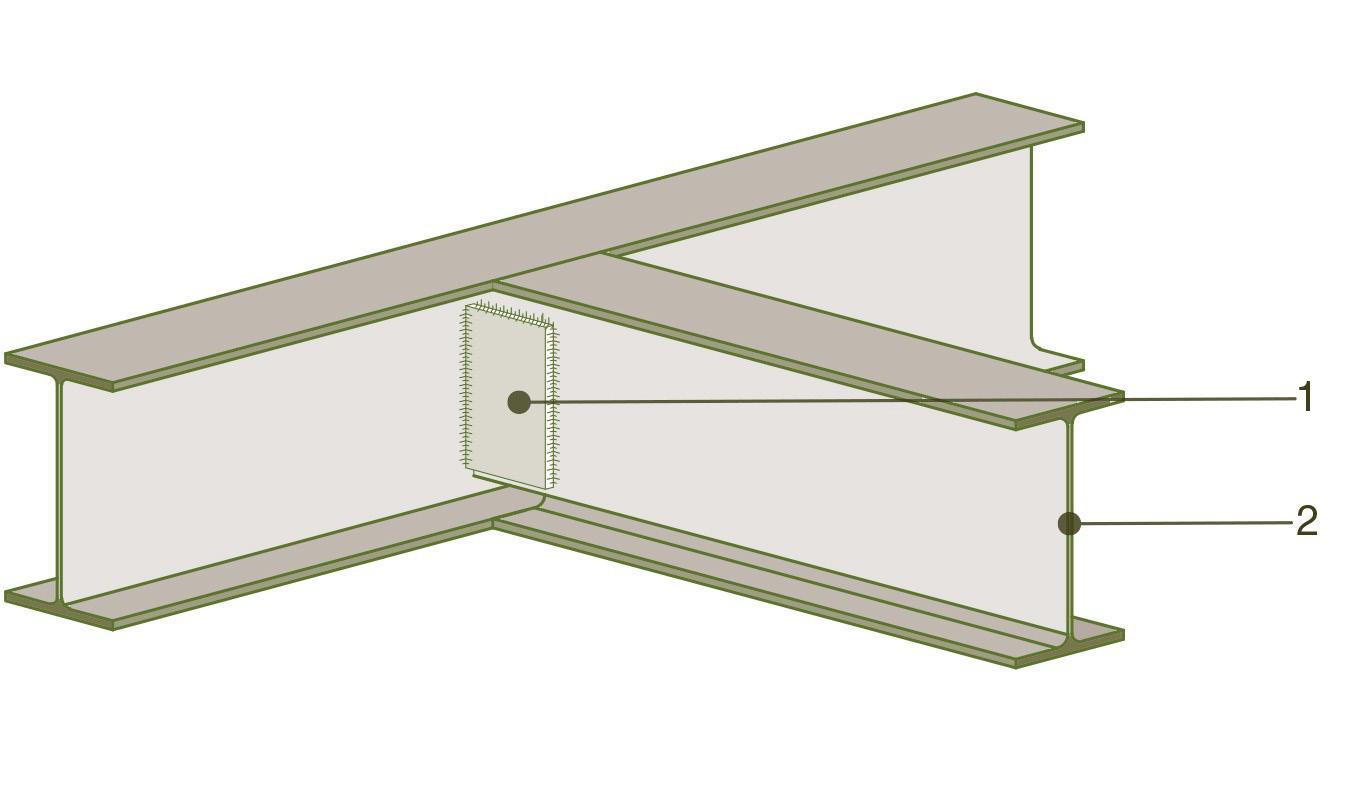

Detail #5 Steel Connection

1 Steel Connection Plate 12 mm welded steel connector plate 2 IPR Wide Flange Steel Beam ASTM A992 structural steel beam section

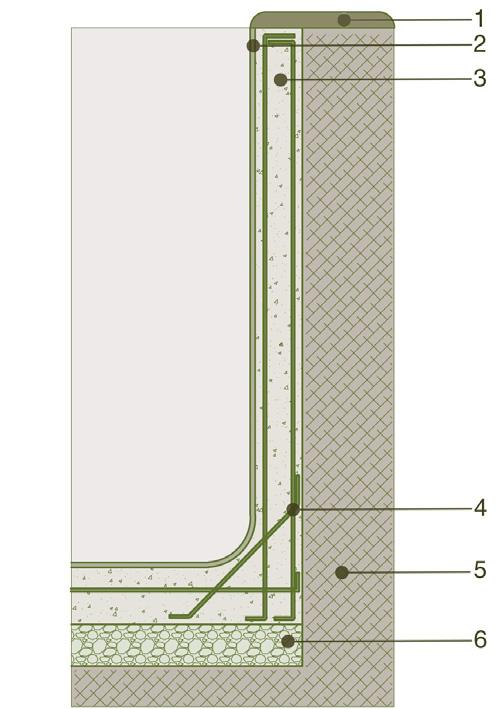

Detail #6 Poool base connection

1 Precast Concrete Coping Smooth precast concrete pool coping 2 Overflow Drainage Grating Stainless steel drainage grate 3 Reinforced Concrete Wall Cast-in-place reinforced concrete structure 4 Reinforcing Steel Cage Steel reinforcement bars (rebar) 5 Compacted Structural Backfill Compacted engineered soil backfill 6 Crushed Stone Base Layer Compacted gravel drainage layer ENLACE | 65

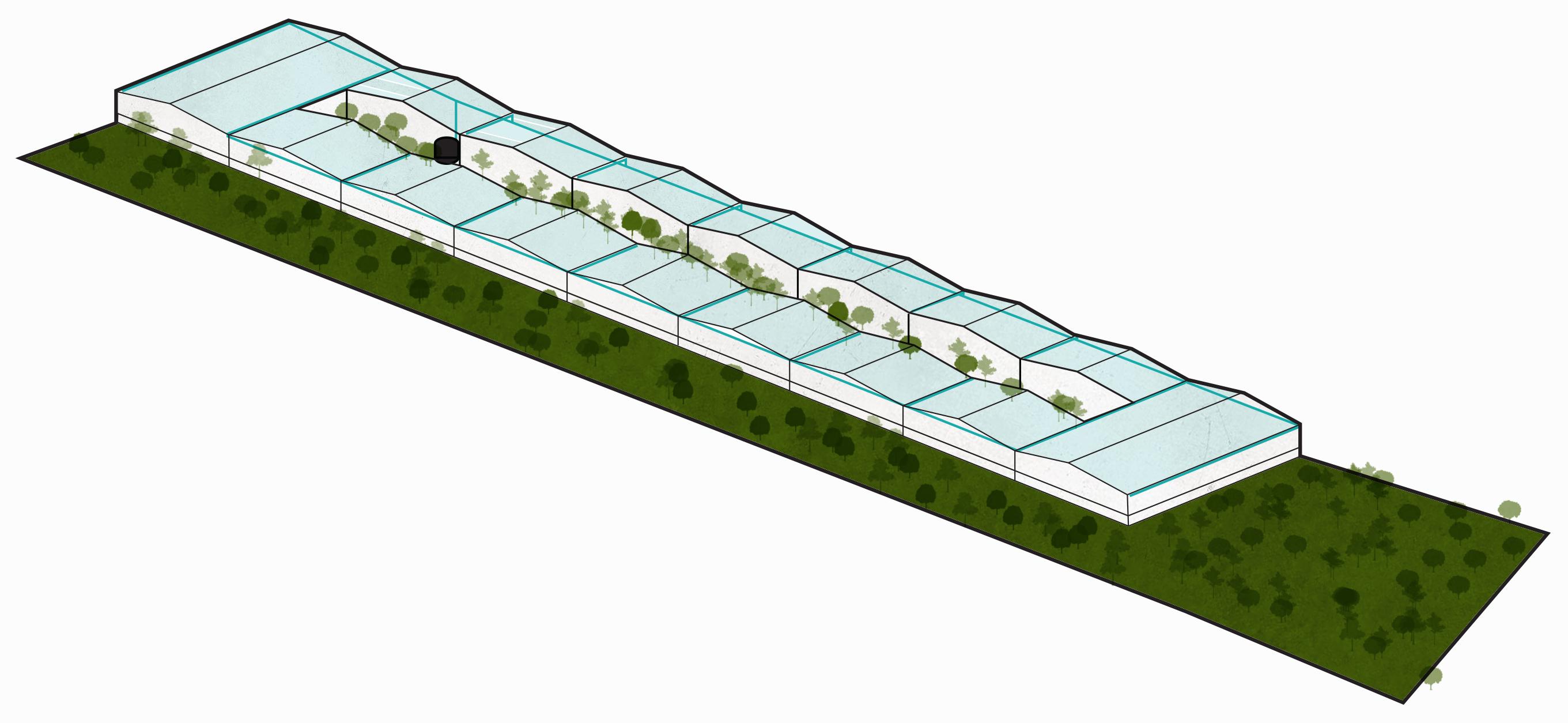

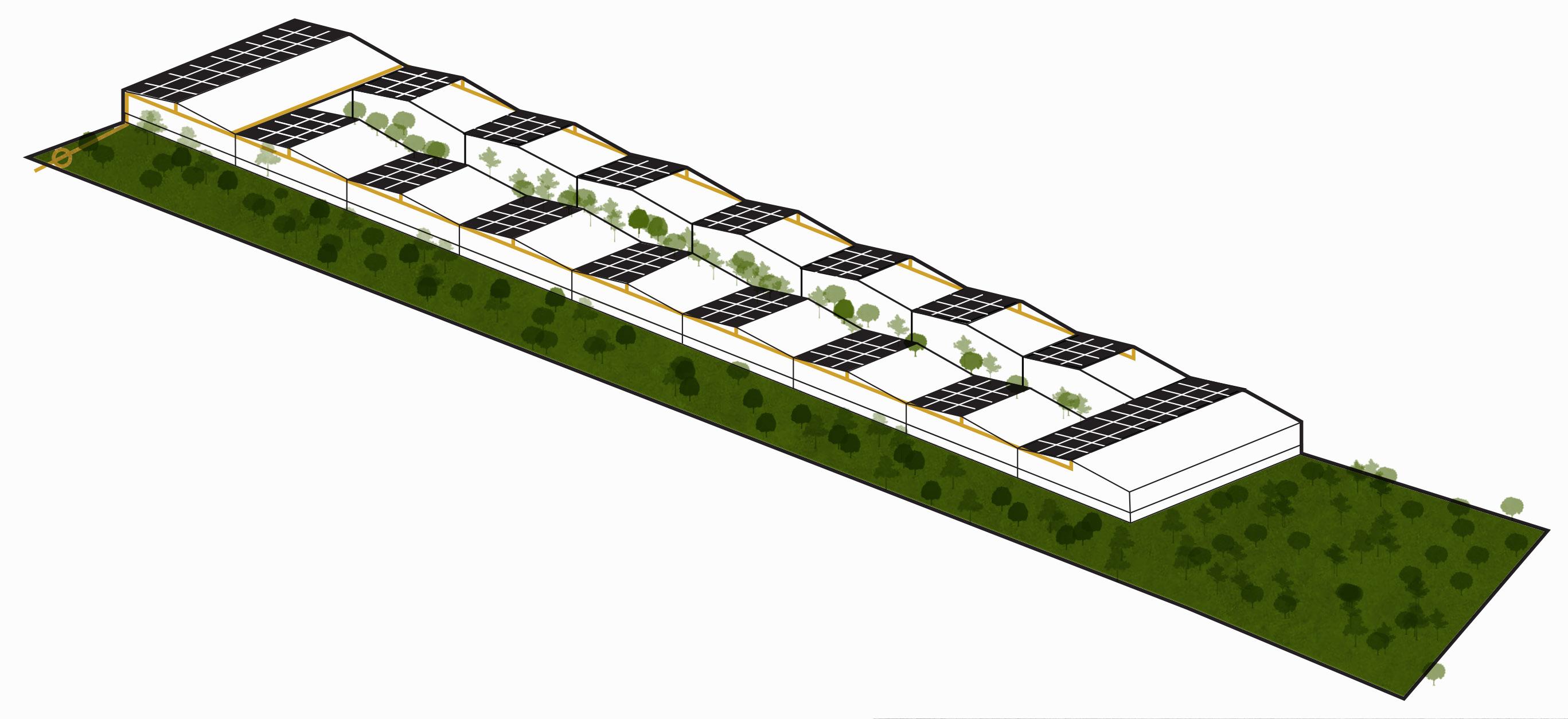

ENVIRONMENTAL STRATEGIES Solar panels

66 |

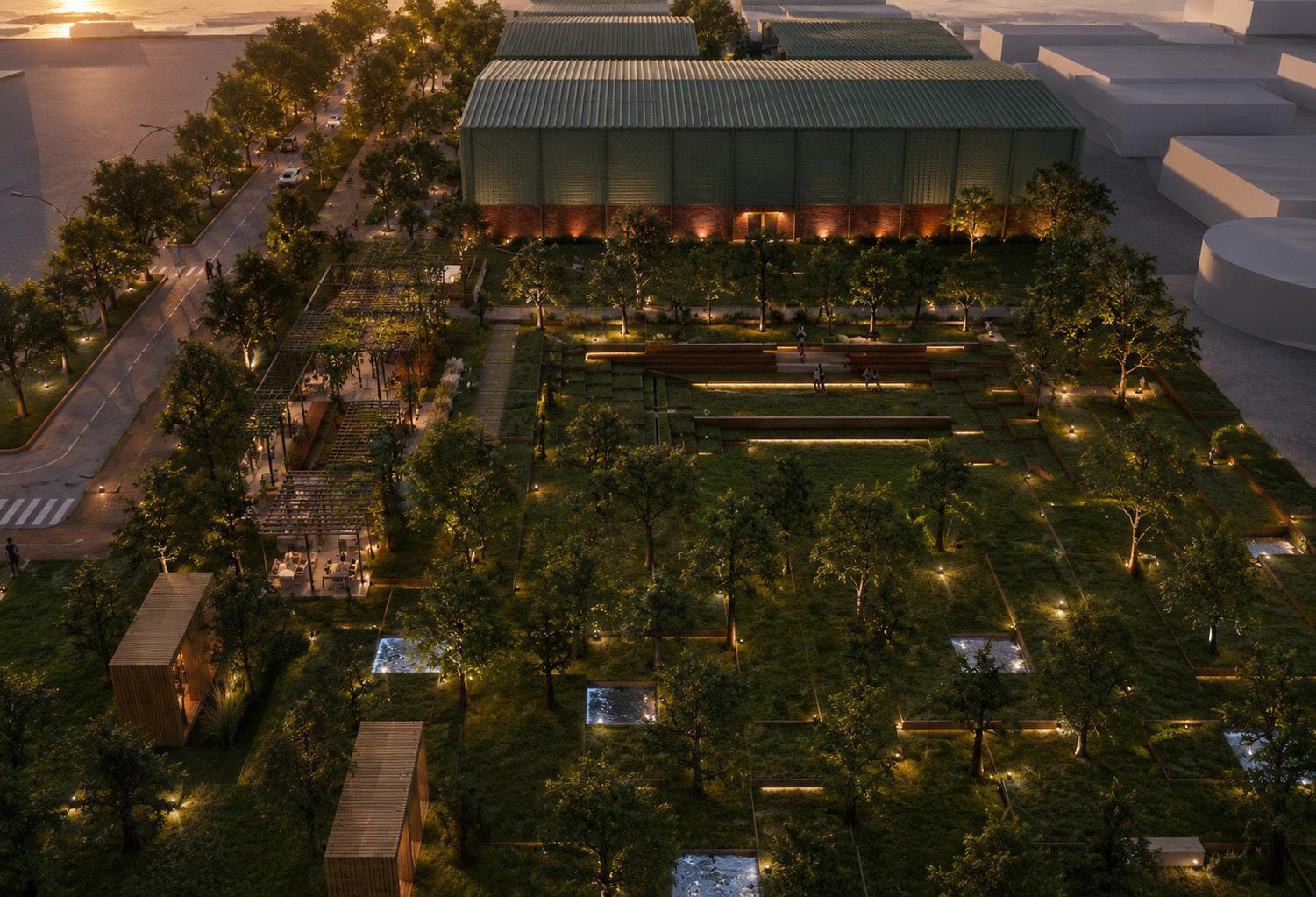

The reforestation effort, with more than 500 new plants and over 17,500 m² of permeable ground, contributes to reducing atmospheric CO2by more than 120 tons per year.

4,754.23 m² of solar panels operating at 70% capacity generate 6,680,881.71 kWh per year.

This provides not only energy independence, but also the potential to sell excess electricity back to the grid.

ENLACE | 67

Rainwater Capture

68 |

9,471 m² of rainwater harvesting area combined with 550 mm of annual rainfall generate 4,219 m³ of water per year, enough to supply 14 homes for an entire year.

ENLACE | 69

70 |

CONNECT, CREATE, COLLABORATE, GROW

ENLACE | 71

REFERENCES
