nhan.arc93@gmail.com 816 Tamarack Ln, Sunnyvale, California
Education:
2O11 - 2O16: Bachelor of Architecture - Hue University - Hue City, Vietnam
2O17 - O5/2O22 Master of Architecture at Academy of Art University
Experiences:
O1/17/2O23 - Presents : Gamble + Design, Inc - Junior Architect/ Interior Designer - Full Time
O5 - 1/2O23: Architectural Designer at A/R DESIGN GROUP - Full-time 11/2O19 - O5/2O21: Architectural Designer at A/R DESIGN GROUP - Internt & Part-time
O5 - O9/2O17: Architect at Transfrom Architecture - Internt
2O16 - O6/2O17 Architectural Designer at DB Architecture - Furniture and Interior design - Vietnam
2O13 - 2O15: Designer - Architectural Freelancer

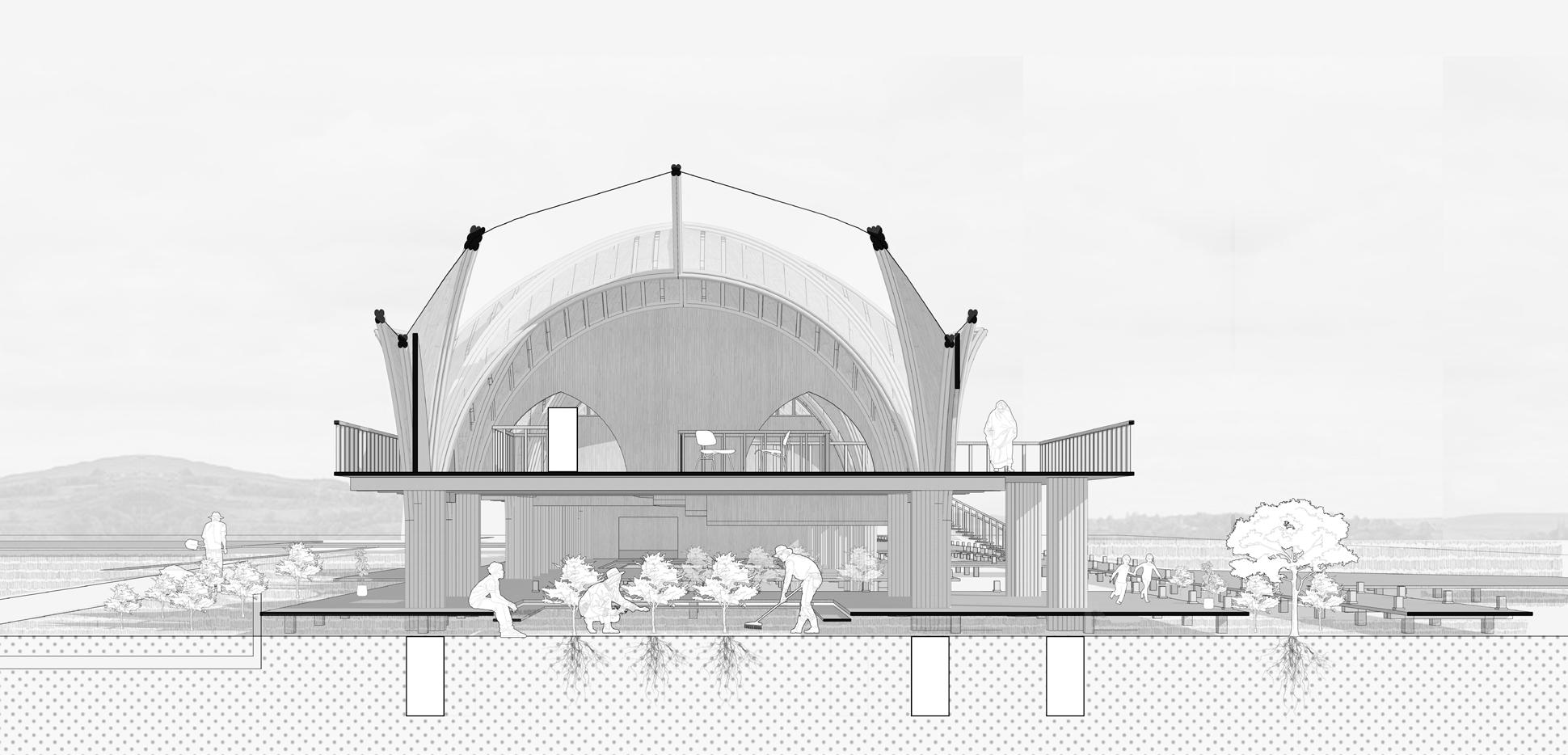

INTERIOR RENOVATION
AGENT ORANGE LAND
CULTURAL & RECOVERY CENTER
-2O22Final Thesis
This thesis aims to explore an effective solution to reclaim and recover Agent Orange’ land in Vietnam, reduce the chemical impact to local people and activities. Also, recovery to reproduce on the toxic land and transform the site into a cultural cen ter that serves communities surrounding neighborhoods. ALuoi residents have facing a sullution from contaminated soil, health risky and the toxic pollutants emitted from dioxin that has been continuing to affect the local communities.
The site is an US Millitary base used to storage Agent Orange. The proposal is a combination of culture and visit and the combination of local ativities and reproducible land. It not only helps ALuoi residents eliminate health risks, but also revitalizes the site by affected. Improving and providing a safety area for reproduce and visit for local people and tourisim.
R
MARKETPLACE
The Marketplace is located in the area of MOMA where is available promising conditions such as mild temperature and comfortable winds. The idea is to provide maximum direct daylight through the angled panels on the roof which are oriented parallel with axis West-East. For light, the roof planes are angled to create direct light conditions on one side. This provides a good quality of light for the facility in order to save artificial energy, especially passive heating to become a sustainable building. The project is also integrated with frequency winds that come from North-West. This modulated condition is generating the air quality; the natural ventilation system is operated by winds flowing through the bamboo structure on the façade to cool the building. The intention to create a pattern that gathers the winds that frequency comes from the N-W direction. This pattern creates a shading to make a unique experience for users.
The roof trusses are pitched to direct light enter to space through the glass on the angled panels and onto the marketplace area. Space trusses on the ceiling are creating a space, which allows more light. Specifically, this empty condition is an advantage for running the mechanical heating and cooling such as the AHU system and boiler with ductwork. The marker is oriented on the maximum sunlight and easy to expose wind direction. This orientation is creating two open spaces for the neighborhood, and these spaces make a sense of freedom for the facility itself.
Front Elevation
Side Elevation
Environmental Control Diagram
Renderings
NEW TWO-STORY DUPLEX
At 146 N Grant Street, San Mateo, CA
2O2O - Professional Work
The new project is to construct a New Duplex comprised of a two-story, four-bedroom residence with a new two-car garage (unit A); and a second two-story, four-bedroom residence with an existing two-car garage (unit B) to be remodeled. the duplex development will be located at 146 N. Grant St, San Mateo.
Second Floor Plan
(N) First Floor Plan
(N)
1. A GRADING PERMIT, IF REQUIRED WILL BE OBTAINED FROM THE DEPT. OF PUBLIC WORK
2. REMOVE WALL, ROOFING, FLOOR COMPONENTS AND BUILDING EQUIPMENTS AND FIXTURE AS REQUIRED FOR (N) CONSTRUCTION.
3. REMOVE ALL ABANDONED ELECTRICAL AND PLUMBING LINES, CAP AND IDENTIFY EXPOSED UTILITIES WHERE OCCUR. ARRANGE AND PAY FOR DISCONNECTING, REMOVING AND CAPPING UTILITY SERVICES WITHIN AREA OF DEMOLITION. NOTIFY OWNER AND RELATIVE UTILITY COMPANY IN ADVANCE AND OBTAIN APPROVAL BEFORE STARTING THIS WORK.
4. SEE SEE SHT BMP-1 FOR APPLICABLE CONSTRUCTION BEST MANAGEMENT PRACTICE (BMP's) REQUIREMENT SUCH AS MATERIALS & WASTE MANAGEMENT; EQUIPMENT MANAGEMENT & SPILL CONTROL; EARTHWORK & CONTAMINATED SOILS; PAVING & ASPHALT WORK; CONCRETE GROUT @ MORTAR APPLICATION; DEWATERING; PAINTING & PAINT REMOVAL.
5. DEMOLITION IS NOT LIMITED TO ONLY WHAT IS SHOWN ON THIS OR OTHER DRAWINGS. THE INTENT IS TO INDICATE THE GENERAL SCOPE OF DEMOLITION AS REQUIRED FOR THE PROJECT RECYCLE AND/ OR SALVAGE A MINIMUM 65% OF NON-HAZARDOUS CONSTRUCTION AND DEMOLITION WASTE. THIS IS NOT APPLICABLE TO SOIL AND LAND CLEARING DEBRIS 2016 CGC 4.408.
SCOPE OF WORKS:
1. THE NEW PROJECT IS TO CONSTRUCT A NEW DUPLEX COMPRISED OF A TWO-STORY, FOUR-BEDROOM RESIDENCE WITH A NEW TWO-CAR GARAGE (UNIT A); AND A SECOND TWO-STORY, FOUR-BEDROOM RESIDENCE WITH AN EXISTING TWO-CAR GARAGE (UNIT B) TO BE REMODELED. THE DUPLEX DEVELOPMENT WILL BE LOCATED AT 146 N, GRANT ST, SAN MATEO.
2. THIS PROJECT REQUIRES SPECIAL INSPECTION TEST AS REQUIRED BY THE BUILDING CODE AND THE CITY OF SAN MATEO SPECIAL INSPECTION AND TESTING AGREEMENT.
3. ANY HIDDEN CONDITIONS THAT REQUIRE WORK TO BE PERFORMED BEYOND THE SCOPE OF THE BUILDING PERMIT ISSUED FOR THESE PLANS MAY REQUIRED FURTHER CITY APPROVALS INCLUDING REVIEW BY THE PLANING COMMISSION
4. CONTRACTOR TO PROVIDE AN OPERATION AND MAINTENANCE MANUAL AT FINAL INSPECTION 2016 CGC 4.410.1.
SUBMITTAL REQUIREMENTS
1. SUBMITTAL REQUIREMENTS INCLUDE, BUT NOT NECESSARILY LIMITED TO PRODUCTS INFORMATION SAMPLES, SHOP DRAWINGS, CATALOGS AND MANUFACTURE'S LITERATURE, SCHEDULES, SUBSTITUTION, REQUESTS, LAYOUTS, AS-BUILT DRAWINGS, MAINTENANCE AND OPERATION DATA, WARRANTIES, ETC.
2. ALL SUBMITTALS WILL BE MADE "FOR REVIEW" BY THE ARCHITECT AND OWNER UNLESS OTHERWISE SPECIFIED. THESE SUBMITTALS WILL BE SUBJECTED TO REVIEW AND APPROVAL PRIOR TO FABRICATION AND/ OR INSTALLATION BY THE CONTRACTOR.
3. TYPE AND NUMBER REQUIRED: SUBMIT A MINIMUM OF 5 DAYS SAMPLE SUBMITTALS AND/OR SHOP DRAWINGS AND ALLOW FOR A MINIMUM OF 7 DAYS FOR THE REVIEW AND APPROVAL PROCESS.
4. SUBMITTALS SHALL BE APPROVED FOR ALL FABRICATED ITEMS FURNISHED AND INSTALLED AS INSTALLED AS INDICATED ON THESE DRAWINGS, BUT NOT LIMITED TO:
1. ALL GLAZING ASSEMBLES
2. PLUMBING FIXTURES
3. LIGHT FIXTURES
4. FLOORING & WALL MATERIALS
5. DOORS, WINDOW & HARDWARE
DEFERRED SUBMITTALS:
1. STRUCTURAL, TRUSSES AND JOIST ENGR. TO REVIEW TRUSS CALGS & LAYOUT SHEETS & PROVIDE A REVIEW STAMP STATING THAT THE TRUSSES ARE IN GEN. ACCORD W/ THE DESIGN OF THE BLDG.
2. FIRE DETECTION & FIRE SPRINKLER SYSTEM & MAIN CONNECTION
3. CURB, GUTTER & SIDE WALK (FRONTING THE SITE)
4. THIS PROJECT REQ'D A SOLAR PHOTOVOLTAIC SYSTEM WHICH SHALL BE APPLIED ON A DEFERRED
5. A SPECIAL INSPECTION FORM FOR DRILLED PIERS SHALL BE SUBMITTED TO PERMIT ISSUANCE.
NEW ADDITION
To 921 Millbrae Ave, MillBrae, CA
2O19 - Professional Work
The (E) master bedrm will be converted to a family room & down grade the full bath to a half bath. this project involves relocating the (n) master bedrm walk-in closet and master bath addition on top of the (e) 2 car garage of the main unit & 1 car garage of the secondary unit.
Perspective View
NATIONAL MUSEUM ANNEX
This project is a new extension of the existing museum in Helsinki Finland. The first idea is to create a cloud above the museum. Besides, the idea is also to connecting to existing museum and making unique experiences for users, especially to helpvisitors easy to interact between the existing museum and the new expanding by using the main courtyard. The cloud might help to protect from snow and rain for the old museum that is iconic for the whole city. The advantage of the content isn’t high, so the new extension is lifted without touching to have a view around the city. During reaching the site, the building is created with a rectangular shape and parallel with the main street. In the middle of the shape, there are three different opening areas that are connected with the courtyard and tower bell. With escalator in the courtyard, users are easy to get in the new expanding after visiting the first floor.
The structure of the museum is a giant truss to make the construction is stable. Besides, there are four main cores that are set up with a purpose around the existing museum, especially, those cores are also a 2nd circulation of the newly expanding. While users get into the new extension they will feel the transforming between the old style of the museum and the new. Besides, visitors also are able to see the huge park from the auditorium and the city for coffee area. In conclusion, the flooding building will make a unique experience for visitors such as walking on the cloud while seeing the history of Helsinki Finland.
Second Floor Plan Section AA
Left Elevation
First Floor Plan
Section BB
Front Elevation
Environmental & Sustainable Strategies Diagram
Site Model Interior Renderings
Exterior Renderings
Structural Diagram
View Diagram Funtional Diagram
This project imagines architecture as a” filter” of the urban condition. Specifically, different inputs are controlled through a series of triangular planes. The modulated conditions include: light, privacy, heat, sound and views. For light, the planes are angled to create a diffuse light condition on one side, with direct light conditions possible on the opposite side. This provides painters with choices in terms of light conditions; diffuse light for working and direct light for variation.
The thickened concrete planes are also oriented in a shingled manner to block the sound from the highway. At the same time, they also function as thermal mass, collecting heat throughout the day and releasing it at night in a tactile manner. The orientation in plan also controls privacy, allowing intermittent views into interior spaces while maintaining a strong sense of seclusion. The shingled planes also create unique view corridors for artists to see out as they work.
Artists also have several choices for work spaces, from individual private studios to shared open areas. The school is divided into two main areas. Towards the overpass, the spaces are more private while more public spaces are set up on the north side that is adjacent to the existing restaurant. As such, there are tTwo entries: one on the back where there are several walls and trees to reduce noise from the highway and overpass; the entrance from the street, via the sidewalk, passes through the pleated structures. Together, these filters give artists a unique yet controlled experience for the creation of art.
