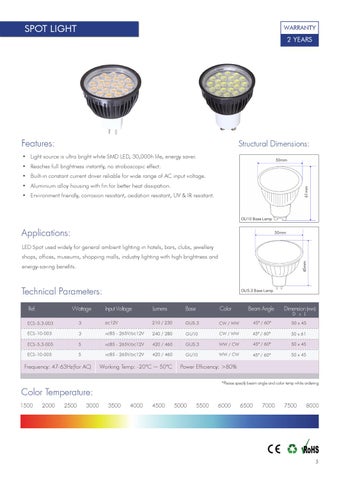

SPOT LIGHT
WARRANTY
2 YEARS
Features:
Structural Dimensions:
• Light source is ultra bright white SMD LED, 30,000h life, energy saver.
50mm
• Reaches full brightness instantly, no stroboscopic effect. • Built-in constant current driver reliable for wide range of AC input voltage. 61mm
• Aluminium alloy housing with fin for better heat dissipation. • Environment friendly, corrosion resistant, oxidation resistant, UV & IR resistant.
GU10 Base Lamp
Applications:
50mm
LED Spot used widely for general ambient lighting in hotels, bars, clubs, jewellery 45mm
shops, offices, museums, shopping malls, industry lighting with high brightness and energy-saving benefits.
Technical Parameters: Ref.
Wattage
GU5.3 Base Lamp
Input Voltage
Lumens
Base
Color
Beam Angle
Dimension (mm) D x L
ECS-5.3-003
3
DC12V
210 / 230
GU5.3
CW / WW
45° / 60°
50 x 45
ECS-10-003
3
AC85
- 265V/DC12V
240 / 280
GU10
CW / WW
45° / 60°
50 x 61
ECS-5.3-005
5
AC85
- 265V/DC12V
420 / 460
GU5.3
WW / CW
45° / 60°
50 x 45
ECS-10-005
5
AC85
- 265V/DC12V
420 / 460
GU10
WW / CW
45° / 60°
50 x 45
Frequency: 47-63Hz(for AC) Working Temp: -20°C ~ 50°C Power Efficiency: >80% *Please specify beam angle and color temp while ordering *Other colour options available
Color Temperature: 1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
5
