ARCHITECTURAL ELEMENT ISOMETIRIC

FLAT SLAB

20 ซม.

2 ความหนา 20 ซม.

ENCLOSURE AND BUILDING SHELL

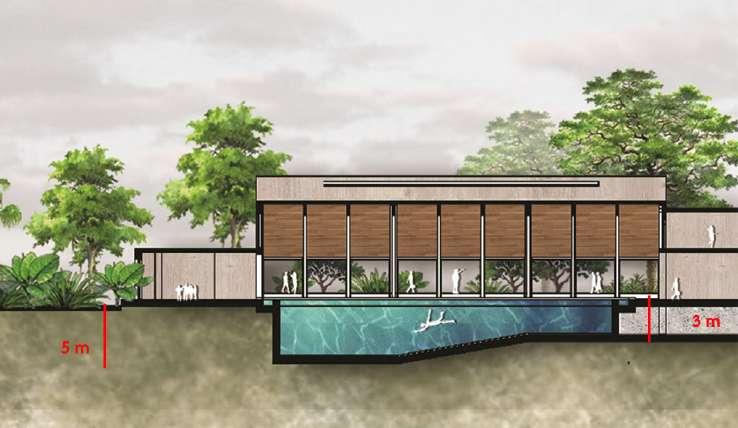

To provide a peace when entering to the project. Therefore, the design have to be symmetrical on both sides, including the use of the element of water by the reflecting pool to create calm and stillness. Creates a way of peace with nature according to the principle of ZEN, create concentrate to one point or not to concentrate at all. To perceived by all elements in the same direction. There are repetitions of various elements in design, enclosing and concerned about selecting natural materials to create balance in the design.

G E N

City House

Year : 2018

Type : Residential

Location : Soi Pridi Banomyong 15

Bangkok, Thailand

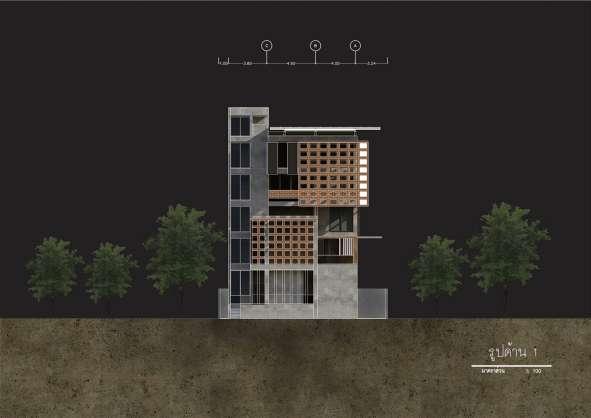

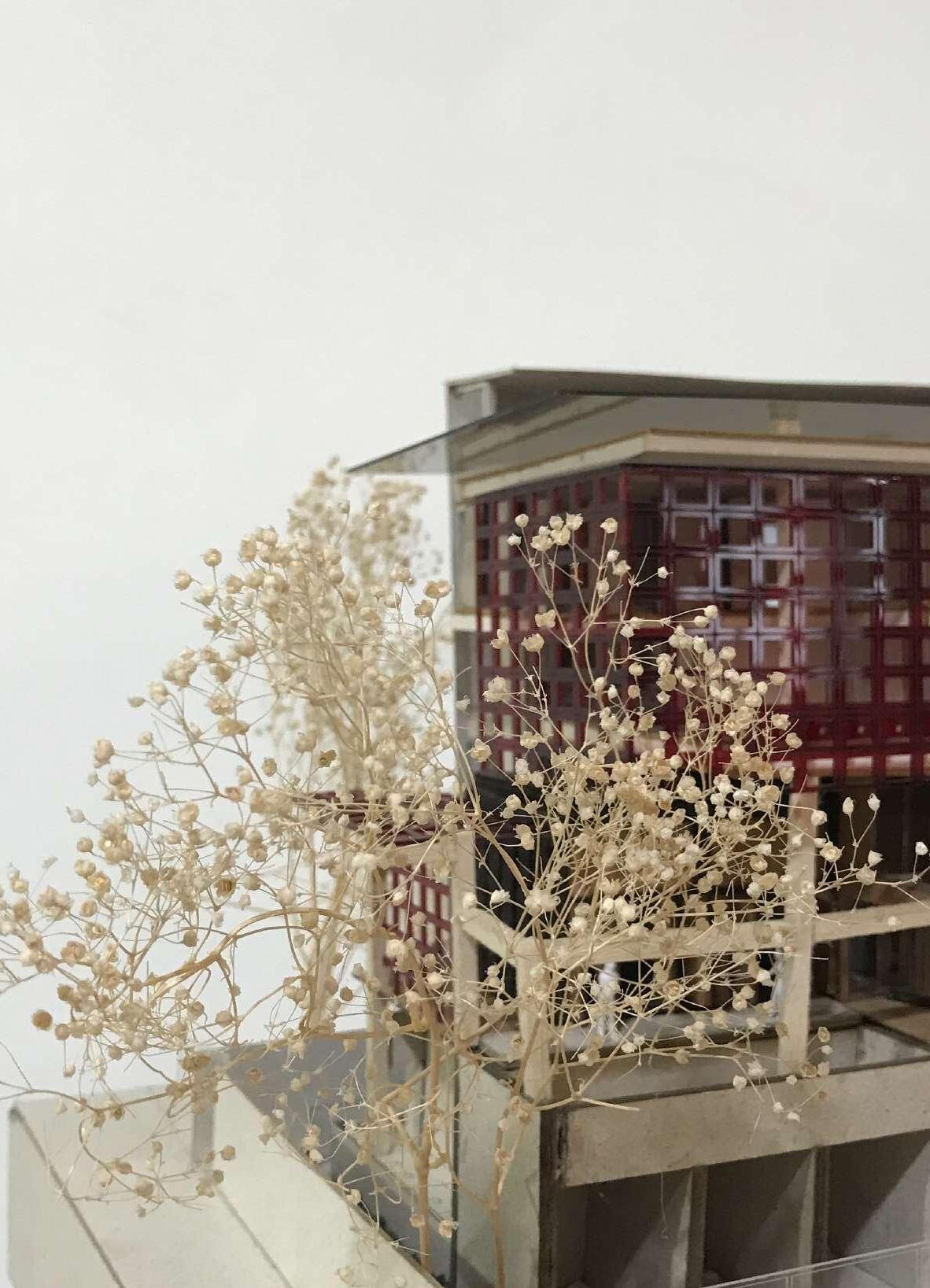

Multiple residential units for large families belonging to each other on the same plot of land which has a limited area of 100 square wa and is located in the heart of the city. Consists of father, mother, grandmother, 90 years old who must have someone to take care. there is an single aunt who is a professional writer, a daughter who has a family and the youngest son who is still single. Therefore, there is a variety of generations in this house, making the building to a perfect blend of differences needed in each family member is a main idea of design.

5-storey house in limited space easily make you feel uncomfortable. So managed to create double spaces in several common areas to create a feeling of airiness and make it feel that there is a larger area such as a large living room, shared dining room, swimming pool and also planted some trees in order to access nature in the middle of the big city. The design focuses on shared living spaces so that each member in the house can come to live together rather than live in their own separate room. However, each individual space has a design that meets the needs of different ages. Grandma’s room is on the same floor as the common area because of the convenient access for the elderly who need to be supervised. Dad, mom and aunt room are on the same floor. The daughter who have her own family is separated to another floor and a single son who wants a privacy is located on the top floor, with the room to host parties for his friends.

孔子

Chinese Institute

Year : 2019

Type : Pavillion

Location : Chulalongkorn University, Bangkok, Thailand

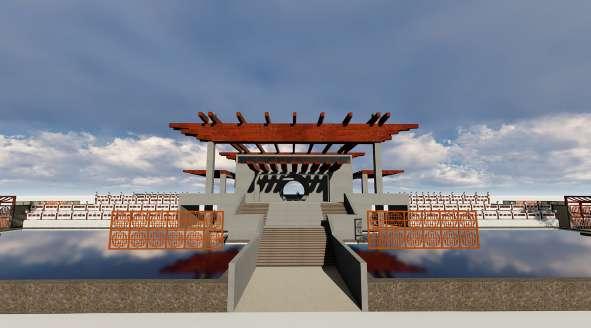

The Confucius Institute of Chulalongkorn University is the Center of the People’s Republic of China. It was established as a cooperation between Peking University and Chulalongkorn University. There is a multipurpose hall for exhibitions and events. In the design, I chose to incorporate elements that represent grandeur of china. The symmetrical design on both axes. The open area that surrounds the building.

A S T R E L L A R

Bangkok Learning Center

Year : 2019

Type : Learning Center

Location : Charoen Krung Road, Bangkok, Thailand

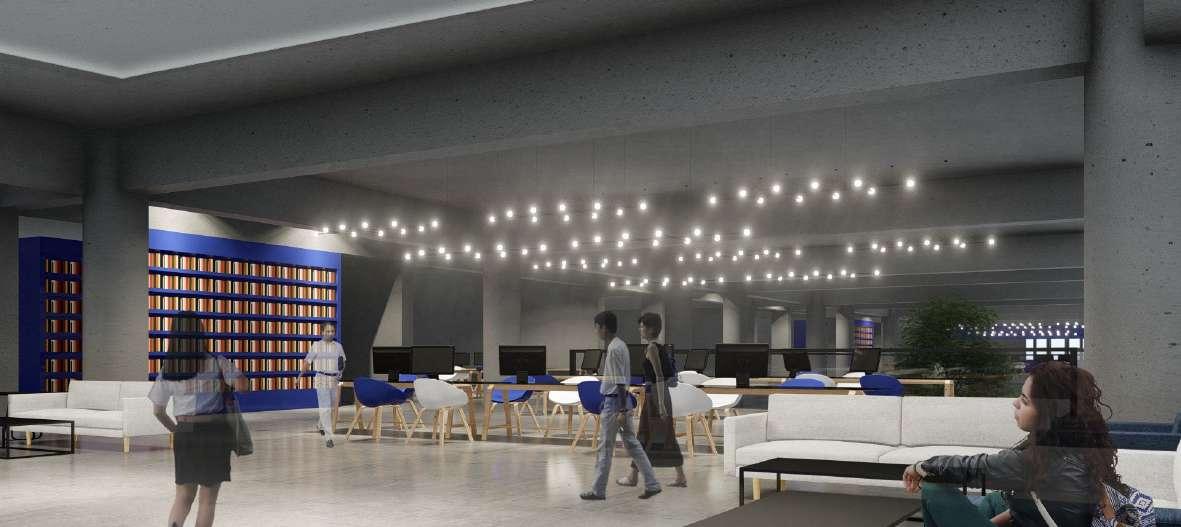

Bangkok city intends to build a learning center on the land along the Chao Phraya River. So I chose to design this learning center to be the center of knowledge and information about astronomy in particular. In addition to being a modern library in futuristic style. I created a space for activities to supporting learning about space like a planetarium. There are sphere-shaped for national and international symposium lounges that will make you feel like you’re in a space. With the objective of creating a space for education, collaboration and inspiration. The main part of the project consists of a library, a learning center and the administrative office

Astrellar = Ad Astra + Interstellar

Ad Astra literally means "to the stars" that derives from "Per Aspera Ad Astra", means hardship leads to the star and Interstellar means between the stars

Learning Center + Planetarium

United to become a center for learning center in Bangkok about stars and astronomy which will lead people to explore the universe and discover the space that made you feel like living in the galaxy. All of the spaces are connected as if they were on a spaceship. Heading to the Chao Phraya River scenery

The stars will be the guides for you to learning all of the space in here.

A R T C E P T I O N

Chulalongkorn Art and Culture Center

Year : 2020

Type : Museum

Location : Phaya Thai Road, Bangkok, Thailand

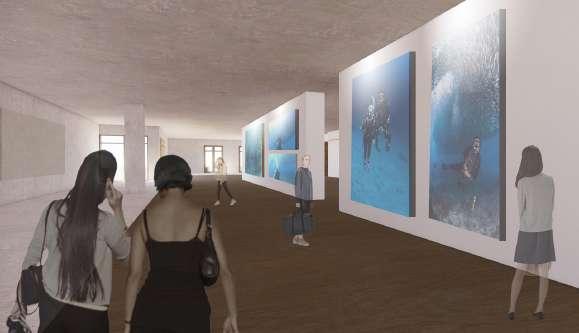

Chulalongkorn University has a plan to build an art and cultural gallery in there own area, to display the art exhibition of various artists as a venue for contemporary art and sculpture that allows people who interested to come and exchange more experience. Including being able to sell some art works made by new artists. So I decided to creat space that bring up a new experience for the visitors.

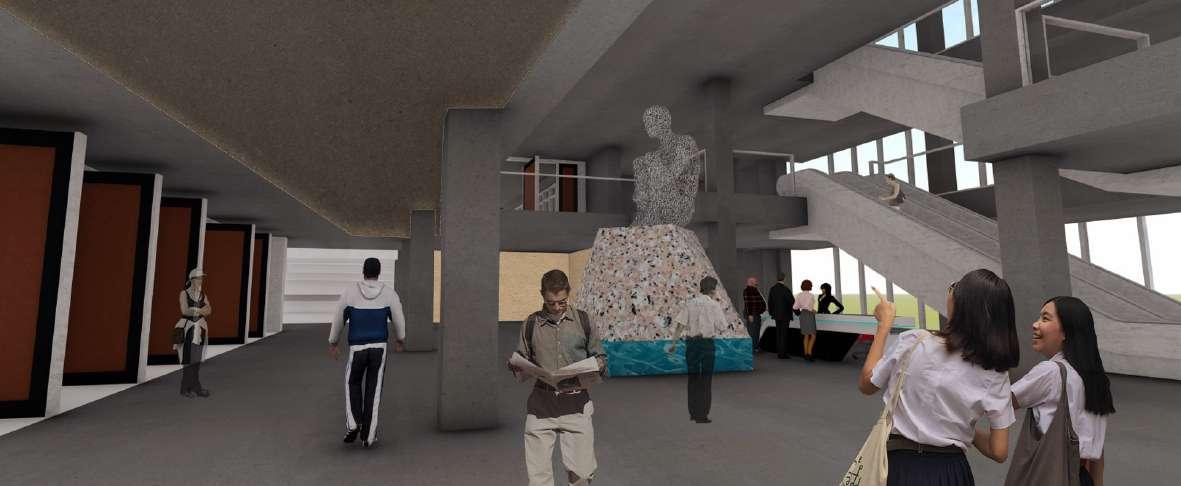

I designed a variety of accessibility form to people who visit here with different types of exhibitions by a new and unique experience. Including the design of the skylight and clearstory in varies from that related to the need of each area in the museum. Also create a double space to create a grand open space in the exhibition.

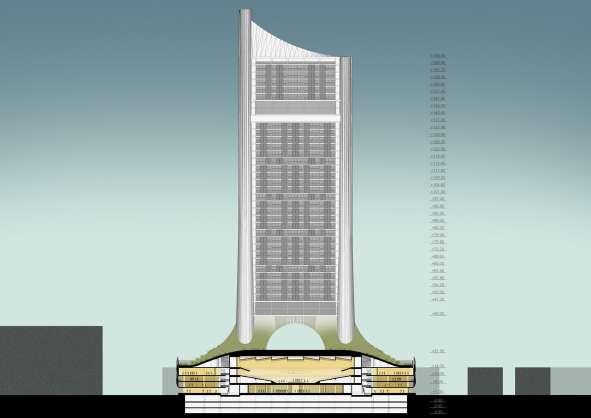

C U - P A R Q

Mixed - Use

Year : 2020

Type : Mixed-use (Group Project)

Location : Soi Chulalongkorn

Bangkok, Thailand

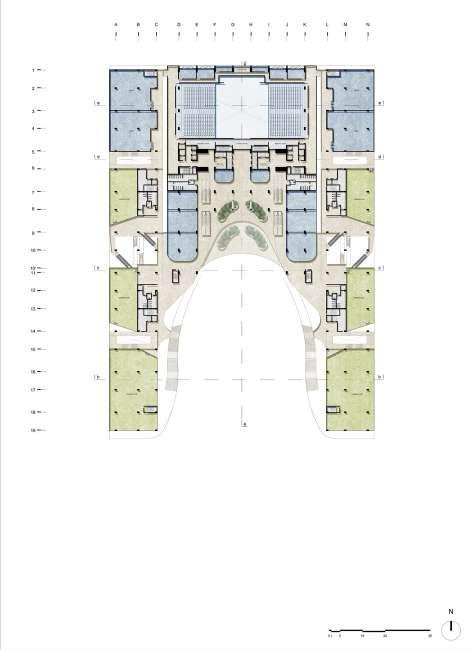

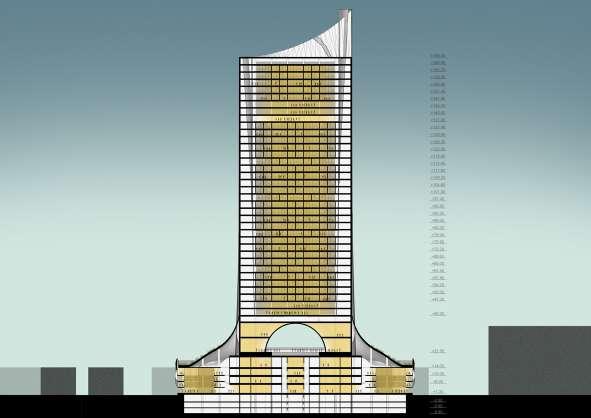

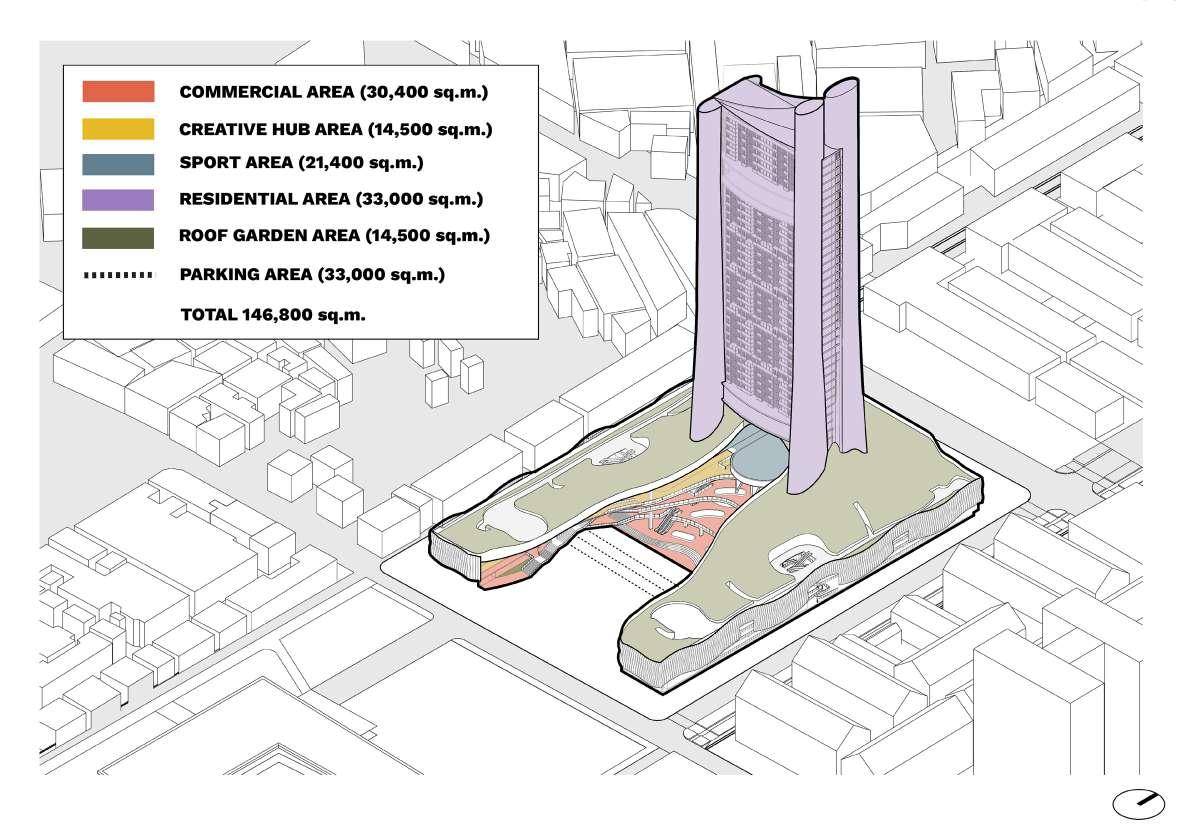

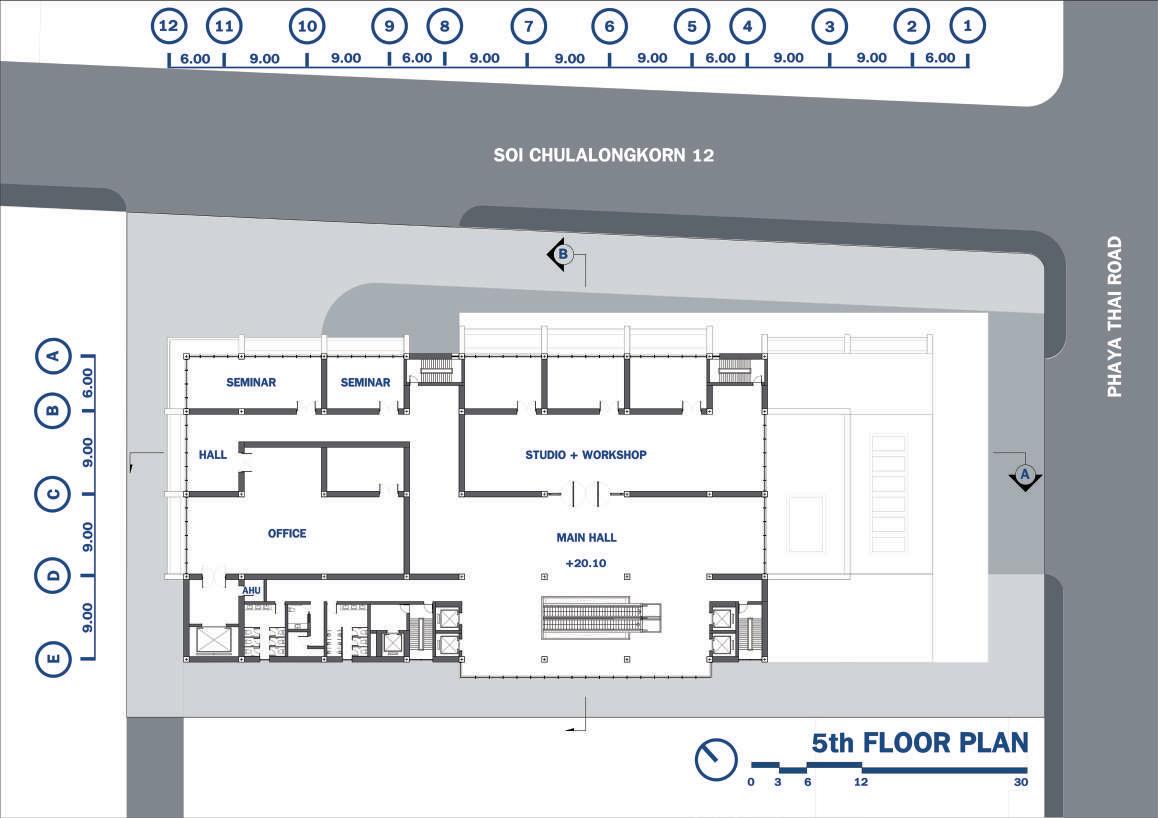

Large-scale building architecture for the development of building group. We have to concern about the urban contexts surround the building and the needs of the communities here, most of whom are street vendor. Green spaces and outdoor spaces were brought into the public spaces where people can exercise. The low part of the building is the commercial and the retail section. There is an arena at the end of the building for concerts and conferences. There is a public swimming pool with an exotic view. The high building will be part of the condominium for students as it is the area near the university.

A Q U A T I C

Sport Training Club and Hotel

Year : 2021

Type : Sport Training Club and Hotel

Location : Patong, Phuket, Thailand

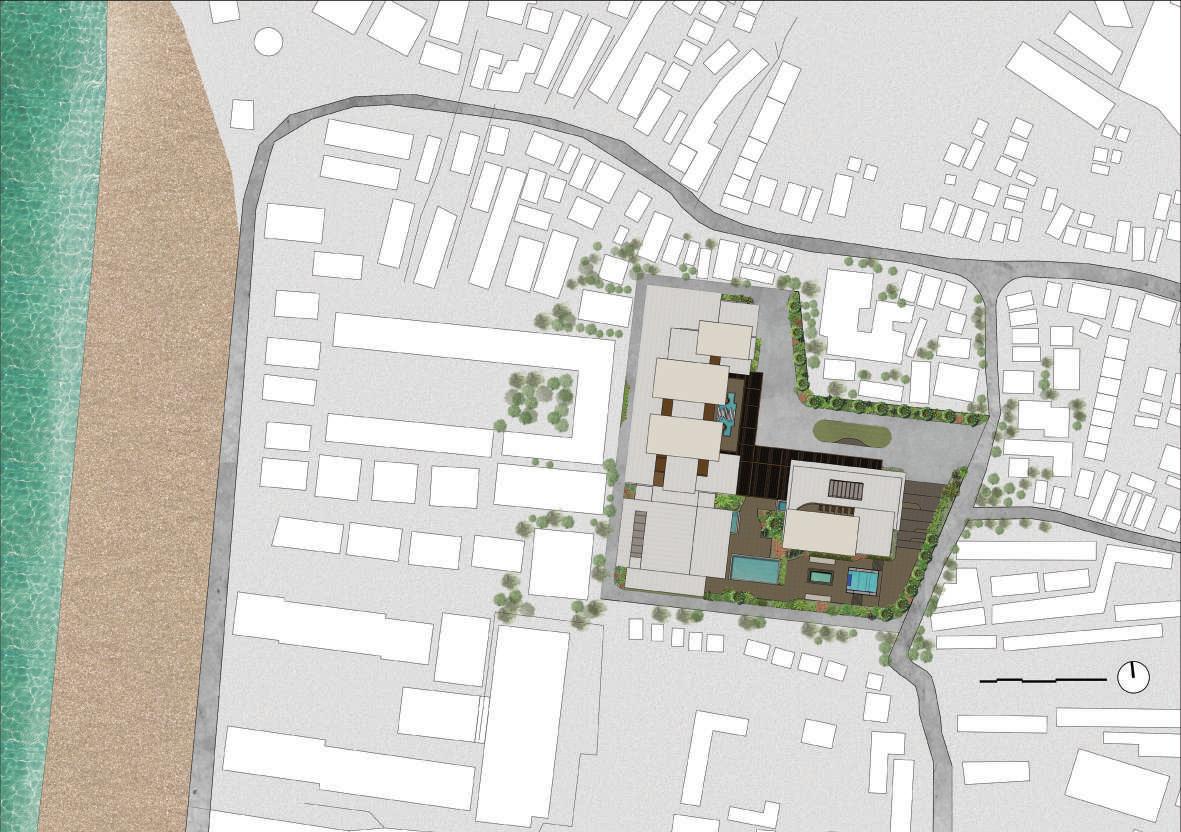

Aquatic Sport Training Club and Hotel is the project of Wahoo Diving Center. This project provide a platform for training aquatic sports including scuba diving, swimming, surfing and paddle board. In which all sports will have international courses to support the standard of learning. The aquatic training club is 600 meters away from Patong Beach, takes only 7 minutes to walk, this area has the potential to be a big public center. The project consists of 2 main parts: Aquatic sports and Hotel and consists of 8 secondary parts: sports support, food and beverages, common space, recreation, local community, administration, building support and parking.

This project have been developed by Wahoo Diving Center. Support activities will be included for the off-season of diving. The main users consist of tourist, water sports coaches and the local community of Phuket people.

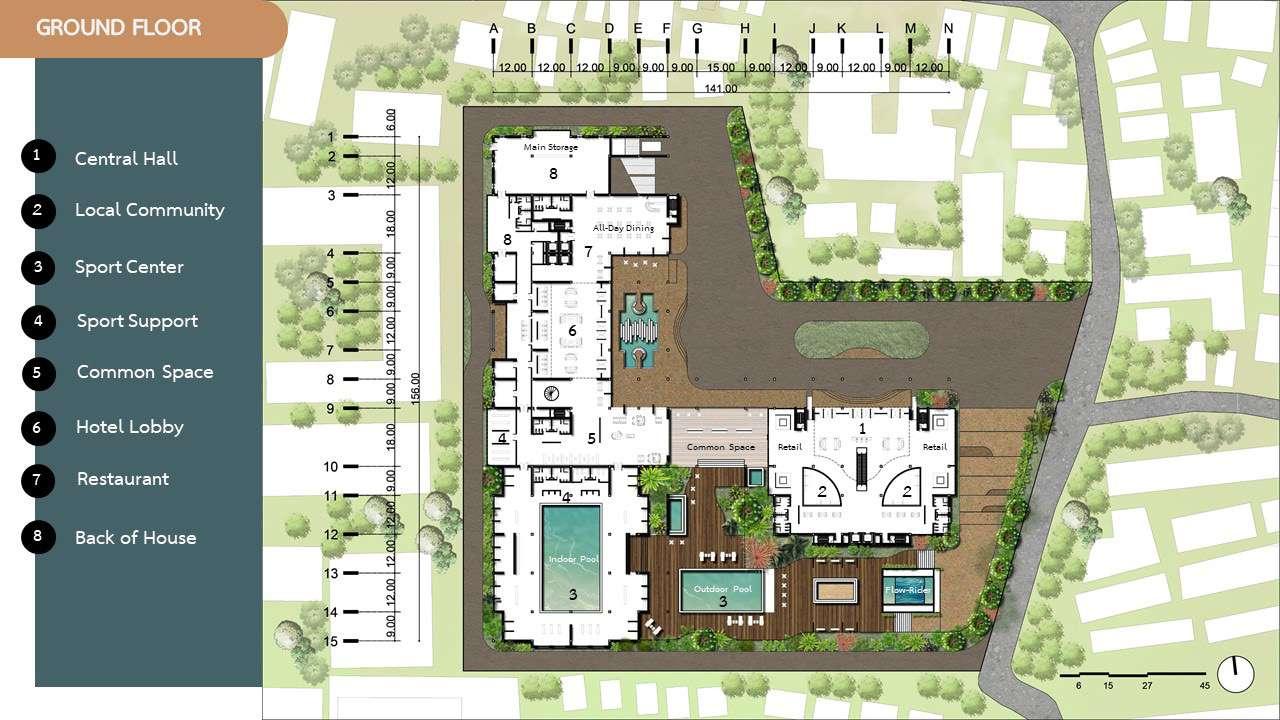

An overview of the project details includes: The heart of the project is the sports sector, which will consist of the Sport Center, an area that supports practical teaching, such as a swimming pool for learning to dive, for learning about Paddle Board and Flow Rider or simulated wave. As for Training Center, the area supporting theoretical teaching consists of Lecture Room, Common Space during breaks of study and Sport Support, an area that supports the sports sector. The secondary part of the project is the hotel for tourists and sports coaches. There are a total of 56 rooms, 54 rooms for tourists and 2 rooms for coaches.

Scuba diving and Paddle Board can be played during January-April and August-December which is the high season. The sea is beautiful and bright with no waves. During May to July or during the low season Can be replaced by surfing sports that require sea waves. Swimming can be played all year round in the indoor pool. so that the project has activities throughout the year. There is a common space on 2nd floor for relaxing and there is a part that connects to the Indoor Pool on 1st floor, allowing you to see the pool below. The Lobby of the Central Hall, looking over, you will see the Local Community, which is a retail glass shop, with skylight above.

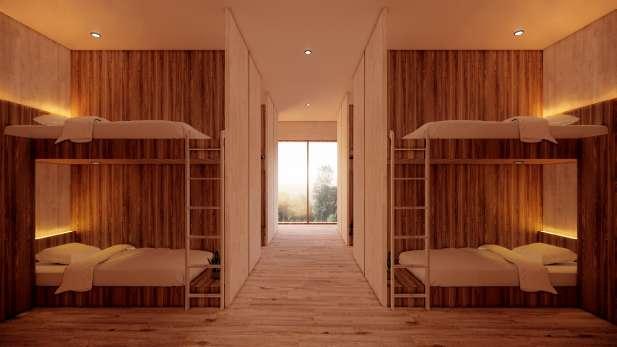

Both on the 3rd floor and 4th floor consist of a total of 56 rooms divided into Standard rooms, 20 rooms per floor, total 40 rooms. 4 Superior rooms per floor, total 8 rooms. 2 deluxe rooms per floor, total 4 rooms. Dormitory type, 2 rooms per floor, total 4 rooms. Dormitory Room has 16 bedrooms total 16 people per 1 room. There are 2 rooms for backpackers and 2 rooms for coaches which a larger common area in the room for meeting. The location of these room type is on the Sport Center, which next to the swimming pool on both sides. There is a balcony in the water sports pool side, for coaches and students in order to see the swimming pool and the sport center
