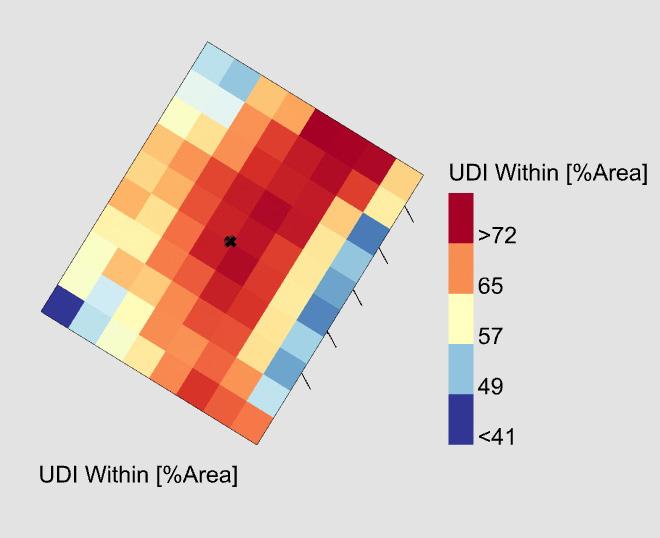

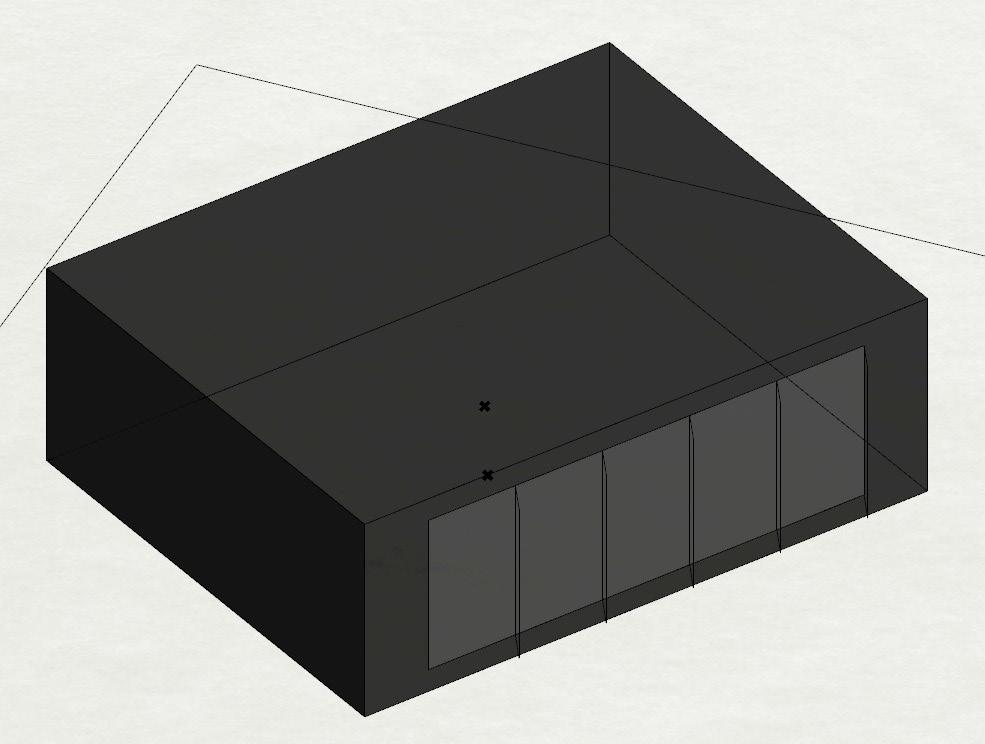

Permutation P9:

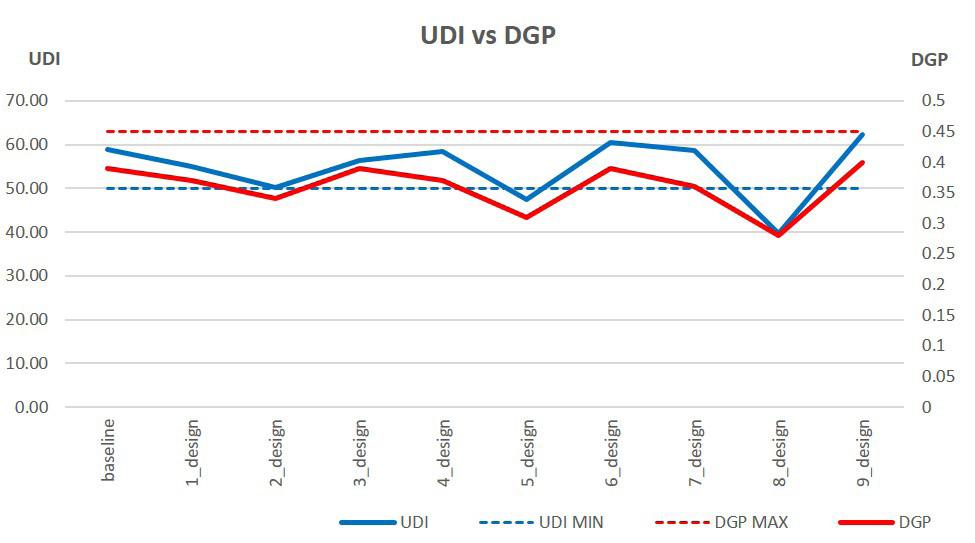

Comparative graph of UDI vs DGP

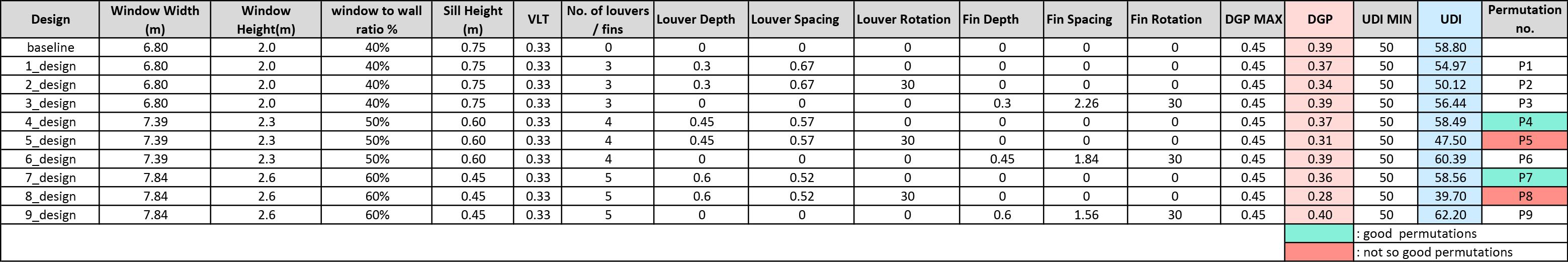

Data analysis chart:

Brief summary:

On testing the various permutations as per the local climate conditions, there are many permutations which can be tested for shading window openings. Apart from different forms of shading like louvers or fins, window to wall ratio definitely acts as one of the primary factors affecting daylighting and can significantly affect UDI and glare values.

Best candidates:

Out of the nine permutations, the best candidates are permutations P4 and P7 as they provide a low DGP value of 0.38 and 0.36 along with a perceptible glare value. In terms of UDI, P4 and P7 offer values of 58.32 and 58.48 respectively well above the min. UDI value threshold. The parameters adopted for P4 and P7 are horizontal louvers of varying depths without any angle of rotation. There were permutations P5 and P8 which had low DGP values of 0.31 and 0.28 respectively, but in contrast they also had low UDI values of 47.70 and 40.37 respectively which is well below the min. UDI threshold level.

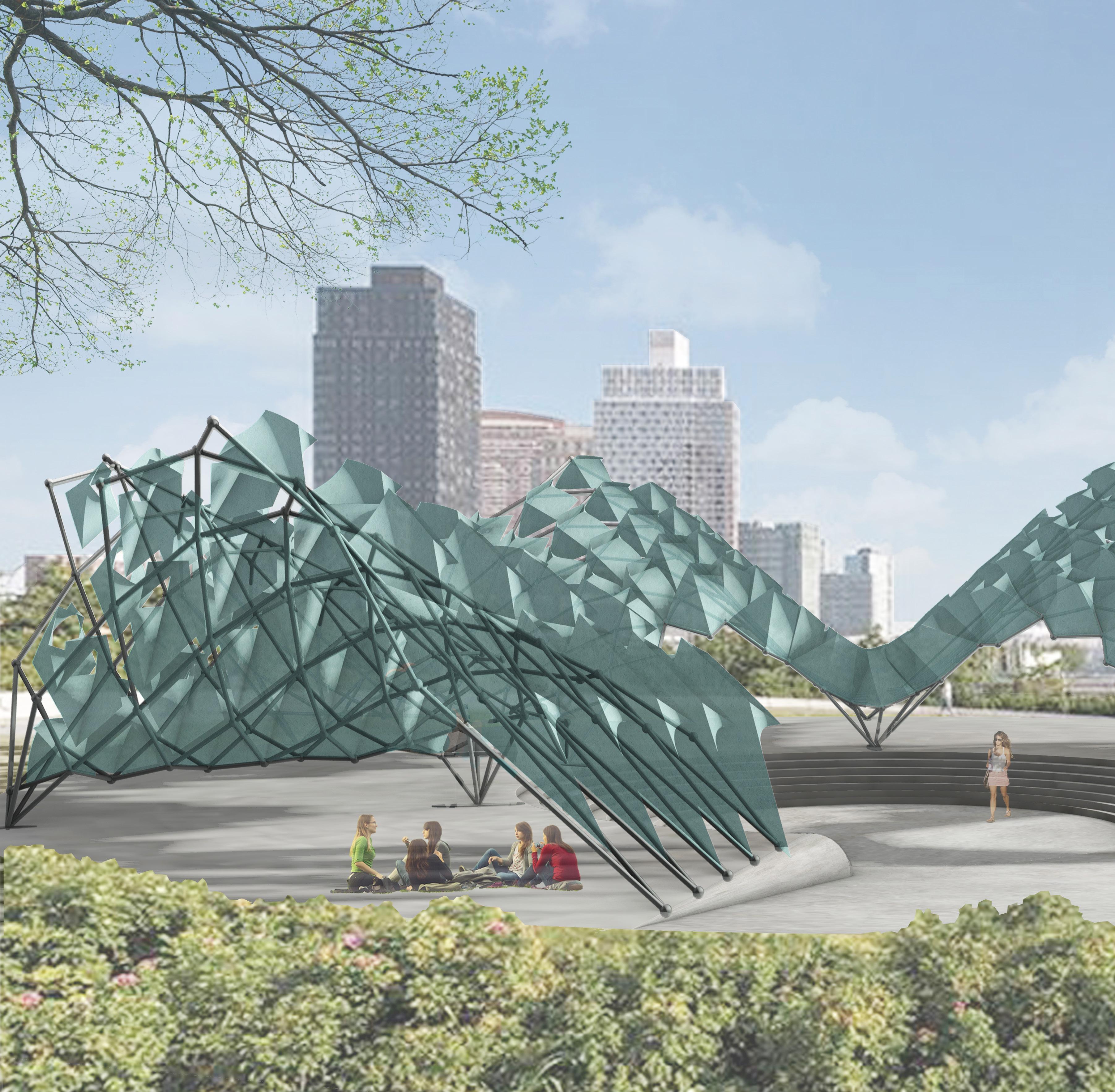

3D view of paramteric pavilion
