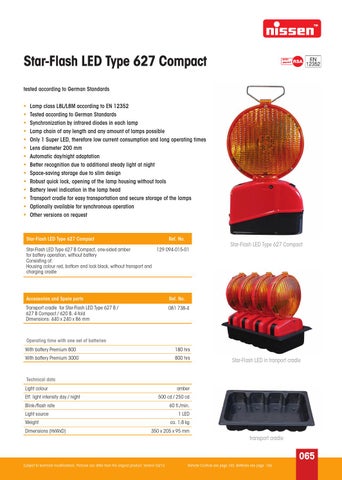

Star-Flash LED Type 627 Compact tested according to German Standards • Lamp class L8L/L8M according to EN 12352 • Tested according to German Standards • Synchronization by infrared diodes in each lamp • Lamp chain of any length and any amount of lamps possible • Only 1 Super LED, therefore low current consumption and long operating times • Lens diameter 200 mm • Automatic day/night adaptation • Better recognition due to additional steady light at night • Space-saving storage due to slim design • Robust quick lock, opening of the lamp housing without tools • Battery level indication in the lamp head • Transport cradle for easy transportation and secure storage of the lamps • Optionally available for synchronous operation • Other versions on request
Ref. No.
Star-Flash LED Type 627 Compact
Star-Flash LED Type 627 B Compact, one-sided amber 129 094-015-01 for battery operation, without battery Consisting of: Housing colour red, bottom and lock black, without transport and charging cradle
Accessories and Spare parts
Ref. No.
Transport cradle for Star-Flash LED Type 627 B / 627 B Compact / 620 B, 4-fold Dimensions: 440 x 240 x 86 mm
081 738-4
Star-Flash LED Type 627 Compact
Operating time with one set of batteries With battery Premium 800
180 hrs
With battery Premium 3000
800 hrs
Star-Flash LED in tranport cradle
Technical data Light colour Eff. light intensity day / night
amber 500 cd / 250 cd
Blink-/flash rate
60 fl./min.
Light source
1 LED
Weight Dimensions (HxWxD)
ca. 1,8 kg 350 x 205 x 95 mm
transport cradle
065 Subject to technical modifications. Pictures can differ from the original product. Version 04/16
Remote Controls see page 160. Batteries see page 166.
