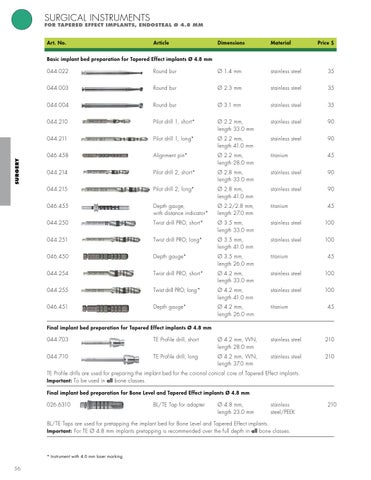

Surgical Instruments
For Tapered Effect Implants, endosteal Ø 4.8 mm
Art. No.
Article
Dimensions
Material
Price $
SURGERY
Basic implant bed preparation for Tapered Effect implants Ø 4.8 mm 044.022
Round bur
Ø 1.4 mm
stainless steel
35
044.003
Round bur
Ø 2.3 mm
stainless steel
35
044.004
Round bur
Ø 3.1 mm
stainless steel
35
044.210
Pilot drill 1, short*
Ø 2.2 mm, length 33.0 mm
stainless steel
90
044.211
Pilot drill 1, long*
Ø 2.2 mm, length 41.0 mm
stainless steel
90
046.458
Alignment pin*
Ø 2.2 mm, length 28.0 mm
titanium
45
044.214
Pilot drill 2, short*
Ø 2.8 mm, length 33.0 mm
stainless steel
90
044.215
Pilot drill 2, long*
Ø 2.8 mm, length 41.0 mm
stainless steel
90
046.455
Depth gauge, with distance indicator*
Ø 2.2/2.8 mm, length 27.0 mm
titanium
45
044.250
Twist drill PRO, short*
Ø 3.5 mm, length 33.0 mm
stainless steel
100
044.251
Twist drill PRO, long*
Ø 3.5 mm, length 41.0 mm
stainless steel
100
046.450
Depth gauge*
Ø 3.5 mm, length 26.0 mm
titanium
044.254
Twist drill PRO, short*
Ø 4.2 mm, length 33.0 mm
stainless steel
100
044.255
Twist drill PRO, long *
Ø 4.2 mm, length 41.0 mm
stainless steel
100
046.451
Depth gauge*
Ø 4.2 mm, length 26.0 mm
titanium
45
45
Final implant bed preparation for Tapered Effect implants Ø 4.8 mm 044.703
TE Profile drill, short
Ø 4.2 mm, WN, length 28.0 mm
stainless steel
210
044.710
TE Profile drill, long
Ø 4.2 mm, WN, length 37.0 mm
stainless steel
210
TE Profile drills are used for preparing the implant bed for the coronal conical core of Tapered Effect implants. Important: To be used in all bone classes. Final implant bed preparation for Bone Level and Tapered Effect implants Ø 4.8 mm 026.6310
BL/TE Tap for adapter
Ø 4.8 mm, length 23.0 mm
stainless steel/PEEK
BL/TE Taps are used for pretapping the implant bed for Bone Level and Tapered Effect implants. Important: For TE Ø 4.8 mm implants pretapping is recommended over the full depth in all bone classes.
* Instrument with 4.0 mm laser marking
56
210
