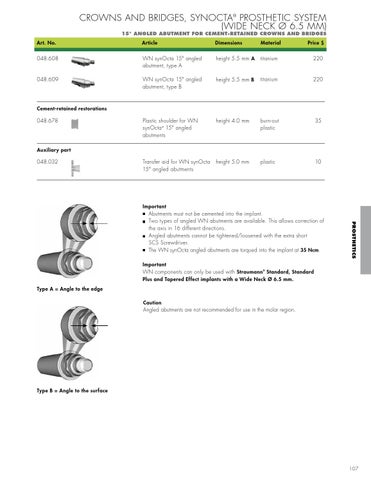

Crowns and Bridges, synOcta® Prosthetic System (Wide Neck Ø 6.5 mm) 15° Angled Abutment for Cement-retained Crowns and Bridges
Art. No.
Article
Dimensions
Material
Price $
048.608
WN synOcta 15° angled abutment, type A
height 5.5 mm A
titanium
220
048.609
WN synOcta 15° angled abutment, type B
height 5.5 mm B
titanium
220
Plastic shoulder for WN synOcta ® 15° angled abutments
height 4.0 mm
burn-out plastic
35
Transfer aid for WN synOcta 15° angled abutments
height 5.0 mm
plastic
10
Cement-retained restorations 048.678
Auxiliary part 048.032
PROSTHETICS
Important Abutments must not be cemented into the implant. Two types of angled WN abutments are available. This allows correction of the axis in 16 different directions. A ngled abutments cannot be tightened/loosened with the extra short SCS Screwdriver. The WN synOcta angled abutments are torqued into the implant at 35 Ncm. Important WN components can only be used with Straumann ® Standard, Standard Plus and Tapered Effect implants with a Wide Neck Ø 6.5 mm. Type A = Angle to the edge Caution Angled abutments are not recommended for use in the molar region.
Type B = Angle to the surface
107
