• Versatile LED lighting system • Slim, compact and discreet • Supplied in standard lengths • 24v operation • High output version
• High efficiency version • Ideal for continuous lighting of cove details • Range of linear profiles available • Pre-angled brackets • Various cover options

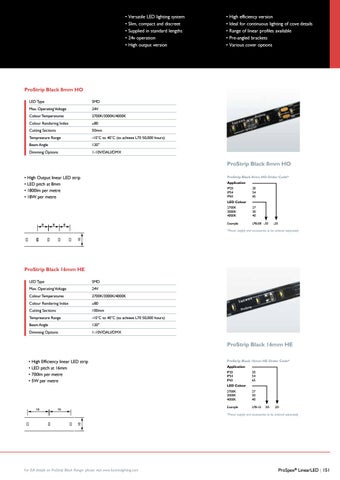

ProStrip Black 8mm HO LED Type
SMD
Max. Operating Voltage
24V
Colour Temperatures
2700K/3000K/4000K
Colour Rendering Index
≥80
Cutting Sections
50mm
Tempreature Range
-10˚C to 40˚C (to achieve L70 50,000 hours)
Beam Angle
120°
Dimming Options
1-10V/DALI/DMX
ProStrip Black 8mm HO • High Output linear LED strip • LED pitch at 8mm • 1800lm per metre • 18W per metre
ProStrip Black 8mm HO Order Code* Application IP20 20 IP54 54 IP65 65 LED Colour 2700K 27 3000K 30 4000K 40
8
8
Example
8
LPB-08 -30
-20
10
*Power supply and accessories to be ordered separately
ProStrip Black 16mm HE LED Type
SMD
Max. Operating Voltage
24V
Colour Temperatures
2700K/3000K/4000K
Colour Rendering Index
≥80
Cutting Sections
100mm
Tempreature Range
-10˚C to 40˚C (to achieve L70 50,000 hours)
Beam Angle
120°
Dimming Options
1-10V/DALI/DMX
ProStrip Black 16mm HE • High Efficiency linear LED strip • LED pitch at 16mm • 700lm per metre • 5W per metre
ProStrip Black 16mm HE Order Code* Application IP20 20 IP54 54 IP65 65 LED Colour 2700K 27 3000K 30 4000K 40
16
Example
16
LPB-16 30-
20-
10
*Power supply and accessories to be ordered separately
For full details on ProStrip Black Range- please visit www.lucent-lighting.com
ProSpex® LinearLED | 151
