Seco Tools Details How Data Matrix Codes Revolutionize Product Information Flow

When Jan Gravningsbråten came up with an idea for how to reduce waste in the tool production process, little did he realize the potential effect it could have on the Seco business. Several years later, his idea has the ability to track ten billion tools that in turn can generate huge amount of insight into how our products are used.

Back in 2018 Jan, who is an R&D technician in the Innovation Lab in Fagersta, noticed that when faults occurred in the production process, it was impossible to identify the individual tools that were affected as each tool was only identifiable by a batch number. “You could have 10,000 or 20,000 in a batch and it was impossible to work out which ones might have been affected by a production fault, so we’d have to start all over again. That’s not really economically viable,” Jan says.

Individually Identifiable

matrix codes, which are similar to QR (quick response) codes. “We have chosen a series of ten billion numbers for our codes, and we can fully trace each tool marked with them using software where we collect all the codes from the machines that produce the tools,” Jan explains.

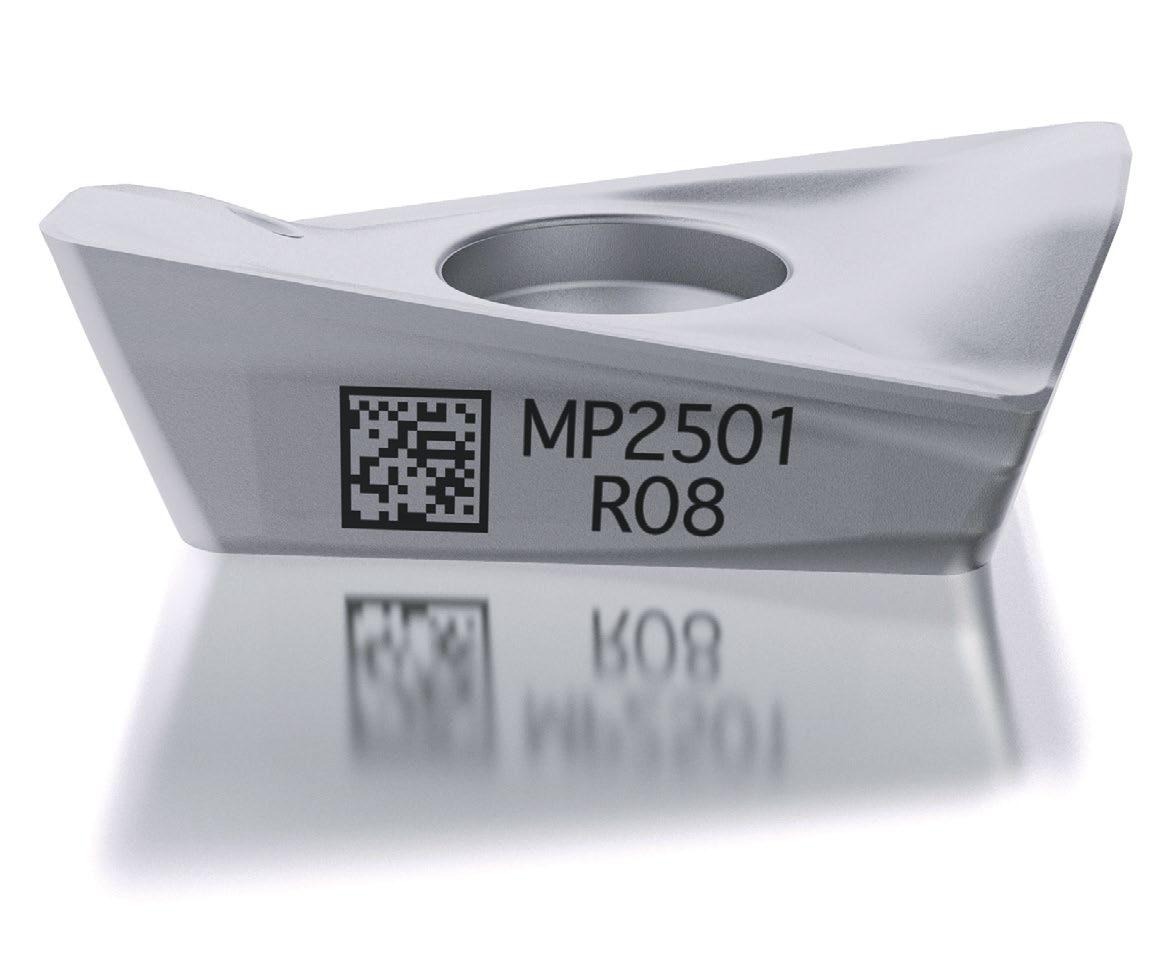

Originally invented in 1987, data matrix codes are two-dimensional codes often used to track objects in industrial processes. The codes are put on each Turbo 16 tool, one of the most popular tools in the Seco Tools range, using a laser-printing process. Putting data matrix codes on each tool deployed out in the field will in the future allow both customers and Seco Tools to track it through its working life.

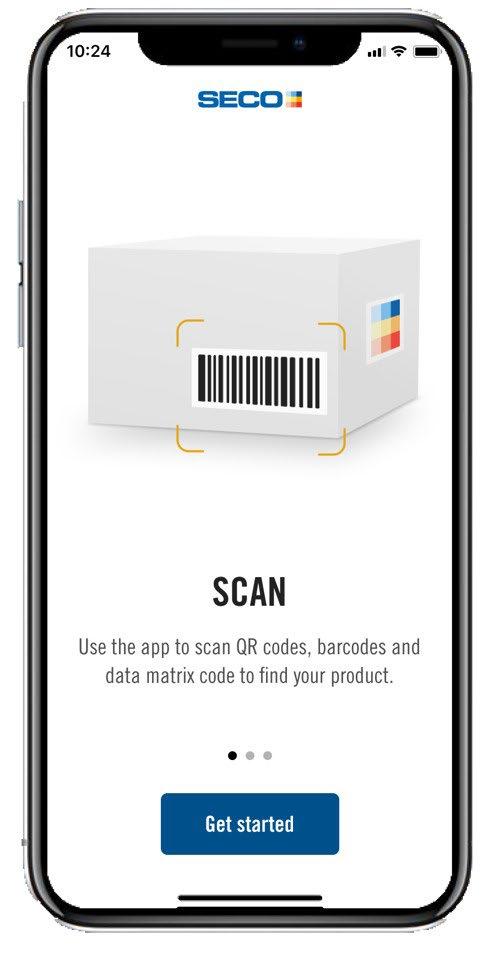

The codes are also compatible with the Seco Assistant, an app which contains a wealth of useful information for clients and that allows them to make calculations and scan their tools directly to find out more about them. “Ideally, clients would input data about how they use the tool into the system – what machine they use, when it is installed, how long it is used for and for what purpose. Scanning

the codes on the tool would then bring up all that data, which basically is the life story of the tool,” says Micael Baudin, specialist in digitalization at Seco Tools.

Laser-Printed Codes

Together with Jan and a small team, they found a way to use lasers to print the codes on tools. “The vision is to be able to support the customer if there is a problem using the tool in certain ways – we can see what it has been used for in the past and based on that we can try to find a solution to their issue, no matter where they are in the world,” says Jan Gravningsbråten.

Data collected from these tools can then be fed back into the R&D process, improving the next generation of products. “If the data matrix codes are still readable they can be used to sort products that are returned to us, which makes the process of recycling much easier. We will be able to sort the different metal compounds quickly so that we can re-use as much of them as possible, which is a real plus when it comes to our sustainability work,” Jan continues.

“So far, we have used the idea with one product, and we are ironing out the teething problems, but ideally we would like to see a situation where customers agree when buying products from us that they will return them to us at the end of their useful lives. When they do so, we can scan these codes and see what has happened to them in their lifetime,” Micael Baudin says.

For Jan Gravningsbråten, the biggest benefit is to be found in the sustainability aspect of the project. “Imagine if we could say to a customer that they had to send the tools back to us when they were finished with them – there might even be a situation in the future where they are not allowed to simply dump old tools and that they are required to recycle them. “There are a lot of benefits, being able to help customers immediately, but the automizing the recycling process and being able to sort different metals and coatings using this data matrix could quickly change things for the better,” Jan says. The use of the data matrix codes has huge potential in terms of transforming how Seco Tools does business. “I see many opportunities based on this technology for future digital solutions, solving pain points and increasing productivity, both in Seco Tools as well as at our customers,” says Thomas Norström, Senior R&D Manager. “To make our products smarter by connecting information to each individual item throughout the whole product life cycle will make a difference - our smart products will be able to answer questions like who are you, where do you come from, how should I use you and how have you been used.”

The use cases on the data matrix technology will be part of a bigger initiative called Seco Beyond Hardware, and Thomas will step out of his present role as Senior R&D Manager and step into a role as program manager for Seco Beyond Hardware. “I am really excited about this, to be able to follow and support all these exciting solutions all the way, from ideas to products implemented internally or at our end customers, will be very enjoyable,” he says.

Recycling Is Key to An Ambitious Target For Circular Economy

Seco Tools is uniquely placed to make a strong contribution to the circular economy, which prioritizes separating economic activity from the consumption of finite resources and designing ways to remove waste from our system of economic activity.

Though it is by no means the only aspect, recycling plays a vital role in the circular economy by asking us to look at how we use the earth’s scarce and finite resources, and what can be done to ensure that we extract maximum value and usage from them.

Recycling will play a key role in reaching Seco Tools ambitious goal of being 90% circular by the year 2030, with a number of broad changes to processes and business models leading the way. “It’s a challenging target, but we see this as very important for our company and our business,” says Ted Forslund, Sustainability & Audit Coordinator at Seco Tools. “What is good for Seco Tools is that we already have very good recycling processes, so now it’s about creating a good partnership with our clients so that they understand the value of us buying back tools, so that it becomes a closed circle where nothing goes to waste.”

Globally, only 8.6% of the resources we use are recycled, which means that over 90% of everything is used once and then disposed of. Due to the nature of the business of Seco Tools, the company is in a strong position to change that paradigm by buying back tools that have reached the end of their productive lives and recycling or repurposing them into new tools. “If we increase that kind of trade where we buy back old and get customers to understand the advantages of it, we can reduce the climate impact as we won’t need to use new materials and metals. It’s a win-win in many ways,” says Ted Forslund.

There is an ever-growing awareness of environmental concerns, and suppliers and customers are keen to see initiatives that address them. “This has proved very positive so far with customers. They know that the tools we produce using recycled materials are of the same very high standard, that there is no drop-off in quality. There is now also a market for the buy-back of tools that have reached the end of their useful lives, and that is a positive thing for them too. It’s about getting this into our business relationships in a positive way,” Ted Forslund explains.

In a circular economy recycling is very important, but it is also the last thing we should do after we reduce, repair and reuse. “This is one important component, but there are other aspects to the circular economy, and we have to look at them all. One of those is the lifecycle of our products – how can we design them so that they last a little longer, and that they can be recycled when they do reach the end of their useful lives? How can we produce them using renewable energy and sustainable supply chains? The essence of the circular economy is preserving the value that we have already created,” says Ted Forslund.

Recycling helps in terms of minimizing waste, but it is far from the only way to do so. There is a wide range of areas that can be analyzed with a view to stopping the “leakage” of valuable resources – delivery chain logistics, sorting, warehousing, risk management, power generation, and even molecular biology and polymer chemistry. Cost-efficient and better-quality collection and treatment systems and effective segmentation of end-of-life products will enable Seco Tools to support the economics of circular design.

One of the main problems in addressing issues to do with the environment and climate change has been the sheer scale of the task, but Ted Forslund believes that the Seco Tools goal of 90% circular by 2030 is attainable. “It is essential to work with our suppliers and customers in order to take on the global challenge. If we do, we can create more value with less waste within a safe operating space for our planet—again, it’s a win-win situation,” he concludes.

With its origins in Fagersta, Sweden and present in more than 75 countries, Seco Tools is a leading global solution provider of metal cutting solutions for indexable milling, solid milling, turning, holemaking, threading and tooling systems. With the hands-on application advice of Seco Tools, the company drives excellence for more than 80 years throughout the entire manufacturing process of manufacturers by ensuring high-precision machining and high-quality output.
