Design development

Movement pattern observed on union street in wednesbury town

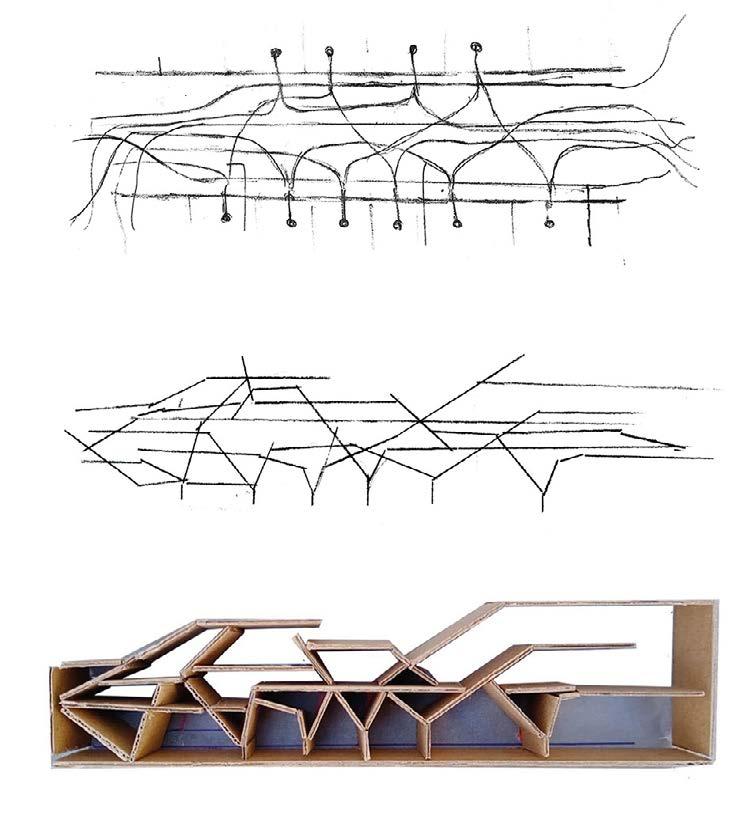

Step 1. Mapping original movement pattern

Step 2. Converting it into linear geometry.

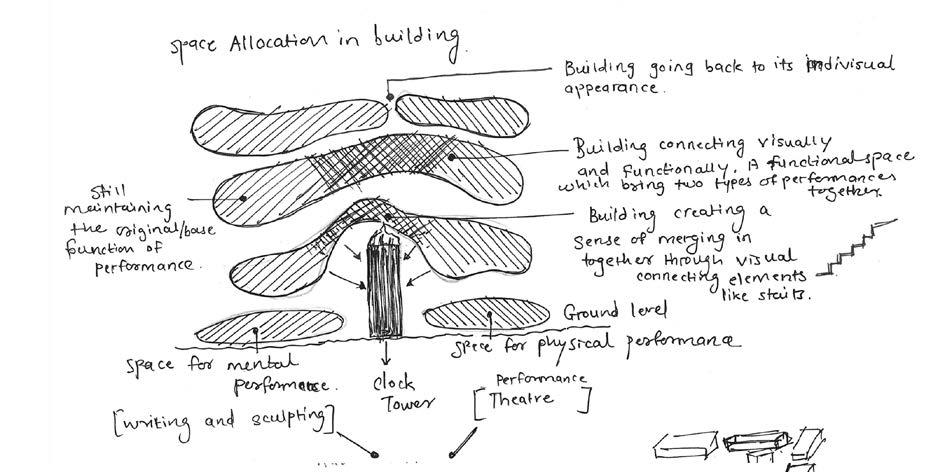

Concept

Step 3. Extracting the architectural building Skeleton from the patterns.

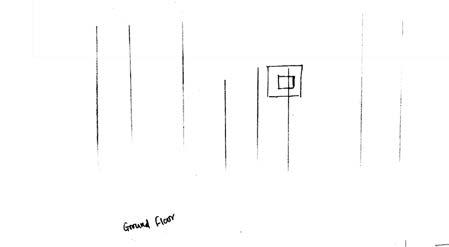

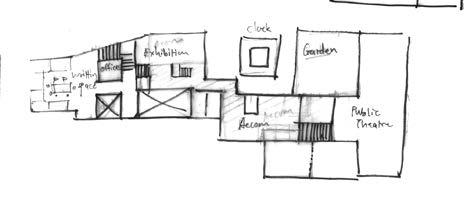

Development of plan from grid lines of sketch model

Architecture defines the human movements and movement defines the architecture.

The public performance in terms of walking pattern is directed by factors like built space, interactive elements, function, psychology, emotions, obstacles, etc. The above movement pattern defines the individuality of respective space in narrtive which helped to create a potential design language for theme of performance.

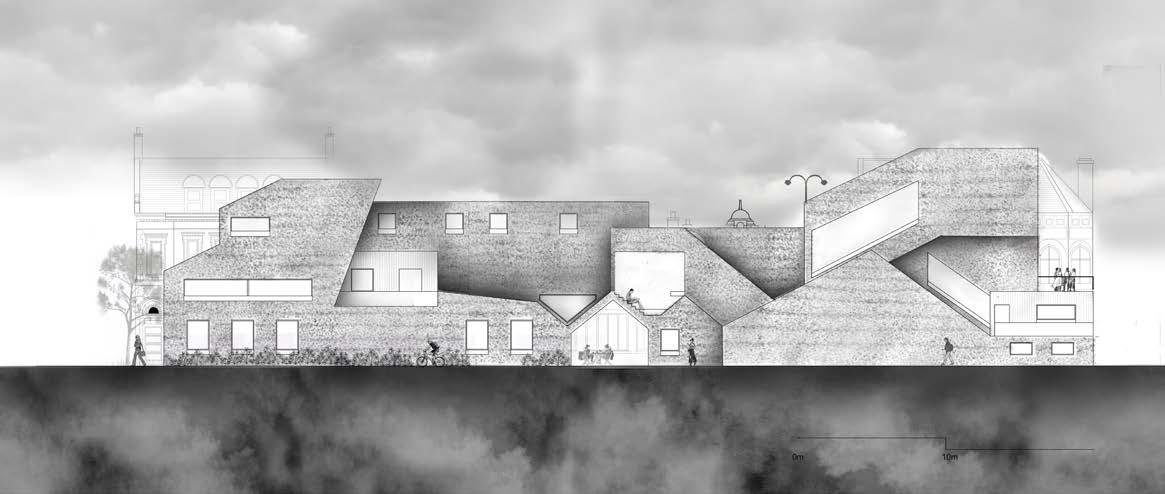

Building Elevation

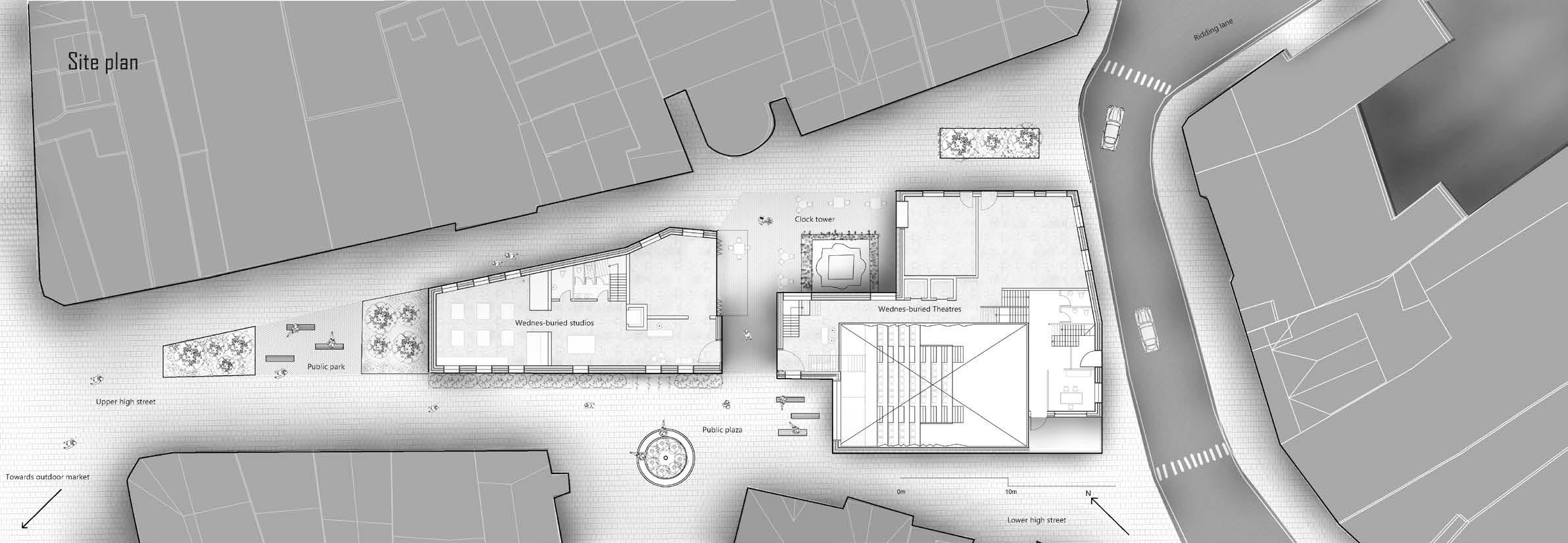

To increase the public engagement high street has been pedestrianised with addition of public garden and seating.

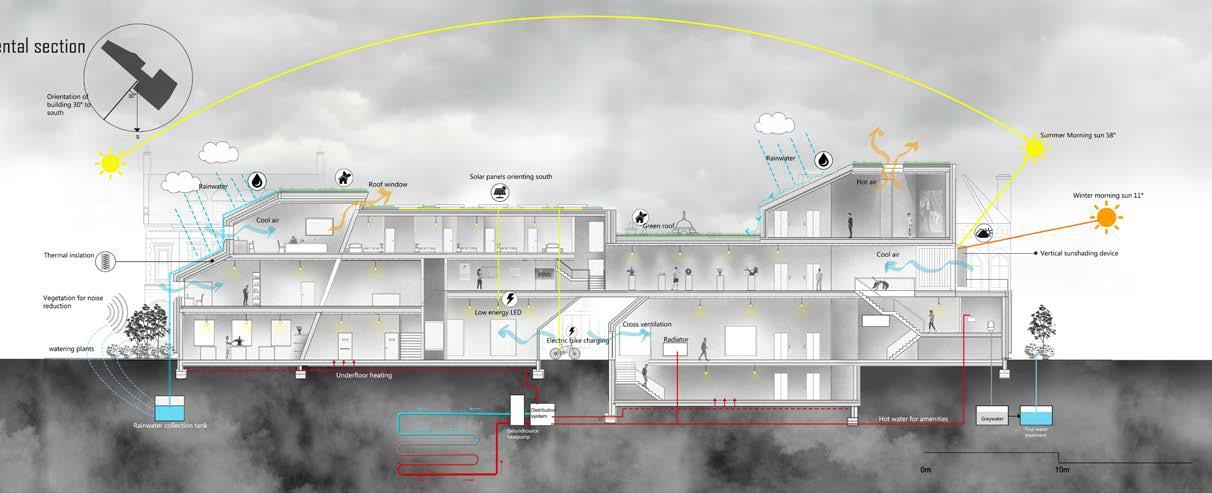

Environmental section

Clean interior volumes are achieved by load bearing walls dedicating entire interior to the functions. Push and pulls of facade elements and exposed staircases are characteristics of plans.
