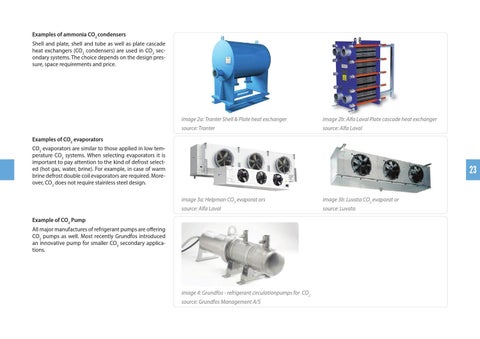

Examples of ammonia CO2 condensers Shell and plate, shell and tube as well as plate cascade heat exchangers (CO2 condensers) are used in CO2 secondary systems. The choice depends on the design pressure, space requirements and price.
image 2a: Tranter Shell & Plate heat exchanger
image 2b: Alfa Laval Plate cascade heat exchanger
source: Tranter
source: Alfa Laval
Examples of CO2 evaporators CO2 evaporators are similar to those applied in low temperature CO2 systems. When selecting evaporators it is important to pay attention to the kind of defrost selected (hot gas, water, brine). For example, in case of warm brine defrost double coil evaporators are required. Moreover, CO2 does not require stainless steel design.
23 image 3a: Helpman CO2 evaporat ors
image 3b: Luvata CO2 evaporat or
source: Alfa Laval
source: Luvata
Example of CO2 Pump All major manufactures of refrigerant pumps are offering CO2 pumps as well. Most recently Grundfos introduced an innovative pump for smaller CO2 secondary applications.
image 4: Grundfos - refrigerant circulationpumps for CO2 source: Grundfos Management A/S
