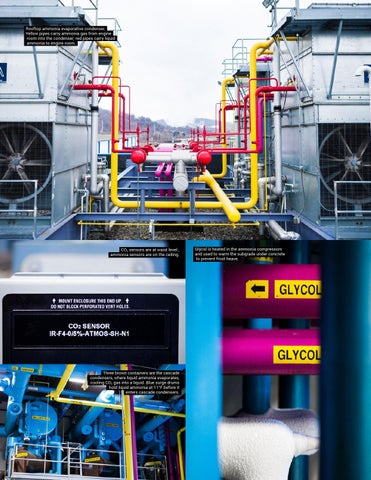

Industrial refrigeration Rooftop ammonia evaporative condenser. Yellow pipes carry ammonia gas from engine room into the condenser; red pipes carry liquid ammonia to engine room.
CO2 sensors are at waist level ; ammonia sensors are on the ceiling.
Three brown containers are the cascade condensers, where liquid ammonia evaporates, cooling CO2 gas into a liquid. Blue surge drums hold liquid ammonia at 11째F before it enters cascade condensers.
26
Accelerate America April 2015
Glycol is heated in the ammonia compressors and used to warm the subgrade under concrete to prevent frost heave.
