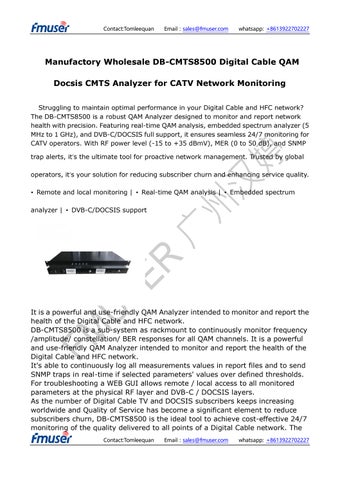

Manufactory Wholesale DB-CMTS8500 Digital Cable QAM
Docsis CMTS Analyzer for CATV
Network Monitoring
Struggling to maintain optimal performance in your Digital Cable and HFC network? The DB-CMTS8500 is a robust QAM Analyzer designed to monitor and report network health with precision. Featuring real-time QAM analysis, embedded spectrum analyzer (5 MHz to 1 GHz), and DVB-C/DOCSIS full support, it ensures seamless 24/7 monitoring for CATV operators. With RF power level (-15 to +35 dBmV), MER (0 to 50 dB), and SNMP trap alerts, it’s the ultimate tool for proactive network management. Trusted by global operators, it’s your solution for reducing subscriber churn and enhancing service quality.
• Remote and local monitoring | • Real-time QAM analysis | • Embedded spectrum analyzer | • DVB-C/DOCSIS support
It is a powerful and use-friendly QAM Analyzer intended to monitor and report the health of the Digital Cable and HFC network.

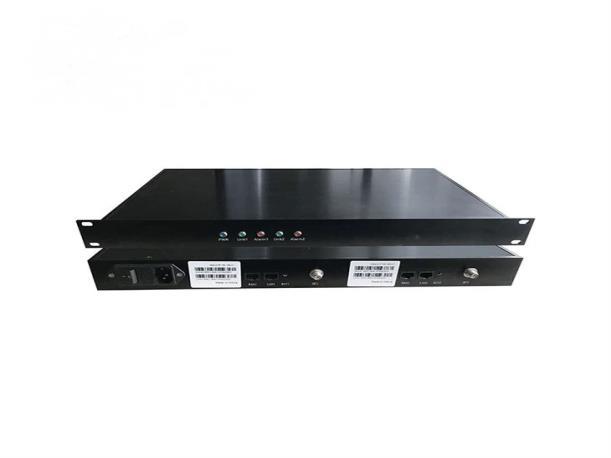

DB-CMTS8500 is a sub-system as rackmount to continuously monitor frequency /amplitude/ constellation/ BER responses for all QAM channels. It is a powerful and use-friendly QAM Analyzer intended to monitor and report the health of the Digital Cable and HFC network.
It's able to continuously log all measurements values in report files and to send SNMP traps in real-time if selected parameters' values over defined thresholds. For troubleshooting a WEB GUI allows remote / local access to all monitored parameters at the physical RF layer and DVB-C / DOCSIS layers.
As the number of Digital Cable TV and DOCSIS subscribers keeps increasing worldwide and Quality of Service has become a significant element to reduce subscribers churn, DB-CMTS8500 is the ideal tool to achieve cost-effective 24/7 monitoring of the quality delivered to all points of a Digital Cable network. The
cable operator can deploy it at the headend / hub, along the last mile, or at the subscriber premise. By using these monitoring parameters, operator can be proactive in correcting the cable quality issue and also to locate the area where degradation is impacting service.
Benefits
Remote and local monitoring of the health of your CATV network
Can store at least 3 days of monitoring logs and alarm logs with 15min scanning interval for 80 Channels configuration
Signal Level / BER / SNR can be set via WEB UI or MIB, and alarm messages can be send via SNMP TRAP or displayed on the webpage
Easy to show the scan results in a web browser
Easy to change monitored channels in table
Spectrum for HFC plant
Constellation for specific frequency
Real-time and Continuous QAM monitoring
Validation of HFC forward path and transmission RF quality
Embedded Spectrum Analyzer from 5 MHz to 1 GHz
Characteristics
DVB-C and DOCSIS full support
ITU-J83 Annexes A, B, C support
Auto distinguish RF Signal Type
User defined alert parameter and threshold, support two channel profile: plan A /plan B
2x RF in, 4x RJ45 (2x WAN + 2x LAN) ports in 1 RU
RF key parameters accurate measurements
TCP / UCP / DHCP / HTTP / SNMP support
Standalone unit
Monitor Parameters
Demodulation status: Lock / Unlock
64 QAM / 256 QAM / 4096 QAM (Option) / OFDM (Option)
RF Power Level: -15 to + 35 dBmV
MER: 0 to 50 dB
Pre-FEC BER and RS correctable count
Post BER and RS uncorrectable count
Constellation Application
Both DVB-C and DOCSIS Digital Cable network monitoring (24/7)
Multi-channel monitoring
Real-time QAM Analysis
WEB GUI
