Manufactory Wholesale IPM6000 IP to QAM DVB-T Modulator for Digital TV Broadcasting, Hotels, and Stadiums
Struggling with large-scale video distribution across multiple displays? The IPM6000 IP to RF Gateway and Modulator offers a cost-effective solution for seamless digital TV broadcasting in hotels, stadiums, and educational facilities. Featuring DVB-T, ISDB-T, ATSC, and DVB-C modulation, it supports up to 1024 IP streams with 2 GbE IP inputs and optional SFP/RJ45 ports. With MER ≥ 40dB and RF output gain up to +10dBm, it ensures high-quality signal transmission over long distances. Certified by EU CE & RoHS, it’s a reliable choice for high-density video engineering projects. • Multi-modulation support (DVB-T, ISDB-T, ATSC, DVB-C) | • Up to 1024 IP streams | • Optional SFP/RJ45 ports | • High RF output gain (+10dBm) | • EU CE & RoHS certified ◆DVB-C/T/ISDB-T/ATSC optional RF out ◆2 GbE IP inputs up to 1024 IP stream in ◆Optional SPF port and RJ45 port
Overview
IPM6000 IP to RF Gateway and Modulator is an ideal solution for environments where you have a large number of displays over almost any distance such as Small and Medium Scale of Digital TV broadcasting System, Hotel, stadiums, Campus, entertainment facilities, Education Markets in limited budget. Designed especially for high channel density Distribution Video Engineering project where rapid deployment, compatibility IP source inputs and Multi-Modulated Carrier RF outputs Simultaneously as like Brazil, Japan ISDB-T or United States, Korea ATSC or Europe/Asia/Africa DVB-T and DVB-C and DTMB standard.

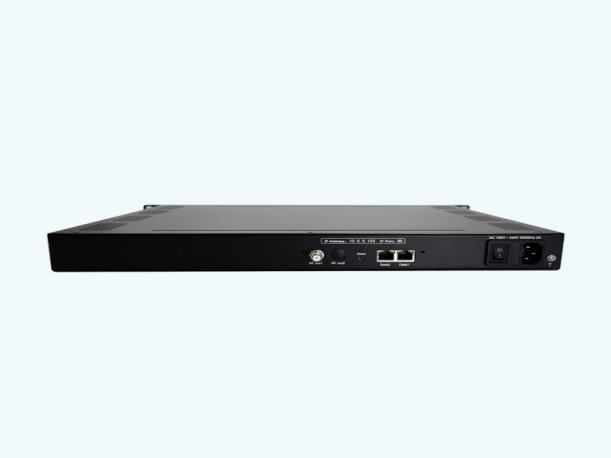

IPM6000 Equipped with two IP In/Out data ports reception or streaming of MPEG compliant transport streams over UDP/RTP, each port operates independently and can be configured as either IP in and IP out supporting full 840 Mbit/s TS data rate and up to 1024 MPEG services. The full content of an input port can be mapped transparently and Multiplex to an output modulated Carrier Channel with the option to perform PID filtering or service filtering. The module can be provided with either RJ45 connectors or SFP connectors on the two data ports.
Business Benefits
● Enhanced Modulated Channel resource utilization
● Cost efficiencies
● Reduced cost and complexity of management
● Concurrent high availability for all services
● Highest cost performance in low budget
Benefits for 24*RF ISDB-T and 24*DVB-T
● 4 network ports and 2 SFP ports for input, supporting signal sources from different interfaces.
● 2 independent RF ports output, 24 carrier version can choose any RF port output, or use one of the RF ports as a backup
● 24 MPTS IP outputs, corresponding to each RF channel, facilitating detection of each output channel
Features
Selectable RJ45 or SFP interfaces port of GbE IP inputs and modulated carriers RF outputs of ISDB-Tb, DVB-T, ATSC, DTMB DVB-C modulation per 1RU Chassis
Multi-Channel No-adjacent Carrier RF output as mirror of IP out after Multiplexing or Scrambling
PID Filtering, Remapping and Passthrough Capabilities with User-Defined PID Value and any Index of In/Out TS
EPG EIT Table passthrough
LCN (Logical Channel Number) support
VCT(Virtual Channel Table) Insertion for ATSC and DVB-C
Support NIT Table Insertion from Web, PSI/SI Editor and IP source inputs
Multiplexing and transparent pass-through of two operating modes for each modulated carrier output
TS Re-multiplexers with PSI/SI regeneration,Editing & inserting and PID processing
PCR correction to accurately correct several PCR of the input data
High density, high quality, high performance, high flexibility
Excellent RF performance, Gain Level: -20 - +10dBm; Gain offset:10dB; BW:50-960Mhz; MER ≥ 40dB
Max.Level RF out much higher than the normal standard output level 0dBm, it will reduce the number of amplifier during the long distance transmission of the project. Increase reliability and cut the cost
Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦ 87600 Hours
Easy-to-Use System Management via Web
Diagnostics report, log printing of Kernal and System information passed the EU CE&RoHS certification
