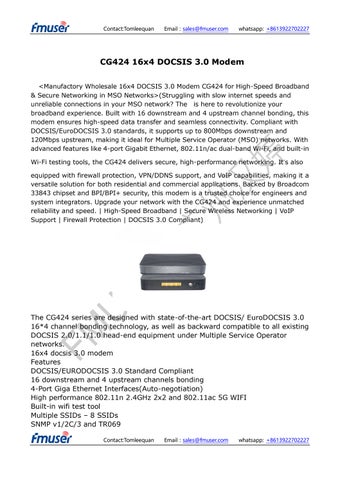

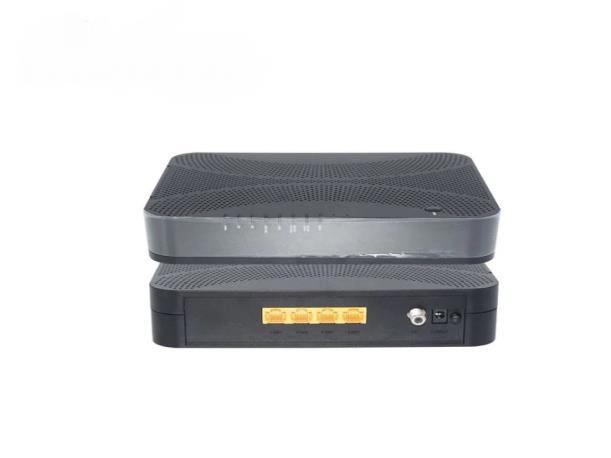

CG424 16x4 DOCSIS 3.0 Modem
<Manufactory Wholesale 16x4 DOCSIS 3.0 Modem CG424 for High-Speed Broadband & Secure Networking in MSO Networks>(Struggling with slow internet speeds and unreliable connections in your MSO network? The is here to revolutionize your broadband experience. Built with 16 downstream and 4 upstream channel bonding, this modem ensures high-speed data transfer and seamless connectivity. Compliant with DOCSIS/EuroDOCSIS 3.0 standards, it supports up to 800Mbps downstream and 120Mbps upstream, making it ideal for Multiple Service Operator (MSO) networks. With advanced features like 4-port Gigabit Ethernet, 802.11n/ac dual-band Wi-Fi, and built-in
Wi-Fi testing tools, the CG424 delivers secure, high-performance networking. It’s also equipped with firewall protection, VPN/DDNS support, and VoIP capabilities, making it a versatile solution for both residential and commercial applications. Backed by Broadcom 33843 chipset and BPI/BPI+ security, this modem is a trusted choice for engineers and system integrators. Upgrade your network with the CG424 and experience unmatched reliability and speed. | High-Speed Broadband | Secure Wireless Networking | VoIP Support | Firewall Protection | DOCSIS 3.0 Compliant)
The CG424 series are designed with state-of-the-art DOCSIS/ EuroDOCSIS 3.0 16*4 channel bonding technology, as well as backward compatible to all existing DOCSIS 2.0/1.1/1.0 head-end equipment under Multiple Service Operator networks.
16x4 docsis 3.0 modem
Features
DOCSIS/EURODOCSIS 3.0 Standard Compliant
16 downstream and 4 upstream channels bonding 4-Port Giga Ethernet Interfaces(Auto-negotiation)
High performance 802.11n 2.4GHz 2x2 and 802.11ac 5G WIFI
Built-in wifi test tool
Multiple SSIDs – 8 SSIDs
SNMP v1/2C/3 and TR069
Contact:Tomleequan Email：
VPN/DDNS supported
2 Ports RJ11 for VoIP, support MGCP and SIP protocol optional Broadcom 33843 as main chipset
BPI/BPI+ supported
Software upgrade by HFC network
Support connected up to 128 CPE devices
Full Band Capture (FBC), DS frequency shouldn’t have to be adjacent
High-speed broadband access
CG424 has the capacity to receive 800M over its EuroDOCSIS interface with 16 bonded channels, and up to 120 Mbps upstream with 4 bonded channels. Provides a cost-effective solution whichdelivers high-speed and bi-directional data services.
Secure wireless networking
Wi-Fi Protected Setup (WPS) is pre-congured and enabled by default. With WPS enabled the end-user can quickly setup a secure wireless network without the need to manually congure the security settings.
Firewall protection
IPV4/IPV6 fireprotection(low, high, medium), Hacker Intrusion prevention and detection , Block Fragmented IP Packets, Port Scan Detection, IP Flood Detection etc.
Advance setting
WAN Blocking, Ipsec PassThrough, Multicast Enable, UPnP Enable, Primary Network Bridged, NAT ALG Status setting, IP flitering, mac flitering, port filitering, forwarding, port triggers, DMZ, RIP setup
