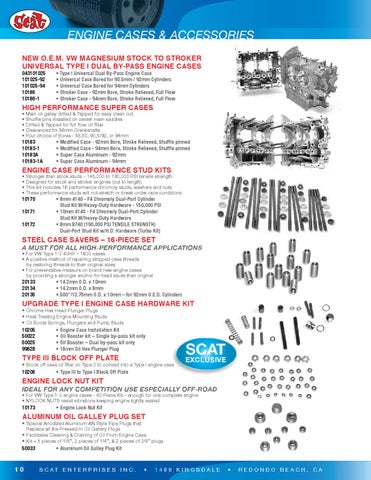

ENGINE CASES & ACCESSORIES NEW O.E.M. VW MAGNESIUM STOCK TO STROKER UNIVERSAL TYPE I DUAL BY-PASS ENGINE CASES 043101025 101025-92 101025-94 10186 10186-1
• Type I Universal Dual By-Pass Engine Case • Universal Case Bored for 90.5mm / 92mm Cylinders • Universal Case Bored for 94mm Cylinders • Stroker Case - 92mm Bore, Stroke Relieved, Full Flow • Stroker Case - 94mm Bore, Stroke Relieved, Full Flow
HIGH PERFORMANCE SUPER CASES • Main oil galley drilled & Tapped for easy clean out • Shuffle pins installed on center main saddles • Drilled & Tapped for full flow oil filter • Clearanced for 86mm Crankshafts • Your choice of Bores - 85.50, 90.5/92, or 94mm
10183 10183-1 10183A 10183-1A
• Modified Case - 92mm Bore, Stroke Relieved, Shuffle pinned • Modified Case - 94mm Bore, Stroke Relieved, Shuffle pinned • Super Case Aluminum - 92mm • Super Case Aluminum - 94mm
ENGINE CASE PERFORMANCE STUD KITS
• Stronger than stock studs – 145,000 to 190,000 PSI tensile strength • Designed for stock and stroker engines (cut to length) • This kit includes 16 performance chromoly studs, washers and nuts • These performance studs will not stretch or break under race conditions
10170 10171 10172
• 8mm 4140 - F4 Chromoly Dual-Port Cylinder Stud Kit W/Heavy-Duty Hardware - 150,000 PSI • 10mm 4140 - F4 Chromoly Dual-Port Cylinder Stud Kit W/Heavy-Duty Hardware • 8mm 8740 (190,000 PSI TENSILE STRENGTH) Dual-Port Stud Kit w/H.D. Hardware (Turbo Kit)
STEEL CASE SAVERS – 16-PIECE SET
A must for all high-performance applications • For VW Type 1-3 40HP – 1600 cases • A positive method of repairing stripped case threads by restoring threads to their original sizes • For preventative measure on brand new engine cases by providing a stronger anchor for head studs than original
20133 20134 20135
• 14.2mm O.D. x 10mm • 14.2mm O.D. x 8mm •.500”/12.75mm O.D. x 10mm – for 92mm O.E.D. Cylinders
UPGRADE TYPE I ENGINE CASE HARDWARE KIT • Chrome Hex Head Plunger Plugs • Heat Treating Engine Mounting Studs • Oil Boost Springs, Plungers and Pump Studs 10205 • Engine Case Installation Kit • Oil Booster kit – Single by-pass kit only 50022 • Oil Booster – Dual by-pass kit only 50025 • 18mm Oil Hex Plunger Plug 99628
SCAT
TYPE III BLOCK OFF PLATE
• Block off case oil filler on Type 3 to convert into a Type I engine case 10206 • Type III to Type I Block Off Plate
EXCLUSIVE
ENGINE LOCK NUT KIT
Ideal for any competition use especially Off-Road • For VW Type 1-3 engine cases - 40-Piece Kit – enough for one complete engine • NYLOCK NUTS resist vibrations keeping engine tightly sealed 10173 • Engine Lock Nut Kit
ALUMINUM OIL GALLEY PLUG SET • • •
Special Anodized Aluminum AN Style Pipe Plugs that Replace all the Pressed-In Oil Gallery Plugs Facilitates Cleaning & Draining of Oil From Engine Case Kit = 5 pieces of 1/8”, 2 pieces of 1/4”, & 2 pieces of 3/8” plugs 50033 • Aluminum Oil Galley Plug Kit
10
S C AT E N T E R P R I S E S I N C .
•
1400 KINGSDALE
•
REDONDO BEACH, CA
