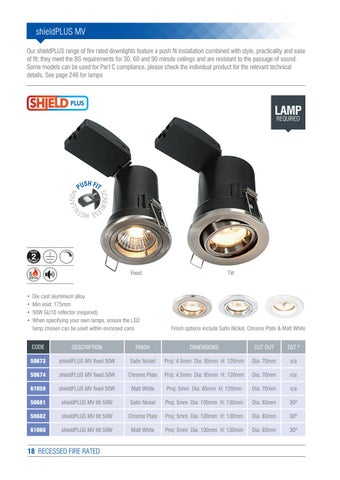

shieldPLUS MV Our shieldPLUS range of fire rated downlights feature a push fit installation combined with style, practicality and ease of fit; they meet the BS requirements for 30, 60 and 90 minute ceilings and are resistant to the passage of sound. Some models can be used for Part C compliance, please check the individual product for the relevant technical details. See page 246 for lamps
LAMP REQUIRED
Fixed
30
60
90min
• Die cast aluminium alloy • Min void: 175mm • 50W GU10 reflector (required) • When specifying your own lamps, ensure the LED lamp chosen can be used within enclosed cans
Tilt
Finish options include Satin Nickel, Chrome Plate & Matt White
CODE
DESCRIPTION
FINISH
DIMENSIONS
CUT OUT
TILT º
50673
shieldPLUS MV fixed 50W
Satin Nickel
Proj: 4.5mm Dia: 85mm H: 120mm
Dia: 70mm
n/a
50674
shieldPLUS MV fixed 50W
Chrome Plate
Proj: 4.5mm Dia: 85mm H: 120mm
Dia: 70mm
n/a
61059
shieldPLUS MV fixed 50W
Matt White
Proj: 5mm Dia: 85mm H: 120mm
Dia: 70mm
n/a
50681
shieldPLUS MV tilt 50W
Satin Nickel
Proj: 5mm Dia: 100mm H: 130mm
Dia: 83mm
30º
50682
shieldPLUS MV tilt 50W
Chrome Plate
Proj: 5mm Dia: 100mm H: 130mm
Dia: 83mm
30º
61060
shieldPLUS MV tilt 50W
Matt White
Proj: 5mm Dia: 100mm H: 130mm
Dia: 83mm
30º
18 RECESSED FIRE RATED
