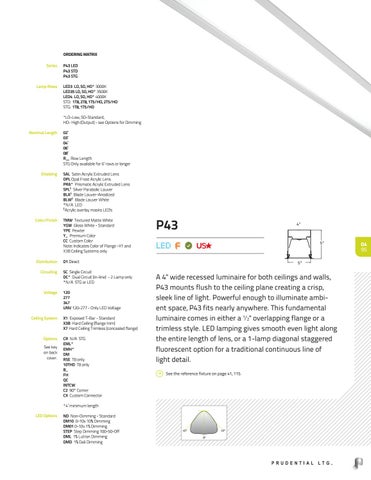

ORDERING MATRIX Series

Lamp Rows

P43 LED P43 STD P43 STG LED3 LO, SO, HO* 3000K LED35 LO, SO, HO* 3500K LED4 LO, SO, HO* 4000K STD: 1T8, 2T8, 1T5/HO, 2T5/HO STG: 1T8, 1T5/HO *LO-Low, SO-Standard, HO- High (Output) - see Options for Dimming

Nominal Length

02’ 03’ 04’ 06’ 08’ R__ Row Length STG Only available for 6’ rows or longer

Shielding

SAL Satin Acrylic Extruded Lens OPL Opal Frost Acrylic Lens PRA* Prismatic Acrylic Extruded Lens SPL† Silver Parabolic Louver BLA† Blade Louver-Anodized BLW† Blade Louver White *N/A LED †Acrylic overlay masks LED's

Color/Finish

TMW Textured Matte White YGW Gloss White - Standard YPE Pewter Y_ Premium Color CC Custom Color Note: Indicates Color of Flange -X1 and X3B Ceiling Systems only

Distribution Circuiting

Voltage

Ceiling System

Options See key on back cover.

P43

4"

5"

D1 Direct SC Single Circuit DC* Dual Circuit (in-line) - 2 Lamp only *N/A STG or LED 120 277 347 UNV 120-277 - Only LED Voltage X1 Exposed T-Bar - Standard X3B Hard Ceiling (flange trim) X7 Hard Ceiling Trimless (concealed flange) CR N/A STG EML* EMH* DM RSE T8 only 10THD T8 only B_ FH QC INTCW C2 90° Corner CX Custom Connector

5"

A 4" wide recessed luminaire for both ceilings and walls, P43 mounts flush to the ceiling plane creating a crisp, sleek line of light. Powerful enough to illuminate ambient space, P43 fits nearly anywhere. This fundamental luminaire comes in either a 1/⁄2" overlapping flange or a trimless style. LED lamping gives smooth even light along the entire length of lens, or a 1-lamp diagonal staggered fluorescent option for a traditional continuous line of light detail. >

See the reference fixture on page 41, 115.

*4’ minimum length LED Options

ND Non-Dimming - Standard DM10 0-10v 10% Dimming DM01 0-10v 1% Dimming STEP Step Dimming 100-50-Off DML 1% Lutron Dimming DMD 1% Dali Dimming

45º

45º 0º

04 95
