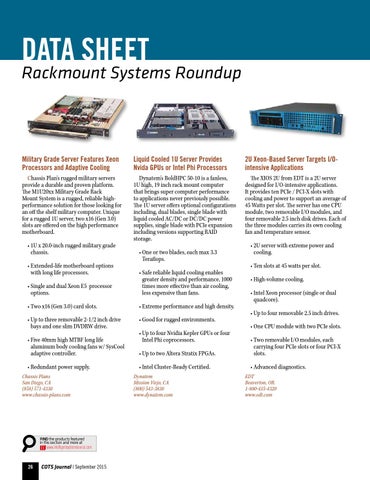

DATA SHEET
Rackmount Systems Roundup
Military Grade Server Features Xeon Processors and Adaptive Cooling
Liquid Cooled 1U Server Provides Nvida GPUs or Intel Phi Processors
2U Xeon-Based Server Targets I/Ointensive Applications
Chassis Plan’s rugged military servers provide a durable and proven platform. The M1U20xx Military Grade Rack Mount System is a rugged, reliable highperformance solution for those looking for an off the shelf military computer. Unique for a rugged 1U server, two x16 (Gen 3.0) slots are offered on the high performance motherboard.
Dynatem’s BoldHPC 50-10 is a fanless, 1U high, 19 inch rack mount computer that brings super computer performance to applications never previously possible. The 1U server offers optional configurations including, dual blades, single blade with liquid cooled AC/DC or DC/DC power supplies, single blade with PCIe expansion including versions supporting RAID storage.
The XIOS 2U from EDT is a 2U server designed for I/O-intensive applications. It provides ten PCIe / PCI-X slots with cooling and power to support an average of 45 Watts per slot. The server has one CPU module, two removable I/O modules, and four removable 2.5 inch disk drives. Each of the three modules carries its own cooling fan and temperature sensor.
• 1U x 20.0-inch rugged military grade chassis. • Extended-life motherboard options with long life processors.
• One or two blades, each max 3.3 Teraflops.
• Single and dual Xeon E5 processor options.
• Safe reliable liquid cooling enables greater density and performance, 1000 times more effective than air cooling, less expensive than fans.
• Two x16 (Gen 3.0) card slots.
• Extreme performance and high density.
• Up to three removable 2-1/2 inch drive bays and one slim DVDRW drive.
• Good for rugged environments.
• Five 40mm high MTBF long life aluminum body cooling fans w/ SysCool adaptive controller. • Redundant power supply. Chassis Plans San Diego, CA (858) 571-4330 www.chassis-plans.com
FIND the products featured in this section and more at
www.intelligentsystemssource.com
26
COTS Journal | September 2015
• Up to four Nvidia Kepler GPUs or four Intel Phi coprocessors.
• 2U server with extreme power and cooling. • Ten slots at 45 watts per slot. • High-volume cooling. • Intel Xeon processor (single or dual quadcore). • Up to four removable 2.5 inch drives. • One CPU module with two PCIe slots.
• Up to two Altera Stratix FPGAs.
• Two removable I/O modules, each carrying four PCIe slots or four PCI-X slots.
• Intel Cluster-Ready Certified.
• Advanced diagnostics.
Dynatem Mission Viejo, CA (800) 543-3830 www.dynatem.com
EDT Beaverton, OR. 1-800-435-4320 www.edt.com
