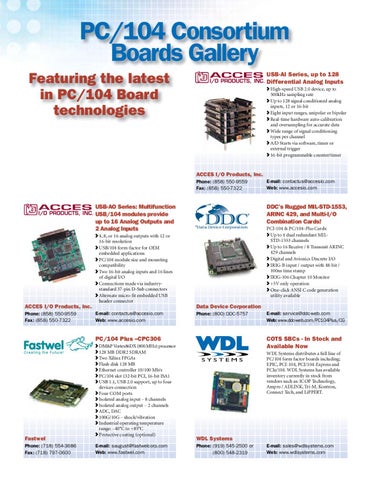

PC/104 Consortium Boards Gallery Featuring the latest in PC/104 Board technologies
USB-AI Series, up to 128 Differential Analog Inputs High-speed USB 2.0 device, up to 500kHz sampling rate Up to 128 signal conditioned analog inputs, 12 or 16-bit Eight input ranges, unipolar or bipolar Real-time hardware auto-calibration and oversampling for accurate data Wide range of signal conditioning types per channel A/D Starts via software, timer or external trigger 16-bit programmable counter/timer
ACCES I/O Products, Inc. Phone: (858) 550-9559 Fax: (858) 550-7322
USB-AO Series: Multifunction USB/104 modules provide up to 16 Analog Outputs and 2 Analog Inputs
ACCES I/O Products, Inc. Phone: (858) 550-9559 Fax: (858) 550-7322
4, 8, or 16 analog outputs with 12 or 16-bit resolution USB/104 form-factor for OEM embedded applications PC/104 module size and mounting compatibility Two 16-bit analog inputs and 16 lines of digital I/O Connections made via industrystandard 37-pin D-Sub connectors Alternate micro-fit embedded USB header connector E-mail: contactus@accesio.com Web: www.accesio.com
DDC’s Rugged MIL-STD-1553, ARINC 429, and Multi-I/O Combination Cards! PCI-104 & PC/104-Plus Cards: Up to 4 dual redundant MILSTD-1553 channels Up to 16 Receive / 8 Transmit ARINC 429 channels Digital and Avionics Discrete I/O IRIG-B input / output with 48-bit / 100ns time stamp IRIG-106 Chapter 10 Monitor +5V only operation One-click ANSI C code generation utility available
Data Device Corporation Phone: (800) DDC-5757
PC/104 Plus –CPC306
Fastwel Phone: (718) 554-3686 Fax: (718) 797-0600
DM&P Vortex86DX (800 MHz) processor 128 MB DDR2 SDRAM Two Xilinx FPGAs Flash disk 128 MB Ethernet controller 10/100 Mb/s PC/104 slot (32-bit PCI, 16-bit ISA) USB 1.1, USB 2.0 support, up to four devices connection Four COM ports Isolated analog input – 8 channels Isolated analog output – 2 channels ADC, DAC 100G/10G – shock/vibration Industrial operating temperature range: –40°C to +85°C Protective coating (optional) E-mail: saugust@fastwelcorp.com Web: www.fastwel.com
E-mail: contactus@accesio.com Web: www.accesio.com
E-mail: service@ddc-web.com Web: www.ddc-web.com/PC104Plus/CG
COTS SBCs - In Stock and Available Now WDL Systems distributes a full line of PC/104 form factor boards including; EPIC, PCI-104, PCI/104-Express and PCIe/104. WDL Systems has available inventory currently in stock from vendors such as: ICOP Technology, Ampro / ADLINK, Tri-M, Kontron, Connect Tech, and LiPPERT.
WDL Systems Phone: (919) 545-2500 or (800) 548-2319
E-mail: sales@wdlsystems.com Web: www.wdlsystems.com
