Product Bulletin 62.1:DVC6000 September 2003
DVC6000 Digital Valve Controller 57 (2.25) 2 MOUNTING HOLES 8.6 (0.34)
9 (0.37)
29 (1.13) CENTERLINE OF ACTUATOR
138 (5.45)
19 (0.76)
99 (3.90)
1/2 -14 NPT CONDUIT CONN
175 (6.89)
10C1797-A E0867 / IL
175 (6.88)
94 (7.63)
121 (4.75)
65 (2.54)
4 MOUNTING HOLES 9.7 (0.38)
97 (3.81)
1/2 -14 NPT CONDUIT CONN
10 (0.38)
95 (3.75)
114 (4.50)
140 (5.52)
10C1798-A E0868 / IL
TYPE DVC6015 SLIDING STEM ACTUATOR MOUNTING UP TO 102 mm (4−INCH) TRAVEL
TYPE DVC6025 ROTARY AND LONG−STROKE SLIDING STEM ACTUATOR MOUNTING
76 (3.00) 38 (1.50)
46 (1.83) 93 (3.66)
120 (4.72)
1/2 -14 NPT CONDUIT CONN
103 (2.65)
67 (2.65)
46 (1.81)
135 (4.07)
4 MOUNTING HOLES 1/4 - 20 UNC mm (INCH)
10C1799-A E0869 / IL
TYPE DVC6035 ROTARY ACTUATOR SHAFT MOUNTING

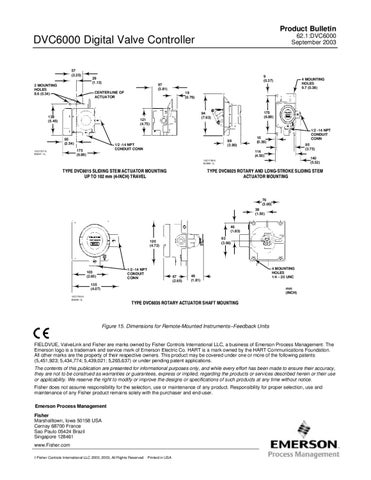

Figure 15. Dimensions for Remote-Mounted Instruments--Feedback Units
