Type 656
LUBRICATE END OF STEM AND PLATE WITH LUBRIPLATE MAG-1 LUBRICATE STEM THDS WITH NEVER SEEZ NICKEL SPECIAL CV8011-E / DOC

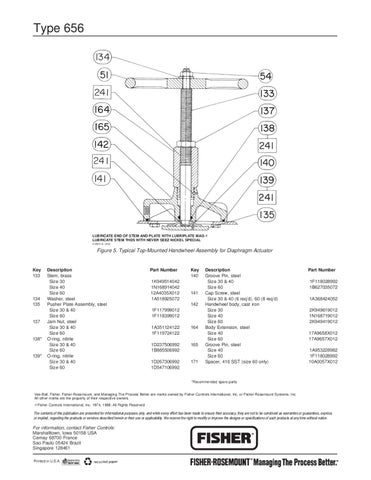

Figure 5. Typical Top-Mounted Handwheel Assembly for Diaphragm Actuator
Key 133
134 135
137
138*
139*
Description Stem, brass Size 30 Size 40 Size 60 Washer, steel Pusher Plate Assembly, steel Size 30 & 40 Size 60 Jam Nut, steel Size 30 & 40 Size 60 O-ring, nitrile Size 30 & 40 Size 60 O-ring, nitrile Size 30 & 40 Size 60
Part Number 1K949514042 1N168914042 12A4035X012 1A518925072
Key 140
141 142
1F117999012 1F118399012 1A351124122 1F119724122
164
1D237506992 1B885506992
165
1D267306992 1D547106992
171
Description Groove Pin, steel Size 30 & 40 Size 60 Cap Screw, steel Size 30 & 40 (6 req’d), 60 (8 req’d) Handwheel body, cast iron Size 30 Size 40 Size 60 Body Extension, steel Size 40 Size 60 Groove Pin, steel Size 40 Size 60 Spacer, 416 SST (size 60 only)
Part Number 1F118028992 1B627035072 1A368424052 2K949619012 1N168719012 2K949419012 17A9658X012 17A9657X012 1A953228982 1F118028992 10A0057X012
*Recommended spare parts
