Model 275 HART Communicator Handheld Communicator Menu Structure for FIELDVUE DT4000 (Device Description Revision 9)
Initial Setup 1 Instrument Mode 2 Control Mode 3 Inst Supply Press 4 Zero Ctrl Signal 5 Tuning Set 6 Press Range High 7 Press Range Low
Hot Key 1 Instrument Mode 2 Control Mode 3 Protection 4 Stabilize/Optimize
Mode 1 Instrument Mode 2 Control Mode 3 Restart Ctrl Mode 4 Restart
General 1 Tag 2 Message 3 Descriptor 4 Date 5 Valve Serial Num 6 Factory Inst S/N 7 Field Inst S/N 8 Polling Address
Alt Pressure 1 Alt Pres Enab 2 Alt Press Rng High 3 Alt Press Rng Low
Actuator Info 1 Inst Supply Press 2 Zero Ctrl Signal
Main Menu (Setup) 1 Initial Setup 2 Detailed Setup 3 Display 4 Calibrate 5 Stroke Pressure
Detailed Setup 1 Mode 2 Protection 3 General 4 Actuator Info 5 Measured Var 6 Response Control 7 Alerts 8 Self Test Shutdown
Measured Var 1 Analg In Units/Rng 2 Pressure Units 3 Press Range High 4 Press Range Low 5 Alt Pressure 6 Temp Units Response Control 1 Tuning Set 2 Input Char 3 Input Filter Time 4 Dyn Bypass Enab 5 Limits & Cutoffs 6 Min Inc/Dec Time
Fisher Dig Transducer 1 Main Menu (Setup) 2 Analog In 3 Pressure 4 Drive Sgl 5 Instrument Status
Alerts 1 Pressure Alerts 2 Press Dev Alert 3 Cycle Count Alert 4 Pres Accum Alert 5 Other Alerts
Display 1 Variables 2 Device Information 3 Dev Desc Rev Calibrate 1 Analog In 2 Pressure 3 Restore Calib 4 Calib Loc
HART Communicator 1 Offline 2 Online 3 Frequency Device 4 Utility
Instrument Status 1 Done 2 Alerts 3 Failures 4 Operationals
Stroke Pressure 1 Done 2 Ramp Up 3 Ramp Down 4 Ramp to Target 5 Step to Target 6 Stop
Self Test Shutdown 1 Done 2 No Free Time Fail 3 RAM Fail 4 Critical NVM Fail 5 Temp Sensor Fail 6 Press Sensor Fail
Variables 1 Aux In 2 Temp 3 Cycl Count 4 Press Acum 5 Free Time
Device Information 1 HART Univ Rev 2 Interface Rev 3 Firmware Rev 4 Hardware Rev 5 Output Bias Rev? 6 Device ID
Limits & Cutoffs 1 Pres Limit High 2 Pres Limit Low 3 Pres Cutoff High 4 Pres Cutoff Low Min Inc/Dec Time 1 Min Press Inc Time 2 Min Press Dec Time
Pressure Alerts 1 Pres Alrt 1 Enab 2 Pres Alrt 2 Enab 3 Pres Alrt 1 Hi Pt 4 Pres Alrt 1 Lo Pt 5 Pres Alrt 2 Hi Pt 6 Pres Alrt 2 Lo Pt 7 Pres Alrt DB
Pres Dev Alert 1 Pres Dev Alrt Enab 2 Pres Dev Alrt Pt 3 Pres Dev Time
Cycle Count Alert 1 Cycl Cnt Alrt Enab 2 Cycl Count Alrt Pt 3 Cycl Count DB 4 Cycl Count Pres Accum Alert 1 Pres Acum Alrt Enab 2 Pres Acum Alrt Pt 3 Pres Acum DB 4 Pres Acum
Other Alerts 1 Aux In Alrt Enab 2 Drive Alrt Enab 3 Pres ARW Alrt Enab

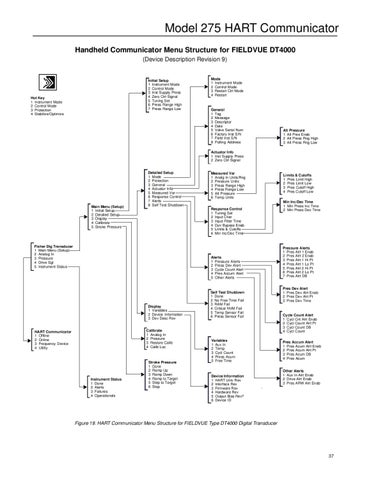

Figure 19. HART Communicator Menu Structure for FIELDVUE Type DT4000 Digital Transducer
