2100~2100E Level Switch Instruction Manual

Page 11

Type 2100 and 2100E

40B6593-D SHT 1/DOC

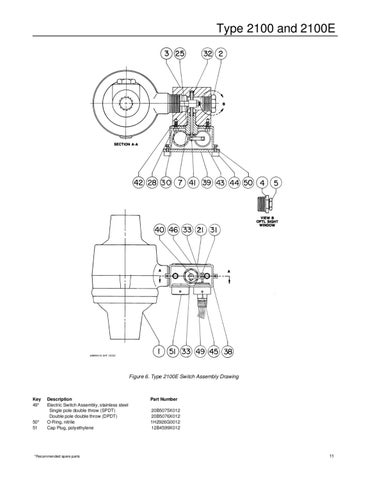

Figure 6. Type 2100E Switch Assembly Drawing

Key 49*

50* 51

Description Electric Switch Assembly, stainless steel Single pole double throw (SPDT) Double pole double throw (DPDT) O-Ring, nitrile Cap Plug, polyethylene

*Recommended spare parts

Part Number 20B5075X012 20B5076X012 1H2926G0012 12B4599X012

11
