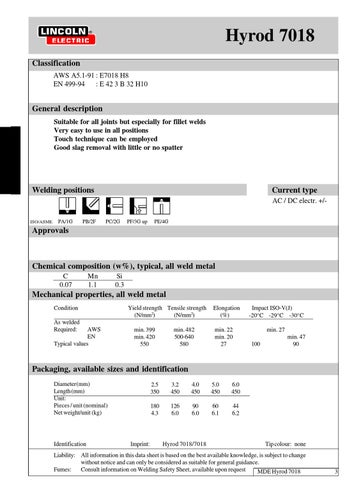

Hyrod 7018 Classification AWS A5.1-91 : E7018 H8 EN 499-94 : E 42 3 B 32 H10
General description Suitable for all joints but especially for fillet welds Very easy to use in all positions Touch technique can be employed Good slag removal with little or no spatter
Welding positions
Current type
14253 ISO/ASME
PA/1G
PB/2F
PC/2G
PF/3G up
AC / DC electr. +/-
PE/4G
Approvals
Chemical composition (w%), typical, all weld metal C 0.07
Mn 1.1
Si 0.3
Mechanical properties, all weld metal Condition As welded Required:
AWS A5.1-91 EN 499 Typical values
Yield strength Tensile strength (N/mm2) (N/mm2) min. 399 min. 420 550
min. 482 500-640 580
Elongation (%) min. 22 min. 20 27
Impact ISO-V(J) -20째C -29째C -30째C min. 27 100
min. 47 90
Packaging, available sizes and identification Diameter (mm) Length (mm) Unit: Pieces / unit (nominal) Net weight/unit (kg)
Identification
Imprint:
2.5 350
3.2 450
4.0 450
5.0 450
6.0 450
180 4.3
126 6.0
90 6.0
60 6.1
44 6.2
Hyrod 7018/7018
Tip colour: none
Liability: All information in this data sheet is based on the best available knowledge, is subject to change without notice and can only be considered as suitable for general guidance. Fumes: Consult information on Welding Safety Sheet, available upon request MDE Hyrod 7018
