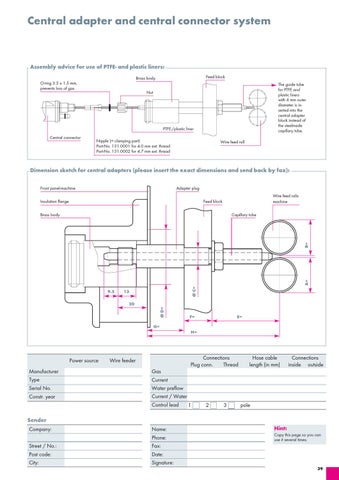

Central adapter and central connector system
Assembly advice for use of PTFE- and plastic liners: Feed block
Brass body O-ring 3.5 x 1.5 mm, prevents loss of gas
The guide tube for PTFE and plastic liners with 4 mm outer diameter is inserted into the central adapter block instead of the steelmade capillary tube.
Nut
PTFE-/plastic liner Central connector
Nipple (= clamping part) Part-No. 131.0001 for 4.0 mm ext. thread Part-No. 131.0002 for 4.7 mm ext. thread
Wire feed roll
Dimension sketch for central adapters (please insert the exact dimensions and send back by fax): Front panel-machine
Adapter plug Wire feed rollsmachine
Feed block
Insulation flange
Capillary tube
9.5
Ă˜ C=
A=
B=
Brass body
13
Ă˜ D=
20 E=
F=
G= H=
Power source Manufacturer Type Serial No. Constr. year
Connections Plug conn. Thread
Wire feeder
Gas Current Water preflow Current / Water Control lead 1
2
3
Hose cable length (in mm)
Connections inside outside
pole
Sender Company: Street / No.: Post code: City:
Name: Phone: Fax: Date: Signature:
Hint: Copy this page so you can use it several times.
