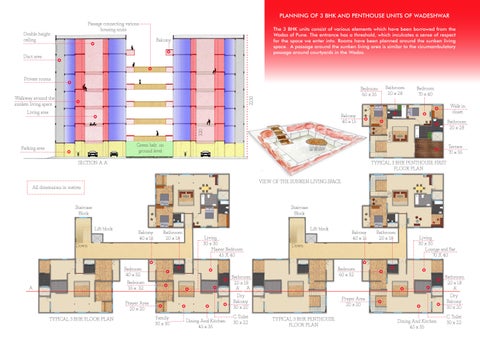

PLANNING OF 3 BHK AND PENTHOUSE UNITS OF WADESHWAR Passage connecting various housing units
Double height ceiling
The 3 BHK units consist of various elements which have been borrowed from the Wadas of Pune. The entrance has a threshold, which inculcates a sense of respect for the space we enter into. Rooms have been planned around the sunken living space. A passage around the sunken living area is similar to the cicumambulatory passage around courtyards in the Wadas.
Balcony
Duct area
Private rooms
22.50
Walkway around the sunken living space
Bedroom 6.0 x 3.5
Living area
Bathroom 2.0 x 2.8
Bedroom 7.0 x 4.0 Walk in closet
Green belt on ground level
Parking area
Bathroom 2.0 x 2.8 Down
3.20
Balcony 4.0 x 1.5
Terrace 7.0 x 3.5
SECTION A A’
TYPICAL 3 BHK PENTHOUSE FIRST FLOOR PLAN VIEW OF THE SUNKEN LIVING SPACE UP
All dimensions in metres
Staircase Block
Staircase Block Lift block
Balcony 4.0 x 1.5
Bathroom 2.0 x 1.8
Down
Lift block Living 3.0 x 3.0 Master Bedroom 4.5 X 4.0
Bedroom 4.0 x 3.2 A
TYPICAL 3 BHK FLOOR PLAN
Bedroom 3.5 x 3.2
Bathroom 2.0 x 1.8 A’ A
Prayer Area 2.0 x 2.0
Dry Balcony 3.0 x 2.0 Family 3.0 x 3.0
Dining And Kitchen 4.5 x 3.5
C. Toilet 3.0 x 2.2
Balcony 4.0 x 1.5
Down
Bathroom 2.0 x 1.8
Living 3.0 x 3.0 Lounge and Bar 7.0 X 4.0
Bedroom 6.0 x 3.2
Bathroom 2.0 x 1.8 A’ Dry Balcony 3.0 x 2.0
Prayer Area 2.0 x 2.0 TYPICAL 3 BHK PENTHOUSE FLOOR PLAN
Dining And Kitchen 4.0 x 3.5
C. Toilet 3.0 x 2.2
