Design Pack Robert Adams Individual Project Contact robbyadams99@gmail.com 07426130313

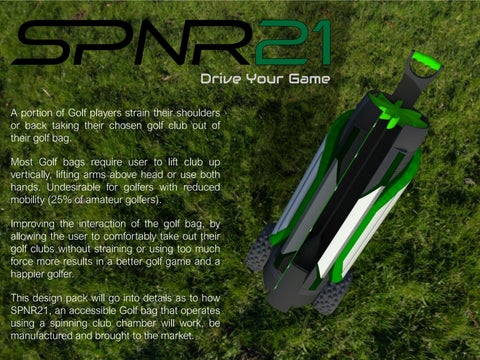

Drive Your Game
A portion of Golf players strain their shoulders or back taking their chosen golf club out of their golf bag.
Most Golf bags require user to lift club up vertically, lifting arms above head or use both hands. Undesirable for golfers with reduced mobility (25% of amateur golfers).
Improving the interaction of the golf bag, by allowing the user to comfortably take out their golf clubs without straining or using too much force more results in a better golf game and a happier golfer. This design pack will go into details as to how SPNR21, an accessible Golf bag that operates using a spinning club chamber will work, be manufactured and brought to the market.
Drive Your Game
CONCEPTING
KEY FEATURES
1. Front Flap that opens up and reveals club chamber
2. Six front-facing pockets, (3 on each side) including a lined valuables pocket* with waterproof non-stick zipper
3. Two large lined pockets for apparel, food and drink
4. Hooks and loops for hanging attachments
5. Lightweight, waterproof, durable ripstop PU fabric
6. Adjustable Handle
7. Soft grip ergonomic handle
8. Spinning Club Splitter
9. All weather removable Hedgehog Grip Wheels
10. Wide based stand
11. Magnetic Coins for easy open and close
1. 2*. 2. 2. 3. 4. 5. 6. 7.
9. 10.
8.
11.
Discreet Zip Design for decluttered aesthetic.
Central flap opens from the front by separating magnetic discs revealing club chamber inside.
POCKET
DESIGN
V groove rollers and track run
Allowing central mechanism to spin Hidden within internals of bag
Moulded all weather wheels, removable to fit bag on own trolley
Soft touch ergonomically shaped handle
Spinning mechanism with turbine design separating up to 16 clubs in bag
Retractable handle that adjusts in height
DESIGN OF FEATURES
Tilting axle and wide base with stand to sit bag upright
Weight = Volume x Density
Volume: πr² x h
Acrylonitrile Butadiene Styrene (ABS)
0.9–1.53 g/cm3
median: 1.07 g/cm3
Wheel: (π10²x10) – (8xπ10²) = 628cm³ = ~628g
Column: 0.2x((π5²/2)x122) = 958cm³ = ~958g
Handle: (π1.5² + (3)) x 12 = 121cm³ = ~121g
Spinner Top: 0.2x((π13.4²)x5) = 564cm³ = ~564g
Spinner Bottom: 0.2x((π14²)x8) = 985cm³ = ~985g
Casing: 0.1x (π14.9²)x20 = 1390cm³ = ~1390g
Base: 0.05x (π28²)x11.5 = 1354cm³ = ~1354g
Aluminium: Parts Quoted at 0.43kg
PU Textile: Quoted at 0.48kg
Total = 6910g = 6.91kg
BAG SIZE & WEIGHT
of isolated components
OF COMPONENTS
Display
BILL
EXPLODED VIEW
Insert text here
BILL OF COMPONENTS
ENGINEERING DRAWINGS
ENGINEERING DRAWINGS
DARK COLOUR VARIANT
As the business quarters move along and profits margins start to increase, alternative colourways can be implemented to give the buyer more option and customisation to the bag, adding a sense of true ownership
