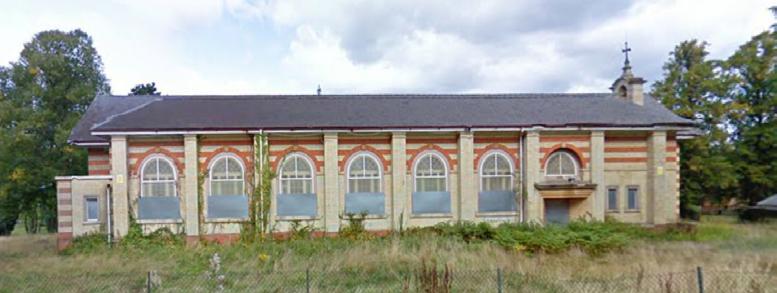

Horton Chapel 02

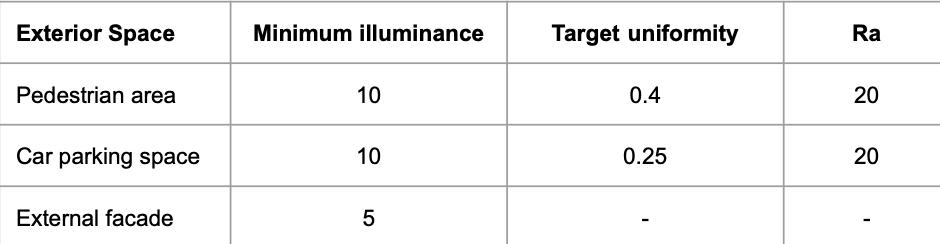

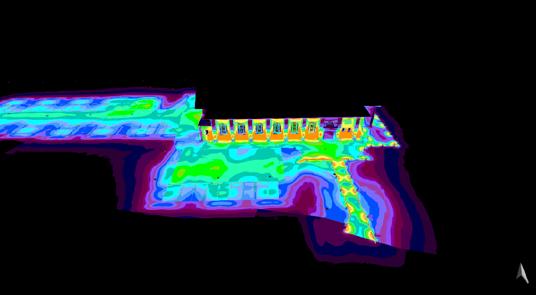

Parking lots: - Type: Median traffic, average illuminance of 10 lx

- Type: Pedestrian walkway, average illuminance of 10 lx

- Type: Pedestrian walkway, average illuminance of 5 lx

External façade:

- Type: Building facades, a minimum maintained average illuminance of 5 lx

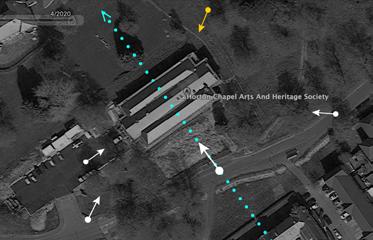

Parking lots

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 2 - Concept Design

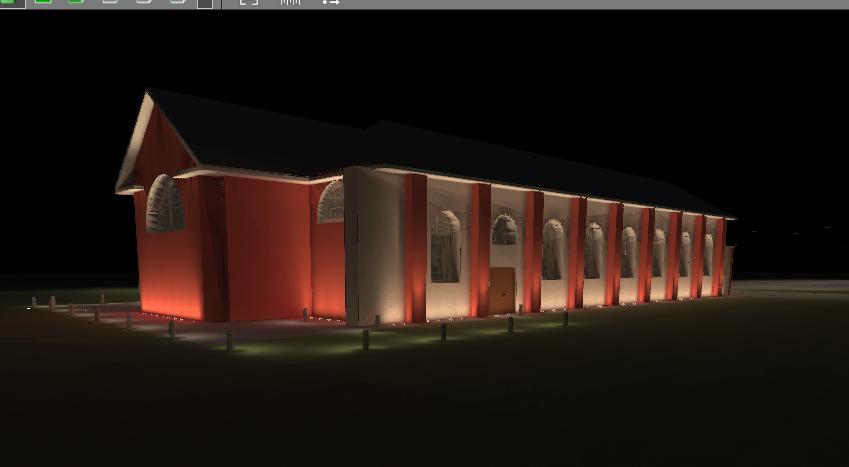

2.2 Exterior Lighting

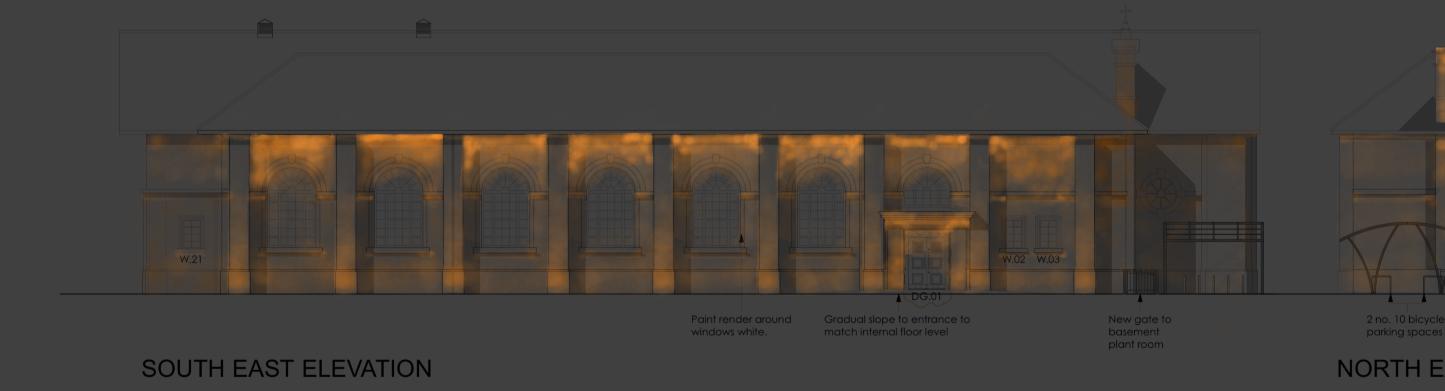

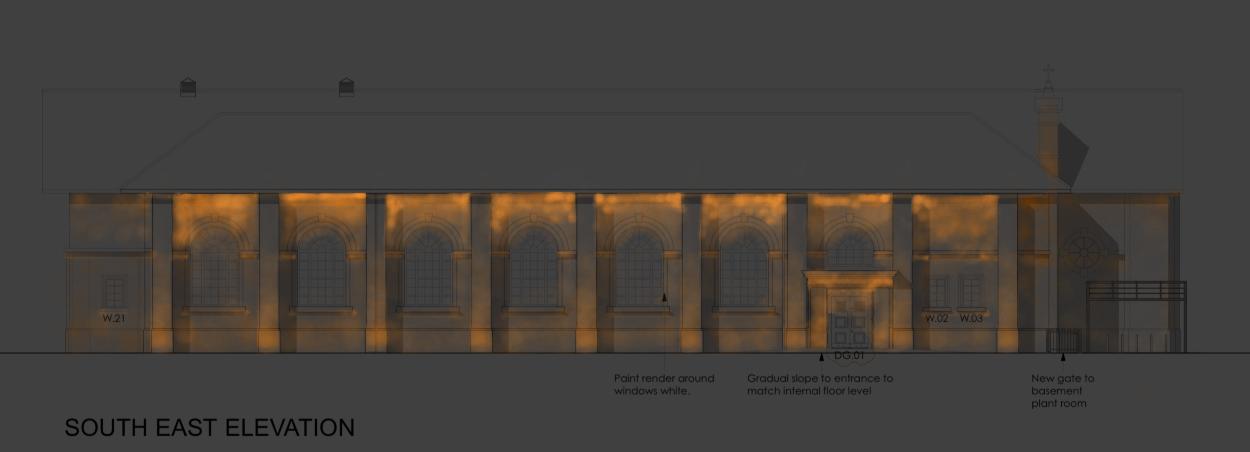

2.2.2 Southeast Facade

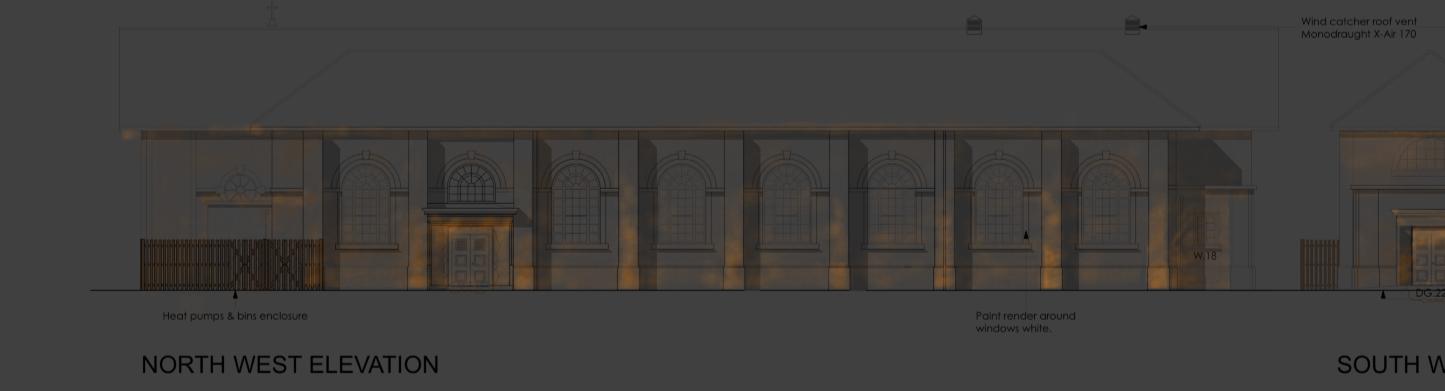

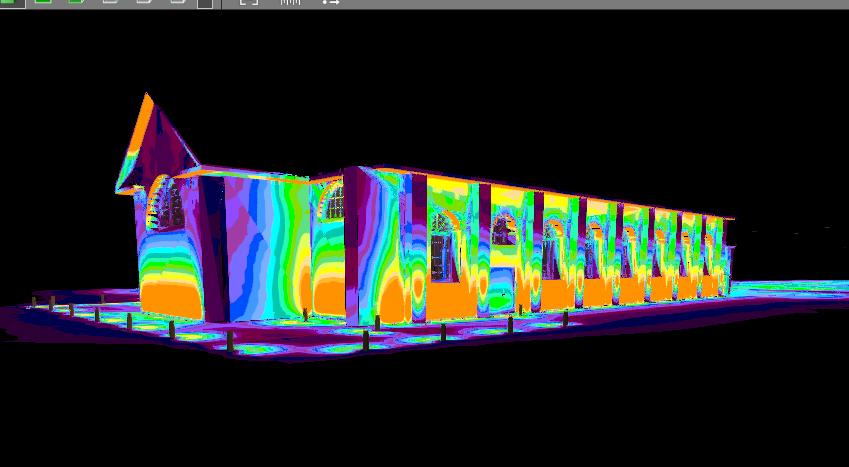

Southeast facade: 10 cd/m2 as vaerage

Northeast facade: 7.5 cd/m2 as average

Southwest facade: 5 cd/m2 as average

Northwest facade: 7.5 cd/m2 as average

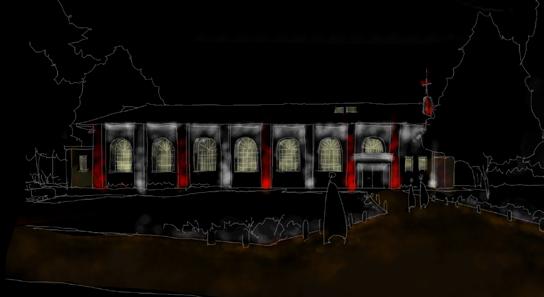

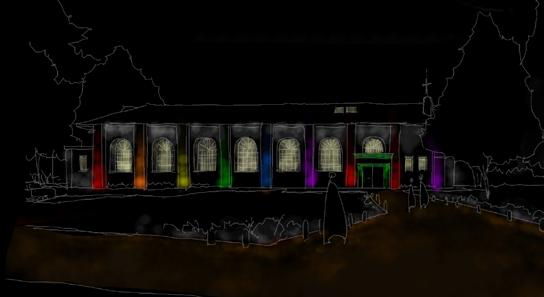

- Lighting for special events:

To match light with various activities in chapel, RGBW LED are used to lit upt the main facade. During normal days, the facades are illuminated by 2500k amber light. This color temperature and the 3000k interior light of can form a spatial contrast for people.

During special event, the LED control of RGBW will be conducted by staff using sample App, designing the facade effect by selecting the color of each luminaire.

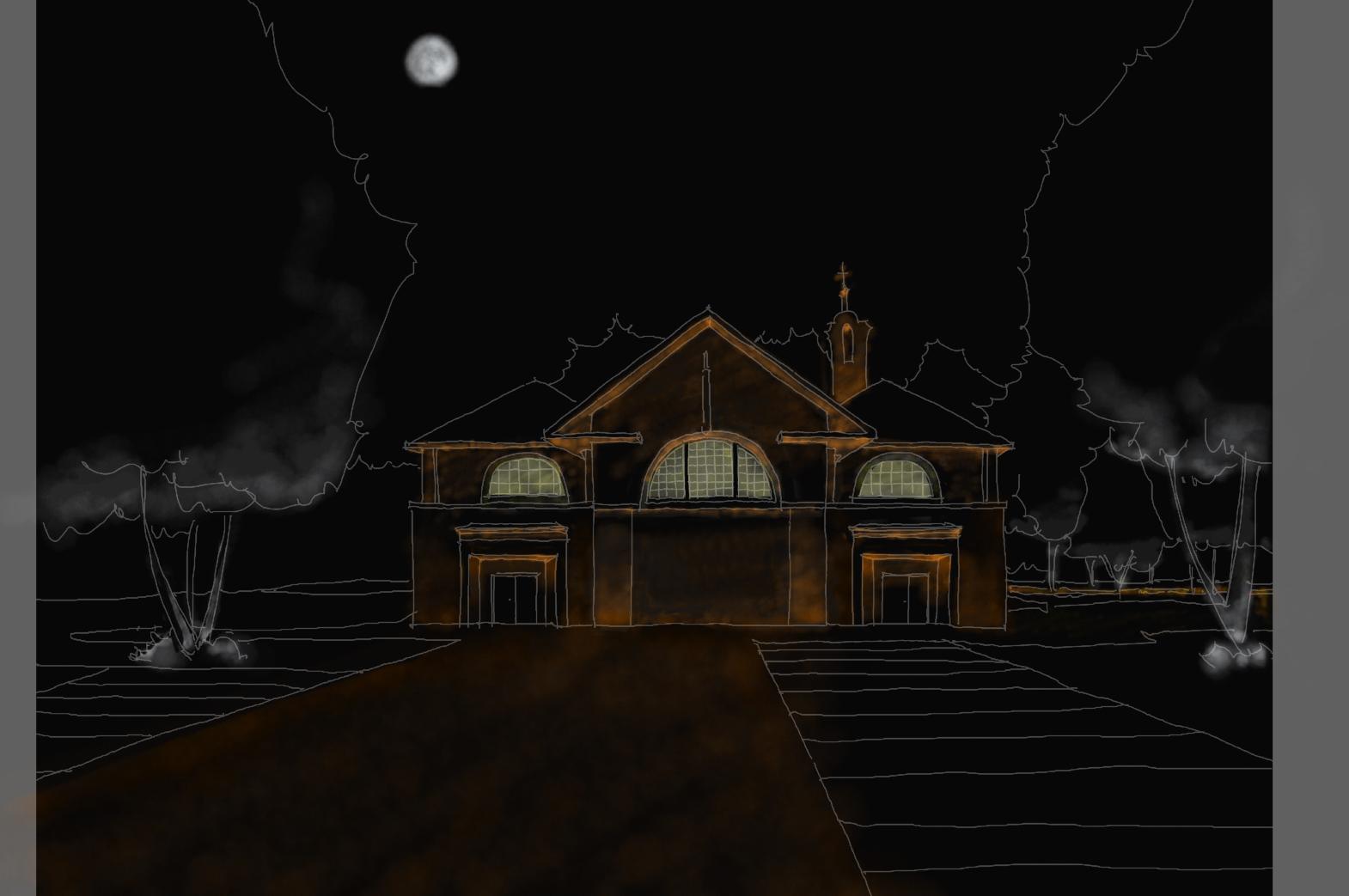

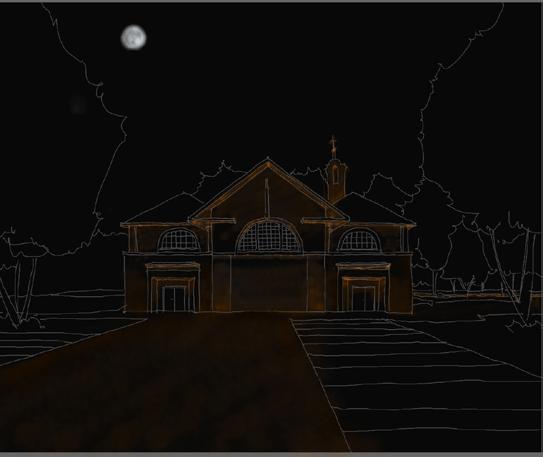

- Main Facade:

The function of the main facade is to attract people's attention, so it is important to use the structures of chapel itself to create changes in light. For example, for both of the overhang of entrance or the pillars, appropriate lighting angle is used to make the facade appear softly gradual.

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 2 - Concept Design

2.2 Exterior Lighting

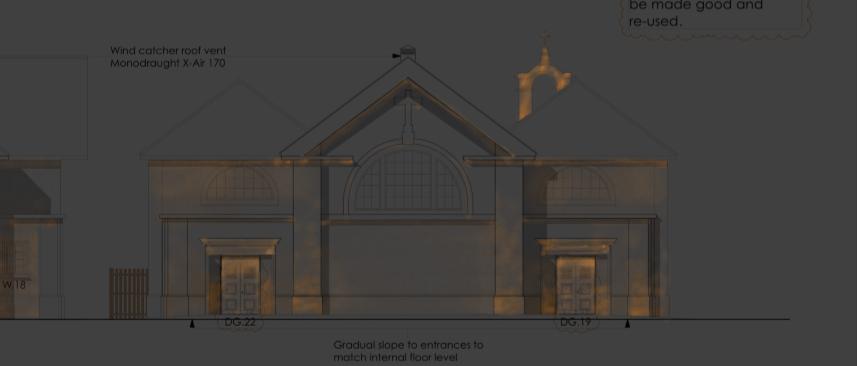

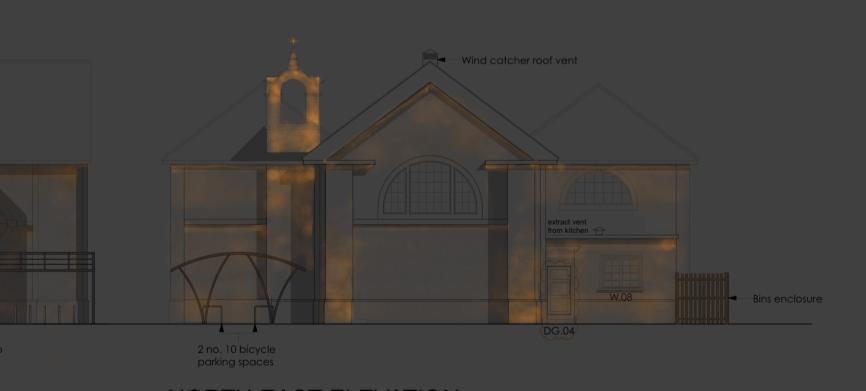

2.2.3 Northeast Facade

Southeast facade: 10 cd/m2 as vaerage

Northeast facade: 7.5 cd/m2 as average

Southwest facade: 7.5 cd/m2 as average

Northwest facade: 5 cd/m2 as average

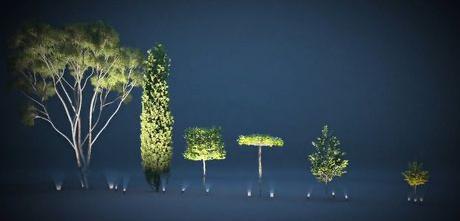

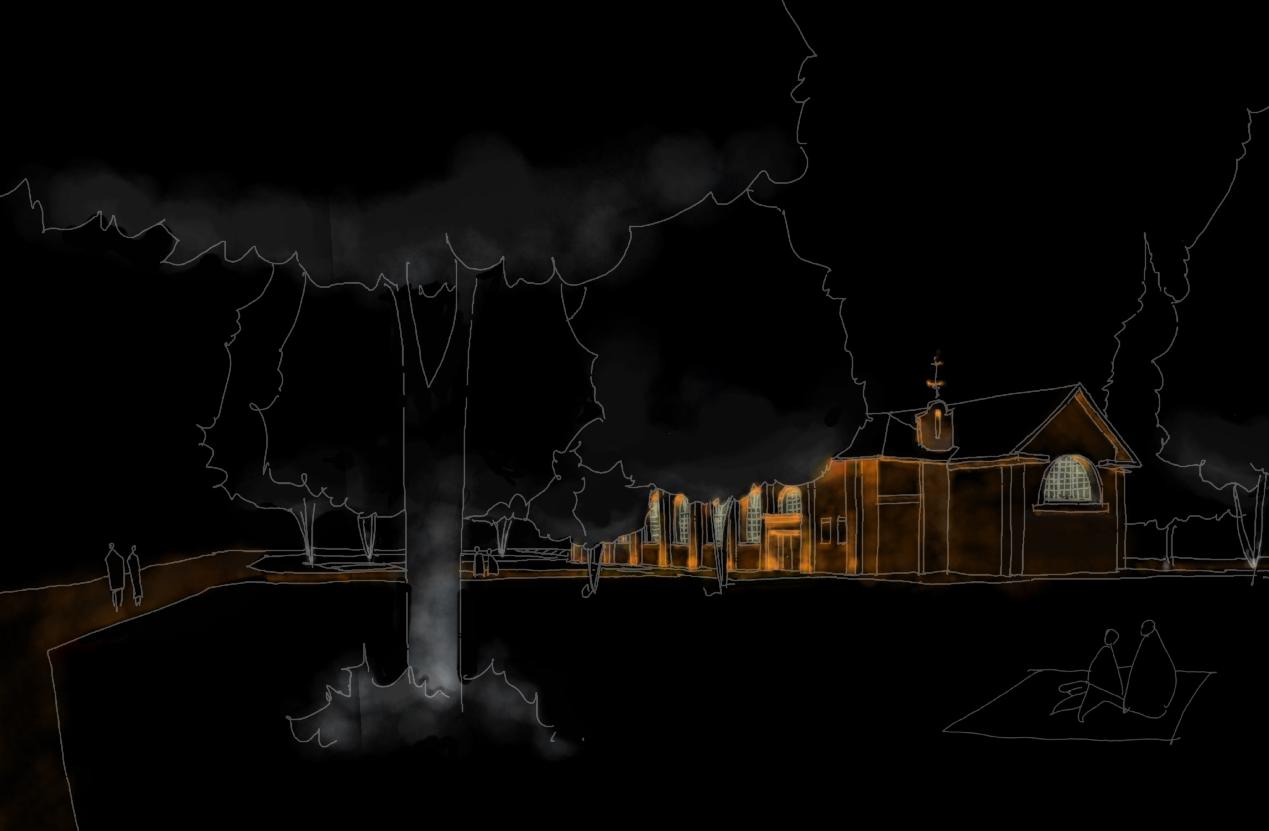

- Illuminate the garden:

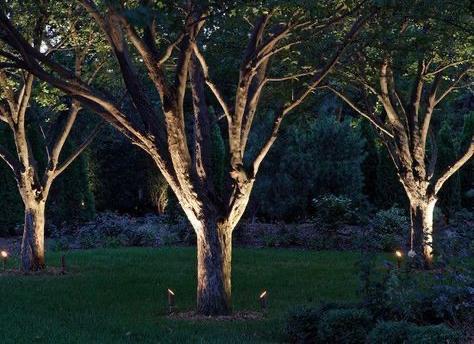

The garden is a place where residents gather, and a good lighting design of garden at night can encourage people relaxw hen people are walking in this lovely garden. Although the pathway in the garden is not in the scope of the design, we still hope to be able to light up the trees and grass with this kind of lamps. Here,a light CCT of 4700k were chosen which is close to the moonlight to echo the environment.

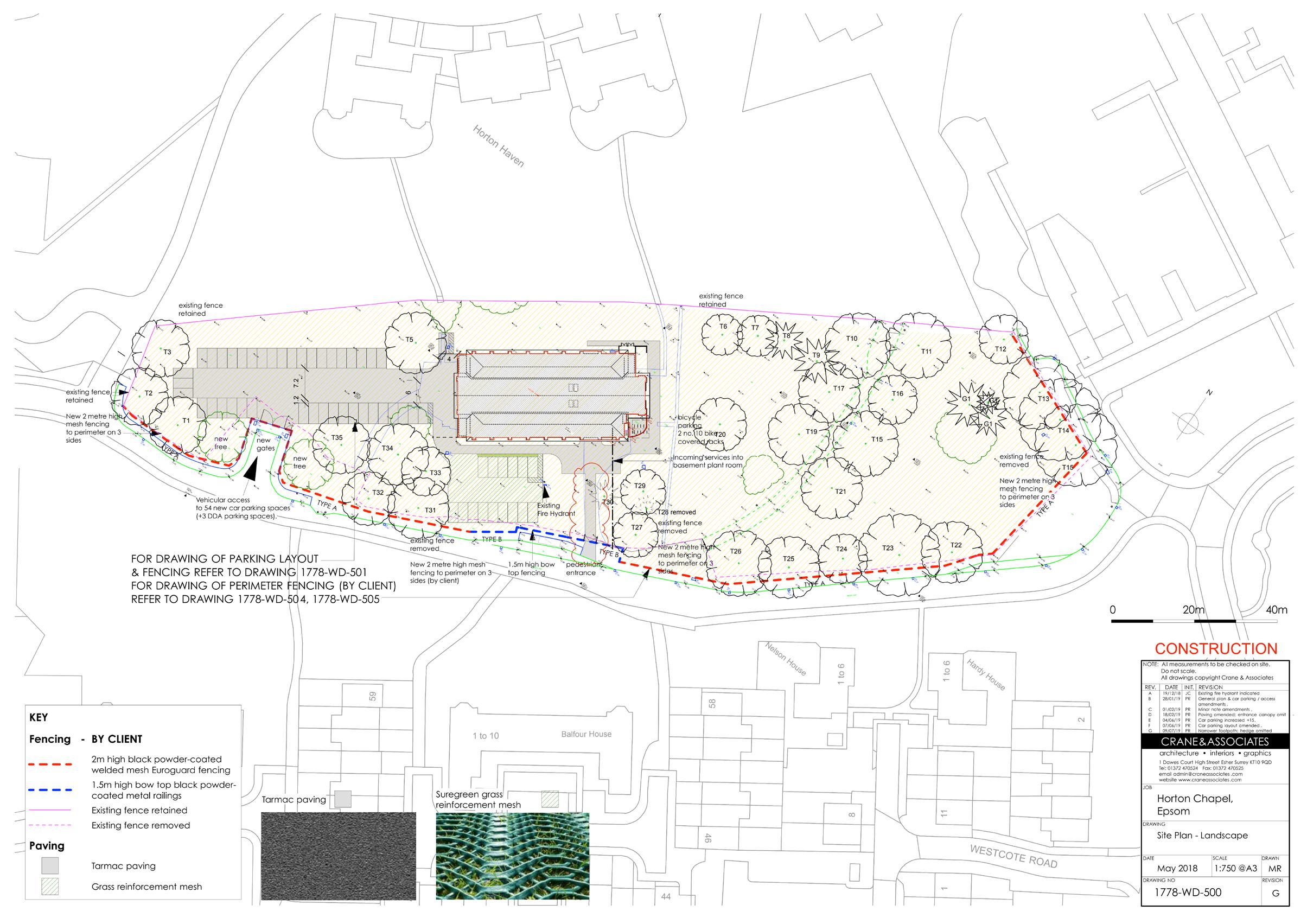

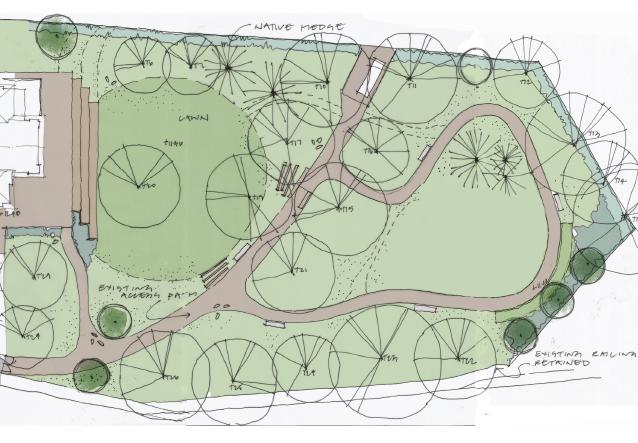

Garden layout https://thehortonepsom.org/gardenproject/ https://www.pinterest.co.uk

Ratio:

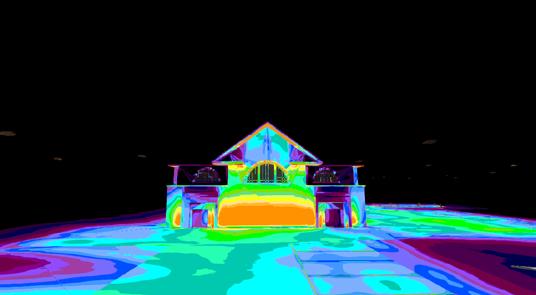

On the main road, the brightness changes of the main and side facades are hoped to be perceived by people. with the ratio of 3-4 of average luminance, while the main facade is highlighted, people would feel more tranquil in the garden.

Bell tower:

As a core visual elements, bell tower will be lit carefully without spilling the light.

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 2 - Concept Design

2.2 Exterior Lighting

2.2.4 Southwest Facade

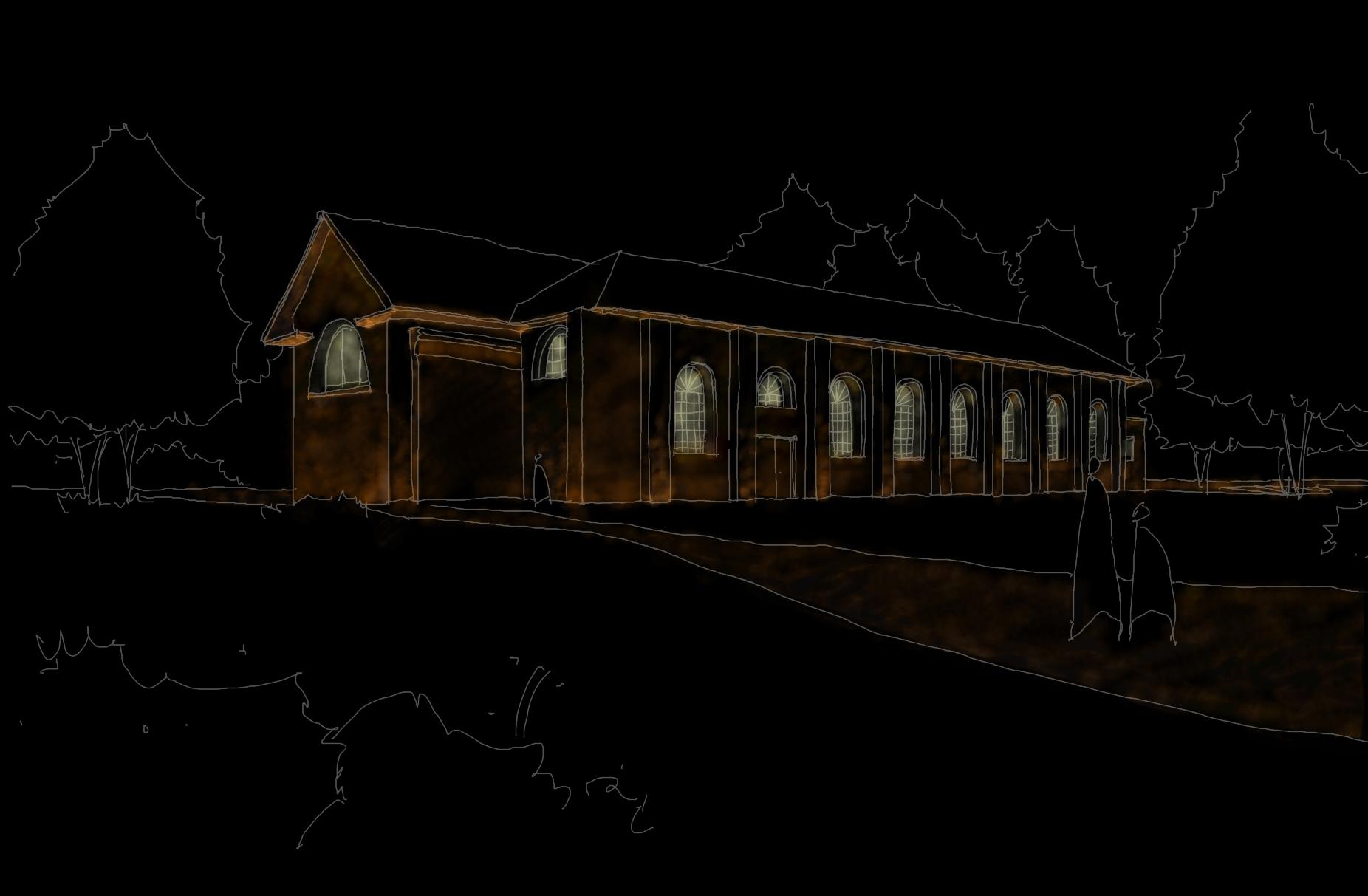

Eaves as the boundary of light:

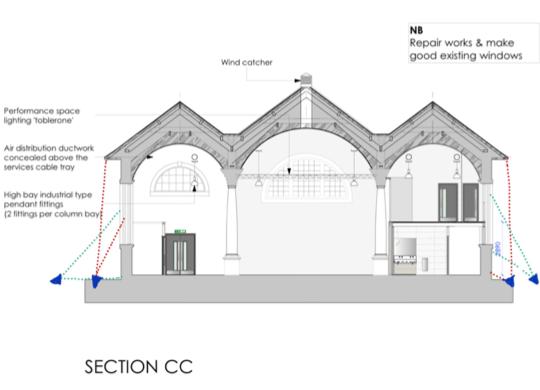

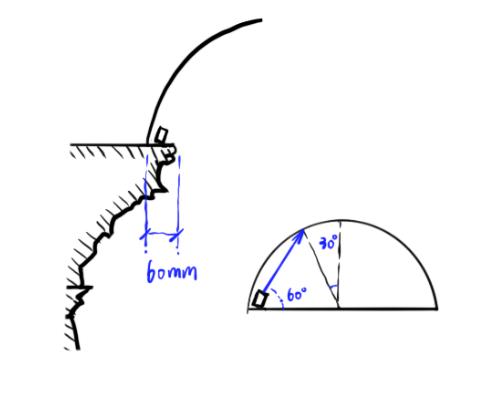

From the perspective of the parking lot, tthe overhanging eaves of the building can be seen. And through the suitable wall washer, the lines of the building can be outlined as shown section illumination in the up-right corner.

Southeast facade: 10 cd/m2 as vaerage

Northeast facade: 7.5 cd/m2 as average

Southwest facade: 7.5 cd/m2 as average

Northwest facade: 5 cd/m2 as average

- Time-changing Luminance: From 23:00pm-1:00am - Section

In order to match people's circadian time and save energy at the same time, from late hour as 23:301:00, the wall washer lights on the facade will be dimmed, and the spotlights that outline the details will be turned off. After that the lighting will be all switched off.

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 2 - Concept Design

2.2 Exterior Lighting

2.2.5 Southeast Facade

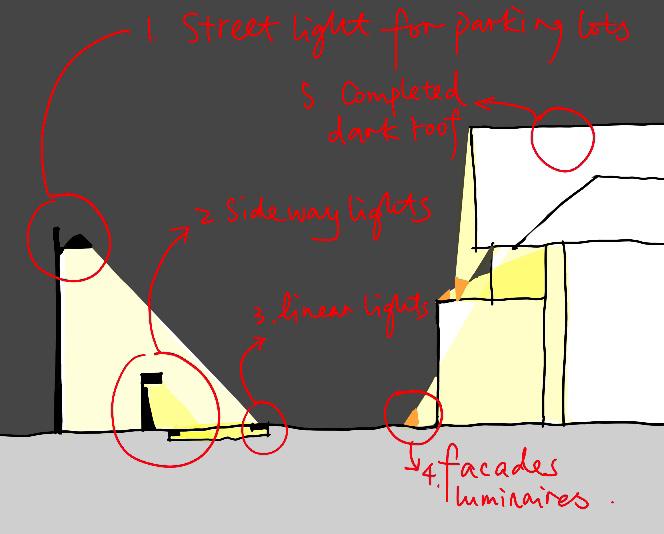

Specifically the entire exterior lighting will use lighting barriers to create dark corridors for bats on the following five layers:

- Higher street light

- Sidewalk lights about 1m high

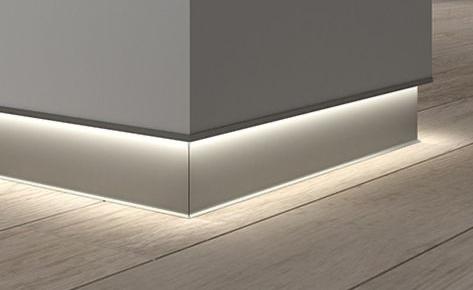

- Linear light to strengthen the edges of the sideway

- All the luminaires to lit up facades

Also the roof are designed to be completed dark for bats' foraging at night

Southeast facade: 10 cd/m2 as vaerage

Northeast facade: 7.5 cd/m2 as average

Southwest facade: 7.5 cd/m2 as average

Northwest facade: 5 cd/m2 as average

- Bat Mitigation Strategies*:

No light during late hour (12:30-5:30)

Variable lighting regimes (VLR)

Habitat creation

- Light barriers

- Dark corridor

Spacing and height of unit

Reducing intensity

Changing the light type

- Avoid short wavelength lights

- Avoid lights with high UV content

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 2 - Concept Design

2.2 Exterior Lighting

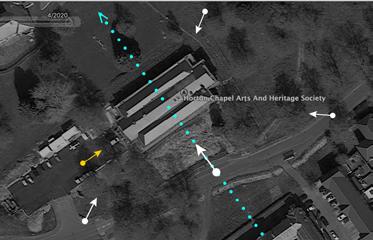

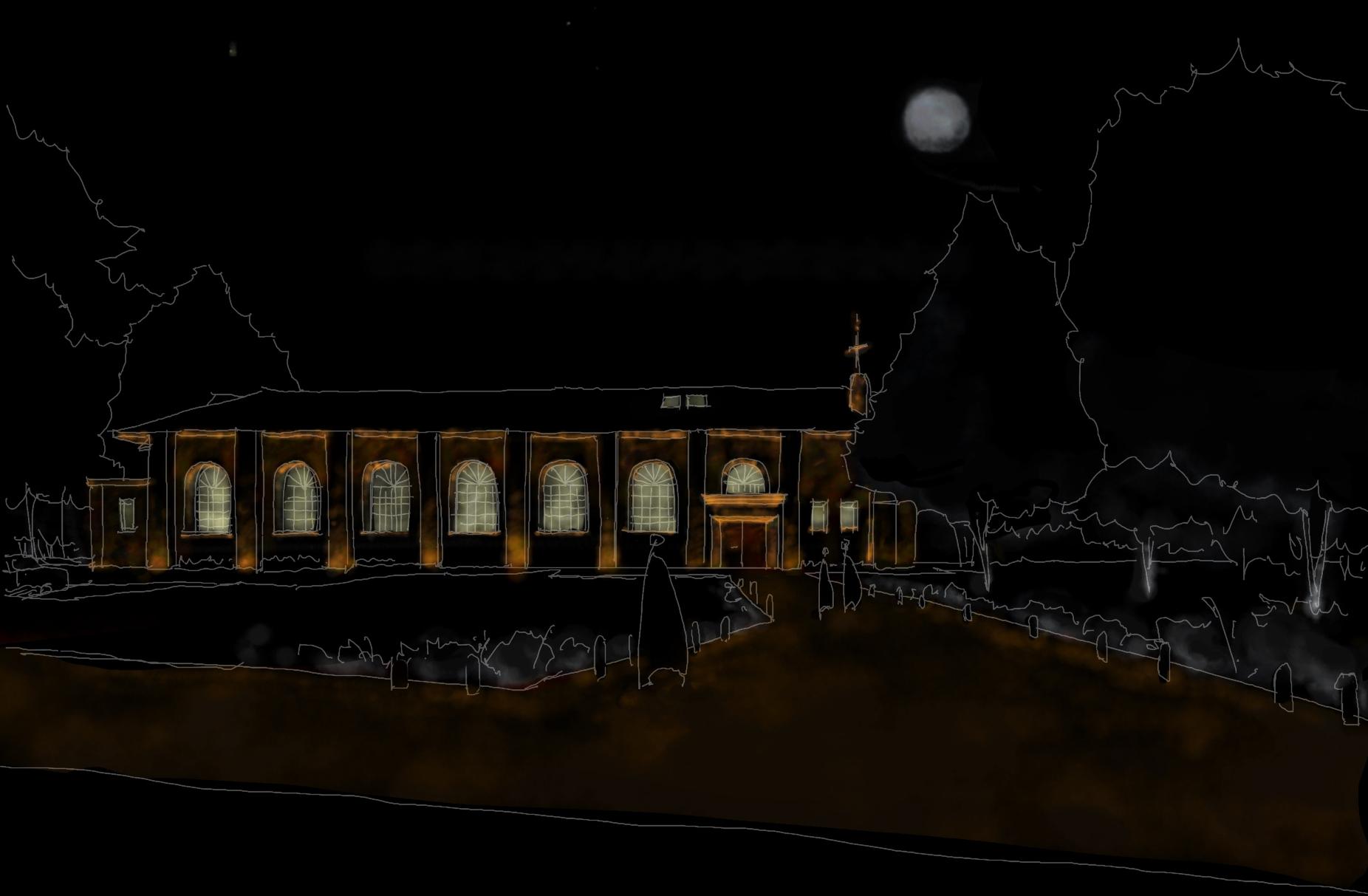

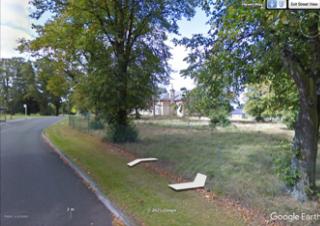

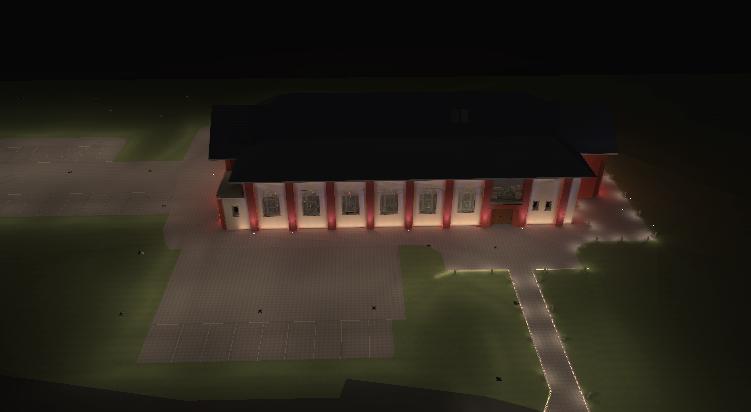

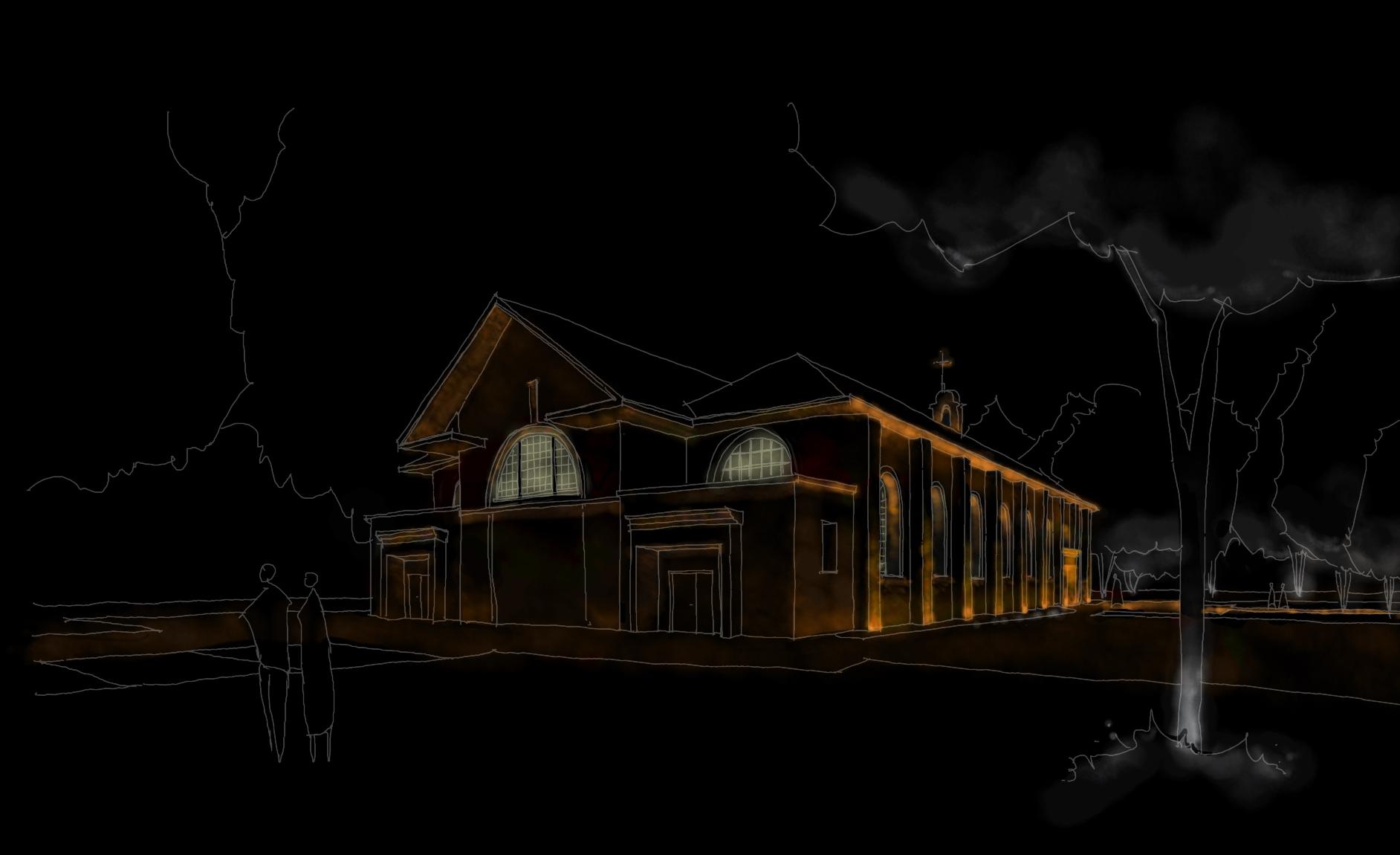

2.2.5 View from Main Road

Layers metioned before in Page13 http://www. ateljelyktan.se/ en/discover/ outdoor https://flos. com/stories http://www. iguzzini.it/ Progetti#./

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 2 - Concept Design

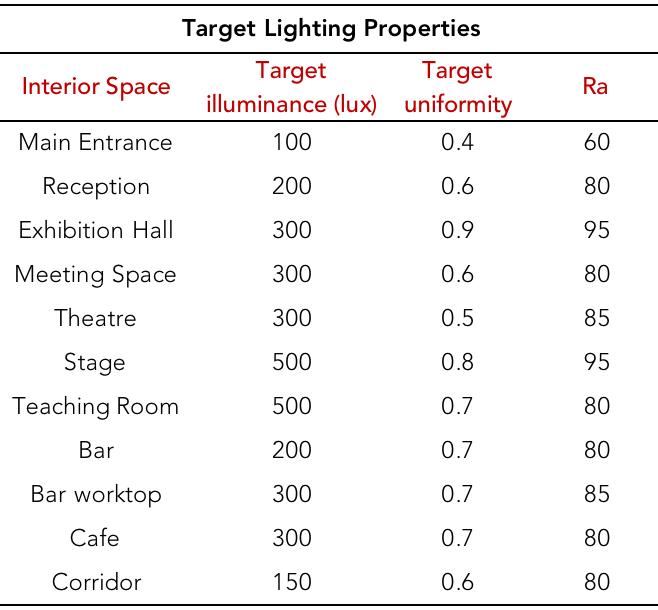

2.3 Interior Lighting

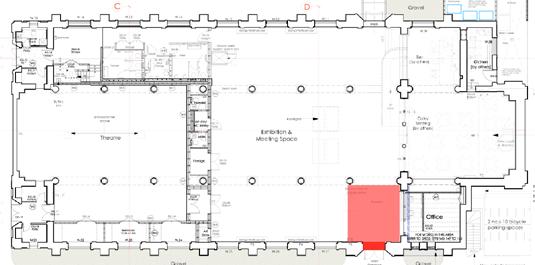

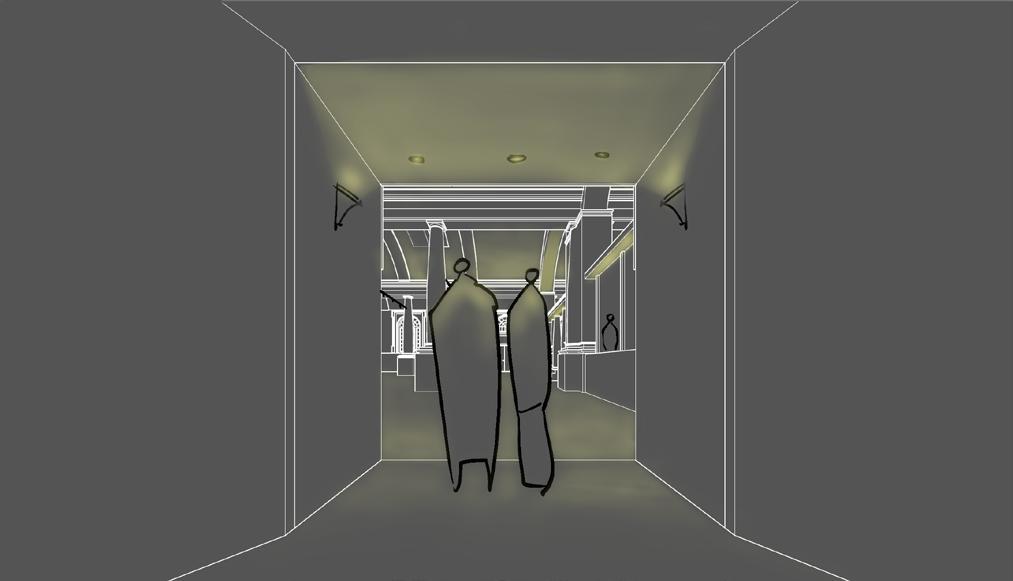

2.3.2 Lighting design for each zone - Entrance and Reception

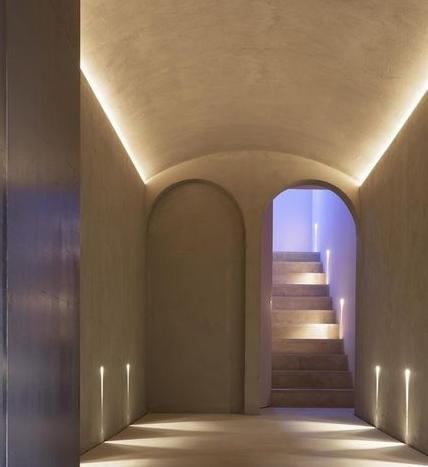

As the first space of architectural sequence, lighting of entrance needs to help the excessive indoor and outdoor. The upward wallwashers illuminate the ceiling while reflecting light downward, ensuring the brightness of the space and the softness of the light.

Through the control of the brightness of the downlight, sensor realizes the help of people's spatial cognition at night and day 14100 lx - 1000 lx - 500 lx 20 lx - 150 lx - 300 lx https://www.lampenwelt.at/led-wandfluterbowl-mit-schalter. https://trendland.com/the-gate-to-moderncatalonia-with-darial-concept-storebarcelona/ https://www.pinterest.co.uk/ pin/400538960617002643/

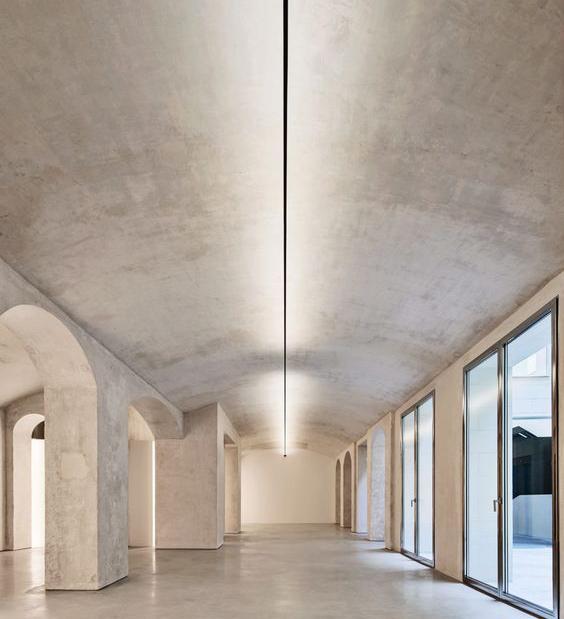

At the entrance, the designed lamp is composed of multiple LED beads, which emphasizes the existence of arch inside. At the same time, the lightness indicates that the inner space shrinks as rises. Extremely thin led linear lights are used to illuminate beams enhancing structures with minium intervention without increasing the complexity of the space.

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 2 - Concept Design

2.3 Interior Lighting

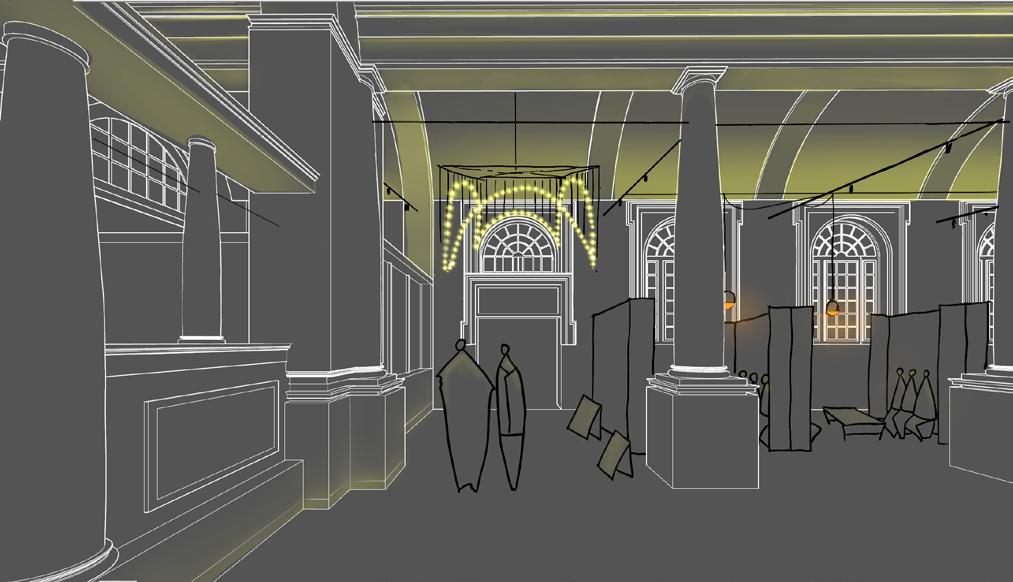

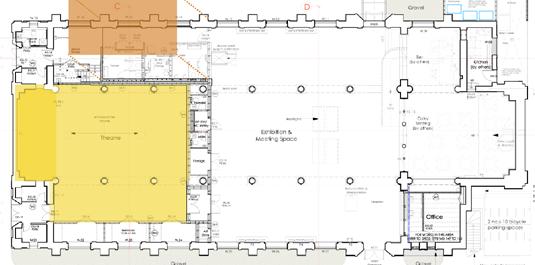

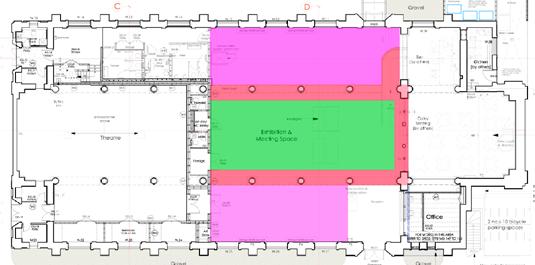

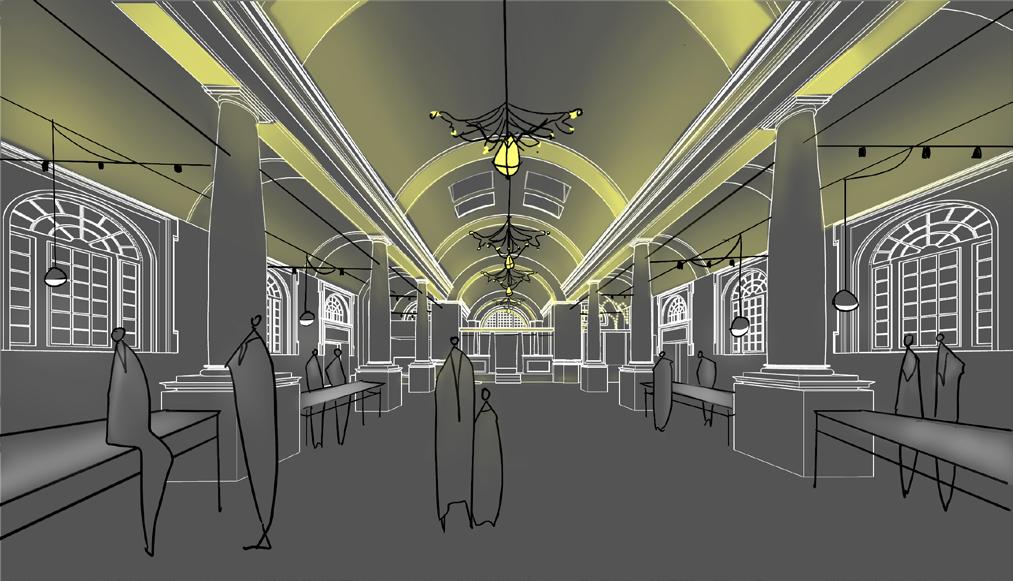

2.3.2 Lighting design for each zone - Exhibition and Meeting Space

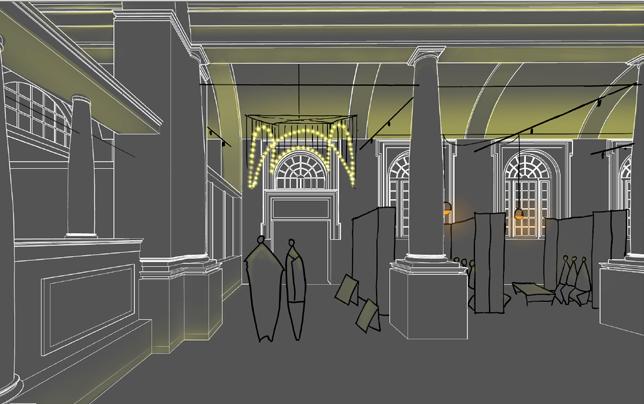

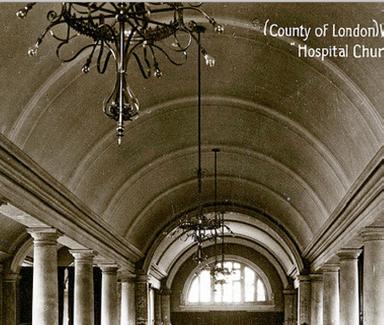

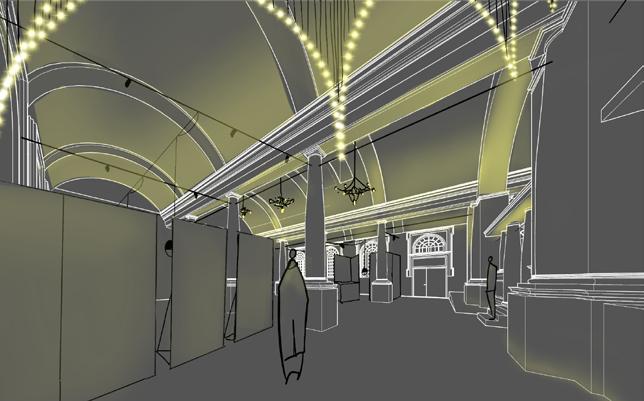

The specially customized retro chandelier on the top of the building makes people feel the old style of the building. The chandeliers on both sides of the meeting area can change the color temperature, creating a different atmosphere when space is exhibiting/meeting/discussing.

At the center of the exhibition hall, it needs to be equipped with ground sockets to ensure that there can be floor-standing lamps in the middle of the exhibition.

UV filtering Plexiglas UF-5 and Acrylite OP-3 are used to protect artworks on the linear LED.

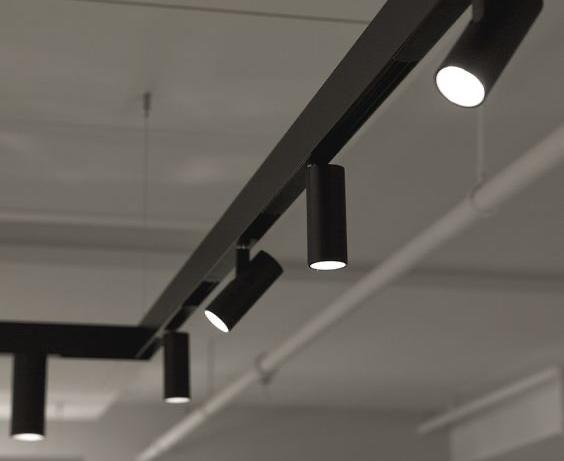

The combination of the chandelier and the rail allows the height of the chandelier to be adjusted at will according to the temporary arrangement. Spotlights can provide lighting for display panels to meet the needs of flexible space layout.

https://thehortonepsom.org/about/ https://www.pinterest.co.uk/ pin/400538960616440546 https://www.dwell.com/article/this-chapelturned-office-in-belgium-is-unbelievablycool-e6ecfa4d

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 2 - Concept Design

2.3 Interior Lighting

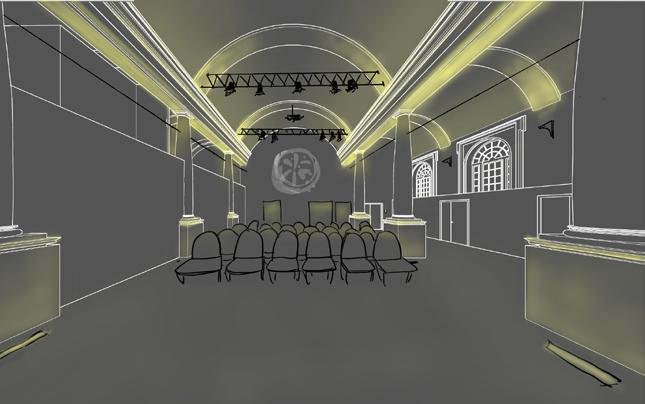

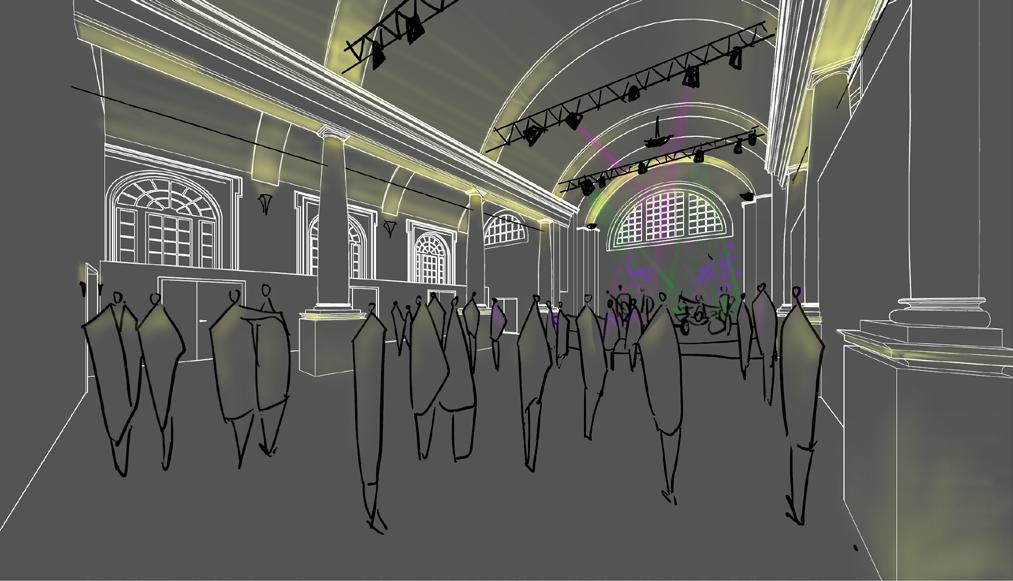

2.3.2 Lighting design for each zone - Theatre and Teaching Room

On the two short façades, there are deep arch interior frames that can be lit by lights as a distinctive stage background. At the same time, this lighting can also enrich the exterior facade. Projections to the walls on both sides can be installed with the stage lamps' brackets.

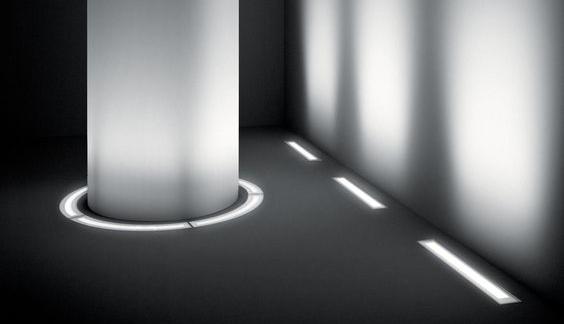

Upward wall washers are used on the ground to illuminate the columns, giving the space more diversity.

The modes here can be controlled by local control system and center console at the same time, which are entry, performance, rest, exit, and service modes.

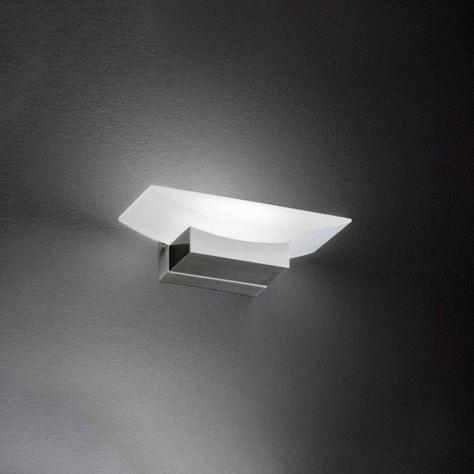

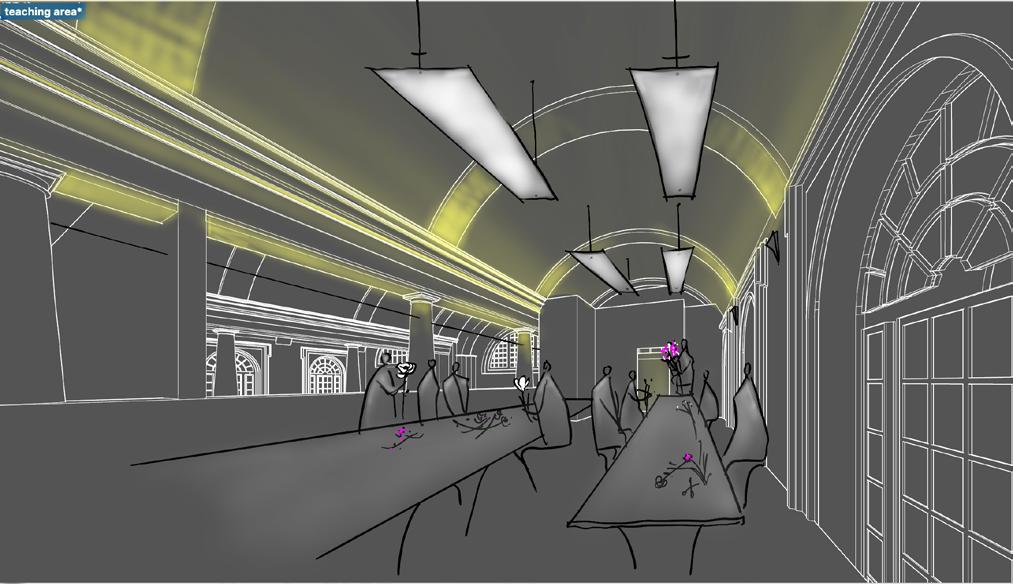

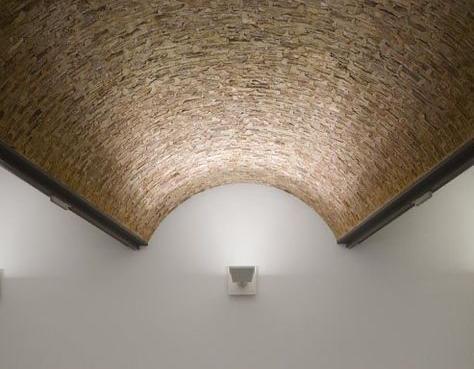

The arches as beams are illuminated by wall lamps. The CCT colour in the teaching room is 4100k, which can distinguish this space from the different vibes of the theater.

This space is controlled by the user to turn on/off, and it will be equipped with an absent sensor.

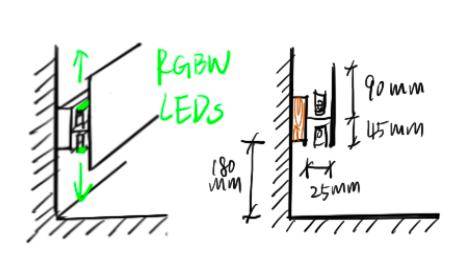

Construction details

http://www.simes.it/lightblogazine/en/19/ miniround-inground-walk-over https://www.pinterest.co.uk/ pin/400538960616252135/ http://www.architonic.com/pmsht/midaformfjord/1151632 https://www.pinterest.co.uk/ pin/400538960616252141/

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 2 - Concept Design

2.3 Interior Lighting

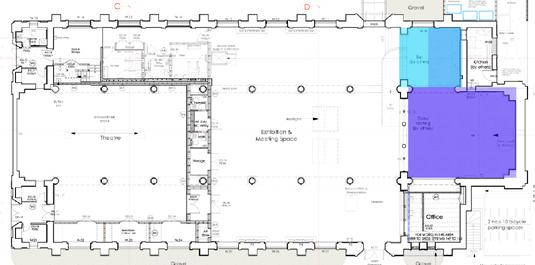

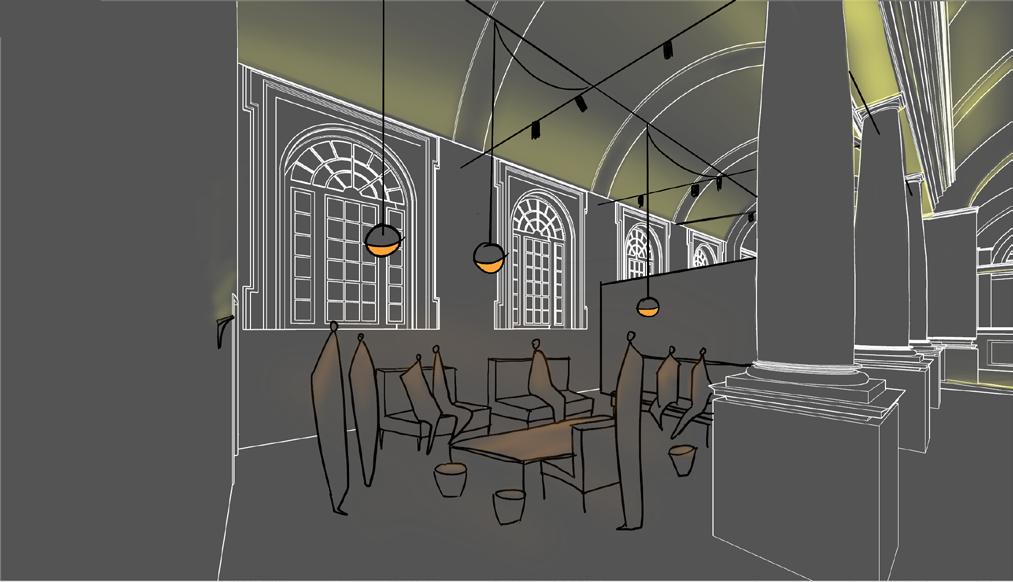

2.3.2 Lighting design for each zone - Bar and Cafe

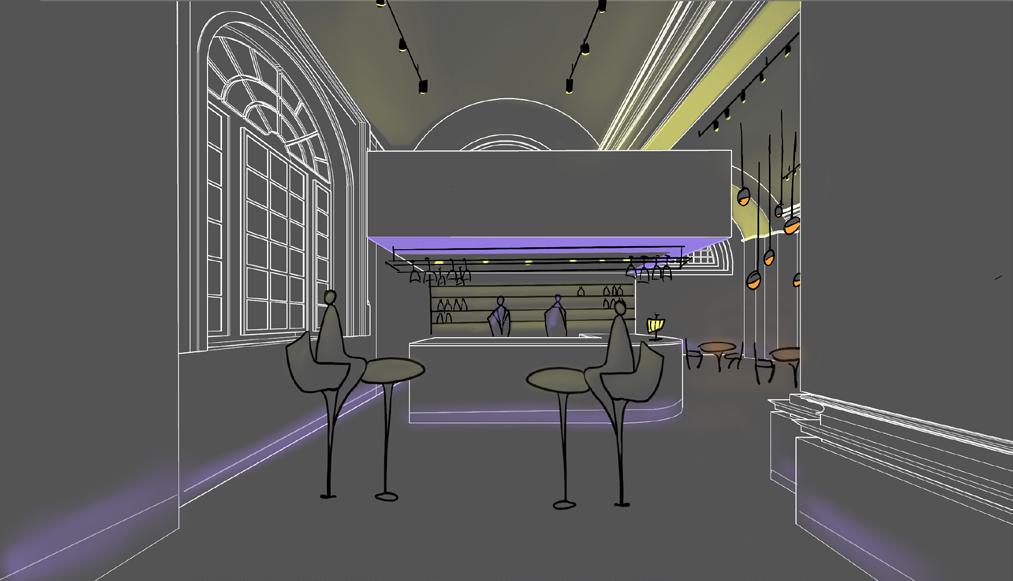

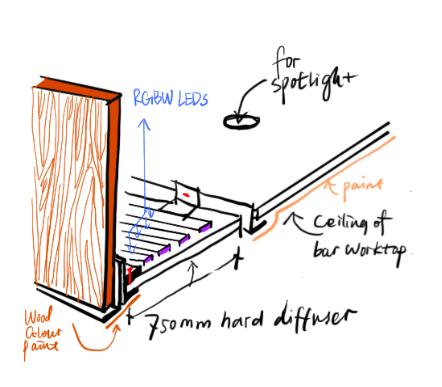

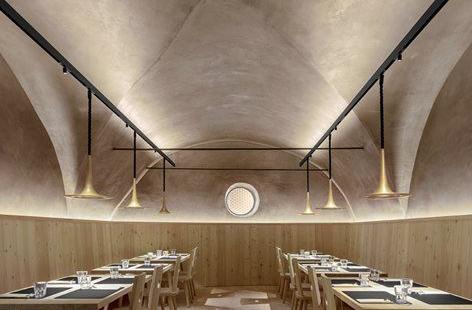

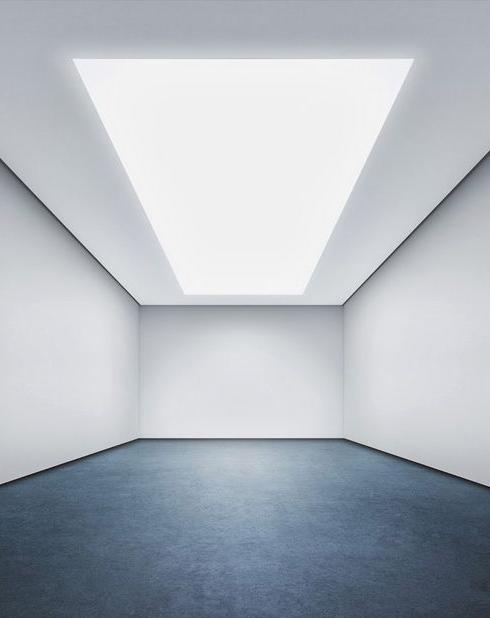

RGBW panel LEDs are used in the bar's ceiling, which can be adjusted from white light to suitable colored lights at night. The same RGBW linear LED has also been used for decorative molding.

The lighting of the bar's working area also has recessed background linear LED for the wine cabinet, table lamps, and recessed spotlight for general lighting.

Construction details

http://www.viabizzuno.com/index.php?page=p rogetti&idProgetto=341 https://www.designboom.com/technology/ philips-onespace-luminous-ceilinglighting-04-01-2014/ https://www.gessato.com/string-lights-bymichael-anastassiades/ http://en.emac.es/ver/2270/novorodapieeclipse.html

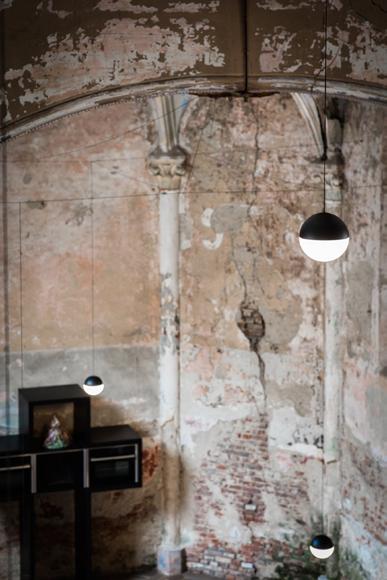

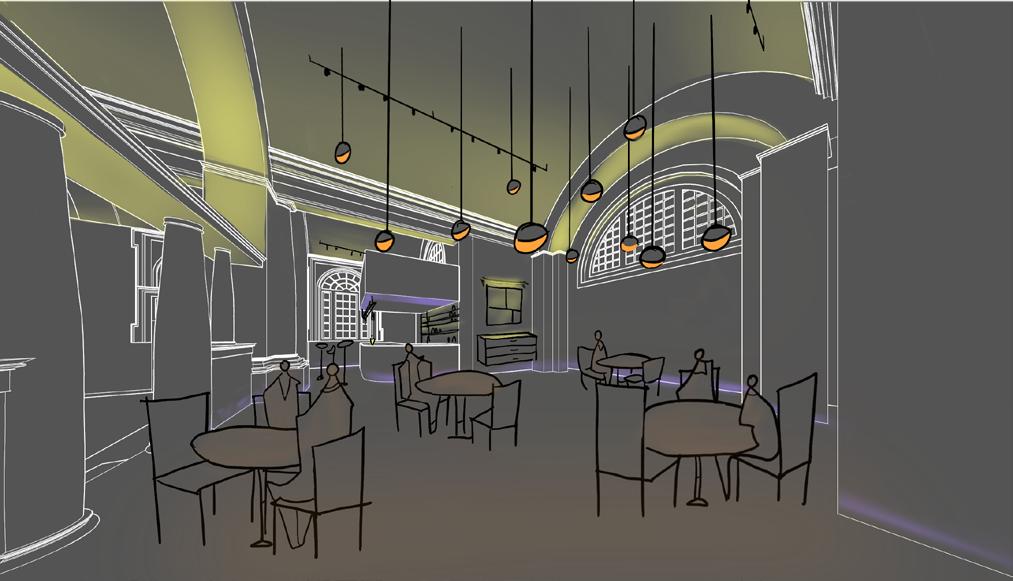

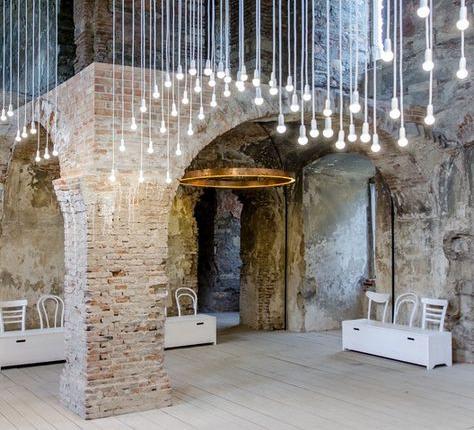

In the coffee shop, this suspended luminaire is also used. The advantage is that the output and height of each luminaire can be adjusted individually, and the lighting designer can refine the lighting according to the site layout.

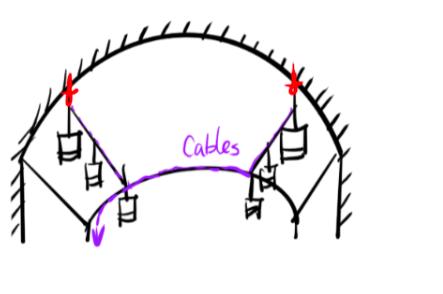

Between floor and ceiling

Cable from the ceiling

Cable from the ground

With

With DMX protocol, need to be convert

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 3 - Spatial Coordination & Technical Design

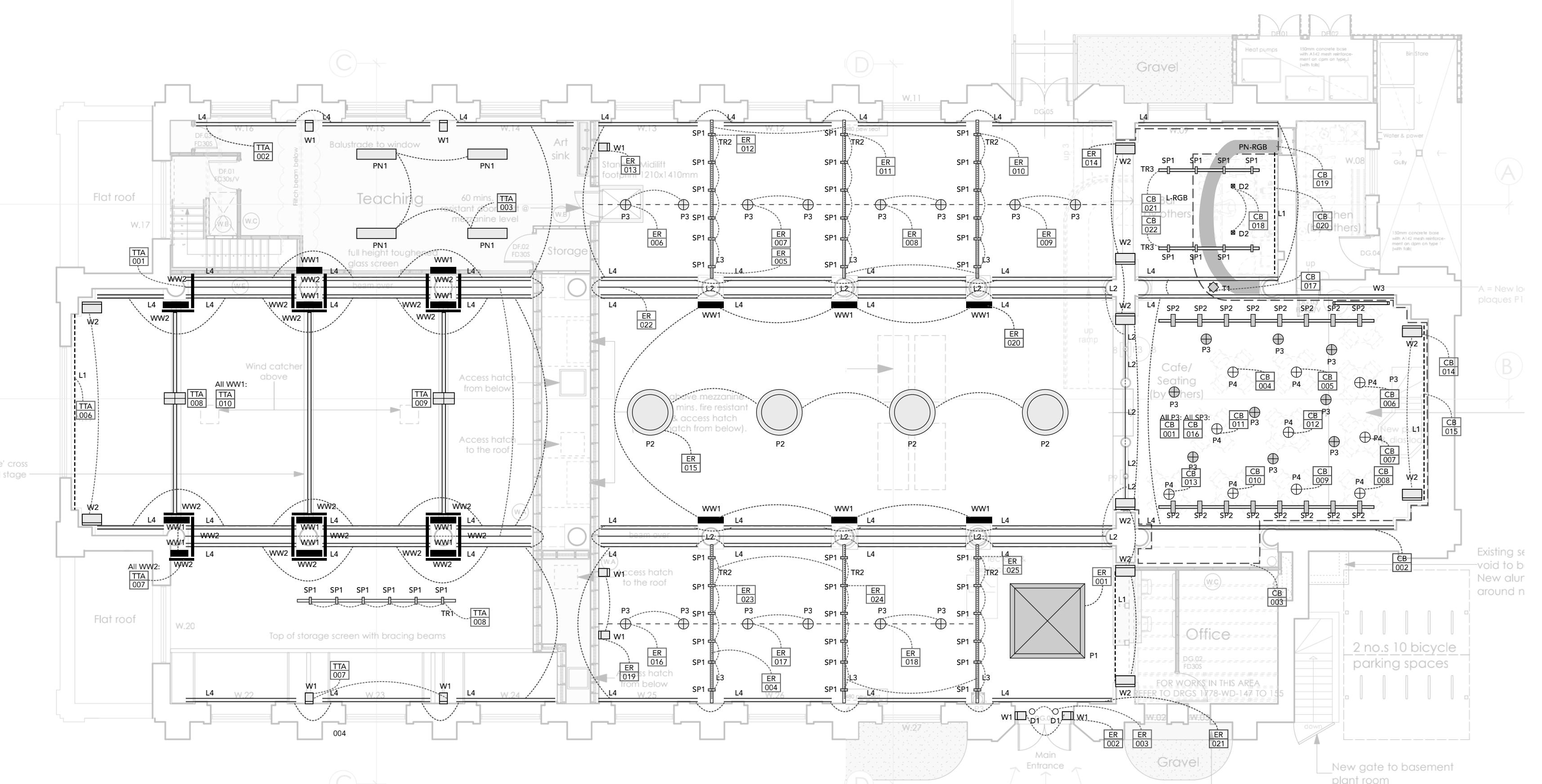

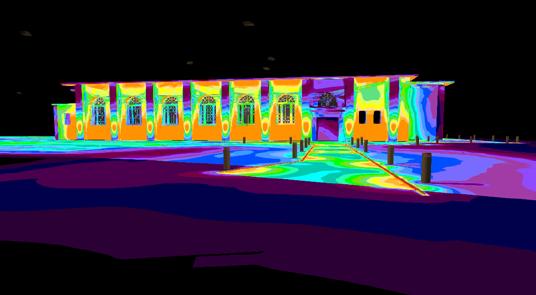

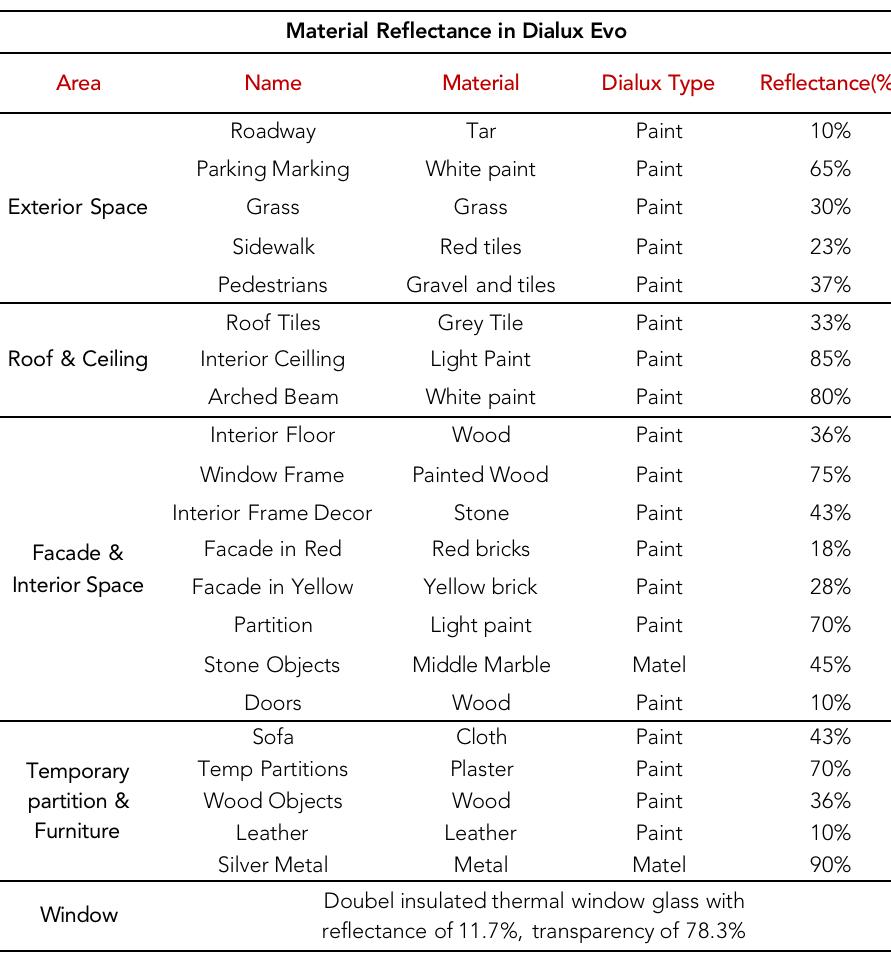

3.2 Luminaires Layout - Results

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 3 - Spatial Coordination & Technical Design

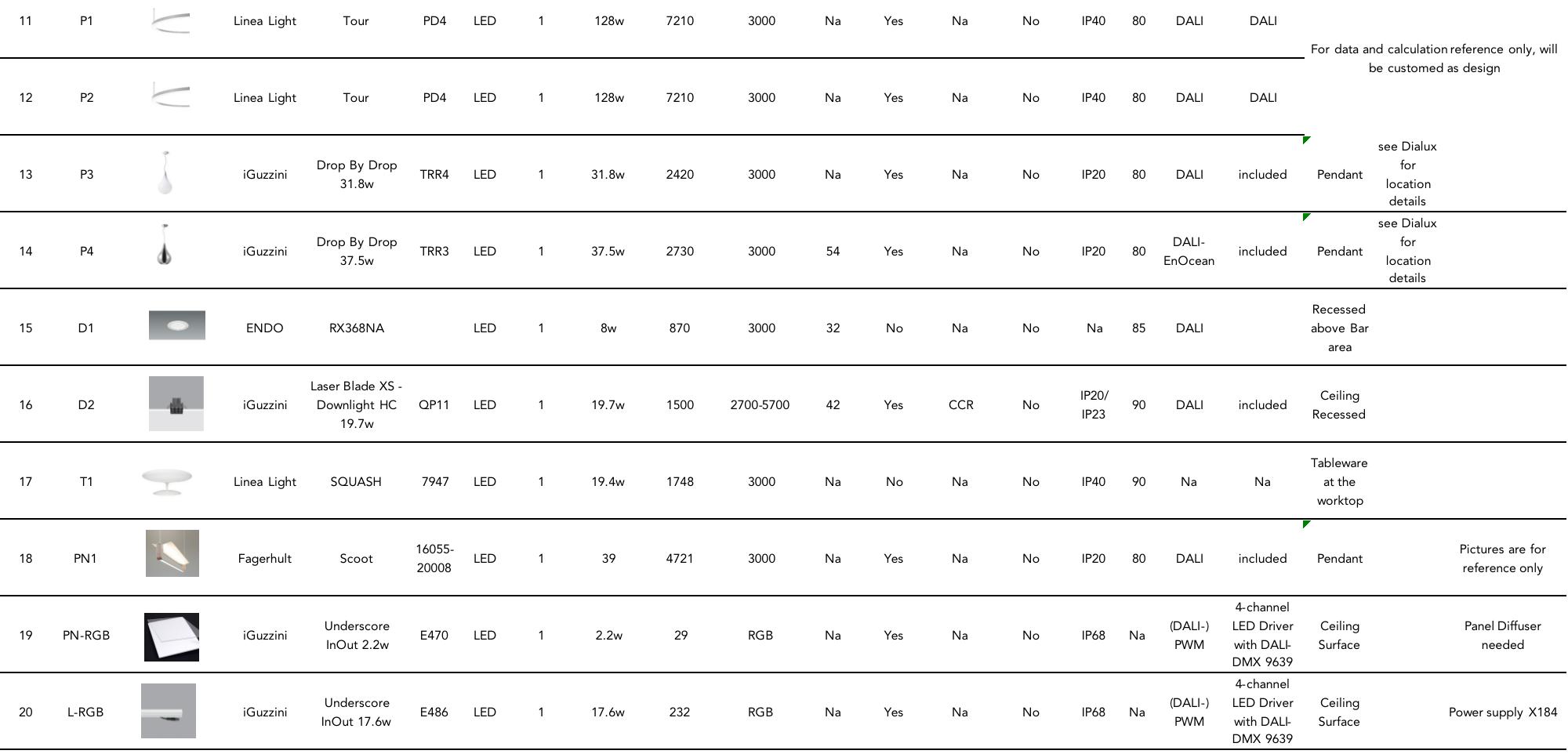

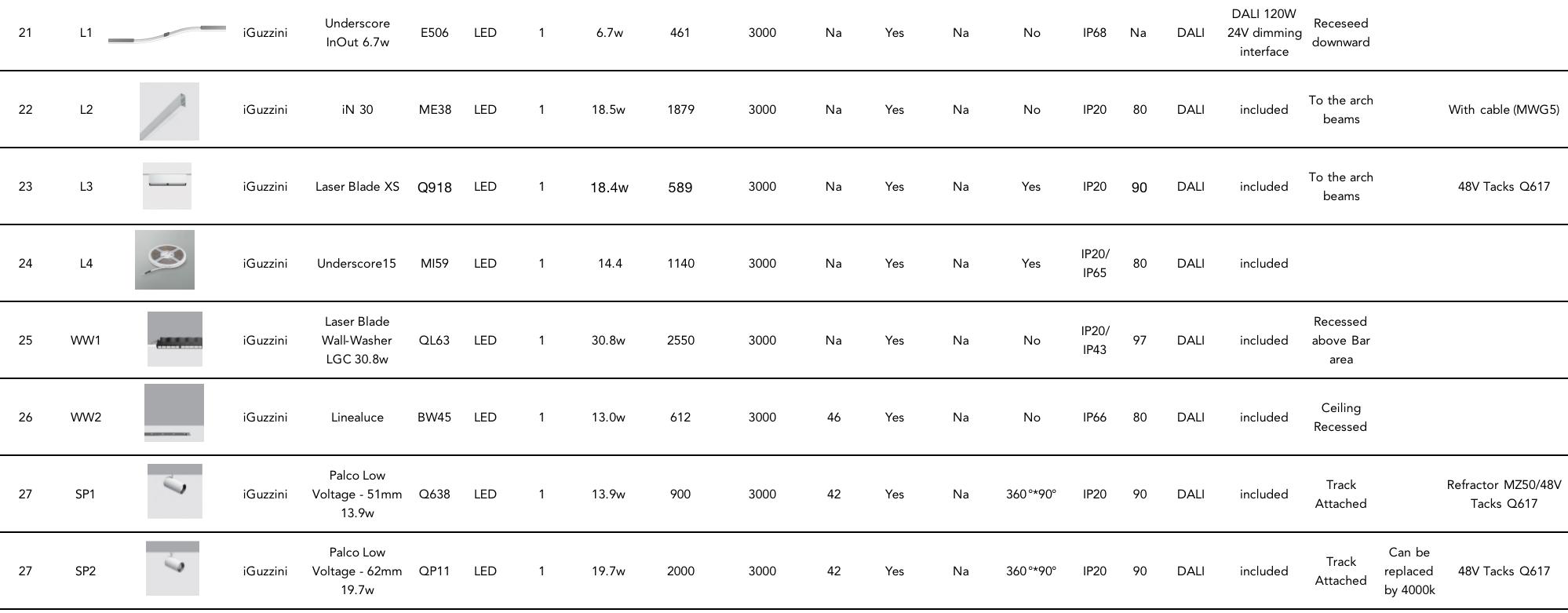

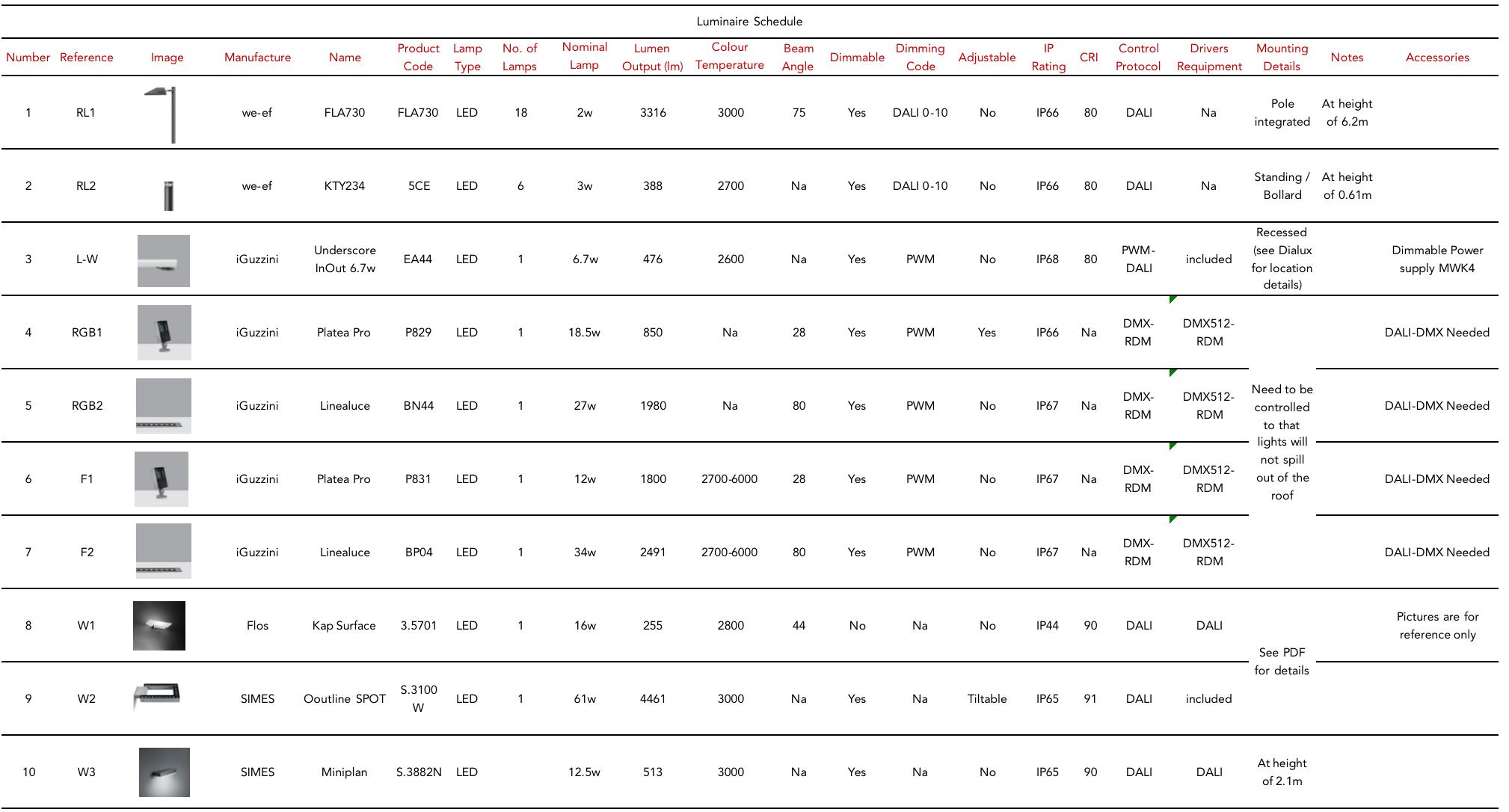

3.3 Luminaire Schedule

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 3 - Spatial Coordination & Technical Design

3.3 Luminaire Schedule

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 3 - Spatial Coordination & Technical Design

3.3 Luminaire Schedule

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 3 - Spatial Coordination & Technical Design

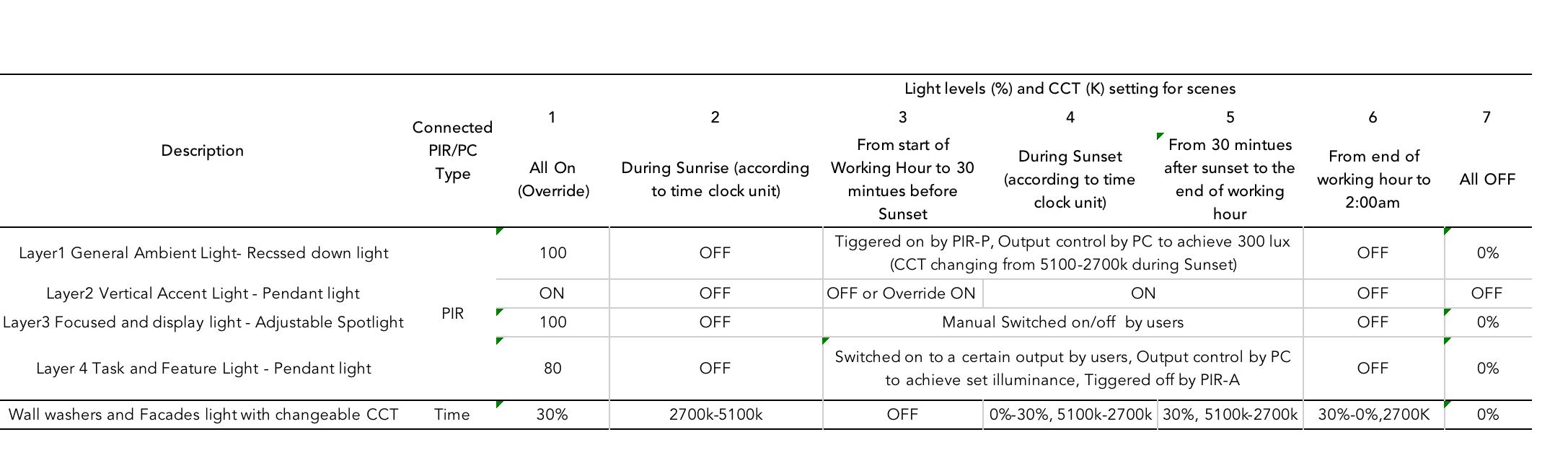

3.5 Scene Setting

Horton Chapel

Lighting Design Proposal for Major Design Peoject

Stage 3 - Spatial Coordination & Technical Design

controlled by Absence ditector

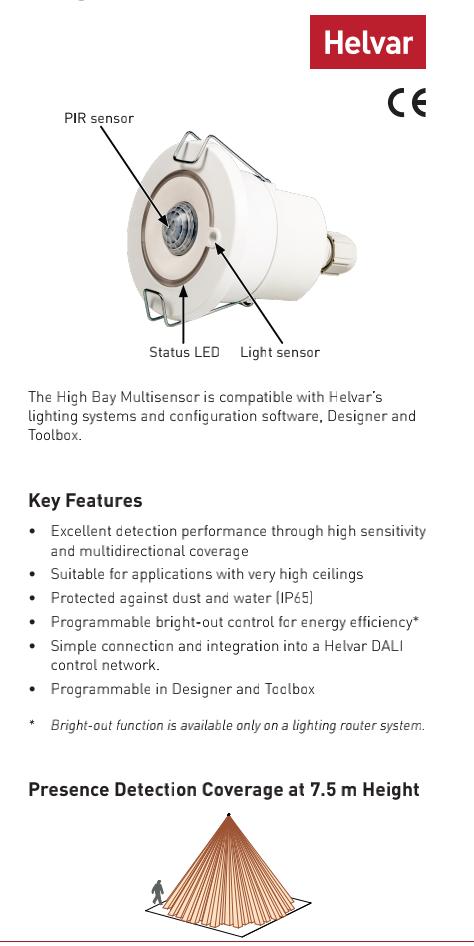

Luminaires controlled by PIR with both motions sensor and daylight photocell, during daytime the target illuminance of this room will be 300 lux, below this the light will be turn on automatically

Controller Driver DMX-dali convertor

L Local control panel for each table’s user for P4

Luminaires controlled by Absence ditector

L Local control panel for each table’s user for P4
