Ford New Holland Parts Catalogue!

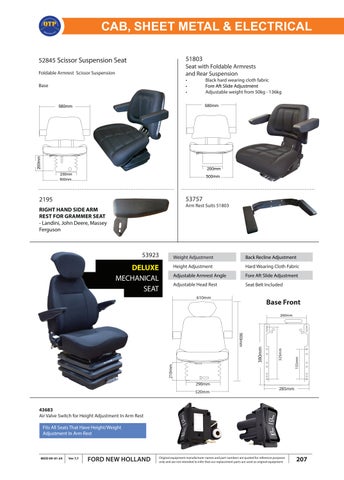

Page 207

CAB, SHEET METAL & ELECTRICAL 51803

52845 Scissor Suspension Seat

Seat with Foldable Armrests and Rear Suspension

Foldable Armrest Scissor Suspension

• • •

Base

Black hard wearing cloth fabric Fore Aft Slide Adjustment Adjustable weight from 50kg - 136kg

580mm

230mm 500mm

500mm

200mm

580mm

200mm

53757

2195

Arm Rest Suits 51803

RIGHT HAND SIDE ARM REST FOR GRAMMER SEAT - Landini, John Deere, Massey Ferguson

53923

DELUXE MECHANICAL SEAT

Weight Adjustment

Back Recline Adjustment

Height Adjustment

Hard Wearing Cloth Fabric

Adjustable Armrest Angle

Fore Aft Slide Adjustment

Adjustable Head Rest

Seat Belt Included

610mm

Base Front

290mm 520mm

155mm

325mm

210mm

900mm

380mm

260mm

285mm

43683 Air Valve Switch for Height Adjustment In Arm Rest Fits All Seats That Have Height/Weight Adjustment In Arm Rest

Mod 09-01-24

Ver 7.7

FORD NEW HOLLAND

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

207
