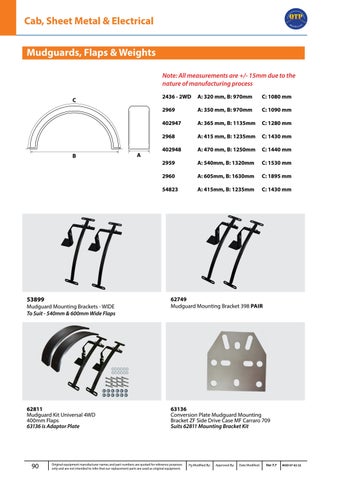

Cab, Sheet Metal & Electrical Mudguards, Flaps & Weights Note: All measurements are +/- 15mm due to the nature of manufacturing process C
B
A
2436 - 2WD
A: 320 mm, B: 970mm
C: 1080 mm
2969
A: 350 mm, B: 970mm
C: 1090 mm
402947
A: 365 mm, B: 1135mm
C: 1280 mm
2968
A: 415 mm, B: 1235mm
C: 1430 mm
402948
A: 470 mm, B: 1250mm
C: 1440 mm
2959
A: 540mm, B: 1320mm
C: 1530 mm
2960
A: 605mm, B: 1630mm
C: 1895 mm
54823
A: 415mm, B: 1235mm
C: 1430 mm
1440 mm
1250 mm
470 mm
53899
62749 Mudguard Mounting Bracket 398 PAIR
62811 Mudguard Kit Universal 4WD 400mm Flaps 63136 is Adaptor Plate
63136 Conversion Plate Mudguard Mounting Bracket ZF Side Drive Case MF Carraro 709 Suits 62811 Mounting Bracket Kit
Mudguard Mounting Brackets - WIDE To Suit - 540mm & 600mm Wide Flaps
90
