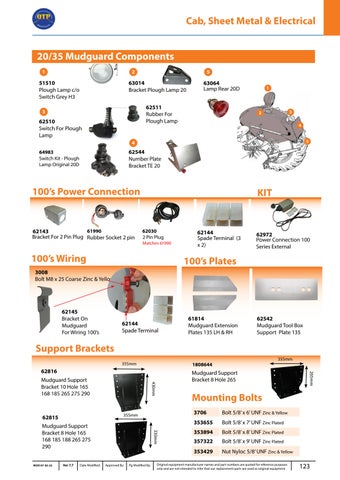

Cab, Sheet Metal & Electrical 20/35 Mudguard Components 1
2
51510 Plough Lamp c/o Switch Grey H3
5
63014 Bracket Plough Lamp 20
63064 Lamp Rear 20D
62511 Rubber For Plough Lamp
3
62510 Switch For Plough Lamp
1
3
2
4 5
4
62544 Number Plate Bracket TE 20
64983 Switch Kit - Plough Lamp Original 20D
100’s Power Connection
61990 62143 Bracket For 2 Pin Plug Rubber Socket 2 pin
KIT
62030 2 Pin Plug Matches 61990
100’s Wiring
62144 Spade Terminal (3 x 2)
62972 Power Connection 100 Series External
100’s Plates
3008 Bolt M8 x 25 Coarse Zinc & Yellow
62145 Bracket On Mudguard For Wiring 100’s
62144 Spade Terminal
61814 Mudguard Extension Plates 135 LH & RH
62542 Mudguard Tool Box Support Plate 135
Support Brackets 355mm
430mm
Mounting Bolts
355mm
62815
Ver 7.7
Date Modified:
330mm
Mudguard Support Bracket 8 Hole 165 168 185 188 265 275 290 Mod 07-02-22
Mudguard Support Bracket 8 Hole 265
Approved By:
Pg Modified By:
265mm
62816 Mudguard Support Bracket 10 Hole 165 168 185 265 275 290
355mm
1808644
3706
Bolt 5/8’ x 6’ UNF Zinc & Yellow
353655
Bolt 5/8’ x 7’ UNF Zinc Plated
353894
Bolt 5/8’ x 8’ UNF Zinc Plated
357322
Bolt 5/8’ x 9’ UNF Zinc Plated
353429
Nut Nyloc 5/8’ UNF Zinc & Yellow
Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
123
