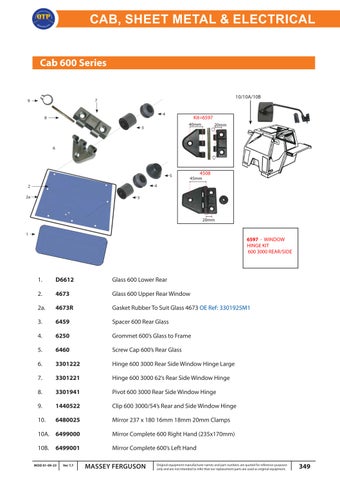

CAB, SHEET METAL & ELECTRICAL Cab 600 Series 10/10A/10B
7
9
4
8
Kit=6597 40mm
3
20mm
6
5
4508
45mm
4
2 2a
3
20mm 1
6597 - WINDOW HINGE KIT 600 3000 REAR/SIDE
1.
D6612
Glass 600 Lower Rear
2.
4673
Glass 600 Upper Rear Window
2a.
4673R
Gasket Rubber To Suit Glass 4673 OE Ref: 3301925M1
3.
6459
Spacer 600 Rear Glass
4.
6250
Grommet 600’s Glass to Frame
5.
6460
Screw Cap 600’s Rear Glass
6.
3301222
Hinge 600 3000 Rear Side Window Hinge Large
7.
3301221
Hinge 600 3000 62’s Rear Side Window Hinge
8.
3301941
Pivot 600 3000 Rear Side Window Hinge
9.
1440522
Clip 600 3000/54’s Rear and Side Window Hinge
10.
6480025
Mirror 237 x 180 16mm 18mm 20mm Clamps
10A. 6499000 10B.
6499001
Mod 01-09-23
Ver 7.7
Mirror Complete 600 Right Hand (235x170mm) Mirror Complete 600’s Left Hand
MASSEY FERGUSON
Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
349
