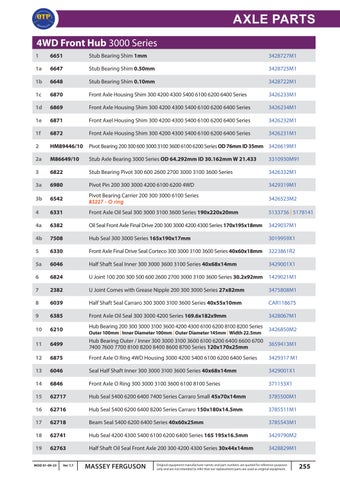

AXLE PARTS 4WD Front Hub 3000 Series 1
6651
Stub Bearing Shim 1mm
3428727M1
1a
6647
Stub Bearing Shim 0.50mm
3428725M1
1b
6648
Stub Bearing Shim 0.10mm
3428722M1
1c
6870
Front Axle Housing Shim 300 4200 4300 5400 6100 6200 6400 Series
3426233M1
1d
6869
Front Axle Housing Shim 300 4200 4300 5400 6100 6200 6400 Series
3426234M1
1e
6871
Front Axel Housing Shim 300 4200 4300 5400 6100 6200 6400 Series
3426232M1
1f
6872
Front Axle Housing Shim 300 4200 4300 5400 6100 6200 6400 Series
3426231M1
2
HM89446/10
Pivot Bearing 200 300 600 3000 3100 3600 6100 6200 Series OD 76mm ID 35mm 3426619M1
2a
M86649/10
Stub Axle Bearing 3000 Series OD 64.292mm ID 30.162mm W 21.433
3310930M91
3
6822
Stub Bearing Pivot 300 600 2600 2700 3000 3100 3600 Series
3426332M1
3a
6980
Pivot Pin 200 300 3000 4200 6100 6200 4WD
3429319M1
3b
6542
4
6331
Front Axle Oil Seal 300 3000 3100 3600 Series 190x220x20mm
5133736 | 5178141
4a
6382
Oil Seal Front Axle Final Drive 200 300 3000 4200 4300 Series 170x195x18mm
3429037M1
4b
7508
Hub Seal 300 3000 Series 165x190x17mm
3019959X1
5
6330
Front Axle Final Drive Seal Corteco 300 3000 3100 3600 Series 40x60x18mm
3223861R2
5a
6046
Half Shaft Seal Inner 300 3000 3600 3100 Series 40x68x14mm
3429001X1
6
6824
U Joint 100 200 300 500 600 2600 2700 3000 3100 3600 Series 30.2x92mm
1429021M1
7
2382
U Joint Comes with Grease Nipple 200 300 3000 Series 27x82mm
3475808M1
8
6039
Half Shaft Seal Carraro 300 3000 3100 3600 Series 40x55x10mm
CAR118675
9
6385
Front Axle Oil Seal 300 3000 4200 Series 169.6x182x9mm
3428067M1
10
6210
11
6499
Hub Bearing Outer / Inner 300 3000 3100 3600 6100 6200 6400 6600 6700 3659413M1 7400 7600 7700 8100 8200 8400 8600 8700 Series 120x170x25mm
12
6875
Front Axle O Ring 4WD Housing 3000 4200 5400 6100 6200 6400 Series
3429317 M1
13
6046
Seal Half Shaft Inner 300 3000 3100 3600 Series 40x68x14mm
3429001X1
14
6846
Front Axle O Ring 300 3000 3100 3600 6100 8100 Series
371153X1
15
62717
Hub Seal 5400 6200 6400 7400 Series Carraro Small 45x70x14mm
3785500M1
16
62716
Hub Seal 5400 6200 6400 8200 Series Carraro 150x180x14.5mm
3785511M1
17
62718
Beam Seal 5400 6200 6400 Series 40x60x25mm
3785543M1
18
62741
Hub Seal 4200 4300 5400 6100 6200 6400 Series 165 195x16.5mm
3429790M2
19
62763
Half Shaft Oil Seal Front Axle 200 300 4200 4300 Series 30x44x14mm
3428829M1
Mod 01-09-23
Pivot Bearing Carrier 200 300 3000 6100 Series BS227 - O ring
Hub Bearing 200 300 3000 3100 3600 4200 4300 6100 6200 8100 8200 Series Outer 100mm | Inner Diameter 100mm | Outer Diameter 145mm | Width 22.5mm
Ver 7.7
MASSEY FERGUSON
3426523M2
3426850M2
Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
255
