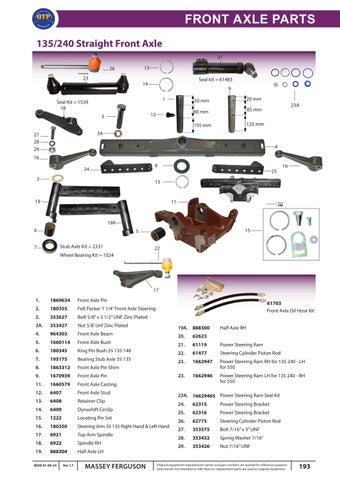

FRONT AXLE PARTS 135/240 Straight Front Axle 21 13
26 23
Seal kit = 61483
14
9 1
Seal Kit = 1539 18 12
3
50 mm
20 mm
80 mm
85 mm
105 mm
125 mm
23A
3A
27 28 29
4
16 8
24 2
16
25
13
19
11
20
19A 6
15
5 Stub Axle Kit = 2331
7
22
Wheel Bearing Kit = 1024
17 1.
1869634
Front Axle Pin
2.
180355
Felt Packer 1 1/4” Front Axle Steering
3.
353627
Bolt 5/8” x 3 1/2” UNF Zinc Plated
3A.
353427
Nut 5/8’ Unf Zinc Plated
4.
964303
Front Axle Beam
5.
1660114
Front Axle Bush
6.
180345
King Pin Bush 35 135 148
7.
195175
Bearing Stub Axle 35 135
8.
1863312
Front Axle Pin Shim
9.
1670939
Front Axle Pin
11.
1660579
Front Axle Casting
12.
6407
Front Axle Stud
13.
6408
Retainer Clip
14.
6409
Dynashift Circlip
15.
1222
Locating Pin Set
16.
180350
Steering Arm 35 135 Right Hand & Left Hand
17.
6921
Top Arm Spindle
18.
6922
Spindle RH
19.
888304
Half Axle LH
Mod 01-09-23
Ver 7.7
MASSEY FERGUSON
61703 Front Axle Oil Hose Kit 19A. 888300
Half Axle RH
20.
62623
21.
61119
Power Steering Ram
22.
61477
Steering Cylinder Piston Rod
23.
1662947
Power Steering Ram RH for 135 240 - LH for 550
23.
1662946
Power Steering Ram LH for 135 240 - RH for 550
23A. 1662946S Power Steering Ram Seal Kit 24.
62315
Power Steering Bracket
25.
62316
Power Steering Bracket
26.
62775
Steering Cylinder Piston Rod
27.
353575
Bolt 7/16” x 3” UNF
28.
353432
Spring Washer 7/16”
29.
353426
Nut 7/16” UNF
Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
193
