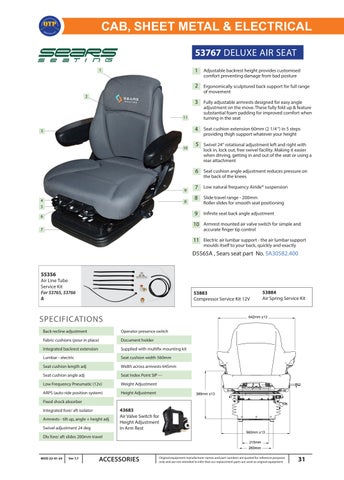

CAB, SHEET METAL & ELECTRICAL 53767 DELUXE AIR SEAT 1 Adjustable backrest height provides customised
1
comfort preventing damage from bad posture
2 Ergonomically sculptured back support for full range of movement
2
3 Fully adjustable armrests designed for easy angle
adjustment on the move. These fully fold up & feature substantial foam padding for improved comfort when turning in the seat
11
4 Seat cushion extension 60mm (2 1/4 “) in 5 steps
3
providing thigh support whatever your height
10
5 Swivel 24° rotational adjustment left and right with
lock in, lock out, free swivel facility. Making it easier when driving, getting in and out of the seat or using a rear attachment
6 Seat cushion angle adjustment reduces pressure on the back of the knees
9 4
8
7 Low natural frequency Airide® suspension 8
Slide travel range - 200mm Roller slides for smooth seat positioning
9
Infinite seat back angle adjustment
5 6
10 Armrest mounted air valve switch for simple and accurate finger tip control
7
11 Electric air lumbar support - the air lumbar support moulds itself to your back, quickly and exactly
D5565A , Sears seat part No. SA30582.400 55356
Air Line Tube Service Kit For 53765, 53766 &
53883 Compressor Service Kit 12V
SPECIFICATIONS
53884 Air Spring Service Kit
642mm ±13
Back recline adjustment
Operator presence switch
Fabric cushions (pour in place)
Document holder
Integrated backrest extension
Supplied with multifix mounting kit
Lumbar - electric
Seat cushion width 560mm
Seat cushion length adj
Width across armrests 645mm
Seat cushion angle adj
Seat Index Point SIP ---
Low Frequency Pneumatic (12v)
Weight Adjustment
ARPS (auto ride position system)
Height Adjustment
389mm ±13
Fixed shock absorber Integrated fore/ aft isolator Armrests - tilt up, angle + height adj Swivel adjustment 24 deg
43683 Air Valve Switch for Height Adjustment In Arm Rest
Dlx fore/ aft slides 200mm travel
560mm ±13 215mm
260mm Mod 22-01-24
Ver 7.7
ACCESSORIES
Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.
