REPLACEMENT PARTS SUITABLE FOR

VALTRA TRACTORS

PARTS CATALOGUE Version 7.7

Modified - 27/4/2022


CONTENTS Engine 4

Cab, Sheet Metal & Electrical

29

Pistons 4

Glass, Handles & Mirrors

29

Rocker Cover Gaskets

4

Rear View Mirrors

30

Head Gaskets Sets

4

Head Lights

31

Full Gasket Sets

5

Rear Lights & Side Marker Lights

31

Exhausts

6

Work Lights

31

Exhaust Repair 7

Gas Struts

33

Fuel Lift Pumps

9

Switches 34

Viscous Fans

10

Starters & Alternators

35

Fan Belts

10

Battery & Terminals

36

Blower Motors

12

Radiators

13 Clutch, Transmission & PTO

38

Clutches & Clutch Kits

38

Clutch Alignment Kit

42

Clutch Master Cylinder

43

Filters 20

Transmission Gear Box Shaft

44

Air Filters

21

PTO

44

Cab Air Filters

22

Fuel Filters

24

Hydraulic Filters

25

Brakes, Hydraulics & Linkage

45

Engine Oil Filters

26

Brake Discs

45

Brake Master Cylinders

46

Hydraulic Pumps

47 48

Water Pumps 14 Jubilee Clips 16

Axle Parts

27

Hydraulic Hose Assemblies

Track Rod Ends

27

Synchronisers 50

Seals 27

Levelling Boxes

51

Power Steering

Lift Arms

54

2

28

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Visit our website www.qtponline.com To sign up for an account contact web@qtponline.com

www.qtponline.com

Give us a call www.qtponline.de Phone: 00 353 44 934 1638 www.qtponline.fr www.qtponline.es › Find Parts

Find what you need quickly & easily

› Order Online 24/7

Shop online 24/7 with our web shop. Get prices and check availability on over 16,000 tractor spares

› New Products

New products & special offers

› Account Information

See previous orders, statements and stock information

Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

3


Engine Piston 54140

Piston 3 Ring 35mm Pin 3000 Series OE Ref: 04152191

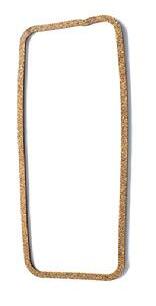

Rocker Cover Gaskets 64697

Valtra Valmet 00 6000 65 A C N X OE Ref: 836746362

64696

Valtra Valmet 00 6000 65 8000 M N T TI XM OE Ref: 836646360

Head Gasket sets 64713

Head Gasket Set

OE Ref: 836331747

64715

Head Gasket Set

OE Ref: 83664029

64716

Head Gasket Set

OE Ref: 836431368

64742

Head Gasket Set

OE Ref: 83664029

64714

Head Gasket

OE Ref: 836122443

4

05 Series

6000 Series

05 15 Series

Valtra 6000 Series 6100

04 05 15 8000 Series

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Engine Full Gasket sets

64709

Full Gasket Set

OE Ref: 836131371

64745

Full Gasket Set

OE Ref: 836840238

64744

Full Gasket Set

OE Ref: 836640290

64743

05 15 55 Series

Valtra 6900 8000 T TC

Valtra 6000 6100

Full Gasket Set

6000 6200 6250HI 6300 6350HI 6400 6550HI 6600

OE Ref: 836740281

64712

Gasket Set

OE Ref: 836431973

64710

Sump Gasket

OE Ref: 836322183

Mod 27-04-22

Sisu 3110S Engines Valmet 505 605 615

8000 Series T Series

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

5


Engine Valve Spring

64730

Outer Valve Spring Valtra 00 05 OE Ref: 836117910

Injector Sleeve

Driveshaft Seal

64728

64704

64666

64668

Injector Sleeve Valtra 00 05 15 55 8000 87mm long OE Ref: 836022081

Driveshaft Seal Valtra 6000 8000 Series 60 x 90 x 8mm OE Ref: RE160849

Exhausts

64667

Exhaust- 305 405 415 415M 455 555 365 465 565 Length 1195mm Ø 53mm OE Ref: 31009310

Exhaust - 361 500 565 1964 - 1968 Length 1150mm Ø 42mm OE Ref: 658340

Exhaust - 505 605 705 805 625 715 815 655 755 855 Length 1140mm Ø 53mm OE Ref: 30294920

64866

Exhuast Box Valmet 865 900 A95 OE Ref: V33075200

6

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Engine Exhaust Repair

55786

55787

55788

55789

Exhaust Repair Elbow 3” OD/OD 90 Bend 325mm x 325mm

Exhaust Repair Outlet 3” ID Outlet 350mm High

Exhaust Repair Joiner 3” ID/ID 150mm Long

Exhaust Repair Flexi 3” x 6” Flexi W/3” IDCuffs

55790

Exhaust Repair ID Welding Elbow 3” OD/OD Mild Steel ID Welding Elbow

Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

7


Engine Exhaust Repair

55806

Exhaust Box Turbo Outlet

55807

Exhaust Box Flange End

55808

Exhaust Box Flange End

Is your exhaust a little tired and in need of repair? Can’t find a replacement anywhere? Could repair it if you had the part? QTP have the answer. We are now able to offer a various range of repair options for your busted exhaust. •

Exhaust Bends

Flared Ends

Turbo Pipe Ends

Turbo Flange Rings

For more information and to discuss your needs further please contact your sales representative.

8

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Engine Fuel Lift Pumps

2641478

53131

Fuel Lift Pump Valmet Valtra Case CS

Fuel Lift Pump 700 900 600 800 500 300 1100 1200 Series OE Ref: 83912071 83991467

2641478R

Fuel Lift Pump Electric N Series OE Ref: 87802238

Fuel Senders

Fuel Filler Caps

65088

Fuel Sender Valtra A75 A85 A95 Fuel Sender Valtra 6000 8000 M T TC TCH X XM Series OE Ref: 33154310 OE Ref: V30101710

Mod 27-04-22

Ver 7.7

Fuel Lift Pump Valtra Valmet 800 6000 8000 900 OE Ref: 836662052

409790R

Fuel Lift Pump 2 Stud Simms Pump 700 900 600 800 500 300 1100 1200 OE Ref: 83912071

64964

64864

VALTRA

65003

65139

Fuel Tank Cap Valtra 00 05 15 55 Oil Filler Cap Valtra Mezzo 6000 65 8000 A Hitech C M N XM T S A T1 T2 OE Ref: V627730 TC/TCH 200 300 400 500 600 700 800 900 6000 8000 OE Ref: V836017927

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

9


Engine

Viscous Fans

64793 Viscous Fan Valtra N121 N141 M120 M130 M150 C100 OE Ref: 836762433

64794 Viscous Fan Valtra 8350HI 8400 8450 8450E 8450HI 8550 8550HI 8750 8950H OE Ref: 836840905

64795 Viscous Fan Valtra T130 T120 T150 T160 T170 T140 T171 T180 T190 OE Ref: 836864264

Fan Belts

62963 Fan Belt 13 x 1325 605 505 OE Ref: 3144678R1

2260 Fan Belt 13 x 1300 705 805 OE Ref: 3637306M91

2275 Fan Belt 13 x 1375 6000 8000 T Series OE Ref: 3808704M1

65032 Fan Belt Tensioner OE Ref: V836667827

10

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Engine

Air Conditioning

64420 Expansion Valve Air Con 6000 8000 T Series OE Ref: 3311533M91

43035 Expansion Valve Air Con C M N T S A T2 TC/TCH Series OE Ref: 82002793

Compressors

64703 Compressor Valtra 6000, 8000 Series C M N T Series OE Ref: 32838600

53943 Compressor Air Con Valtra Valmet A Series A72, A82, A92 OE Ref: 04437339

Drier

65138 Receiver Drier Valtra 6000 - 6900 Mezzo Series 8000 - 8950 Mega Series Hi Tech Series OE Ref: V33273500

Mod 27-04-22

Ver 7.7

VALTRA

67267 Receiver Drier Filter Valmet Valtra A Series A72-A92 T Series T121 - T202 N Series N91 - N142 OE Ref: V37462610

64676 Filler Drier Valtra Valmet 00 05 15 55 6000 65 8000 A C M T X XM Series OE Ref: 32814800

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

11


Engine

Blower Motors

65015 Blower Motor Valtra 00 6000 8000 A C M T TC TCH K M OE Ref: V32729820

64976 Blower Motor Valtra 6000 A M N T OE Ref: V36635800

Condensor

64941 Condensor Valtra A72 A82 A92 N82 Hi Tech OE Ref: V37899200

12

64961 Sensor Coolant Temperature Valtra M14 x 1.5 OE Ref: V836667732

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Engine

Radiators

64752 Radiator 05 15 55 Series OE Ref: 32611000

64753 Radiator 05 Classic Series OE Ref: 30281700

64754 Radiator 05 15 55 Series OE Ref: 30068900

67303 Radiator Valtra T120 C/CH T121 H/C T130 C/CH T140E C/CH T150 C/CH T160 C/CH T170 C/CH OE Ref: 157V34645010

Engine Parts

51317 Oil Pump 28mm Suction pipe 26mm Hole 3000 Series OE Ref: 04231307 Mod 27-04-22

Ver 7.7

65139 Oil Filler Cap Valtra A Series Mezzo Hitech M Series N Series 64 Series 74 Series OE Ref: V836017927

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

13


Engine

Water Pumps

64829 Water Pump 502 504 OE Ref: 836055032

64831 Water Pump 1102 1103 702 802 803 903 OE Ref: 836124301

64832 Water Pump 361 500 565 OE Ref: 836014271

53375 Water Pump Valmet 6900 8000 8050 8050H 8150 8200 8400 OE Ref: 836864481

55567 Inner Waterpump Gasket Valtra Suits 53375 Pump OE Ref: V836866742

55568 Outer Waterpump Gasket Valtra 8000 Series Mega T Series 8000 Series Hitech Suits 53375 Pump OE Ref: V836864471

64684 Water Pump Valmet Valtra 00 6000 A BM X Series OE Ref: 836764215

64943 Water Pump Valtra 255 355 365 465 555 6000 6100 6200 6400 OE Ref: 836755471

64756 Water Pump Valtra 6000 Series OE Ref: 836747847

14

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Engine

Water Pumps

64737 Water Pump Valtra T Series OE Ref: V836866732

55565 Water Pump Inner Gasket Valtra 255 - 565 800 - 900 6000 Mezzo Series 6000 Hitech Series Suits 64757 Pump OE Ref: V836120129

55566 Water Pump Outer Gasket Valtra 255 - 565 800 - 900 6000 Mezzo Series 6000 Hitech Series Suits 64757 Pump OE Ref: V836120128

64828 Water Pump C130 M130 150 HITEC Series Engine OE Ref: V836866631

64830 Water Pump Valmet 900 602 702 703 802 803 OE Ref: 835339234

64833 Water Pump A72 A82 C100 C110 C120 C130 C150 C90 M120 M130 M150 OE Ref: 836766976

64834 Water Pump VT121 T131 T151 T152 T160 T161 T162 T170 T171 T180 T190 T191 OE Ref: 836867092

64835 Water Pump 255 355 365 455 465 555 565 600 6000 6100 6200 6300 6400 6600 665 700 800 865 OE Ref 836647817

64757 Water Pump Valtra 00 05 15 55 65 Series OE Ref: 836136220

Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

15


Engine Jubilee Clips

Part No.

BS No.

Adjustment mm

Band Width mm

Band Thickness mm

Recommended Torque Nm

Maximum Torque Nm

Maximum Pressure PSi

JC000MS

12

9.5 - 12

9.9

0.762

3.4

4.5

203

JC00MS

20

13 - 20

9.9

0.762

3.4

4.5

203

JC0MS

22

16 - 22

13.0

0.914

4.2

5.6

203

JC0XMS

25

18 - 25

13.0

0.914

4.2

5.6

203

JC1AMS

30

22 - 30

13.0

0.914

4.2

5.6

203

JC1MMS

45

32 - 45

13.0

0.914

5.1

6.8

102

JC1MS

35

25 - 35

13

0.914

5.1

6.8

102

JC1XMS

40

30 - 40

13

0.914

5.1

6.8

102

JC2AMS

50

35 - 50

13

0.914

5.9

7.9

102

JC2MS

55

40 - 55

13

0.914

5.9

7.9

102

JC2XMS

60

45 - 60

13

0.914

5.9

7.9

102

JC3MS

70

55 - 70

13

0.914

6.7

9

102

JC3XMS

80

60 - 80

13

0.914

6.7

9

44

JC4MS

90

70 - 90

13

0.914

6.7

9

44

JC4XMS

100

85 - 100

13

0.914

6.7

9

44

JC5MS

120

90 - 120

13

0.914

6.7

9

44

JC6MS

140

110 - 140

13

0.914

6.7

9

44

JC6XMS

150

120 - 150

13

0.914

5.9

7.9

18

JC7MS

165

135 - 165

13

0.914

5.9

7.9

18

JCM00MS

16

11 - 16

10

0.762

3.4

4.5

203

16

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Engine Jubilee Clips

55736 Jubilee Clip Wingspade Pocket Pack Size 22 pieces Contents: 4 of WS012, WS016, WS020, WS027, 2 of WS032, WS045, WS050 Weight: 0.47 kg

JCFLX

Size: 39 (H) x 180 (W) x 150 (D) mm

Jubilee Clip Flexidriver 7mm Socket

Material: Mild Steel Zinc Protected with plastic spade

55737

55738

Jubilee Clip Junior Pocket Pack Size 54 Pieces Contents: 6 of NB0709, NB0810, NB0911, NB1315, 8 of NB1012, NB1214, 10 of NB1113, 4 of NB1416

Jubilee Clip Original Pocket Pack Size 32 Pieces

Weight: 0.44 kg

Weight: 0.61 kg

Size: 39 (H) x 180 (W) x 150 (D) mm

Size: 39 (H) x 180 (W) x 150 (D) mm

Material: Mild Steel Zinc Plated

Material: Mild Steel Zinc Protected

Mod 27-04-22

Ver 7.7

VALTRA

Contents: 6 of 000, M000, 00, 4 of 0, 0X, 2 of 1A, 1X

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

17


Engine Jubilee Clips

55739

55742

Jubilee P Clip Kit Sizes 110 pieces

Jubilee Clip Junior Assortment Pack Sizes 165 Pieces

Contents: 14 of JPC0005, JPC006, 12 of JPC008, JPC029, 10 of JPC010, 8 of JPC013, JPC016, JPC019, JPC021, JPC025, JPC035

Contents: 25 of NB0709, NB0810, NB0911, 30 of NB1012, NB1113, NB1214

Weight: 1.62 kg

Weight: 1.35 kg

Size: 55 (H) x 330 (W) x 250 (D) mm

Size: 40 (H) x 270 (W) x 175 (D) mm

Material: Mild Steel Zinc Plated

Material: Mild Steel Zinc Plated

55740

55741

Jubilee O Clip Kit Without Pincer Sizes 175 pieces

Jubilee O Clip Kit With Pincer Sizes 175 Pieces

Contents: 20 of OC0507, OC0911, OC1113, OC1417, OC1518, OC1720, 25 of OC0709, 30 of OC1315

Contents: 20 of OC0507, OC0911, OC1113, OC1417, OC1518, OC1720, 25 of OC0709, 30 of OC1315

Weight: 0.85 kg without pincer

Weight: 1.20 kg with pincer

Size: 40 (H) x 270 (W) x 175 (D) mm

Size: 40 (H) x 270 (W) x 175 (D) mm

Material: Mild Steel Zinc Plated

Material: Mild Steel Zinc Plated

18

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Engine Jubilee Clips

55743

55744

Jubilee Clip Workshop Pack

Jubilee Clip Handy Pack 100 Pieces

Contents: 24 of 000, 32 of M00, 28 of 00, 13 of 0, 1, 14 of 0X 12 of 1A, 7 of 1X

Contents: 10 of each Jubilee® Clip sizes 000, M00, 00, 0, 0X, 1A, 1, 1X, 1M & 2A

Weight: 3.6 kg

Weight: 2.75 kg

Size: 55 (H) x 330 (W) x 250 (D) mm

Size: 80 (H) x 290 (W) x 250 (D) mm (Height is 210mm when open in folded position)

Material: Mild Steel Zinc Protected

Material: Mild Steel Zinc Protected

OE Ref: JCHCP143MS

Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

19


Filters Valtra Filters Models

Outer Air Inner Air

Oil

Fuel

205, 305, 405, 415, 415M

64845

64844

52747

4903

355, 365, 455, 465, 555, 565, 665

64845

64844

1460

3082

505, 605, 615M

64846

64844

1460

4903

565

Hydraulic

51890, 51890G from F19321 64896

62247

600, 700

52745

64847

1460

3082

655, 705, 755, 715, 715M

64846

64844

64695

4903

62247

1782

54060 51890 51890G

700

51890 51890G 64896

800, 900

52745

64847

1460

26566602

805, 815, 855, 905

64846

64844

64695

4903

865, 865S

52745

64847

1460

26566602

51890 51890G

6000, 6300, 6400, 6600

64845

64844

64695

4903

64724 up to F16406 51890 51890G from F16407

6300, 6400, 6600

52745

64847

64695

4903

64724 up to F16406 51890 51890G from F16407

6100

64846

64844

1460

4903

64724 up to F16406 51890 51890G from F16407

6200

52745

64847

6978

4903

64724 up to F16406 51890 51890G from F16407

6800

52745

64847

6978

4903

64724 up to F16406 51890 51890G from F16407

6900

C20024

64848

6978

26566602

51890 51890G

8000, 8100

64846 C20024

64844 64848

6978

4903

64724 up to F16406 51890 51890G from F16407

8050, 8150, 8350

C20024

64848

6978

26566602

64724 up to F16406 51890 51890G from F16407

6978

26566602

64724 up to F16406 51890 51890G from F16407

6978

26566602

64724 up to F16406 51890 51890G from F16407

26566602

6754

26566602

6754

8200, 8400 8200, 8400, 8450, 8550, 8750, 8950

6349 C20024

64848

8300, 8600 8800

20

Transmission

6978

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

64896

VALTRA

Ver 7.7

Mod 27-04-22


Filters Air Filters

52745 Air Filter 44 Valtra Valmet Outer. 00 6000 65 C M XM X A series OD: 165mm Length: 380mm OE Ref: V836462568

64846 Air Filter Outer Valtra 05 15 55 6000 65 8000 OD: 165mm Length: 345mm OE Ref: 20236409

64844 Air Filter Inner Valtra 05 15 55 6000 65 8000 OD: 110mm Length: 340mm OE Ref: 20228655

Mod 27-04-22

Ver 7.7

VALTRA

64845 Air Filter Outer Valtra 05 15 55 6000 65 8000 OD Top: 195mm OD Bottom: 165mm Length: 350mm OE Ref: 202228654

64847 Air Filter Inner Valtra 00 05 6000 65 C M OD: 85mm Length: 375mm OE Ref: 20228400

6349 Air Filter 8000 Series OD Top: 200mm OD Bottom: 165mm Length: 475mm OE Ref: 6005011111

64848 Air Filter Inner - 6000 8000 T OD: 115mm Length: 390mm OE Ref: 20238300

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

21


Filters Cab Air Filters Part No.

22

Description

64799

Cab Air Filter Valtra Valmet T T1 T2 TC TCH Series OE Ref.: V36250000 L: 610mm H: 50mm W: 145mm

64800

Carbon Cab Air Filter Valtra Valmet T T1 T2 TC TCH Series OE Ref.: V63154700 L: 612mm H: 50mm W: 145mm

64801

Cab Air Filter Carbon Valtra M T TC TCH XM OE Ref.: V63154600 L: 465mm H: 53mm W: 179mm

64802

Cab Air Filter Valtra Valmet M N T T1 T2 XM OE Ref.: V35741210 L: 543mm H: 51mm W: 75mm

64708

Cab Air Filter Valtra Valmet 6000 X Series OE Ref.: 20531300 L: 490mm H: 52.5mm W: 190mm

67252

Cab Air Filter Valtra N103 - N163 T133H - T193H OE Ref.: ACV0770770

59019

Cab Air Filter 8300 8300 T 8600 8800 OE Ref: RE48882

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Filters

Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

23


Filters Fuel Filters

401111

51893

51891

4918S

4918

401111S

409666

4917S

59978

409665L

26560145

409665

51892

P824X

P917X

Fuel Filter 6” High 5 Micron Fuel Filter Water A S N M C 6000 8000 Series Separator C M N T XM 6000 8000 Series OE Ref: 87802927 OE Ref: 20366575

Fuel Filter Valmet C M N T S XM 6000 8000 Series 6” High 5 Micron OE Ref: 87802925

Water Separator Filter A 800 900 6000 Series OE Ref: V836662561

32327

Fuel Filter C M N XM 6000 8000 Series 5 Micron OE Ref: 87840591

30 Mic Filter Water Separator 4.3” Length Crinkled End OE Ref: 87803443

Fuel Filter 400 500 800 Series Length: 82.5 OD: 71.00 ID: 33.5 OE Ref: 1850450M1

24

1782B

Fuel Filter Water Separator Fuel Filter Primary 6000 8000 Series A 600 800 900 Series OE Ref: 836859302 4.3” High 150 Micron Normal Flow OE Ref: 87840591

Fuel Filter Secondary C M N XM Series 6” Length 5 Micron OE Ref: 26560141

Fuel Filter Water Separator C M N T XM 6000 8000 Series OE Ref: 29573

Fuel Filter Short 800 Series OE Ref: 3405418

Water Separator Filter 3.6” High 5 Micron Round End

Water Separator C M N XM 6000 8000 Series 409665 – Water Separartor 4.3” Long

Fuel Filter 500 800 Series Fuel Filter Short Length: 82.5 OD: 71.00 800 Series ID: 33.5 OE Ref: P917X OE Ref: P824X

1782

Fuel Filter Short 800 Series OE Ref: 3405418M1

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

Fuel Filter Series Primary A 600 800 900 Series 4.3” High 150 Micron OE Ref: V836862563

VALTRA

26561117G

Fuel Filter Agco Genuine 00 65 Classic Series Pack of 10 – Price Per Unit OE Ref: 218577A1 Ver 7.7

Mod 27-04-22


Filters Fuel Filters

Fuel Lift Pumps

64379 Fuel Filter Kit 5608 5609 5610 5611 5612 5613 6612 6613 6614 6615 6616 7614 7615 7616 OE Ref: V837079718

54242 Filter Ad Blue S233 S263 S293 S323 S353 OE Ref:04602317

64865 Fuel Lift Pump Valtra 5232 262 292 322 352 OE Ref: 87802331

64863 Fuel Pump Valtra 5232 5262 5292 5322 5352 OE Ref: 836879202

6684 Hydraulic Filter 8000 8850 Series OE Ref: 6005028192

64896 Transmission Filter Valmet 00 05 15 55 65 17 OE Ref: V30606000

52747 Hydraulic Filter A 700 900 600 800 500 300 400 200 Series OE Ref: V836536797

51890G Hydraulic Filter Valmet 6000 6100 6200 6200R 6300 6300LS 6400 6400DW 6400LS 6600 6600E OE Ref: 20639610/31539610

Mod 27-04-22

Ver 7.7

255 mm

104 mm

Hydraulic Filters

6754 Hydraulic Filter 8000 Series 8300, 8300 T, 8600, 8800 OE Ref: 6005021377

51890 Hydraulic Filter Valmet 6000 6100 6200 6200R 6300 6300LS 6400 6400DW 6400LS 6600 6600E OE Ref: 20639610/31539610

VALTRA

64649 Hydraulic Transmission Filter Valtra N Series T Series OE Ref: V39122400

64724 Hydraulic Filter Valtra Valmet 6000 8000 Series OE Ref: V20639600

64798 Hydraulic Filter 6000 8000 C C1 F M N T T1 TC TCH K OE Ref: V32556300

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

25


Filters Engine Oil Filters

1460 Valmet 4 Cyl. Valtra / Valmet 00 05 15 55 65 A Series Genuine is 52746 OE Ref: 836436246 Valmet

52746 Valmet 4 Cyl. Valtra / Valmet 00 Series 05 Series 15 Series 55 Series 65 Series A Series OE Ref: 836436246 Valmet

64695 Valtra Valmet 05 15 55 6000 Series OE Ref: 836136342

54060 02 Series 03 Series 100 Series 12 Series OE Ref: 8002050

26560090 Valtra Valmet 700 900 800 500 300 400 1100 Series 155mm Long 67mm OD OE Ref: 836007806

62247 Valtra Valmet 700 900 800 500 300 400 1100 Series OE Ref: 836007806

62999 Valtra S230, S240, S260, S280 OE Ref: V836862582

64707 6000 Series OE Ref: V836136342

6978 6000 Series 8000 Series OE Ref: 836662111

52033 6000 Series 8000 Series OE Ref: 836662111

64586 Engine Oil Filter SISU Engine 6000 Series 8000 Series C M N XM T X OE Ref: V836679586

W1140/11 Oil Filter 6000 8000 C M N XM T X F T2 TC/TCH Series OE Ref: 6219784M1

H827/1N Engine Oil Filter Paper 700 900 800 500 300 400 1100 62247 has Wide Seal OE Ref: H827/1N

2654403 Engine Oil Filter 365 Perkins 130mm OE Ref: 3118119R1

26

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Axle Parts Axle Parts Ball Joint to suit

Part No. 780192 Track Rod End Ceres Outer 4WD Valmet Valtra 6000s 8000s Sige axle Renault Ceres 65 Cergos 330 340 350 OE REF: 6005009894 Rod Ø/Thread: M22 x 1.5mm Right hand

780159 OE REF: 6005009895

300068 Track Rod End for Dana axle Valtra 6000 8000 T X Series OE Ref: 31882210 Rod Ø/Thread: M22 x 1.5mm

22 mm Thread Rv 22 mm Thread R to suit 780192, 300068, 300069

300069 Track Rod End for Sige axle Valtra 00 05 15 55 6000 A M T OE Ref: 166700430707 Rod Ø/Thread: M22 x 1.5mm

Ball Joint to suit

6829

Track Rod End 6000 8000 Series OE Ref: 3764024M1

67285

3144 OE REF: 83957792 83957096

Track Rod & Ball Joint Valtra M120-M150 T120-T191 T132-T202 Series OE Ref: V36249000 V37017400

Right Hamd Thread 22 mm to suit 6829

Seals

2897 Front Axle ZF APL325 APL315 305 405 Differantial Seal Assembly Right Hand 45mm x 68mm x 10mm OE Ref: 83934222 Mod 27-04-22

Ver 7.7

64501 Front Axle Seal Differential Coupling Valmet 35mm x 98mm x 27mm OE Ref: 3665412M1

VALTRA

55557 Stub Axle Pivot Seal Valmet 6000 8000 T X Series OE Ref: 04383086

65136 Axle Seal Carraro 6000 8000 700 900 600 800 500 Series OE Ref: 82018848

M86649/10 Stub Axle Bearing 6000 8000 C M N T A T2 TC/TCH 700 900 600 800 500 300 400 200 Series OE Ref:3310930M91

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

27


Axle Parts Power Steering

65026

65134

Power Steering Cylinder 6000 8000 M XM T X TC/TCH Series OE Ref: V34054810

28

Power Steering Ram Valmet 505 605 615 705 715 805 OE Ref:VA30371310

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Cab, Sheet Metal & Electrical Cab 370mm

880mm

420mm

1050mm

285mm

1050mm

64750

Left Hand Front Glass Valtra 00 65 A Series OE Ref: 33232100

64749

Rear Glass Valmet Valtra 00 65 A Series OE Ref: 33118310

64751 is Right Hand OE Ref: 33232200

936mm

1270 mm

975 mm

622mm

925 mm

53168

67270

Rear Curved Glass Valtra N91 - N141 T151EH - T193 Hitech OE Ref: V37272300

Rear Window Glass Valtra 6000 8000 M120 130 6000 8000 M120 130 Valmet 150 X100 110 120 XM130 150 T Series OE Ref: 36841200

997mm

64755

Windscreen Valmet Valtra 00 65 A Series OE Ref: 33167000

64463

64691

Rear Window Handle Valmet Valtra N T Series OE Ref: 36791800

Left Hand Door Lock Valtra Valmet 6000 8000 A C T M Series OE Ref: 45217400 64690 is Right Hand OE Ref: 45217500

Door Handle 4435 4445 4455 Valtra 365 465 565 6000 6100 6200 6250 6300 6350 6400 6550 6600 6650 OE Ref: V45218400 67369 – Key OE Ref: V45218400

67340

67344

67341

64688

Rear View Mirror Btm Glass N4 T4 T5 Series OE Ref: ACV0759280 Mod 27-04-22

Ver 7.7

Rear View Mirror Glass Mezzo Mega Hitech A T Series OE Ref: V30581300

VALTRA

Rear View Mirror Top Glass N4 T4 T5 Series OE Ref: ACV0759270

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

29


Cab, Sheet Metal & Electrical Cab

67343

Rear View Mirror Mezzo Mega Hitech A T Series OE Ref: V33608300

64722

A85 OE Ref: 35389500

64721

A95 OE Ref: 35389600

64717

Gear Lever Panel Knob PA6 Valtra A 6000 8000 N T X S Series OE Ref: V34187000

30

Complete Mirror Top Bottom & Housing N T T5 Series OE Ref: ACV0805960

64719

64723

Bonnet Badge 6000 8000 A T Series OE Ref: 34783100

A75 OE Ref: 35389400

64821

Steering Wheel Cap 6000 8000 A T Series OE Ref: V30302840

64822

67342

Gear Lever Panel Knob PA6 Valtra 6000 8000 A T Series OE Ref: V34663800

64824

Panel Seat For Bonnet Side Panel Valtra 6000 8000 T Series OE Ref: V685720

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

64823

Panel Knob For Bonnet Side Panel Valtra 6000 8000 T Series OE Ref: V685720

VALTRA

Ver 7.7

Mod 27-04-22


Cab, Sheet Metal & Electrical Head Lights

65127

64479

Head Lamp Valtra A Series C Series M Series N Series T Series OE Ref: V34203600

Rear Lights

European Version Right Hand Dip Head Lamp Valtra Valmet 6000 - 6900 8000 - 8950 Hi A65 A75 A85 A95 T120 - T190 OE Ref: VA30260801

65128 IRE/UK Version Left Hand Dip

64480

Right Hand Head Lamp Cowl Valtra A/C/M/N/T Series OE Ref: V34594600 64481 Left Hand Cowl

Side Marker Lights

67165

65123

Rear Lamp Valtra 6000 8000 65 Series OE Ref: 31540600

Side Marker Lamp Valtra 465 - 865 6000 - 6850 8000 - 8950 Hitech OE Ref: V31540700

65153

Switch Lights / Indicator / Wipers Valtra 6000 Series T Series 8000 Series OE Ref: V33697900

Work Lights

3179

55611

Work Lamp Valtra 6000 Series 8000 Series C M N XM T S

Mod 27-04-22

Ver 7.7

VALTRA

Work Lamp H3 12V Square includes Bulb 36 in Box OE Ref: V34203300

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

31


Cab, Sheet Metal & Electrical Wireless Tracker

55782 Metatrak Wireless Tracker

NO POWER? NO PROBLEM

We have the ideal insurance approved solution. Meta Trak Pulsar is a unique, battery-powered asset protection solution. Requiring no hardwiring, it can be used to track a range of different asset types.

SPECIFICATIONS • 3 year battery life (usage dependent) replaceable • Fully waterproof (IP67) • UK & EU coverage • Transferrable between assets • Dimensions: 95mm x 42mm x 18mm

During a scheduled wake-up, your device will check for, and action, any pending commands: POSITION REQUEST Receive an update of your asset’s latest position GEO-FENCE BREACH Get alerted if the asset moves outside of an established a Geo-fence zone ACTIVATE THEFT MODE Receive the asset’s location every 60 seconds if a theft has occurred DEVICE BATTERY STATUS Get a notification if your device battery is low

32

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Cab, Sheet Metal & Electrical

Gas Struts

Note: Check newton rating of existing gas strut before ordering a replacement. Using a gas strut with a lower or higher newton rating can result in damage or glass breakage.

A

B

C

D

E

F

G

H

I

FITMENT: find the corresponding letter in the table below to identify the type of fitment and size.

(end to end)

Length

Pressure

Fitment

Compatibility

Application

OE Ref

61285

785mm

250N

A: M8 A: M8

8300 8300T 8600 8800 Series

Rear

3389556M2

52954

590mm

150N

A: M8 A: M8

8850 Series

Rear

5192009

61951

585mm

150N

A: M8 A: M8

8850 Series

Rear

3902140M1

407119

585mm

220N

A: M8 A: M8

6000 8000 N Series

Rear

81865239

64682

500mm

250N

A: M8 A: M8

600 700 800 900 Series

Rear

32995000

64440

345mm

250N

A: M8 A: M8

300 400 500 600 700 800 900 A C M N T T2 TC/TCH 6000 8000 Series

Door

V31517920

64681

280mm

100N

A: M8 A: M8

600 700 800 900 6000 8000 Series

Roof

32241400

64450

255mm

100N

8300 8300T 8600 8800 Series

Door

3104824M1

2699

220mm

220N

8300 8300T 8600 8800 8850 Series

Roof

83949895

Part Number

3943 8-18 Steel Eye for Gas Struts Suits all Gas Strut Except 300 Door

3942 Ball Joint 8-18 Steel Suits all Gas Strut Except 300 Door

Mod 27-04-22

Ver 7.7

E: 8mm H: 8mm

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

33


Cab, Sheet Metal & Electrical Switches

53627

53639

Switch Light Parking Deutz Valmet Fendt OE Ref: 01177164

Switch Lift & Lower Valmet 505 605 705 805 OE Ref: X830240096000

51772

51773

Brake Light Switch Off when pressed

Brake Light Switch Ford 3000 5000 Silver Contact (Super Q Cab) ON when pressed OE Ref: 81829234

4196

Indicator Switch with Green Light

65153

Lights / Indicator / Wipers Switch Valtra 6000 Series T Series 8000 Series OE Ref: V33697900

Electrical

41620 Voltage Regulator Valtra / Valmet 502 565 361 22amp OE Ref: 81824174

34

43203 Voltage Regulator Valtra / Valmet 500 565 OE Ref: 81718302

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Cab, Sheet Metal & Electrical Electrical

5146 Starter Zetor UR1 4 Cyl (RH FIT) Geare 5211 5245 6211 6245 7211 7245 7711 7745 3320 3340 4320 4340 5320 5340 6320 6340 OE Ref: 67115771

52480 Valmet 8000 Series 6000 Series For SISU Engine OE Ref: 87751000

52480R Starter Gear Reduction Case CS CX CVX Valmet 8000 Series 6000 Series OE Ref: 87751000

67269 Starter Motor Gear Reduction A75 A85 A95 N101 Hitec N111E Hi Tec N121 Hi Tec N141 Hi Tec N91 Hi Tec OE Ref: V83646400

52482 Alternator Valtra T Series OE Ref: 3655838M91

52481 Alternator Valtra N Series 8000 Series 6000 Series OE Ref: 3655838M91

52479 Alternator 65 AMP Valtra 6000 Series 8000 Series OE Ref: K302424

64739 Alternator 6000 8000 N X S A 800 Series 95 AMP OE Ref: 3655838M91

2666103 Heater Plug Old Type 12v Screw Type Large hole 20.8mm thread OE Ref: 1854040

2666108 Heater Plug with Push On Connection OE Ref: 81806046

65014 Sensor Hall Effect Suspension Valtra John Deere Deutz Same OE Ref: 34253500

62472 Blower Resistor 6000 N T A Series OE Ref: 3904295M2

55563 Wiring Loom Valtra N Series T Series Hi/Lo 6000 Series 8000 Series A Series OE Ref: V34945320

67268 Gear Change Solenoid Valve Valmet Valtra 8000 Series N Series T Series OE Ref: V36030010

55564 Push Button Hi/Lo Valtra N Series T Series 6000 Series 8000 Series A Series OE Ref: V63995700

65059 Temperature Sensor Pollution Control Unit T Series S Series OE Ref: V837086231

Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

35


Cab, Sheet Metal & Electrical Battery Cables 70 mm CABLE Part No.

Description

54802

Battery Cable 2000mm Negative 70mm Black

54803

Battery Cable 2000mm Positive 70mm Red

54804

Battery Cable 1300mm Negative 70mm Black

54805

Battery Cable 1300mm Positive 70mm Red

54806

Battery Cable 1100mm Positive 70mm Red

54807

Battery Cable 1100mm Negative 70mm Black

54808

Battery Cable 900mm Positive 70mm Red

54809

Battery Cable 900mm Negative 70mm Black

36

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

OE Ref.

VALTRA

Ver 7.7

Mod 27-04-22


Cab, Sheet Metal & Electrical

50 mm CABLE RED BATTERY CABLES Part No.

Description

51600

Battery Cable 450mm Positive 50mm - Red

3528

Battery Cable 900mm Positive 50mm - Red

1151

Battery Cable 1100mm Positive 50mm - Red

51604

Battery Cable 1300mm Positive 50mm - Red

51602

Battery Cable 2000mm Positive 50mm - Red

BLACK BATTERY CABLES Part No.

Description

51601

Battery Cable 450mm Negative 50mm - Black

3529

Battery Cable 900mm Negative 50mm - Black

1152

Battery Cable 1100mm Negative 50mm - Black

51605

Battery Cable 1300mm Negative 50mm - Black

51603

Battery Cable 2000mm Negative 50mm - Black

Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

37


Clutch, Transmission & PTO

Clutch Parts 11’’ Dual

67282 CLUTCH KIT Valtra 255 305 355 365 405 415 455 555 565 600 665 700 800 865 900 A65 A72 OE Ref: 82224300

1944L CLUTCH KIT

11” Dual Valtra / Valmet 700 500 502 565 OE Ref: K962949

Flywheel Bearing

53781 CLUTCH ASSEMBLY

53782 CLUTCH DISC Valmet 502 504 602 604

Valmet 502 504 602 604 280mm OE Ref: 601450

280mm 18 Splines Clutch is 53781 OE Ref: 601460

Transmission Bearing

PTO Bearing

53784

53783

A 700 900 800 600 500 300 400 200 Series OE Ref: V582970 ID 70mm OD 132.4mm Height 93.4mm

A 700 900 800 600 500 300 400 200 Series OE Ref: V582990 ID 55mm OD 92.4mm Height 50mm

12’’ / 11’’ Dual Includes LuK Bearings

6304ZZ

Bearing OE Ref: 3009397X1 ID 20mm OD 52mm WD 15mm

38

53788

Clutch Kit Valtra A 700 900 800 600 500 300 400 200 Series Organic Dual Disc 300 / 280mm - 18 Splines OE Ref: V82224610 Bearings to suit are 53784, 53783 & 6304ZZ

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Clutch, Transmission & PTO

Clutch Parts 12’’ Dual

53776

53780

CLUTCH ASSEMBLY

PTO DISC

Valmet 700MKII 900 702 703 802 310mm OE Ref: 31970500

Valmet 700 900 600 800 500 300 400 1100 1200 Series 310mm 10 Splines OE Ref: 814050

Transmission Bearing

PTO Bearing

Flywheel Bearing

53777

53778

6304ZZ

700 900 800 1100 1200 Series OE Ref: 811080 ID 70mm OD 159mm Height 53mm

Valmet 700MKII 900 702 703 802 OE Ref: 725160 ID 55mm OD 102.5mm Height 29.5mm

Bearing OE Ref: 3009397X1 ID 20mm OD 52mm WD 15mm

13’’ Organic Disc Includes LuK Bearings

53774 CLUTCH KIT

6000 8000 700 900 600 800 Series Organic Disc 330mm 22 Splines OE Ref: 303430

Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

39


Clutch, Transmission & PTO

Clutch Parts 13’’ Organic Disc Single Cover

Loose Disc

51499

53343 Clutch Disc Valmet 6100 6600 8000 8100 Organic Valtra

Clutch Assembly Valmet 6100 - 6600 Also fits 8000 - 8100 Valmet Valtra 327mm

Transmission Bearing

327mm 22 Splines OE Ref: 327729

Flywheel Bearing

60082RS

3985

Valmet Valtra 6300 6400 8050 N Series OE Ref: AL66088

Spigot Bearing Valmet 8050, 81-84, 85, 8750 OE Ref: 339780X1 ID 40mm OD 68mm WD 15mm

13’’ Bronze Disc Transmission Bearing

64486 Main Release Bearing Landini Vision Valmet 6000 8000 OE Ref: 3549201M91

40

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Clutch, Transmission & PTO

Clutch Parts 14’’ Single Cover

Loose Disc

51414

51415

Transmission Bearing

Flywheel Bearing

Clutch Assembly Valmet 8050/81-84/85/8750 350mm

60082RS

3985

Valmet Valtra 6300 6400 8050 N Series OE Ref: AL66088

64956

Clutch Damper Valtra Valmet N Series T Series 352mm 22 Splines OE Ref: 35303500

Mod 27-04-22

Clutch Disc Valmet 8050/81-84/85/8750 350mm 22 Splines

Ver 7.7

VALTRA

Spigot Bearing Valmet 8050, 81-84, 85, 8750 OE Ref: 339780X1 ID 40mm OD 68mm WD 15mm

64917

Main Clutch Disc 280mm 1290 1390 Valmet 700 565 500 OE Ref: 1539041C1

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

41


Clutch, Transmission & PTO

Clutch Parts

53789

CLUTCH ALIGNMENT KIT 32 DOLLIES & 11 SPIGOTS • • • • •

Specifications - Fast and accurate alignment of the clutch and disc. Benefits - Reduced risk of damage during tractor reassembly. Application - Full clutch alignment kit for tractor applications, covering all major pilot bearing and disc hub sizes Suitable for use with CNH, John Deere, Landini, Massey Ferguson, SDF, etc. Consists of : 32 hub dollies: 14 mm - 45 mm 11 spigots: 12 mm, 14 mm, 15 mm, 16 mm, 17 mm, 20 mm, 22 mm, 25 mm, 30 mm, 36 mm, 40 mm

64537 PTO RELEASE BEARING Valtra Valmet 500 502 565 700 ID 70mm OD 133mm Width 58.31mm OE Ref: 654310

53783 PTO RELEASE BEARING

A 700 900 600 800 500 300 400 200 Series OE Ref: V582970 ID 70mm OD 132.4mm Height 93.4mm

42

64538 CLUTCH RELEASE BEARING Valtra Valmet 500 502 565 700

ID 55mm OD 102mm Width 29mm OE Ref: 654390

53784 CLUTCH RELEASE BEARING

A 700 900 600 800 500 300 400 200 Series OE Ref: V582990 ID 55mm OD 92.4mm Height 50mm

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

3999 CLUTCH RELEASE BEARING Valmet 8050, 81-84, 85, 8750 OE Ref: 3147877R91

VALTRA

Ver 7.7

Mod 27-04-22


Clutch, Transmission & PTO

Clutch Master Cylinders

64665

Clutch Master Cylinder Valmet Valtra 6000 8000 Series OE Ref: 33031410

64596

Repair Kit Valtra Clutch Slave Cylinder 6000 8000 Series OE Ref: 30418200

Ring Gear

64477

Ring Gear Valtra 6000 Series 8000 Series OE Ref: V835328783

Mod 27-04-22

Ver 7.7

VALTRA

64478

Ring Gear 4435 4445 4455 Valtra 205 305 355 405 415 455 OE Ref: V836014127

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

43


Clutch, Transmission & PTO Transmission 64699

Transmission Gear Box Shaft 505 605 705 905 30 Teeth, 22 Spline OE Ref: 70044800

PTO

64473

PTO Plate Valtra Valmet 6000 6100 6200 6250 6250HT 6300 6350 6400 6505 6600 6750 6750HT 6800 6910 8000 8050 8050HT 8100 8150 8150HT OE Ref: V70029600

64474

PTO Plate Valtra Valmet 6000 6100 6200 6250 6250HT 6300 6350 6400 6505 6600 6750 6750HT A75 A85 A95 T120 T140 T150 T160 T170 T180 T190 6800 6910 8000 8050 8050HT 8100 8150 OE Ref: V32618700

64963

Hub PTO Drive Valtra 505 605 655 705 805 815 Diameter 168mm OE Ref: V30021810

64700

PTO Shaft Valtra 205 255 305 355 365 405 455 465 555 565 665 Lenght: 206mm 23 Teeth, 6 Spline OE Ref: 30324300

64701

PTO Shaft Valtra 505 605 615 655 705 715 755 805 855 905 Lenght: 305.5mm 21 Teeth, 6 Spline OE Ref: 80381900

64702

PTO Shaft Valtra 505 605 615 655 705 715 755 805 855 905 540/1000 RPM 6 Spline OE Ref: 70003700

44

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Brakes, Hydraulics & Linkage Brakes

64891 Brake Disc Repair Kit Valtra 6000 8000 M N T Series OE Ref: V34559900

64455 Brake Disc Valtra N Series C Series 6600 8200 8450 OE Ref: 34401400

64514 Intermediate Brake Disc Valmet 4435 4445 4455 Valtra N Series C Series 6600 8200 8450 OD 228.6mm OE Ref: 34123900

1860964 Brake Disc Wet Bronze 10 Per Tractor 8.75” 50B 42 Series Early Type 27 Splines OE Ref: 1860964M2

1860965 Steel Plate Wet Brakes 6 Per Tractor 227mm 9” 05 Series, 15 Series, 55 Series, 6000 Series, 65 Series, 8000 Series OE Ref: 1860965M1

1860963 Brake Actuator Wet Brake Valtra Valmet 05 Series, 55 Series, 6000 Series, 8000 Series OE Ref: F29630400

16779X Brake Actuator Ball 7/8” OE Ref: K963645 20063060

54871 54870 Brake Disc Set Valtra 900 1100 1102 1103 1203 Brake Disc Set Valtra 500 502 504 602 604 OE Ref: 583331 OE Ref: 820230 Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

45


Brakes, Hydraulics & Linkage

Brakes

43291

Brake Master Cylinder05 Series, 55 Series, C Series, N Series, T Series, N2 Series, Mega Series, Mezzo Series, TC Series, TF Series, TX Series OE Ref: 89509901

64741

Brake Master Cylinder Valtra 1100 1102 1103 1203 700 702 703 802 803 900 903 OE Ref: 661910

64674

Brake Slave Cylinder Valtra 6000 8000 Series OE Ref: 30181500

46

Brake Master Cylinder Valmet Valtra 700 702 703 802 803 900 903 1100 1102 1103 1203 OE Ref: 661910

64672

Brake Master Cylinder Valmet Valtra 700 700 MKII 900 OE Ref: 661911

64597

64671

Repair Kit Brake Master Cylinder Valmet Valtra 700 702 703 802 803 900 903 1100 1102 1103 1203 OE Ref: 663240

64773

Brake Master Cyinder Valtra T1 T2 T3 Series OE Ref: V36790610

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

64673

Brake Fluid Resevoir Valmet Valtra 700 6000 7000 OE Ref: 813140

VALTRA

Ver 7.7

Mod 27-04-22


Brakes, Hydraulics & Linkage

Hydraulics

53129 Hydraulic Pump Valmet 6000 6100 6200 6300 6400 6600 6800 6900 8000 8100 8200 8400 Output 23.5 + 6 cm3 Valtra

62994 Hydraulic Pump Valmet Smaller A Series 205 305 405 365 465 565 665 Valtra

65033 Quick Release Coupling Valtra Valmet N1 Series (All Models ) T1 Series (All Models) OE Ref: V37203600

67339 Hydraulic Oil Leak Off Reservoir Valtra Mezzo Hitech Mega C M N T Series OE Ref: V32457210

53135 Hydraulic Pump Valmet 6000 6100 6200 6300 640 6600 6800 8000 8100 8200 8400 8150 8450 8550 8750 25 + 11cm3 Valtra

64820 Hydraulic Pump Flange Valtra X100 X110 X120 Valmet OE Ref: VM4287090

64949 Hydraulic Pump Valve Valtra 05 Series OE Ref: 30225120

Mod 27-04-22

Ver 7.7

VALTRA

64747 Hydraulic Pump Valmet Valtra 05 55 OE Ref: 30225110

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

47


Brakes, Hydraulics & Linkage

HYDRAULIC HOSE ASSEMBLIES 1.


2.

Size

Part No.


Size

Part No.

3/8 SWIVEL

1/2 SWIVEL

2.

55428

0.5MTR 3/8 Banjo

1.

55402

0.5mtr

2.

55429

0.75mtr 3/8 Banjo

1.

55403

0.75mtr

2.

55430

1.00mtr 3/8 Banjo

1.

55405

1.25mtr

2.

55431

1.25mtr 3/8 Banjo

1.

55406

1.50mtr

1.

55384

0.5mtr

1.

55407

1.75mtr

1.

55385

0.75mtr

1.

55409

2.25mtr

1.

55386

1.00mtr

1.

55410

2.50mtr

1.

55387

1.25mtr

1.

55388

1.50mtr

1.

55389

1.75mtr

1.

55390

2.00mtr

1.

55391

2.25mtr

1.

55392

2.50mtr

1.

55393

3.00mtr

1.

55394

3.25mtr

1.

55395

3.50mtr

1.

55396

3.75mtr

1.

55397

4.00mtr

1.

55398

4.25mtr

1.

55399

4.50mtr

1.

55400

4.75mtr

1.

55401

5.00mtr

48

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Brakes, Hydraulics & Linkage

Visit our website www.qtponline.com To sign up for an account contact web@qtponline.com

www.qtponline.com

Give us a call www.qtponline.de Phone: 00 353 44 934 1638 www.qtponline.fr www.qtponline.es › Find Parts

Find what you need quickly & easily

› Order Online 24/7

Shop online 24/7 with our web shop. Get prices and check availability on over 16,000 tractor spares

› New Products

New products & special offers

› Account Information

See previous orders, statements and stock information

Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

49


Brakes, Hydraulics & Linkage

Synchronisers

65061

65063

Synchroniser Assembly Shuttle Unit Valtra 600 - 900 Series A53C - A63C A72 A73 A75 D=90

Gear 1+2 Synchroniser Assembly Valtra A53C A63C A72 A72L A73C D=68

OE Ref: 5140889

OE Ref: V39521900

65065

65062

Overdrive Synchroniser Assembly Valtra 600 - 900 Series A75 - A95 D=68

Gear 4-3 Synchroniser Assembly Valtra A85 A92 A53C A63C A72 A72L A73C D=68

OE Ref: V45354900

OE Ref: V39522100

50

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Brakes, Hydraulics & Linkage

Levelling Boxes

A B Part No.

Description

Size mm

64872

Levelling Box Assembly Valtra T133 - T163 T171 - T191 T193LS - T213V OE Ref: V37100620

A: 40mm B: 610mm

64890

Levelling Box Assembly T132D T152V T172D T182D T202D OE Ref: V37100620

A: 40mm B: 610mm

Levelling Box Assembly Valtra 6250 - 6850 Hitech N101 - N163 T120 - T193 OE Ref: ACV0200660

A: 40mm B: 610mm

64875R

Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

51


Brakes, Hydraulics & Linkage Levelling Box Parts A Image 1

A

B C

C

Part No.

Description

Size mm

64911

Shaft Levelling Box Valtra 6000 Series 8000 Series OE Ref: V32975300

Image 1 A: 250mm B: 60mm C: 37mm M30

64926

Levelling Box Shaft Top Valtra 6200 6300 6400 6800 6250 - 6850 N163 OE Ref: V33415600

Image 1 A: 240mm B: 50mm C: 40mm

64932

Levelling Box Pipe Valtra T154 T174 T194 T214 OE Ref: ACV0254230

64929

Levelling Box Shield Pipe Valtra OE Ref: ACV0254220

64933

Levelling Box Yoke End HD Valtra T154 T194 T214 T132 T162 T202D

Image 2 A: 134mm B: 35mm C: 40mm

64906

Lift Link Tube Valtra 6000 Series 8000 Series OE Ref: V32975200

Length: 275mm

52

B

Image 2

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Brakes, Hydraulics & Linkage Levelling Box Parts A

E B

Image 3

C ø

Part No.

Description

D

Size mm

64927

Levelling Box Adjusting Pipe Valtra T154 T174 T194 T214 OE Ref: ACV0254210

Length: 305mm

64931

Levelling Box Centre Tube HD Valtra T133 T163 T171 T191 T193LS T213V

Length: 285mm

64925

Lift Link Tube Valtra 6200 6300 6400 6600 6800 6250 - 6850 N163 OE Ref: V33415800

Length: 285mm

64910

Levelling Box Bottom Fork Valtra 6000 Series 8000 Series OE Ref: V32975000

Image 3 E: 146mm B: M30 C: 32mm D: 29mm

64923

Bottom Fork Valtra 6200 6300 6400 6600 6800 6900 8150 8550 OE Ref: V33415700

Image 3 A: 365mm B: M33 C: 32mm D: 29mm

80mm

120mm

107mm

70mm 99.5mm

12mm

12mm

27.5mm

12mm

70mm

64934

64908

Bottom Front Pin OE Ref: V32974900

Mod 27-04-22

Ver 7.7

Bottom Fork Lift Link Pin Valtra T154 - T194 T214 T132 T162 T202D OE Ref: V37272010

VALTRA

64909

Bottom Fork Plate 70mm x 27.5mm x 12mm OE Ref: V32975400

64924

Bottom Fork Pin Linch Pin Valtra T154 T994 T214 T132 T162 T202D OE Ref: JE9301

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

53


Brakes, Hydraulics & Linkage Lift Arms HEAVY DUTY CAT3

T132D - T182D T183V - T202D T203V

Suits 110mm Lift Cylinder

64886

64887

940mm

Left Hand Lift Arm

Right Hand Lift Arm

64885

64884

Left Hand Lift Arm

Right Hand Lift Arm

64883

64882

Left Hand Lift Arm

Right Hand Lift Arm

64879

64878

Left Hand Lift Arm

Right Hand Lift Arm

27mm 37mm 365mm

18mm

400mm

CAT2

Valtra A72 A82 A83 A92L A92H 980mm

27mm

37mm 400mm

18mm

480mm

HEAVY DUTY CAT3

T171C T171H T171LS T191H T191LS 970mm 27mm

18mm

37mm 365mm 400mm 445mm 485mm

TELESCOPIC

Valtra ME220 Series 6200 - 6800 A72 - A92 27mm

18mm

980mm 27mm

37mm 330mm 390mm 470mm

54

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22


Brakes, Hydraulics & Linkage Lift arms CAT 3

64880

Valtra N101 - N163 N82H N91H T121 - T193 940mm

27mm

18mm

Right Hand Lift Arm

37mm 350mm 390mm 440mm 480mm

CAT3

VT11 T144 - T194 T214 - T254 990mm

64889

64888

Left Hand Lift Arm

Right Hand Lift Arm

27mm 18mm 37mm 415mm 575mm

QUICK ATTACH HOOKS 64915

64913

61226

61227

Cat 2

Cat 3

Cat 3

Cat 2

QUICK ATTACH HOOK

REPAIR KITS 64914

64912

53839

Cat 2

Cat 3

Cat 2S

Mod 27-04-22

Ver 7.7

VALTRA

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

55


Brakes, Hydraulics & Linkage Stabilisers

52867 Stabiliser Valtra Valmet T Series 490mm long

OE Ref: V57119110

Leveling Boxes

53806

Levelling Box Valmet 502 504 602 604 14 3/4 Inch

53804

Levelling Box Valmet 702 703 802 803 903

53805

Levelling Box Valmet 6000 6100 6300 6400 505 605 8000 8100

Lift Rods

53414

Lift Rod Valtra N Series T Series 8050 8550

OE Ref: 30445320

56

Original equipment manufacturer names and part numbers are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment.

VALTRA

Ver 7.7

Mod 27-04-22
