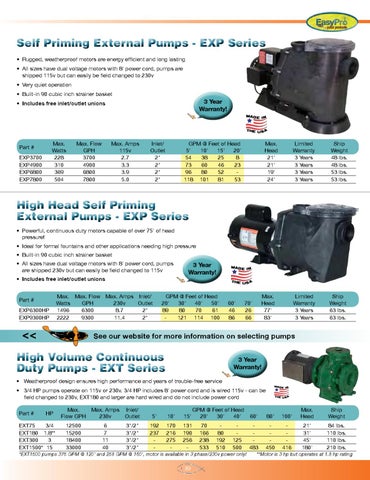

Self Priming External Pumps - EXP Series • Rugged, weatherproof motors are energy efficient and long lasting • All sizes have dual voltage motors with 8' power cord, pumps are shipped 115v but can easily be field changed to 230v • Very quiet operation • Built-in 90 cubic inch strainer basket
3 Year Warranty!
• Includes free inlet/outlet unions
Part #
EXP3700 EXP4900 EXP6800 EXP7800
Max. Watts 228 310 369 504
Max. Flow GPH 3700 4900 6800 7800
Max. Amps 115v 2.7 3.3 3.9 5.0
Inlet/ GPM @ Feet of Head Outlet 5' 10' 15' 20' 2" 54 38 25 8 2" 73 60 46 23 2" 96 80 52 - 2" 118 101 81 53
Max. Head 21' 21' 19' 24'
Limited Warranty 3 Years 3 Years 3 Years 3 Years
Ship Weight 48 lbs. 48 lbs. 53 lbs. 53 lbs.
Limited Warranty 3 Years 3 Years
Ship Weight 63 lbs. 63 lbs.
High Head Self Priming External Pumps - EXP Series • Powerful, continuous duty motors capable of over 75' of head pressure! • Ideal for formal fountains and other applications needing high pressure • Built-in 90 cubic inch strainer basket • All sizes have dual voltage motors with 8' power cord, pumps are shipped 230v but can easily be field changed to 115v • Includes free inlet/outlet unions
3 Year Warranty!
Part #
Max. Max. Flow Max. Amps Inlet/ GPM @ Feet of Head Watts GPH 230v Outlet 20' 30' 40' 50' 60' 70' EXP6300HP 1496 6300 8.7 2" 89 80 70 61 46 26 EXP9300HP 2222 9300 11.4 2" - 121 114 100 86 66
<<
Max. Head 77' 83'
See our website for more information on selecting pumps
High Volume Continuous Duty Pumps - EXT Series
3 Year Warranty!
• Weatherproof design ensures high performance and years of trouble-free service • 3/4 HP pumps operate on 115v or 230v. 3/4 HP includes 8' power cord and is wired 115v - can be field changed to 230v, EXT180 and larger are hard wired and do not include power cord Part # HP EXT75 3/4 EXT180 1.8** EXT300 3 EXT1500* 15
Max. Max. Amps Inlet/ GPM @ Feet of Head Flow GPH 230v Outlet 5' 10' 15' 20' 30' 40' 60' 80' 100' 12500 15200 18400 33000
6 7 11 40
3"/2" 3"/2" 3"/2" 3"/2"
192 237 - -
170 216 275 -
131 190 256 -
70 166 238 533
- 80 192 510
- - 125 500
- - - 483
- - - 450
- - - 416
Max. Head
Ship Weight
21' 31' 45' 180'
84 lbs. 110 lbs. 110 lbs. 210 lbs.
*EXT1500 pumps 375 GPM @ 120' and 258 GPM @ 160', motor is available in 3 phase/230v power only! **Motor is 3 hp but operates at 1.8 hp rating
