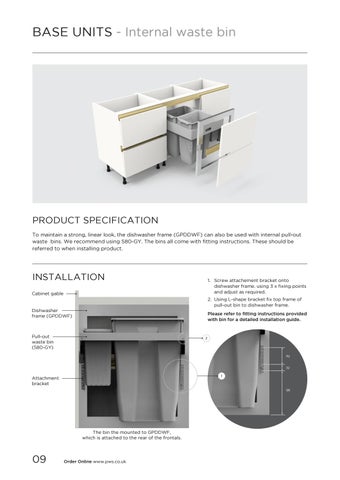

BASE UNITS - Internal waste bin
PRODUCT SPECIFICATION To maintain a strong, linear look, the dishwasher frame (GPDDWF) can also be used with internal pull-out waste bins. We recommend using 580-GY. The bins all come with fitting instructions. These should be referred to when installing product.
INSTALLATION
1. Screw attachement bracket onto dishwasher frame. using 3 x fixing points and adjust as required.
Cabinet gable
2. Using L-shape bracket fix top frame of pull-out bin to dishwasher frame. Dishwasher frame (GPDDWF)
Please refer to fitting instructions provided with bin for a detailed installation guide.
Pull-out waste bin (580-GY)
2
112
32
1
Attachment bracket
191
The bin the mounted to GPDDWF, which is attached to the rear of the frontals.
