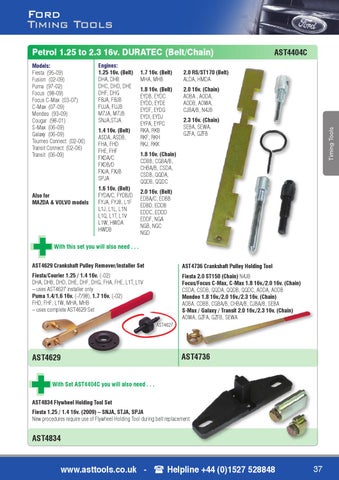

Ford Tools - FORD Timing Timing Tools Petrol 1.25 to 2.3 16v. DURATEC (Belt/Chain)
Also for MAZDA & VOLVO models
Engines: 1.25 16v. (Belt) DHA, DHB DHC, DHD, DHE DHF, DHG F8JA, F8JB FUJA, FUJB M7JA, M7JB SNJA,STJA 1.4 16v. (Belt) ASDA, ASDB, FHA, FHD FHE, FHF FXDA/C FXDB/D FXJA, FXJB SPJA 1.6 16v. (Belt) FYDA/C, FYDB/D FYJA, FYJB, L1F L1J, L1L, L1N L1Q, L1T, L1V L1W, HWDA HWDB
1.7 16v. (Belt) MHA, MHB
2.0 RS/ST170 (Belt) ALDA, HMDA
1.8 16v. (Belt) EYDB, EYDC EYDD, EYDE EYDF, EYDG EYDI, EYDJ EYPA, EYPC RKA, RKB RKF, RKH RKJ, RKK
2.0 16v. (Chain) AOBA , AODA, AODB, AOWA, CJBA/B, N4JB 2.3 16v. (Chain) SEBA, SEWA, GZFA, GZFB
Timing Tools
Models: Fiesta (95-09) Fusion (02-09) Puma (97-02) Focus (98-09) Focus C-Max (03-07) C-Max (07-09) Mondeo (93-09) Cougar (98-01) S-Max (06-09) Galaxy (06-09) Tourneo Connect (02-06) Transit Connect (02-06) Transit (06-09)
AST4404C
1.8 16v. (Chain) CDBB, CGBA/B, CHBA/B, CSDA, CSDB, QQDA, QQDB, QQDC 2.0 16v. (Belt) EDBA/C, EDBB EDBD, EDDB EDDC, EDDD EDDF, NGA NGB, NGC NGD
With this set you will also need . . . AST4629 Crankshaft Pulley Remover/Installer Set
AST4736 Crankshaft Pulley Holding Tool
Fiesta/Courier 1.25 / 1.4 16v. (-02) DHA, DHB, DHD, DHE, DHF, DHG, FHA, FHE, L1T, L1V – uses AST4627 installer only Puma 1.4/1.6 16v. (-7/98), 1.7 16v. (-02) FHD, FHF, L1W, MHA, MHB – uses complete AST4629 Set
Fiesta 2.0 ST150 (Chain) N4JB Focus/Focus C-Max, C-Max 1.8 16v./2.0 16v. (Chain) CSDA, CSDB, QQDA, QQDB, QQDC, AODA, AODB Mondeo 1.8 16v./2.0 16v./2.3 16v. (Chain) AOBA, CDBB, CGBA/B, CHBA/B, CJBA/B, SEBA S-Max / Galaxy / Transit 2.0 16v./2.3 16v. (Chain) AOWA, GZFA, GZFB, SEWA AST4627
AST4736
AST4629 With Set AST4404C you will also need . . . AST4834 Flywheel Holding Tool Set
Fiesta 1.25 / 1.4 16v. (2009) – SNJA, STJA, SPJA New procedures require use of Flywheel Holding Tool during belt replacement
AST4834
