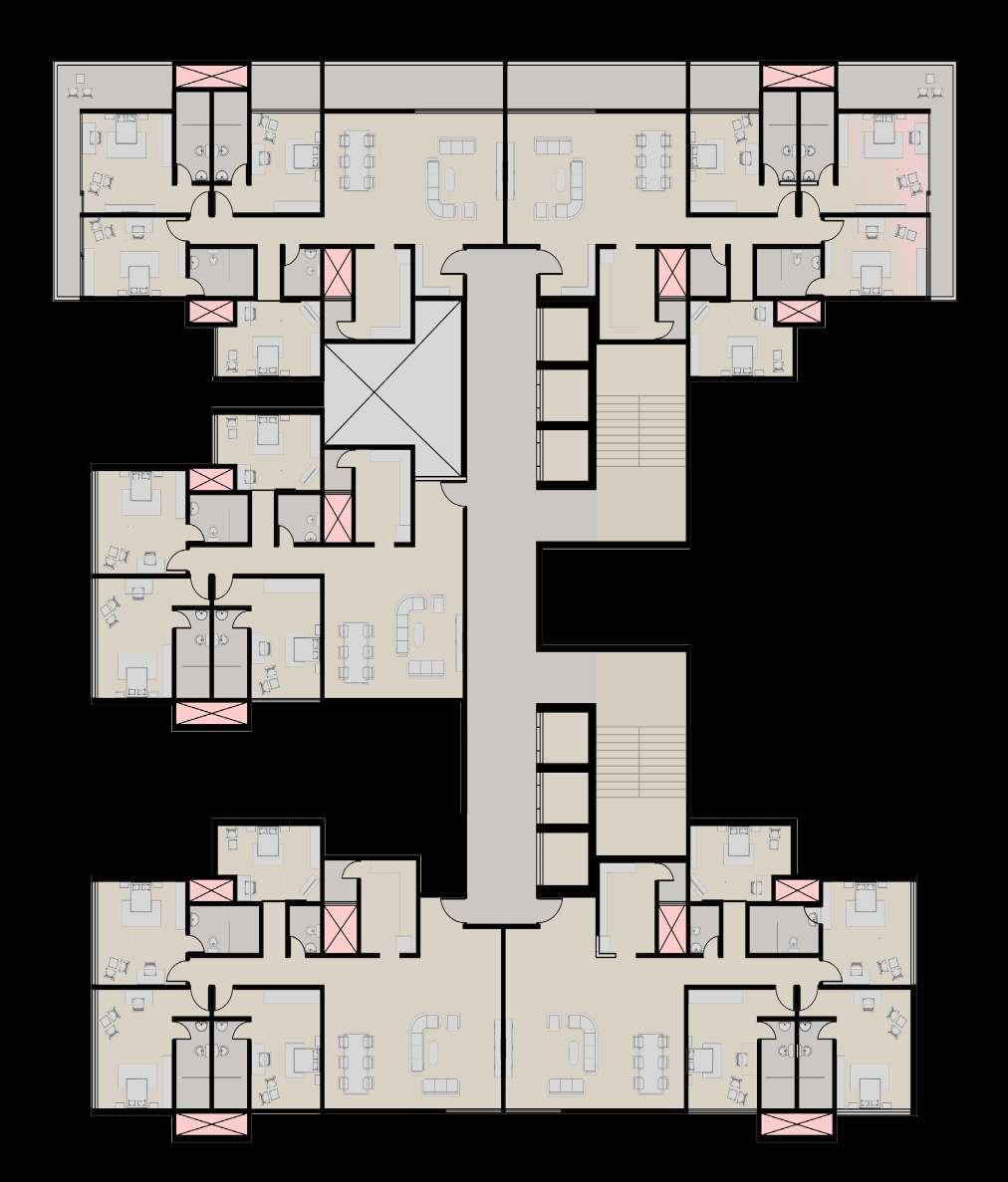

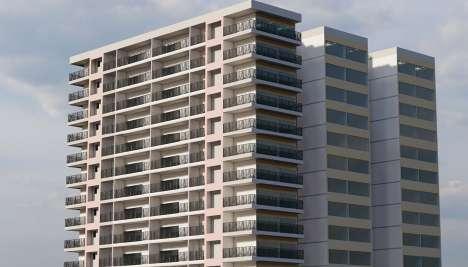

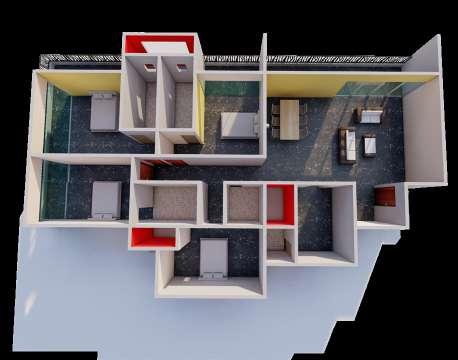

AjmeraRedevelopment Housing Society

SITE LOCATION- KOREGAON PARK, PUNE

SITE AREA- 6600 sq.m

Design Brief

Demand for Residential and Commercial units has been on rise with the increase in the population. In most of the Indian Urban areas, due to lack of availability of land in prime areas, making new residential communities is a big challenge. There are many housing societies in such cities which are in bad structural conditions and have reached the end of their construction lifIespan. Therefore redevelopment of such projects becomes an opportunity in the cur rent context.

Acadmic Project 7th semester Typology Redevelopment Housing Typology + Commercial

Aim

,Park

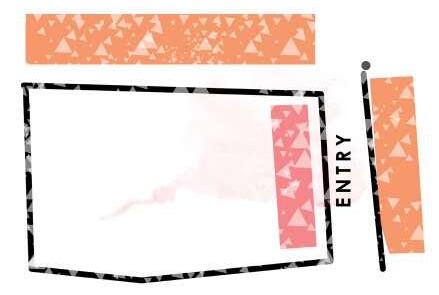

Site is surrounded by commercial C and G-l structures by two sides.

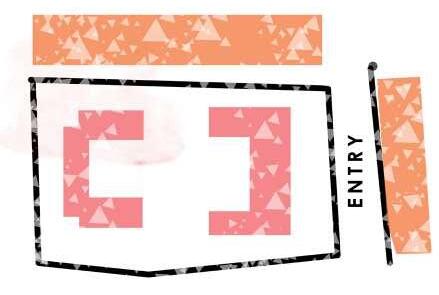

Placing the commercial area at the front side of the site to segregates the public and private areas

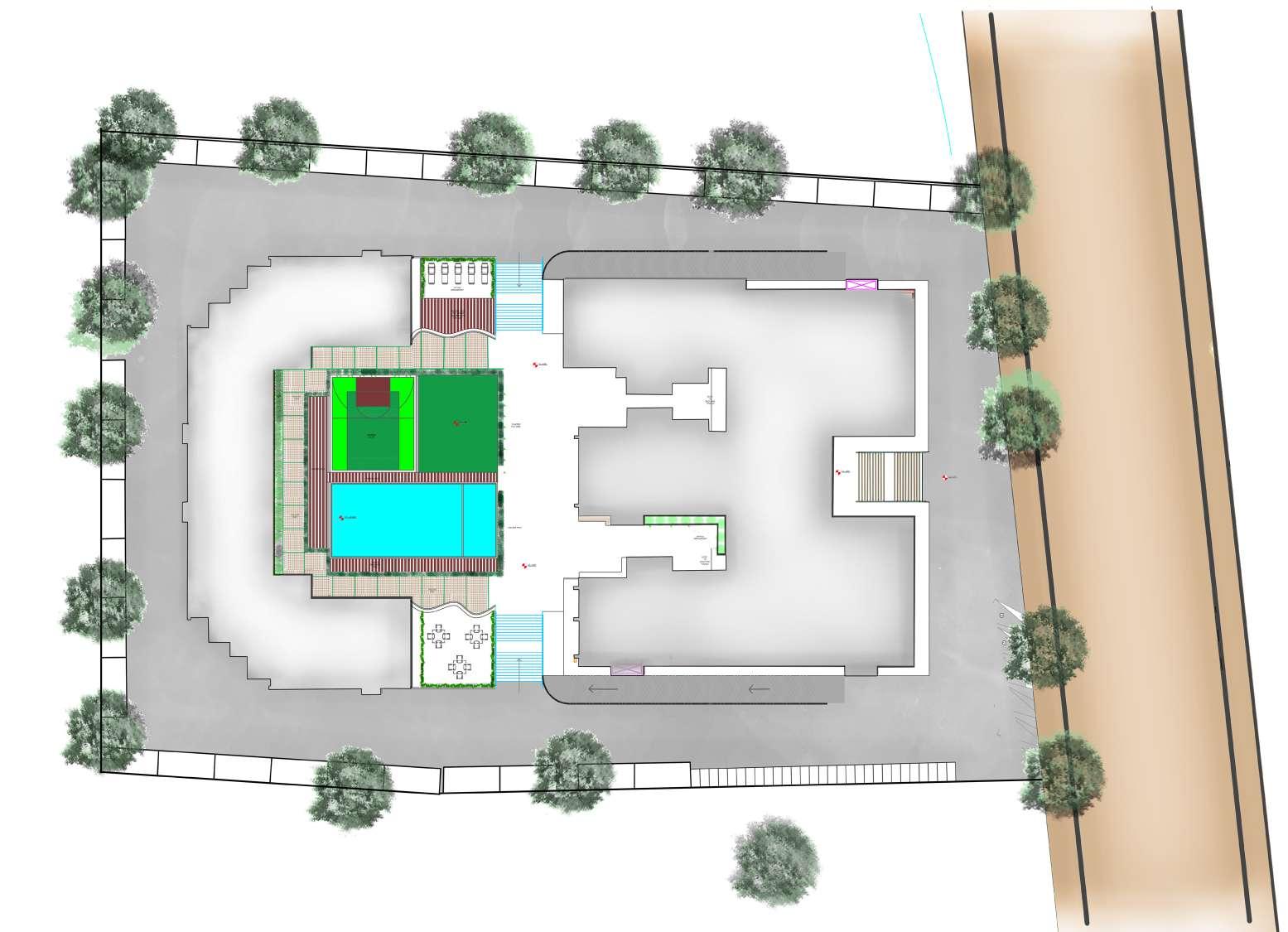

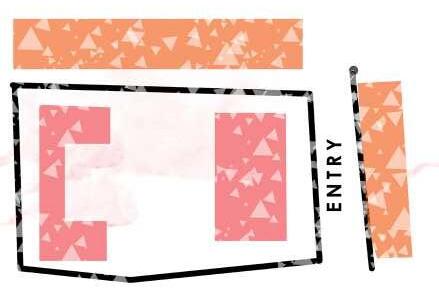

Placing the buildings on north west side which creates central open space secluded from public areas and achieves

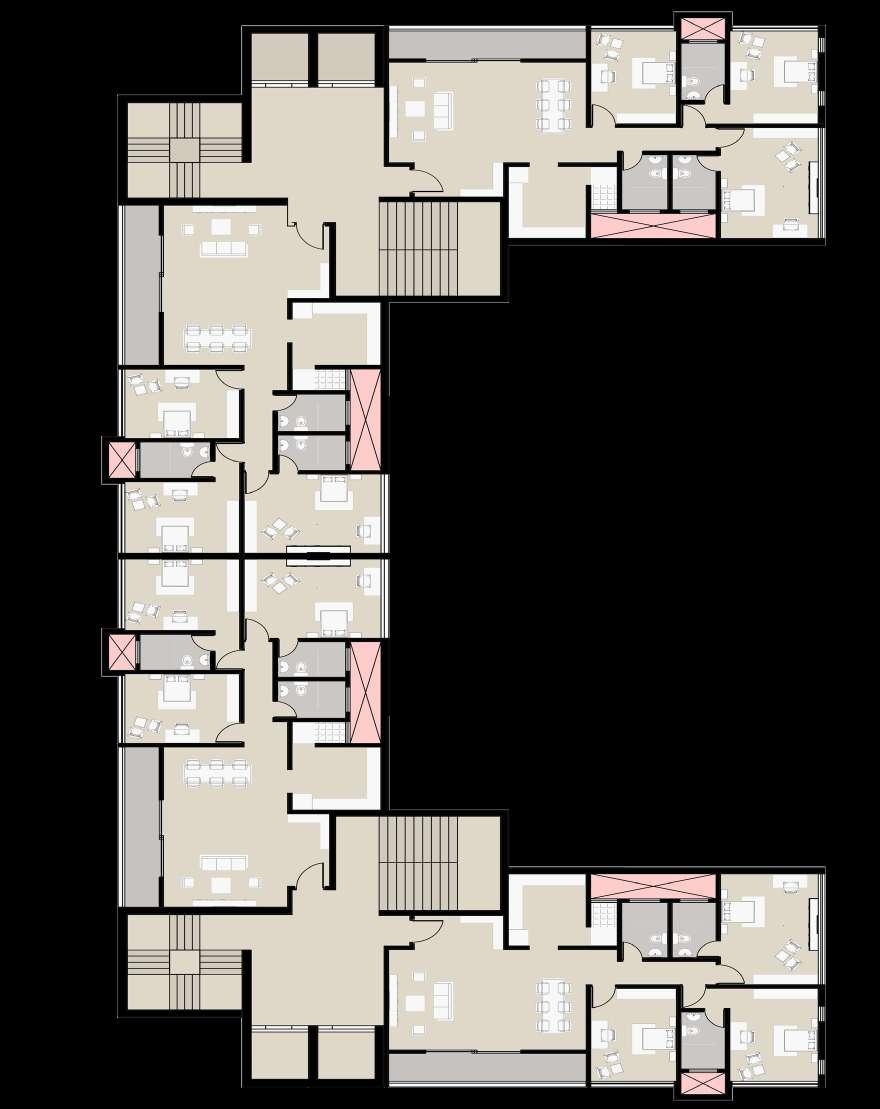

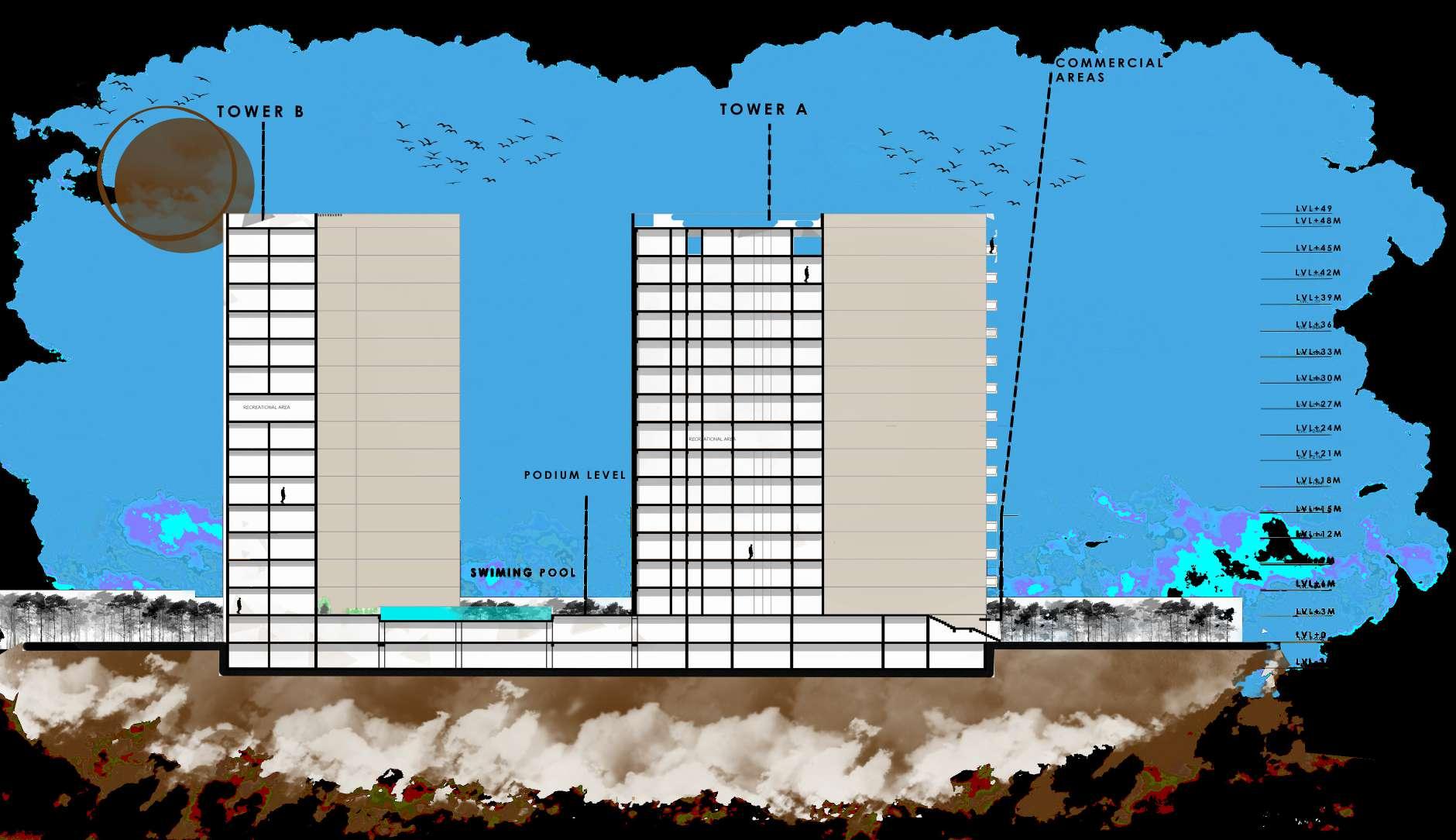

Segregating the buildings according to the present typology and designing a podium at 6.4 m level

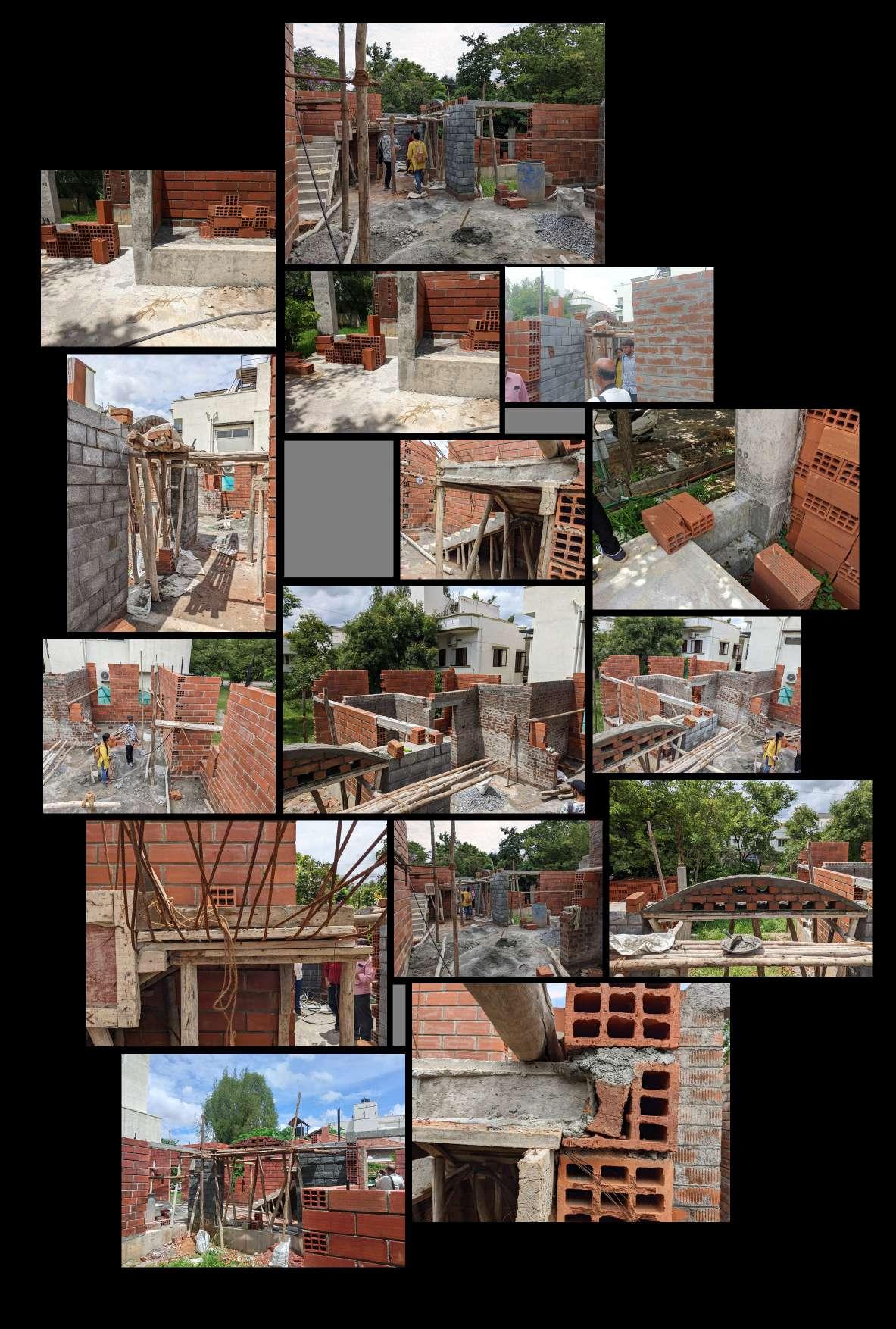

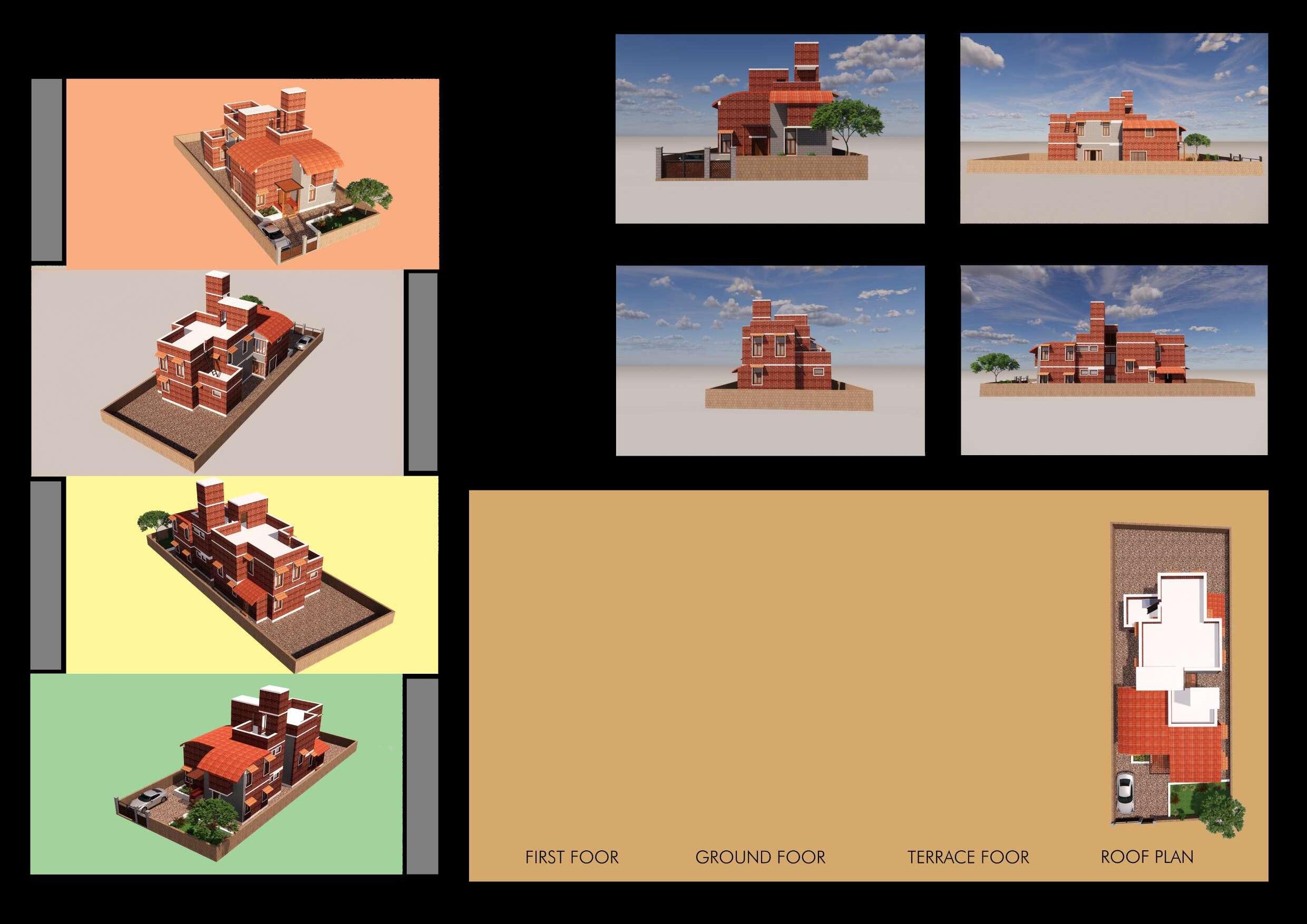

DIFFERENT EXICUTION DRAWINGS & WORKING DRAWINGS

DIFFERENT EXICUTION DRAWINGS & WORKING DRAWINGS

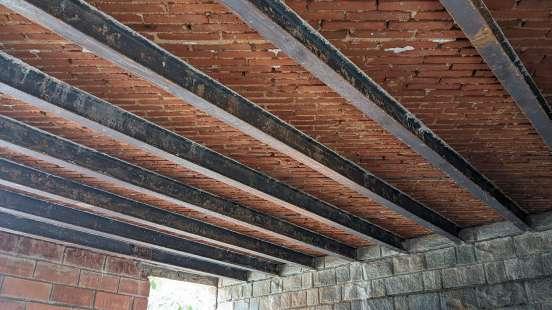

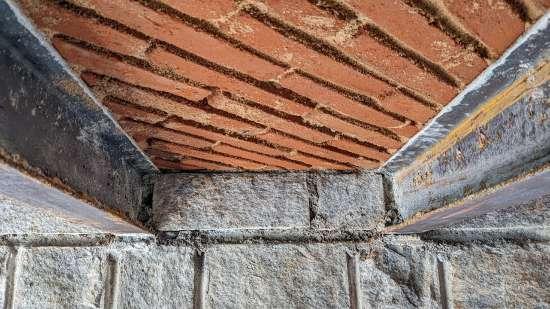

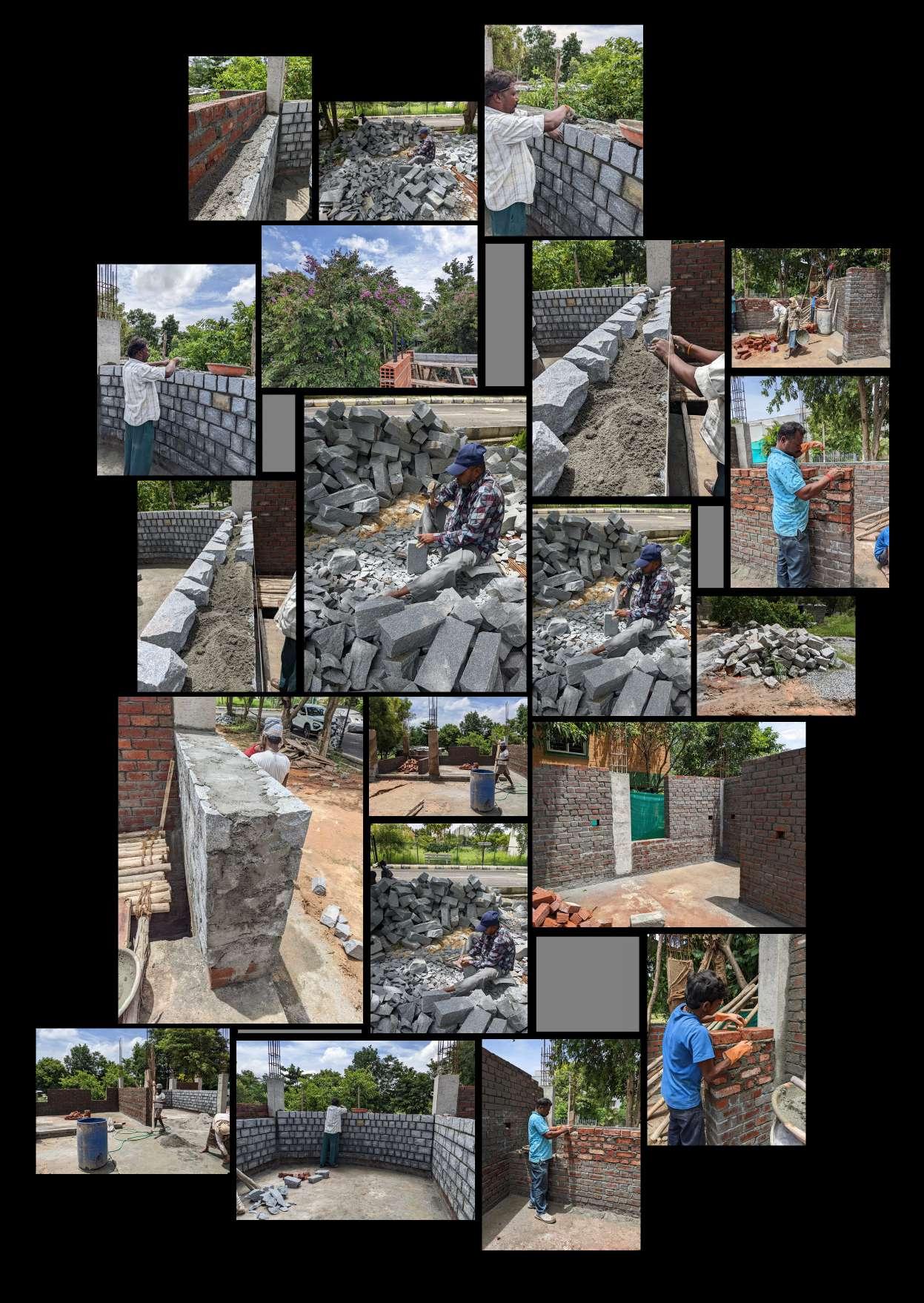

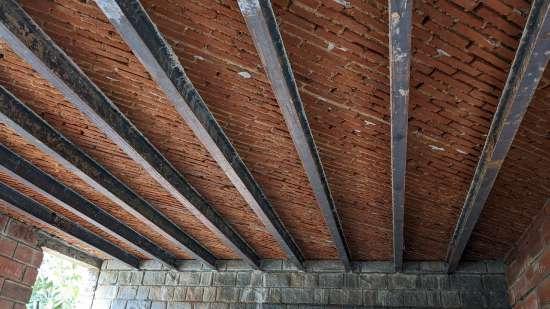

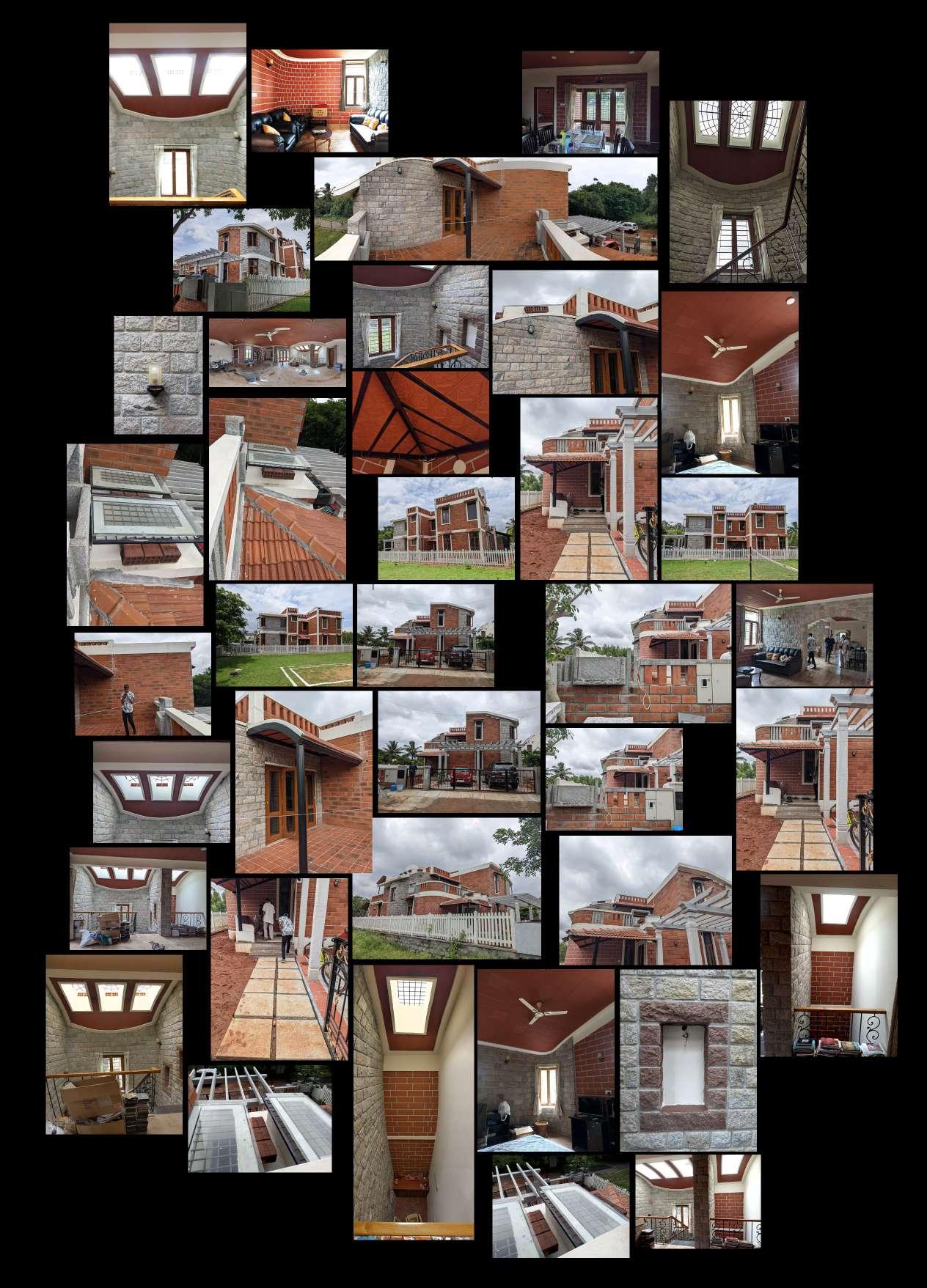

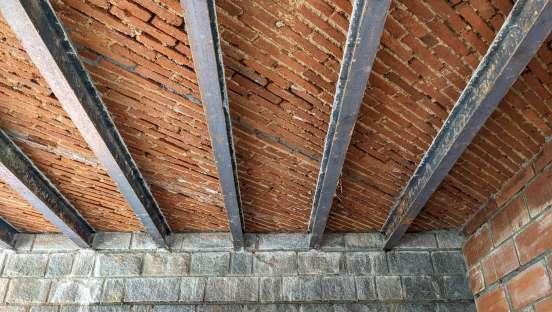

Documentation Work Of Madrass Terrace

STAGE 1

STAGE 2

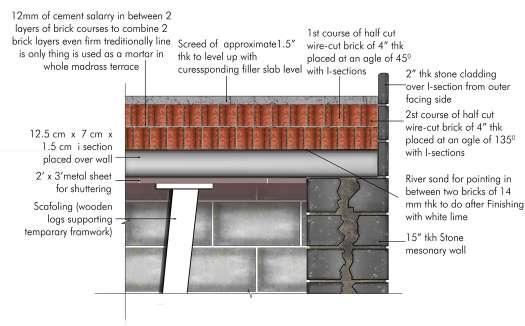

DETAIL SECTION BETWEEN OUTER STONE WALL AND MADRASS TERRACE

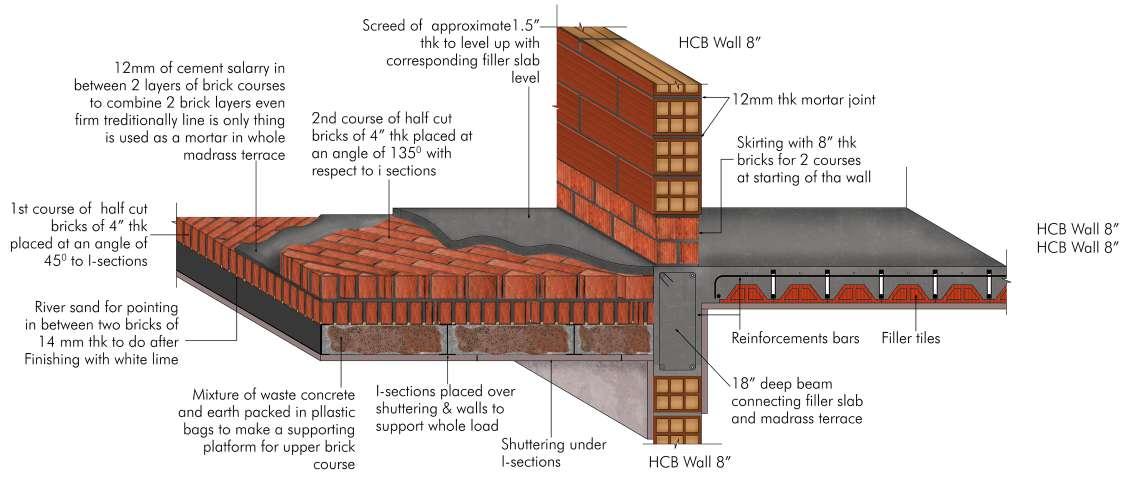

DEATILED IN AND AFTER PROCESS OF CASTING MADRASS TERRACE

Flora in

Fauna temporarily on site for feeding purposes

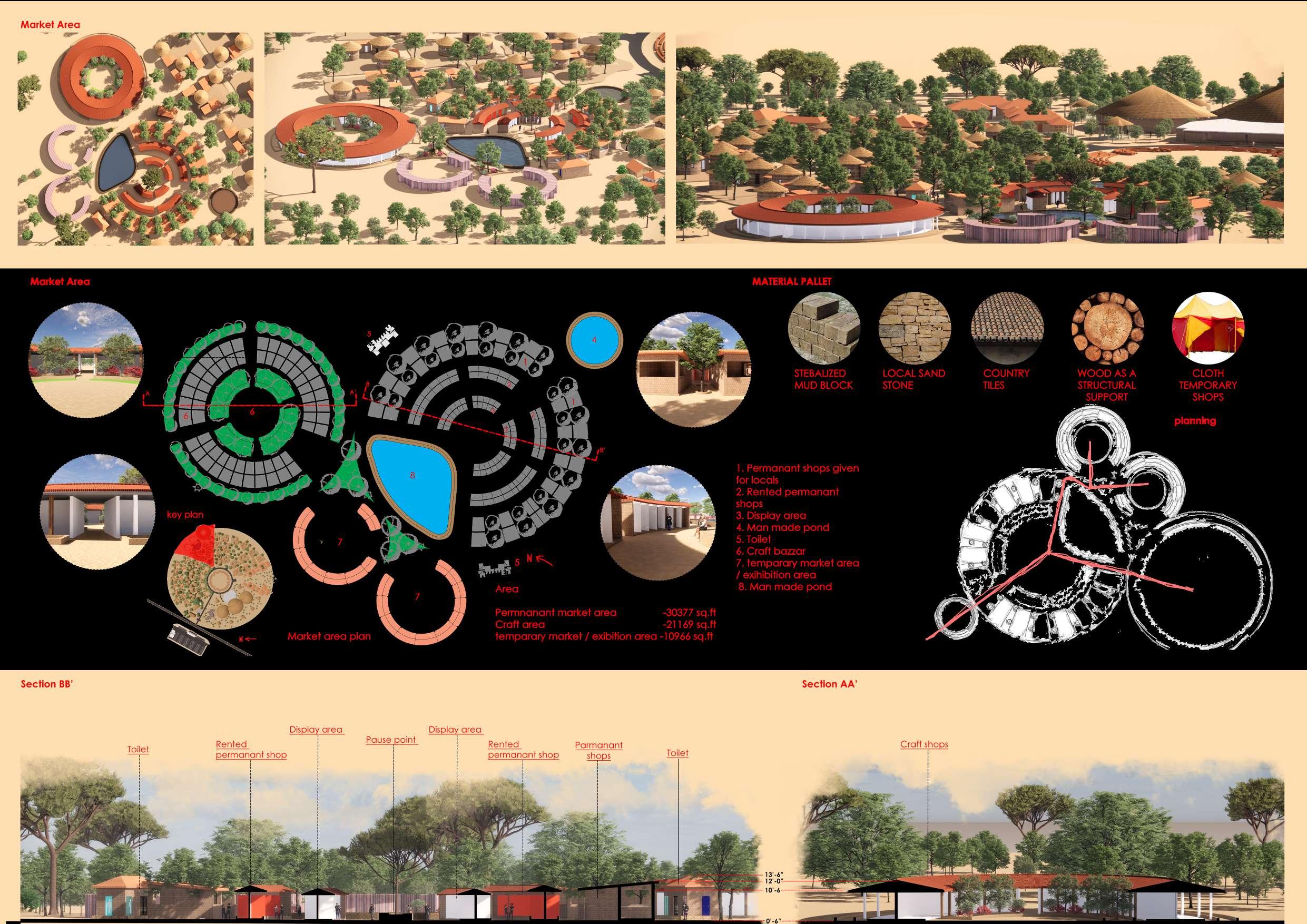

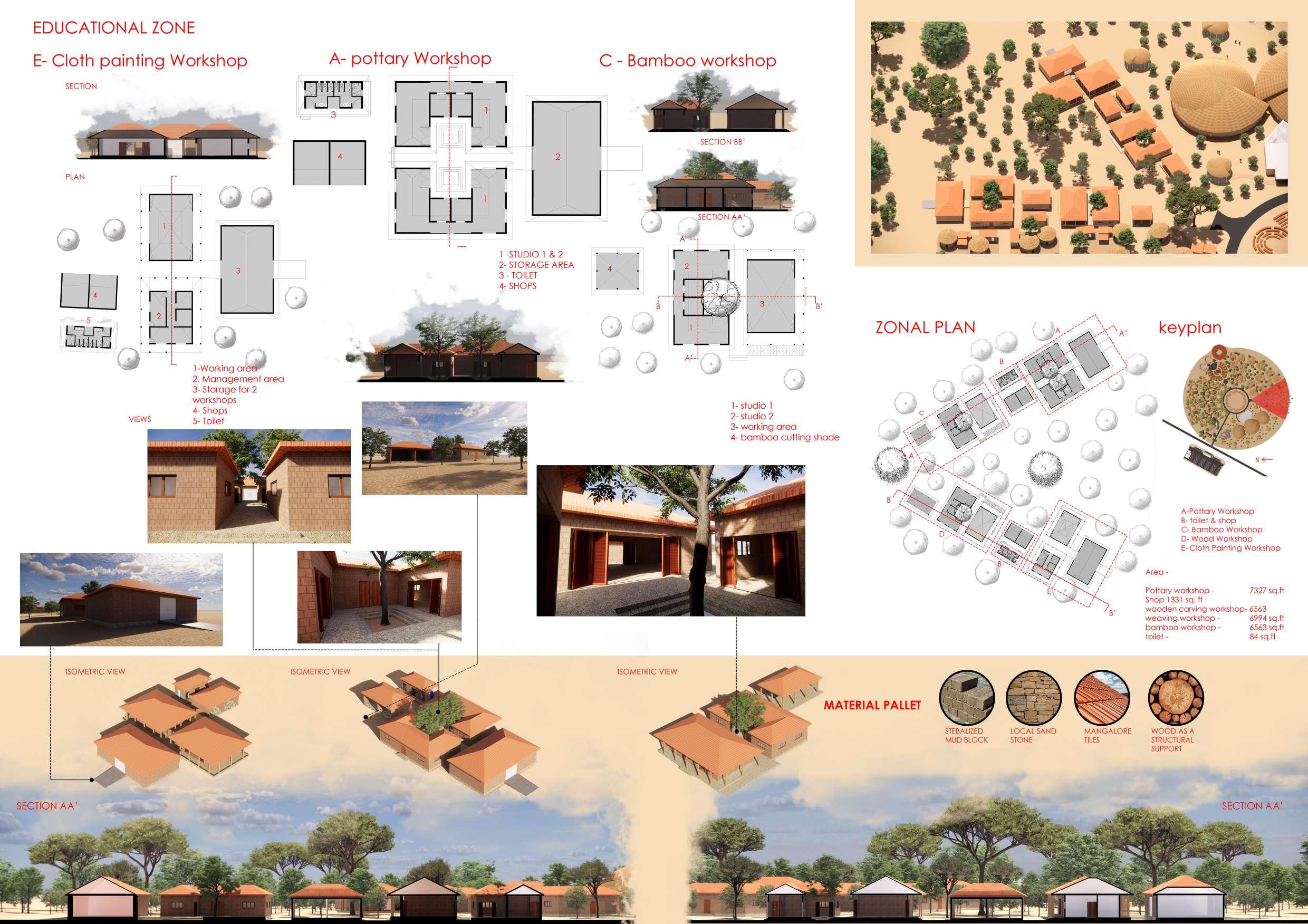

WORKSHOPS

Statistics about surrounding village “Goriwali”

SITE OBSERVATIONS -

* No any kind of elevations on the site

*Soil is rich with silt and white which is good for earth construction

*Many fauna are on the grass over this forest

* Mostly cows, buffalo, goat, sheep, camels these are animals are available around the site peripherals

*Majority of forest is of Ber tree, Neem tree, Almond tree, babul tree.

* Water is supplied by gov from nearby Narmada river for 2 hrs daily.

*Cost of a brick is around 45 rs on site with all transporting charges And a bag of cement cost about 480 rs which makes concrete houses much more costly
