Architectural Internship Portfolio 2022-23

II NASADEEYAII

Architecture & Conservation

AR. ARCHANA DESHMUKH IS A PRACTICING CONSERVATION ARCHITECT BASED IN PUNE, MAHARASHTRA. SHE HAS BEEN IN THE FIELD FOR MORE THAN 15 YEARS AND HAS WORKED IN RAJASTHAN, MAHARASHTRA AND GUJARAT ON VARIOUS ARCHITECTURAL CONSERVATION PROJECTS, ALSO RELATED FORTS AND FORTIFIED HERITAGE. UNDER HER FIRM II NASADEEYA II ARCHITECTURE & CONSERVATION; THEIR EXPERTISE INCLUDE CONSERVATION AND RESTORATION WORKS WITH VARIOUS GOVERNMENTAL AND NON GOVT. ORGANIZATIONS. SUCH PROJECTS INCLUDE RESTORATION, CONSERVATION, ADAPTIVE REUSE, HISTORICAL INTERIORS, VERNACULAR HOUSES, PALACES, OLD TEMPLES, TEMPLE SHIKHAR'S, HERITAGE FURNITURE AND INTERIORS ETC. OF HISTORIC STRUCTURES FROM VARIOUS ERA IN HISTORY. IN FEBRUARY 2017 SHE ORGANIZED A TOUR FOR FORTRESS GROUP, CENTRAL EUROPEAN ASSOCIATION FOR FORTIFIED HERITAGE, TO STUDY FORTS AND FORTIFICATIONS OF COASTAL AND WESTERN MAHARASHTRA WITH SUPPORT OF NSC FORT ICOMOS INDIA, ALSO ORGANIZED A SEMINAR IN COLLABORATION WITH MTDC, ASI AND STATE ARCHAEOLOGY ALONG WITH VARIOUS NGO'S WORKING ON FORTS IN MAHARASHTRA.

AR. ARCHANA DESHMUKH

• DIRECTOR II NASADEEYA II ARCHITECTURE & CONSERVATION.

• EMPANELLED CONSERVATION ARCHITECT FOR DIRECTORATE OF ARCHAEOLOGY AND MUSEUMS, MAHARASHTRA STATE.

• MEMBER, ICOMOS INDIA.

• COORDINATOR NSC FORT, ICOMOS INDIA.

• LIFE MEMBER, INTACH PUNE CHAPTER.

❖ THE BHAVAN IS DEDICATED TO THE MEMORY OF THE GREAT REFORMER AND A PIONEER OF GANESH FESTIVAL IN PUBLIC DOMAIN SHRIMANT BHAUSAHEB RANGARI (BHAU LAXMAN JAVALE).

❖ THIS BHAVAN BUILT IN THE 1800’S WAS THE SITE WHERE PLANS FOR THE FREEDOM MOVEMENT WERE CONCEPTUALIZED BY LEADERS SUCH AS LOKMANYA TILAK, BALWANT RAMCHANDRA NATU, AND NARSINHA CHINTAMANI KELKAR ALONG WITH BHAUSAHEB RANGARI

❖ BHAUSAHEB IDEATED THE SARVAJANIK GANESHOTSAV IN 1892, MAKING THE GANAPATHI PANDAL, A PLACE OF MEETING FOR THE INDIANS, WHICH OTHERWISE WAS NOT POSSIBLE WITH THE BRITISH OFFICERS POLICING AROUND ROUND THE CLOCK

SHRIMANT BHAUSAHEB RANGARI

SHRIMANT BHAUSAHEB RANGARI GANAPATI

LEARNING TO MIX AND APPLY A COAT OF GOA SAND

SHRIMANT BHAUSAHEB RANGARI BHAVAN

THE GRAND OPENING CEREMONY BY POLICE COMMISIONER OF PUNE AMITABH GUPTA ON 17TH AUGUST, 2022

BEFORE AFTER

LIME BUFFING- LEVEL TUBE

LEARNING TECHNIQUES

LEARNING TO BE A MUSEOLOGIST HERE!

VISIT BY ARCHITECTS, ENGINEERS AND SURVEYORS ASSOCIATION (AESA) PUNE, ON 11TH DECEMBER 2022

WINNING AESA BEHERAY RATHI AWARD 2023 FOR HOLISTIC CONSERVATION OF SHRIMANT BHAUSHEB RANGARI BHAVAN

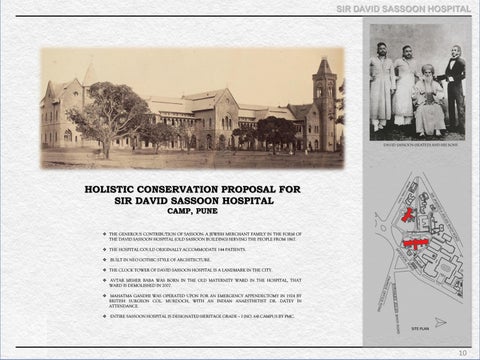

HOLISTIC CONSERVATION PROPOSAL FOR SIR DAVID SASSOON HOSPITAL CAMP, PUNE

❖ THE GENEROUS CONTRIBUTION OF SASSOON A JEWISH MERCHANT FAMILY IN THE FORM OF THE DAVID SASSOON HOSPITAL (OLD SASSOON BUILDING) SERVING THE PEOPLE FROM 1867

❖ THE HOSPITAL COULD ORIGINALLY ACCOMMODATE 144 PATIENTS.

❖ BUILT IN NEO GOTHIC STYLE OF ARCHITECTURE

❖ THE CLOCK TOWER OF DAVID SASSOON HOSPITAL IS A LANDMARK IN THE CITY

❖ AVTAR MEHER BABA WAS BORN IN THE OLD MATERNITY WARD IN THE HOSPITAL, THAT WARD IS DEMOLISHED IN 2007.

❖ MAHATMA GANDHI WAS OPERATED UPON FOR AN EMERGENCY APPENDECTOMY IN 1924 BY BRITISH SURGEON COL. MURDOCH, WITH AN INDIAN ANAESTHETIST DR. DATEY IN ATTENDANCE

❖ ENTIRE SASSOON HOSPITAL IS DESIGNATED HERITAGE GRADE – (NO 64 CAMPUS BY PMC.

DAVID SASSOON (SEATED) AND HIS SONS

DAVID SASSOON HOSPITAL WEST SIDE ELEVATION WITH PLAN PRATKSHA DALVI)

ISOMETRIC VIEW OF DAVID SASSOON HOSPTAL (SOUTH – WEST SIDE)

TOP VIEW OF ROOF

EXTERNAL GOTHIC ARCHITECTURE FREATURES GABLE ROOF, ROSE WINDOW, FACSIA BOARD

ARCADES AND COLUMNS ON EXTERNAL FACDE

GOTHIC ARCHES WITH MASCAROON FACES ON EITHER SIDE

DAVID SASSOON HOSPITAL COLUMN DESIGN DETAILINGS

COULMN ELEVATION WITH DIMENSIONS ON FIRST FLOOR

ELEVATIONAL VIEW OF COLUMNS AND ARCADE COLUMNS WITH MASCAROON FACES

COLUMNS ON BELFRY TOWER

COUMNS ON FIRST FLOOR EXISTING COLUMNS PAINTED BLUE EXISTING COLUMNSSEEN ON BELFRY TOWER

COLUMN WITH ACANTHUS LEAVES AND HORSHOE MAGNET ON 1ST FLOOR

COLUMN WITH ORNAMENTAL LEAVES ON 1ST FLOOR

COLUMN WITH LOTUS PETALS ON 1ST FLOOR

COLUMN WITH LOTUS PETALS AND ACANTHUS LEAVES ON BELFRY TOWER

COLUMN WITH ORNAMENTAL DESIGN AND ACANTHUS LEAVES ON BELFRY TOWER

COLUMN WITH ACANTHUS LEAVES ON BELFRY TOWER

DAVID SASSOON HOSPITAL DETAILS OF PROPOSED CHAJJA DESIGN

DAVID SASSOON HOSPITAL DETAILS OF PROPOSED FINIALS ON ROOF

EXISTING CHAJJA AND FASCIA BOARD

PROPOSED CHAJJA AND FASCIA BOARD

SKETCHING AND DEAILING OF CHAJJA AND FASCIA BOARD VIEW OF CHAJJA AND FASCIA BOARD ON WEST FACADE

FINIAL WITH ACANTHUS LEAVES FINIAL WITH ACANTHUS FLOWERS

CROWN FINIAL ON BELFRY TOWER FINIAL ON ROOF ENDS

VIEW OF FINIAL SEEN FROM TOP

VIEW OF FINIAL WITH ROOF CRESTINGS

DAVID SASSOON HOSPITAL DETAILS OF PROPOSED ROOF CRESTING, ROMAN CLOCK AND ROSE WINDOW

PROPOSED ROOF CRESTING

ROMAN CLOCK

ROSE WINDOW

DETAIL OF ROOF CRESTING

3D VISUALIZATION OF ROOF CRESTING

VIEW OF ROOF CRESTING WITH FINIALS

EXISTING CONDITION OF ROMAN CLOCK ON BELFRY

3D VISUALIZATION OF ROMAN CLOCK

VIEW OF ROMAN CLOCK ON BELFRY

EXISTING CONDITION OF ROSE WINDOW

3D VISUALIZATION OF ROSE WINDOW

VIEW OF ROSE WINDOW ON WEST FACADE

DAVID SASSOON HOSPITAL DETAILS PROPOSED INTERIORS FOR LIBRARY

GROUND FLOOR PLAN (AR. DEVYANI KUMAVAT)

FIRST FLOOR PLAN (AR. DEVYANI KUMAVAT)

MORNING VIEW OF PASSAGE

MORNING VIEW OF PASSAGE

AFTERNOON VIEW OF PASSAGE

VIEW OF LIBRARIAN’S OFFICE

VIEW OF CONFERENCE ROOMS

VIEW OF ENTRANCE LOBBY

MORNING VIEW OF LIBRARY

MORNING VIEW OF LIBRARY

EVENING VIEW OF LIBRARY

VIEW OF WASHROOM

VIEW OF WASHROOM

VIEW OF WASHROOM

HOLISTIC CONSERVATION PROPOSAL FOR SIR JACOB SASSOON HOSPITAL

❖ THE GENEROUS CONTRIBUTION OF SASSOON A JEWISH MERCHANT FAMILY IN THE FORM OF THE DAVID SASSOON HOSPITAL (OLD SASSOON BUILDING) SERVING THE PEOPLE FROM 1867 AND THE JACOB SASSOON HOSPITAL CONSTRUCTED BY HIS NEPHEW IN 1905 06 TO RELIEVE THE CONGESTION ON THE DAVID SASSOON HOSPITAL.

❖ JACOB SASSOON HOSPITAL CONSTRUCTED (FOR 100 BEDS) BY HIS NEPHEW IN 1905 06 1909) TO RELIEVE THE CONGESTION ON THE DAVID SASSOON HOSPITAL • BUILT IN NEO GOTHIC STYLE OF ARCHITECTURE.

❖ ENTIRE SASSOON HOSPITAL IS DESIGNATED HERITAGE GRADE – (NO 64 CAMPUS BY PMC

SIR JACOB ELIAS SASSON (1844 – 1916)

SOUTH SIDE WALL

WEST SIDE WALL

EAST SIDE WALL

NORTH SIDE WALL

SITE VISITS

URBAN SKETCHERS, PUNE WORKSHOP AT DAVID AND JACOB SASSOON HOSPITAL ON 24TH AND 31ST JULY 2022

TEAM NASADEEYA PRESENTING SHEETS ABOUT DAVID SASSOON

DISPLAY BY URBAN SKETCHERS

URBAN SKETCHERS AT JACOB SASSOON FELICITATION BY URBAN SKETHERS

WATERCOLUR PAINTING BY A BUDDING URBAN SKETCHER

URBAN SKETCHERS AT JACOB SASSOON

SITE VISIT WITH DOCTORS AT JACOB SASSOON

EXPLAINING PLANS TO DOCTORS AT JACOB SASSOON

ARRIVAL OF MATERIAL ON SITE

LEARNING TO MEASURE GUAGE OF SHEETS AT DAVID SASSOON HOSPITAL

S BALAN GROUP IS A SUCCESSFUL CONSTRUCTION AND REAL ESTATE COMPANY IN PUNE THAT HAS EXPANDED INTO IT, CONSULTANCY AND OTHER SECTORS IN RECENT YEARS.

PROPOSAL FOR INTERIORS OF S. BALAN GROUP OFFICE, SAI CHAMBERS WAKDEWADI, PUNE

THE OFFICE OF S BALAN GROUP IN SAI CHAMBERS COMMERCIAL BUILDING WITH A CARPET AREA OF 2950 SQ.FT (274.06 SQ.M) IS TO BE RENOVATED WITH TRADITIONAL INTERIORS SIMILAR TO BHAUSAHEB RANGARI BHAVAN

VIEW OF CONFERENCE ROOM 1

VIEW OF CONFERENCE ROOM 1

VIEW OF CONFERENCE ROOM 2

VIEW OF MAIN ENTRANCE DOOR

VIEW OF EXISTING MAIN DOOR

PROPOSED VIEWS FOR WASHROOM

PROPOSED VIEWS FOR VIP LOUNGE ROOM

WOODEN CENTRE TABLE FOR VIP ROOM

DOUBLE LEAFED DOOR

SINGLE LEAFED DOOR

STAINED GLASS WOODEN DOORS

PROPOSED TERRACE VIEWS

EXISTING TERRACE VIEWS

PROPOSED PLAN

PROPOSED VIEWS FOR DINING AND PANTRY

HOLISTIC CONSERVATION PROPOSAL FOR KALUSTEY TEMPLE CHIPLUN,

RATNAGIRI.

❖ KALUSTE IS A SMALL VILLAGE HAVING A POPULATION OF 1017 PEOPLE THE BUILT YEAR OF THE GRAMDAIVAT TEMPLE IS UNKNOWN BUT WAS RENOVATED IN 1998 USING COMPOSITE MATERIALS THE VILLAGE GRAM PANCHYAT HAVE DECIDED TO RENOVATE THE ENTIRE TEMPLE.

❖ THE SURVEY AND PROPOSAL PLAN WAS DONE BY ZENMARK ECO FIRM, MUMBAI AND APPROCHED NASADDEYA FOR COSULTANCY REGARDING THE STRUCTURE AND MATERIALS FOR THE SAME

UNESCO NOMINATION FOR MAHARASHTRA MILITARY AND SEA FORTS

❖ TO BE INCLUDED ON THE WORLD HERITAGE LIST, SITES MUST BE OF OUTSTANDING UNIVERSAL VALUE AND MEET AT LEAST ONE OUT OF TEN SELECTION CRITERIA THESE CRITERIA ARE EXPLAINED IN THE OPERATIONAL GUIDELINES FOR THE IMPLEMENTATION OF THE WORLD HERITAGE CONVENTION

❖ THE FIRST STEP A COUNTRY MUST TAKE IS TO MAKE AN ‘INVENTORY' OF ITS IMPORTANT NATURAL AND CULTURAL HERITAGE SITES LOCATED WITHIN ITS BOUNDARIES THIS ‘INVENTORY' IS KNOWN AS THE TENTATIVE LIST AND PROVIDES A FORECAST OF THE PROPERTIES THAT A STATE PARTY MAY DECIDE TO SUBMIT FOR INSCRIPTION IN THE NEXT FIVE TO TEN YEARS AND WHICH MAY BE UPDATED AT ANY TIME.

❖ THIS IS A COLLABORATIVE PROJECT BY CONSERVATION FIRMS– DRONAH FOUNDATION (AR SHIKHA JAIN) AND NASADEEYA ARCHITECTURE AND CONSERVATION ( AR. ARCHANA DESHMUKH) – AND OTHER PROMINENT EXPERTS IN THE FIELD

INVENTORY SKETCHES FOR BANKOT FORT ( DISTRICT RATNAGIRI)

Done by: Tanay Lalwani

INVENTORY SKETCHES FOR LOHAGAD FORT ( DISTRICT PUNE)

THANK YOU

I would like to express my sincere gratitude to Nasadeeya Architecture and Conservation for this opportunity to work as a Trainee that prioritized learning and self-improvement throughout my internship period of 6 months. What made the work worthwhile were my mentors. I am extremely grateful to Ar. Archana Deshmukh ma’am for guiding me and for giving me this opportunity that challenged me to stretch and grow. She has given me wonderful opportunities for my first step in design, site visits, client meetings and has been a constant drive for improvement.

I am equally grateful to all my mentors Ar. Ruchita Belapurkar, Ar. Devayani Kumavat, Ar. Pratiksha Dalvi and Ar. Shivraj Dangat who helped me deliver excellent results and inspired me to do my best. The dynamic nature of the place , the calibre of the team, ambition of the organisation and the work itself helped me be creative and adaptable to the team. I am also grateful to all you knowingly and unknowingly have been a part of making my internship a success. Last, but not the least, the team of co-interns made the internship period a time of fun, learning and of sharing insights and made this journey exciting and successful.
