Primer: Machine-to-Machine Communication Via PackML

WHAT YOU’LL LEARN

At PACK EXPO East 2022, Ron MacDonald of OMAC walked attendees through key states of PackML, highlighting their impact on successful packaging line operation.

PackML Primer What CPGs/brands need to know

By Dave Greenfield, Director of Content, Automation World

The PackML automation standard is used in the packaging machine industry to transfer and receive consistent data between machines on a packaging line. While it’s well known to machine builders, it offers important lessons for end users of equipment in food, beverage, pharmaceutical, and other consumer packaged goods industries.

At PACK EXPO East 2022, Ron MacDonald, R&D expert engineer at Nestlé and Chairman of OMAC (the Organization for Machine and Automation Control), which manages the PackML group overseeing the standard, gave a presentation to help end users understand how PackML helps manage packaging line flow to make their operations more efficient.

In his presentation, he explained four key states of the PackML standard: Held, Suspended, Blocked, and Starved.

The ‘Held’ state indicates that a machine on packaging line—such as a filler, capper, or case packer—wants to execute its operation, but some factor is holding it back. These factors can vary depending on the product being processed. For example, it could be caused by the temperature of the product; for a case packer, it could be that not enough cartons are available.

The “Suspended” state in PackML indicates an issue with a machine on the line. Essentially it means that the machine in that state is waiting on another machine on the line to have its issue corrected before resuming function. In this state the machine can restart operations as soon as the problem causing the issue is addressed, “with no operator intervention required,” MacDonald explained.

As the name implies, the “Blocked” state in PackML indicates a blockage on the line according to sensor data. “The ‘Blocked’ sensor is generally the most important performance monitoring sensor on the line,” said MacDonald, underscoring the impact of the “Blocked” state on packaging line performance. Likewise, the “Starved” state indicates that a machine on the line is not getting enough product to perform regular operation. “All of this matters because labor and material costs are high and end users want to get the most productive use out of their packaging equipment,” MacDonald said. That’s why “OEMs like to build in PackML on their equipment so that they all have the same kind of dashboard for communication.” Highlighting how the PackML states relate to automated machinery on the packaging line, MacDonald used an illustration of a packaging line section between a filler and a capper. “A ‘Blocked’ sensor would be positioned after the filler, while a ‘Starved’ sensor would be placed before the capper to maintain surges or infeed pressures,” he explained. “Surge sensors are positioned in between these two sensors to measure nominal and overspeed flows of prod-

PackML machine states described by OMAC’s Ron MacDonald.

uct. In a steady state flow of materials between the filler and capper, there will be some stacking of product just before the capper to keep it operating at maximum capacity. However, if something happens to block the flow of product between these two machines, it will trip the ‘Starved’ sensor on the capper.”

A common packaging line situation occurs when the capper gets jammed. In this situation, product will build up, causing the “Blocked” sensor to trip and sending the line into the “Suspended” state. “Once this situation is fixed, the surge function will go into overspeed, causing the capper to worker harder to draw down the accumulation of product, thereby sending the line back to ‘Steady’ state,” MacDonald said. “That’s why it’s important to make sure the machines you choose can comfortably handle overspeed operations for extended periods. Also watch ancillary functions, like printing and labeling applications, when setting overspeed conditions to make sure they can handle this too.”

He suggests addressing overspeed conditions with the OEM to determine the best machine and appropriate settings for your operation.

MacDonald also stressed the importance of defining the bottleneck (rate limit) for your packaging line. “All other machines normally run at the nominal speed of the bottleneck,” he said, “which is why it’s typically the most expensive and complex machine on a packaging line.”

Noting the importance and roles of the buffer and accumulation process in a packaging line, MacDonald said, “The buffer occurs before the bottleneck and creates a constant flow of product at the infeed to ensure the next machine on the line doesn’t go into the ‘Starved’ state. Accumulation occurs after the bottleneck to ensure the bottleneck has a place to discharge output to prevent choking. Operators may take comfort in the accumulation of product in front of the machine they operate, seeing it as an indication of work to do, but too much accumulation can flood the system and cause the filler to shut down, which is a situation you want to avoid.”

Essentially, the “whole line needs to work as a family to protect filler operations and ensure it doesn’t stop operation, which means subsequent machines on the line need to be capable of drawing down overflow with overspeed operation,” said MacDonald. “That’s why it’s important to determine usable accumulation in each section of the packaging line during steady state conditions.”

MacDonald also detailed the impact of MTBF (meantime between failure, which is machine uptime divided by the number of breakdowns) and MTTR (mean time to repair, which is downtime divided by the number of breakdowns). He said performing and maintaining these calculations will help address about 80% of stoppages. “They won’t always address major breakdowns, but they will address most basic line stoppages,” he said. PW

In this video, Jim Chrzan of PMMI Media Group speaks with Ron MacDonald at PACK EXPO East about his recommendations to ensure optimal packaging line performance.

But it always starts with YOU... Nothing inspires us more than the conversations we have with our customers about solving their most difficult challenges. Visit Us at Expo Pack this June and let’s see what we can create together! EXCEPTIONAL PEOPLE | INNOVATIVE PRODUCTS | WORLD-CLASS SERVICE Booth #2320

WHAT YOU’LL LEARN

Co-packer Deploys Packaging Innovations for Brita Bottled Water

B Water & Beverages works with Brita to design sustainable packaging for its first retail bottled water product that includes a sturdy, striking, refillable, recyclable aluminum bottle and a plastic-free paperboard carrier that is also fully recyclable.

Paperboard multipack carrier Reusable packaging Aluminum bottle innovation

By Anne Marie Mohan, Senior Editor

For more than 30 years, Brita has served its customers by providing faucet filtration and filter pitcher systems that improve the taste and quality of tap water and offer a sustainable alternative to single-use plastic bottles. Using a Brita® system to filter water results in four-times fewer greenhouse gas emissions than drinking bottled water and can eliminate the use of 1,800 single-use plastic bottles per year per household.

Given the brand’s strong sustainability position, when it considered putting a bottled water product into the retail market, it needed packaging that continued this commitment. By carefully vetting packaging materials and suppliers, it was able to introduce its product in a packaging format that—from container to carrier—uses the latest packaging innovation to provide a sustainable option to single-use plastic water bottles.

Brita’s Premium Purified Water, which launched in a number of large grocery chains nationwide in 2021, is packaged in a durable, refillable, plastic-free aluminum bottle, in an 18- and a 25-oz size, from Trivium Packaging. For its multipacks, Brita uses a unique, fully-recyclable paperboard carrier, the Fishbone from Atlantic Packaging, that uses less than half the material of a paperboard carton.

The culmination of the package was made possible by B Water & Beverages, Inc., a co-manufacturer/packager (CM&P) of water in aluminum bottles and cans located in San Fernando, Calif. B Water worked with Trivium to ensure the manufacture of a plastic-free bottle and introduced Brita to the Fishbone carrier, installing a custom, 600-can/ min automatic applicator designed by Serpa Packaging Solutions, a ProMach product brand, to create the plastic-free multipack.

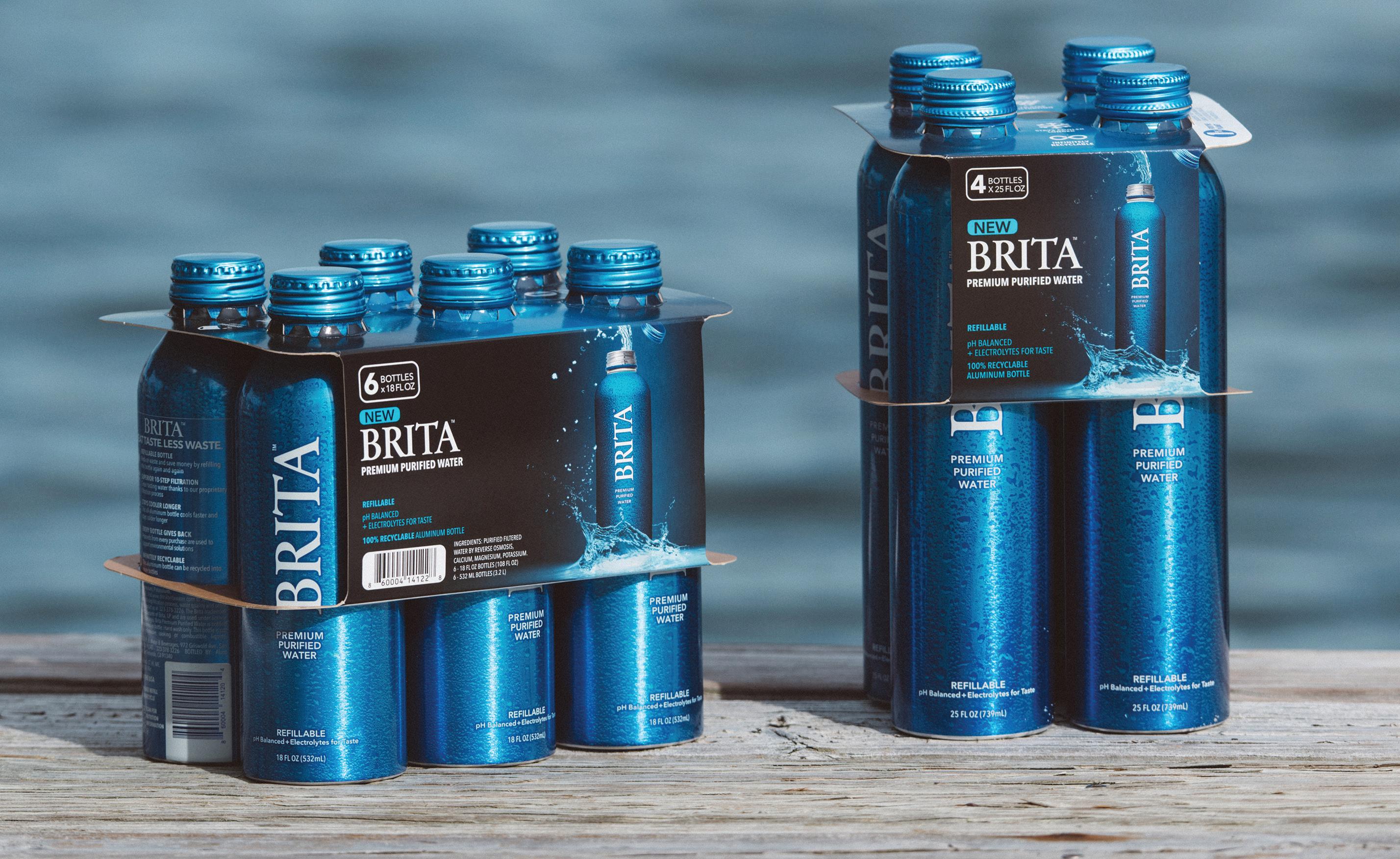

Brita’s Premium Purified Water is packaged in a durable, refillable aluminum bottle, in an 18- and a 25-oz size, with multipacks held together by the Fishbone C-Clip fully-recyclable paperboard carrier.

Watch a video of Fishbones being applied to Brita multipacks.

A custom, Serpa-engineered applicator applies a Fishbone carrier to the top of a six-pack of bottles.

Impact-extruded aluminum facilitates reusability

B Water & Beverages, led by company president Jennifer Brooks, operates a 45,000-sq-ft, state-of-the-art facility equipped with two fully automated packaging lines, the most recent one installed for Brita. B Water’s first line is dedicated to Blue Can 50-Year Shelf Life Emergency Water in 12- and 32-oz aluminum cans. Given B Water’s expertise in handling water in aluminum, Brita reached out to the company in 2020 to produce Brita Water. Says Brooks, after much due diligence, Brita selected B Water as the exclusive manufacturer of its new retail product.

According to Brooks, Brita had researched several packaging options before deciding upon aluminum. The first was glass. “But glass has its issues,” says Brooks. Among them, its heavy weight and shatter-ability. Another material it looked at was the multilayer carton. “But, that’s not sustainable either because for one, it has a plastic cap, which is not good for marine life, and two, it’s lined with aluminum, which makes it quite complicated to recycle,” she says.

“Aluminum, then, became the material of choice due to its light weight, durability, and infinite recyclability,” Brooks explains. From there, B Water worked with supplier Trivium to develop a refillable aluminum container, which was a primary goal of Brita’s. Collectively, the team decided on an impact-extruded bottle.

Explains Trivium Packaging VP – Head of Global Beverage Ryan Noward, two factors make impact-extruded bottles preferred for refill applications. “First, bottles produced from this technology provide the sturdiness that allows them to withstand multiple uses,” he says. “Second, in the impact-extrusion process, we have the ability to apply liners in a very specific manner, which provides the best internal coverage for the bottle.”

Brooks describes the bottle as a cross between a soda can and a stainless-steel bottle. “So, where stainless steel is very hard—you really can’t crush it with your hands—and a soda can is easily crushed, the impact-extruded can is in-between in terms of thickness and durability.”

Testing the bottle over a three-week period, B Water found it could be uncapped, emptied, refilled, and recapped without any degradation to the bottle liner, the bottle, or the cap. “So it’s definitely refillable, and that’s really the key to help with saving the planet,” says Brooks. “It’s about reducing or eliminating single-use containers of any kind, but especially plastic.”

B Water has found that consumers often drink the water and then refill the bottle throughout the day, on-the-go, to meet their recommended daily intake of water.

Supplier expertise enables plastic-free bottle

B Water wanted a 100% aluminum bottle so that it would be curbside-recyclable. In selecting a bottle supplier, Brooks says that one of the things that attracted B Water to Trivium was its willingness to work with the CM&P to drive innovation. Traditionally, with larger aluminum

bottles such as the 25-oz size, a plastic outsert is needed on the neck of the bottle to receive the aluminum closure.

Trivium developed, and then made a significant investment in, the capability to produce metal threads directly onto the bottle. According to Noward, it’s less about the equipment and more about the technical know-how. “While there was new equipment involved, the bulk of the effort came in the form of engineering and development work,” he says. “Tom Chupak, Keith Mitchell, Nicole Gailey, and the broader R&D and Innovation team in Youngstown [Ohio] worked tirelessly to develop this capability.

“Forming metal threads on a bottle is a complicated, difficult process that Trivium’s years of experience in impact extrusion allowed us to execute. Once the technology was developed, Plant Manager Michael Wood and the operations team dialed in on how to produce the bottles at scale.”

Says Brooks, “We were the first ones to have fully 100% aluminum bottles with no plastic outsert and closures formthreaded directly onto the neck of the bottle. So we were excited about that, and we’re thrilled about our partnership with Trivium as well.”

Trivium also prints the bottles in-line as part of the production pro-

cess. Says Noward, the company can print aluminum bottles in up to nine colors “with photorealistic quality.” The Brita bottle is a beautiful example of this. The slim, column-shaped container has a deep ocean-blue background, with a darker blue pattern throughout that makes the bottle appear as if it’s covered in water droplets. The copy is white, with the Brita logo running vertically along the front panel. On the back are printed icons, accompanied by copy that reads, “Refillable Bottle,” “Superior 10-Step Filtration,” “Every Bottle Gives Back” (proceeds from every purchase are used to support environmental solutions), and “Infinitely Recyclable.” The all-aluminum cap, supplied by G3 Enterprises, is the same blue as the bottle. Paperboard carrier completes sustainable proposition Jennifer Brooks, President, After investing the time and resources to creB Water & Beverages ate a durable, refillable bottle that was also fully curbside recyclable, Brita and B Water were loath to offer consumers multipacks held together by plastic ring carriers. Some years before the Brita project, B Water was introduced to Atlantic’s Fishbone paperboard can carrier when looking for an option for a sixpack of cans, but the project never came to fruition.
