NEW PRODUCTS

The DPST/DPDT 5A PCB power relay series meets glow-wire test requirement standard IEC/EN60335, which addresses the safe operation of consumer and commercial electrical appliances. The low-profile (16.5mm) FTR-F1-GW relay series is rated from 1.5 to 110V. Designed for safety, it features a reinforced insulation construction, 8mm minimum insulation distance between coil and contact, a surge strength of 10,000V, and a dielectric strength of 5,000V AC for extended flammability protection. The plastic, sealed relay measures 12.8Lx29Wx16.5Hmm and weighs 12.0g. It is available with either standard (530mW and 550mW) or high sensitivity (400mW) coils and has an operating temperature range of -40° to +75° C. Typical applications include factory automation equipment as well as power protection equipment and solar panels.

Litmus Edge 3.0 is an edge platform to collect and analyze data, build and run applications, and integrate edge data with any cloud or enterprise system. Litmus Edge 3.0 adds more device drivers to bring the total to more than 250, with enhanced analytics, improved integration connectors, digital twin support, and expanded device management features. Other new features of Litmus Edge 3.0 include: second generation industrial communication drivers focusing on security and scalability for southbound communications; enhanced “Ready Analytics,” which now includes the ability to run Tensorflow and other machine learning algorithms natively on real-time ingested data; and an improved user interface for one-click application orchestration.

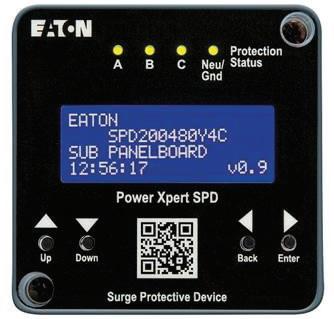

The Power Xpert SPD is the latest addition to Eaton’s family of surge protective devices, which leverage advanced connectivity to help protect vital equipment from potentially devastating surge events. Offering advanced monitoring display and communication capabilities in addition to historical surge logging, the Power Xpert SPD is effective for industrial environments where avoiding downtime caused by surge events is critical. The Power Xpert SPD also enables customers to capture and categorize surge events by low, medium, and high categories, according to IEEE standard C62.41. The connected solution enables customers to remotely monitor surge data in real time or store events in a log with time and date stamps they can use to predict future surge events or enact proactive maintenance of critical equipment.

The LVCM-010-013-01 linear voice coil motor is 0.375 in. (9.5 mm) in diameter and the length at mid-stroke is 0.81 in. (20.7 mm) long. This miniature voice coil motor has a high force-to-size ratio with a continuous force of 1.0 oz (0.28 N), a peak force of 3.2 oz (0.88 N), and a 0.25 in. (6.4 mm) stroke. As a brushless DC linear servo motor with high acceleration/deceleration and low inertia, the LVCM-010-013-01 is highly efficient for haptic feedback in medical/surgical instruments, vibration damping, work holding and clamping, laser machining and drilling, assembly, sorting, packaging, sampling, scanning, laser beam steering and filtering, wafer handling, and pharmaceutical applications.
