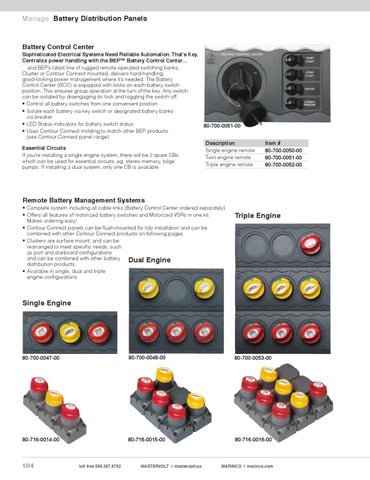

Manage: Battery Distribution Panels
Battery Control Center Sophisticated Electrical Systems Need Reliable Automation. That’s Key. Centralize power handling with the BEP™ Battery Control Center… …and BEP’s latest line of rugged remote-operated switching banks, Cluster or Contour Connect mounted, delivers hard-handling, good-looking power management where it’s needed. The Battery Control Center (BCC) is equipped with locks on each battery switch position. This ensures group operation at the turn of the key. Any switch can be isolated by disengaging its lock and toggling the switch off. Control all battery switches from one convenient position Isolate each battery via key switch or designated battery banks via breaker LED Status indicators for battery switch status. Uses Contour Connect molding to match other BEP products. (see Contour Connect panel range) Essential Circuits If you’re installing a single engine system, there will be 2 spare CBs which can be used for essential circuits, eg. stereo memory, bilge pumps. If installing a dual system, only one CB is available.
80-700-0051-00 Description Single engine remote Twin engine remote Triple engine remote
Item # 80-700-0050-00 80-700-0051-00 80-700-0052-00
Remote Battery Management Systems Complete system including all cable links (Battery Control Center ordered separately) Offers all features of motorized battery switches and Motorized VSRs in one kit. Makes ordering easy!
Triple Engine
combined with other Contour Connect products on following pages. Clusters are surface mount, and can be and can be combined with other battery distribution products. Available in single, dual and triple
Dual Engine
Single Engine
80-700-0047-00
80-700-0048-00
80-700-0053-00
80-716-0014-00
80-716-0015-00
80-716-0016-00
104
